Features:
- 5 HP motor supports centralized dust collection systems
- 10" inlet splits into three 4" ports for flexible ducting
- Remote control switch with LED drum and filter alerts
- Smart drum system signals when collection is full
- Automatic canister cleaning cycles every hour
- 1 micron filtration captures fine dust particles
- High airflow supports multiple tool connections
Specifications:
- Motor Power: 5 HP
- Voltage: 220 V
- Amperage: 22.4 A
- Phase: Single Phase
- Recommended Breaker: 40 A
- Frequency: 60 Hz
- Motor Speed: 3450 RPM
- Shop Setting Airflow: 2450 CFM
- Inlet Airflow: 4295 CFM
- Max Static Pressure: 12.1"
- Impeller Diameter: 16"
- Impeller Material: Steel
- Impeller Type: Radial Fin
- Inlet Diameter: 10"
- Drum Capacity: 54 gal
- Filtration Efficiency: 99.97% @ 0.2–2 micron
- MERV Rating: 12
- Filter Surface Area: 162 sq ft
- Canister Diameter: 23.62"
- Canister Length: 47.24"
- Noise Level: 76 dB(A) @ 9.8 ft
- Machine Weight: 717 lb
- Shipping Weight: 948 lb
- Shipping Dimensions: 75" x 39" x 80"
- Assembled Dimensions: 73" x 39" x 111"
What's Included:

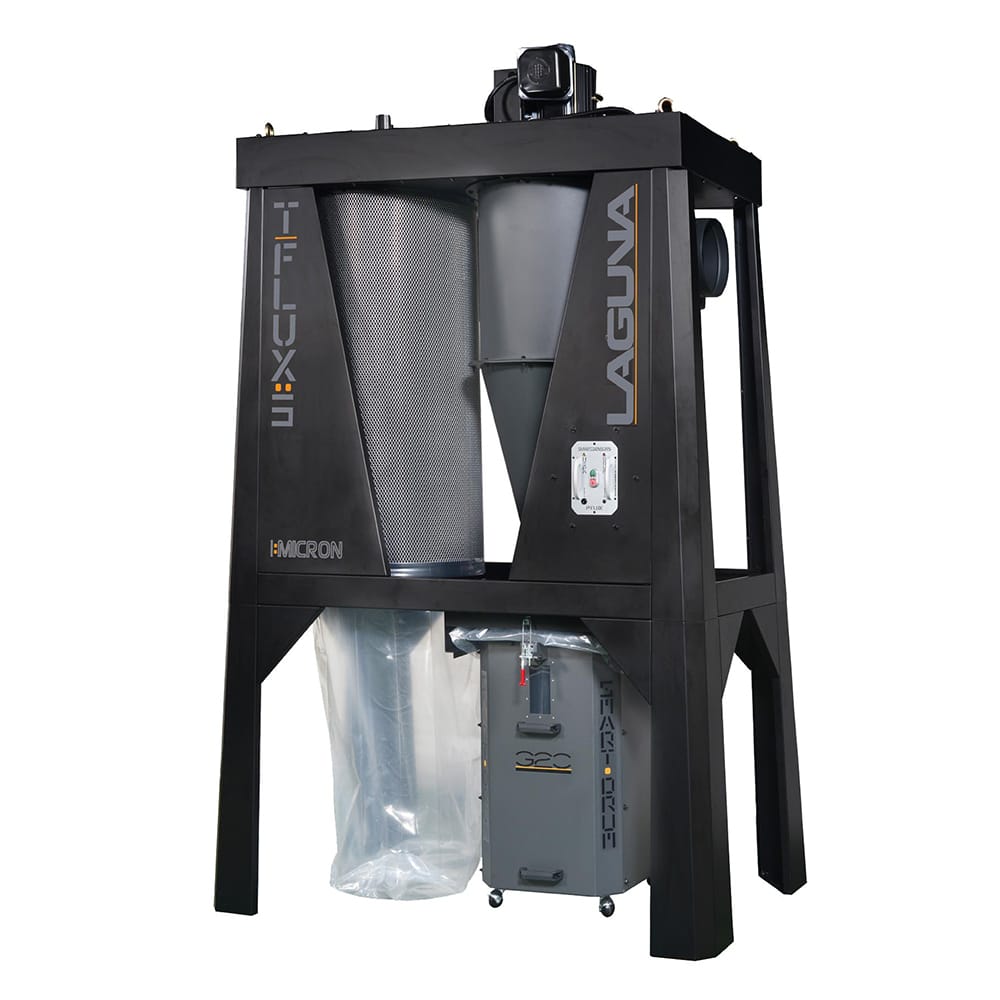

- (1) T|Flux 5 Cyclone Dust Collector
- (1) Remote Control
- (1) Canister Filter Assembly

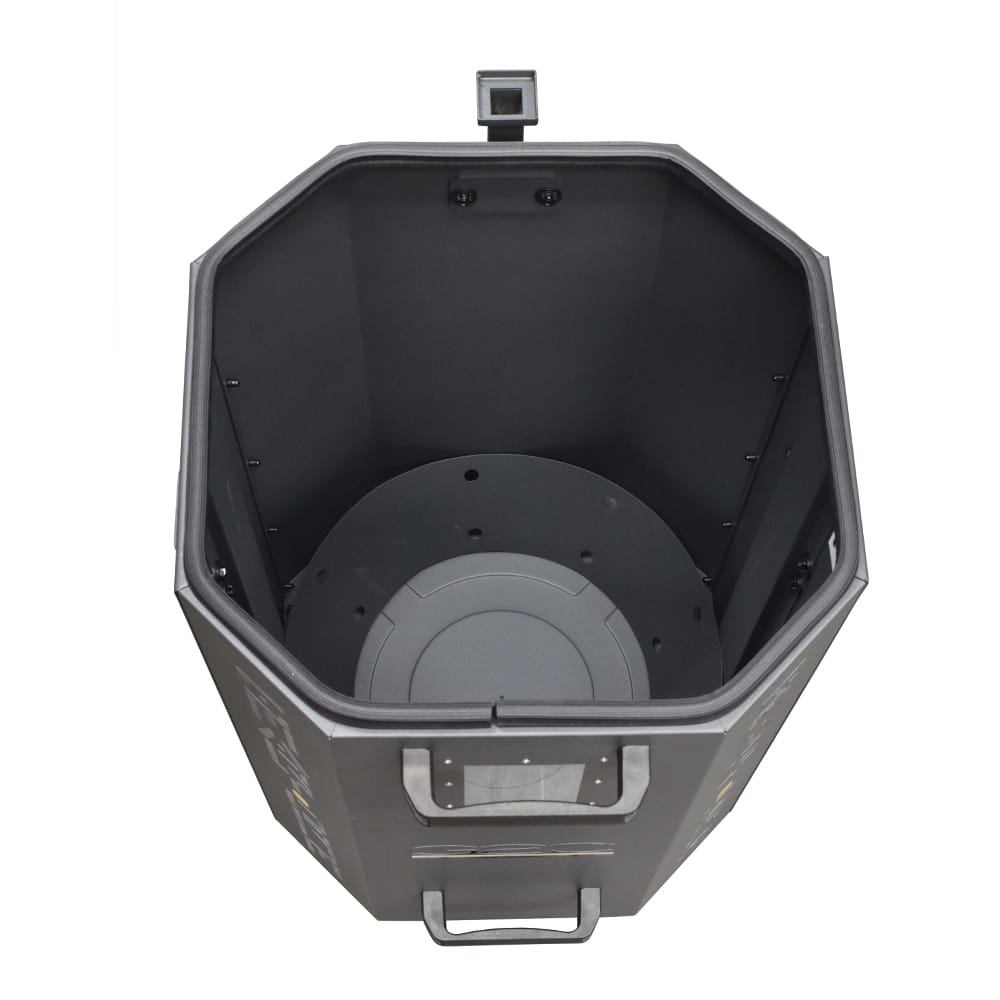

- (1) Collection Drum
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 4 weeks.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
- Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time.
Return Information
Warranty Information
New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.
For warranty repair information, call 1-800-332-4094.
