Laguna

T|flux:10 Industrial Cyclone Dust Collector

Item #300243 Model MDCTF102203
$ 10,499 00
$ 10,499 00 Was $10,499.00
New
  • T|flux:10 Industrial Cyclone Dust Collector
  • T|flux:10 Industrial Cyclone Dust Collector
1 2

Laguna

T|flux:10 Industrial Cyclone Dust Collector

Item #300243 Model MDCTF102203
$ 10,499 00
$ 10,499 00 Was $10,499.00
Laguna Model MDCTF102203 T|Flux 10 Cyclone Industrial Dust Collector is built for full shop dust control using a single central system. It supports en. . . View More Details
Ships from Manufacturer Shipping Info

About This Product

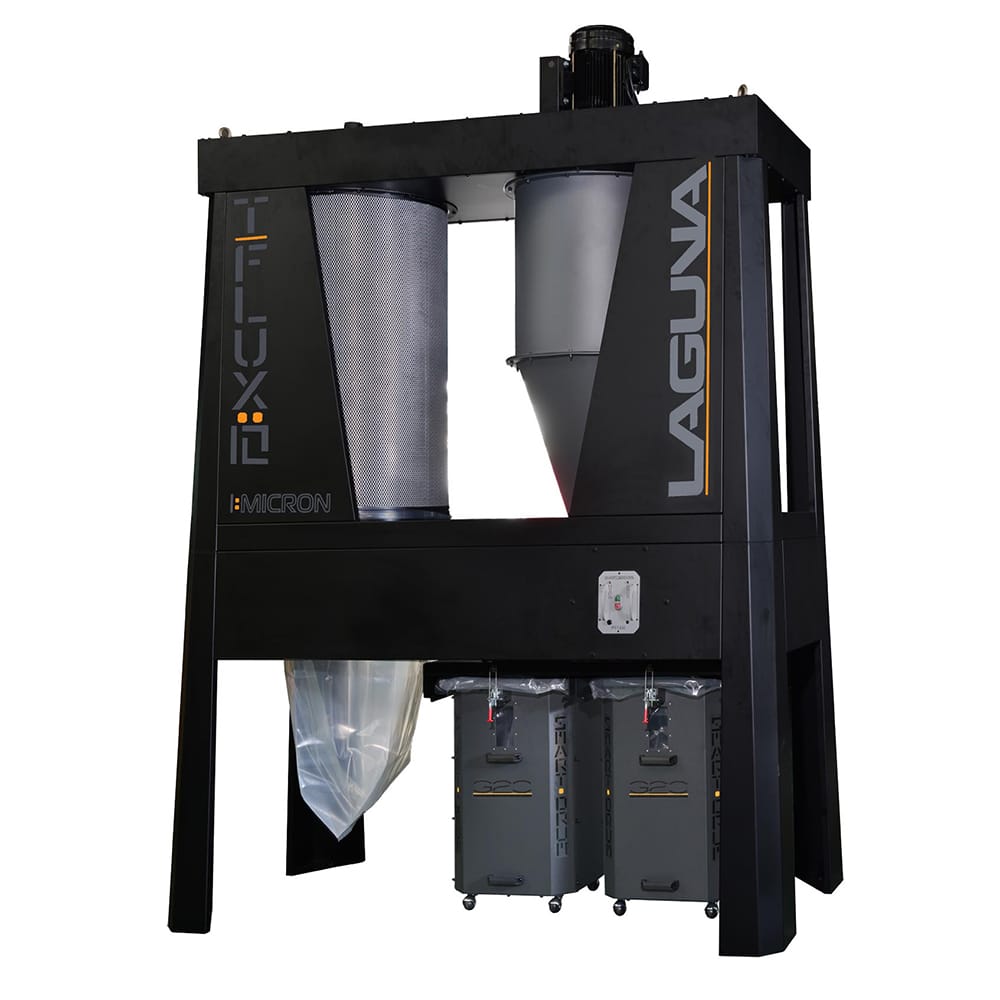

Laguna Model MDCTF102203 T|Flux 10 Cyclone Industrial Dust Collector is built for full shop dust control using a single central system. It supports environments running multiple machines at once, maintaining airflow across long duct runs while keeping fine dust and chips moving through the system.
A 10 HP motor drives high air volume through a 12" main inlet that branches into multiple drops, allowing larger duct layouts without losing suction at the machine. Strong inlet CFM and higher static pressure help maintain performance as systems expand, keeping collection consistent at each connection point. This allows longer runs and multiple machines without the drop in airflow that can impact cut quality and shop cleanup.
The 1 micron canister filtration system captures fine airborne dust while maintaining airflow through a large filter surface. Automatic cleaning cycles run on a timer to reduce buildup inside the filter, helping the system continue moving air without manual intervention. Dual smart drums track collection levels and signal when they are ready to be emptied, reducing interruptions and preventing overflow during extended use.
Remote operation keeps system control accessible, while integrated alerts provide clear status on filter condition and drum capacity. This setup supports steady airflow and dust collection throughout demanding shop use without frequent manual adjustments.

Features:

  • 10 HP motor supports centralized dust collection
  • 12" inlet splits into multiple branch connections
  • High airflow maintains suction across long duct runs
  • Remote control with LED drum and filter alerts
  • Dual smart drums monitor collection levels
  • Automatic canister cleaning on timed cycle
  • 1 micron filtration captures fine airborne dust

Specifications:

  • Motor Power: 10 HP
  • Voltage: 220 V
  • Amperage: 30 A
  • Phase: 3 Phase
  • Recommended Breaker: 50 A
  • Frequency: 60 Hz
  • Motor Speed: 3450 RPM
  • Shop Setting Airflow: 4030 CFM
  • Inlet Airflow: 6957 CFM
  • Max Static Pressure: 16.8"
  • Impeller Diameter: 18.5"
  • Impeller Material: Steel
  • Impeller Type: Radial Fin
  • Balance Standard: ISO 1940
  • Inlet Diameter: 12"
  • Drum Capacity: 54 gal x 2
  • Filtration Range: 0.2–2 micron
  • MERV Rating: 12
  • Filter Surface Area: 207 sq ft
  • Canister Diameter: 29.53"
  • Canister Length: 47.24"
  • Noise Level: 81 dB(A) @ 9.8 ft
  • Machine Weight: 1301 lb
  • Shipping Weight: 1621 lb
  • Shipping Dimensions: 100" x 49" x 86"
  • Assembled Dimensions: 99.6" x 48.3" x 131.4"

What's Included:

  • (1) T|Flux 10 Cyclone Dust Collector
  • (2) Collection Drums
  • (1) Remote Control
  • (1) Canister Filter Assembly

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 4 weeks.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
  • Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time.

Return Information

Laguna does not accept returns. If your shipment was damaged, please refuse delivery, for defective items, please contact Woodcraft Supply customer service @ 1-800-535-4482.

Warranty Information

New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.

For warranty repair information, call 1-800-332-4094.
