Laguna

Pro 37″ Widebelt 20HP 3PH

Item #300257 Model MSANWB37X75-1K-20-0197-1
$ 25,999 00
$ 25,999 00 Was $25,999.00
New
  • Pro 37″ Widebelt 20HP 3PH
1 1

Laguna

Pro 37″ Widebelt 20HP 3PH

Item #300257 Model MSANWB37X75-1K-20-0197-1
$ 25,999 00
$ 25,999 00 Was $25,999.00
a { text-decoration: none; color: #464feb;}tr th, tr td { border: 1px solid #e6e6e6;}tr th { background-color: #f5f5f5;}The Laguna MSANWB3. . . View More Details
Ships from Manufacturer Shipping Info

About This Product

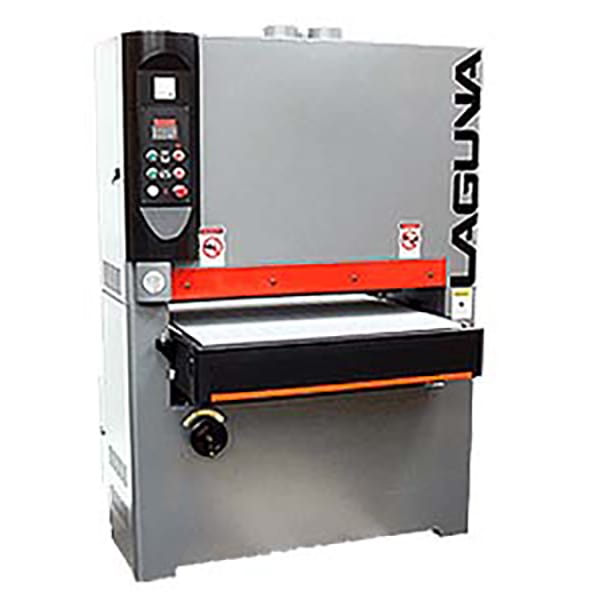

The Laguna MSANWB37X75-1K-20-0197-1 MW37 Pro Metal Wide Belt Sander is built for high-volume sanding, deburring and surface preparation where consistency matters. With a 20 HP main motor and extended 75" belt, it maintains steady material removal across wider workpieces and heavier stock.
The single sanding head and 8" drum keep contact pressure even across the surface, which helps reduce chatter and uneven finishes. A variable conveyor speed from 12 to 60 FPM lets you control how aggressively material is removed. Slower speeds support finer finishing, while higher speeds keep throughput moving on demanding runs.
Digital controls with programmable logic and auto-height adjustment remove guesswork from setup. The system automatically positions the table to match your target thickness, which reduces manual adjustment time and supports repeatable results across multiple passes. Belt oscillation spreads wear across the abrasive, helping maintain a consistent cut and extend belt life.
A rigid steel cabinet and controlled feed system keep material tracking stable through the machine. Multiple dust ports support consistent chip removal, which helps maintain sanding quality and keeps buildup from affecting performance over longer runs.
Features:
  • Single sanding head maintains consistent surface contact
  • 20 HP main motor supports heavy material removal
  • Variable conveyor speed from 12 to 60 FPM
  • Digital control panel with programmable logic
  • Auto-height adjustment with tolerance detection
  • Belt oscillation distributes abrasive wear
  • Steel cabinet reduces vibration during operation
  • Three dust ports support efficient debris collection
  • Sanding belt motor brake adds stopping control

Specifications:

  • Motor Type: 3 Phase
  • Main Motor Power: 20 HP
  • Feed Motor Power: 1 HP
  • Table Lift Motor Power: 1/4 HP
  • Belt Size: 37" x 75"
  • Maximum Sanding Width: 36-1/2"
  • Maximum Sanding Height: 6"
  • Minimum Sanding Height: 26 Gauge
  • Drum Diameter: 8"
  • Drum Length: 37.9"
  • Drum Speed: 1720 RPM
  • Feed Speed: 12–60 FPM
  • Dust Port Size: 5"
  • Number Of Dust Ports: 3
  • Footprint: 19" x 51-1/2"
  • Conveyor Height: 31.9"
  • Table Height: 37.4"
  • Operating Air Pressure: 60 PSI
  • Net Weight: 1675 lb
  • Shipping Weight: 2006 lb

What's Included:

  • (1) 37" Pro Metal Wide Belt Sander
  • (1) 37" x 75" Sanding Belt
  • (1) Owner’s Manual
  • (3) Dust Ports

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 4 weeks.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
  • Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time.

Return Information

Laguna does not accept returns. If your shipment was damaged, please refuse delivery, for defective items, please contact Woodcraft Supply customer service @ 1-800-535-4482.

Warranty Information

New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.

For warranty repair information, call 1-800-332-4094.
