- Sliding table supports full-length panel handling
- Main motor maintains cutting speed under load
- Scoring blade reduces tear-out on finished surfaces
- Micro-adjust rip fence supports precise positioning
- Telescoping crosscut fence extends cutting capacity
- Overhead guard with swing-away access
- Soft start reduces startup load
- Dual dust ports improve chip collection
Specifications:
- Motor Power: 7.5 HP
- Voltage: 220 V
- Phase: 3PH
- Blade Diameter Capacity: 12"/14"
- Maximum Blade Diameter: 16"
- Minimum Blade Height: 1"/25 mm
- Maximum Scoring Blade Diameter: 4-3/4"/120 mm
- Arbor Size: 30 mm/20 mm
- Maximum Cutting Height At 90° (16" Blade): 5-1/8"/130 mm
- Maximum Cutting Height At 90° (14" Blade): 4-1/2"/115 mm
- Maximum Cutting Height At 45° (16" Blade): 3-1/2"/90 mm
- Maximum Cutting Height At 45° (14" Blade): 2-3/4"/70 mm
- Main Blade Speed: 4000 RPM
- Scoring Blade Speed: 8000 RPM
- Dust Port Size Saw: 4-3/4"/120 mm
- Dust Port Size Guard: 4"/100 mm
- Sliding Table Length: 126"
- Sliding Table Width: 14.88"
- Main Table Size: 21-1/2" x 35-1/4"
- Rip Capacity: 51"
- Crosscut Capacity: 140"
- Machine Weight: 1815 lb
What's Included:

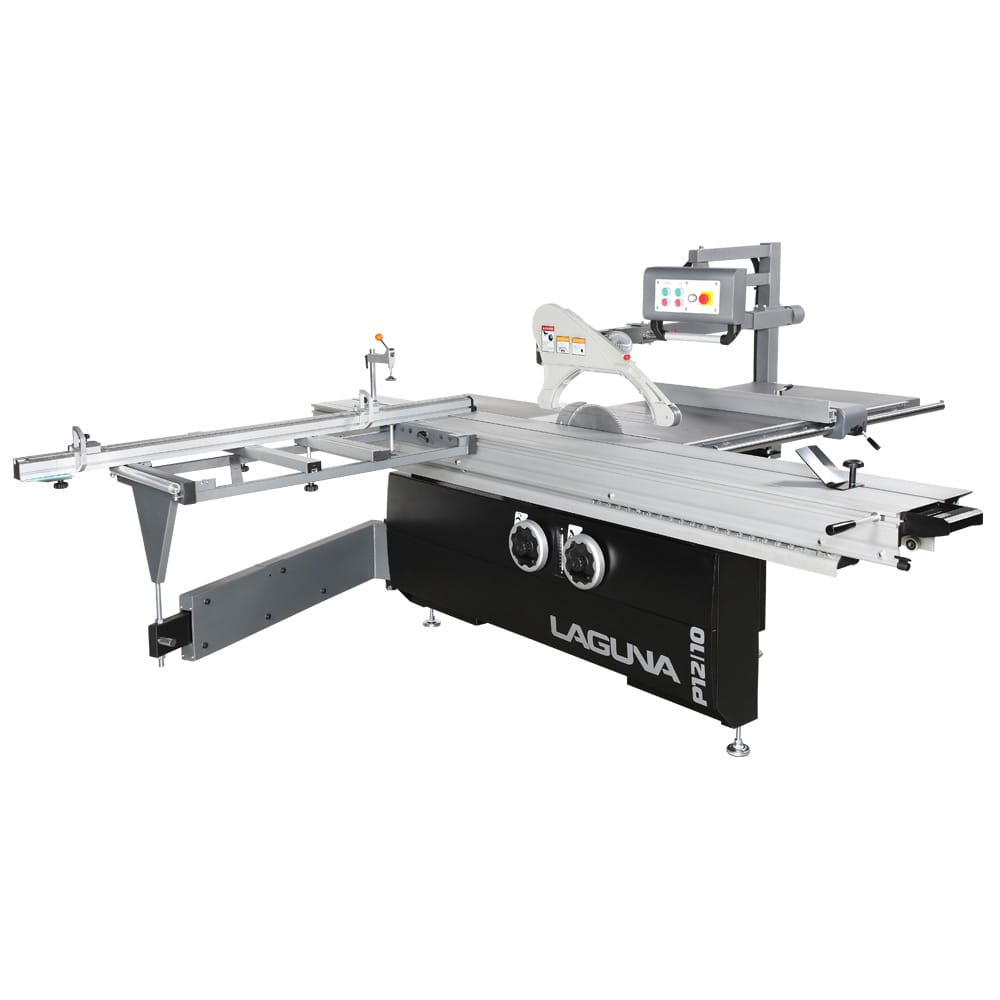

- (1) Panelsaw Machine
- (1) Blade System
- (1) Scoring Blade System
- (1) Sliding Table
- (1) Crosscut Fence System
- (1) Rip Fence System
- (1) Hold-Down Clamp
- (1) Rip Shoe
- (1) Push Handle
- (1) Control Panel
- (1) Dust Port System
- (1) Overhead Guard System
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 4 weeks.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
- Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time.
Return Information
Warranty Information
New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.
For warranty repair information, call 1-800-332-4094.
