Features:
- 5 HP motor maintains cutting force through dense stock
- 17‑5/8" resaw capacity supports thicker material
- 23‑1/4" throat capacity allows longer pass cuts

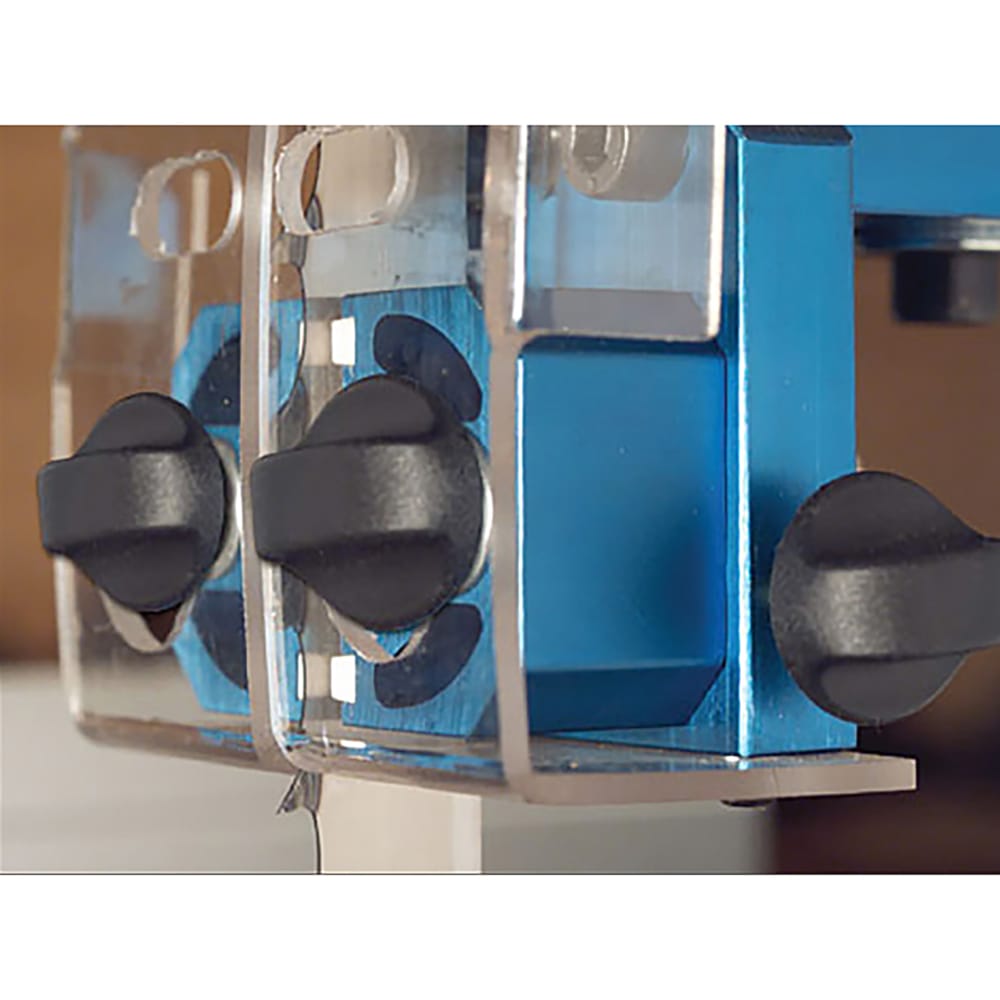

- Laguna guide system manages blade tracking under load

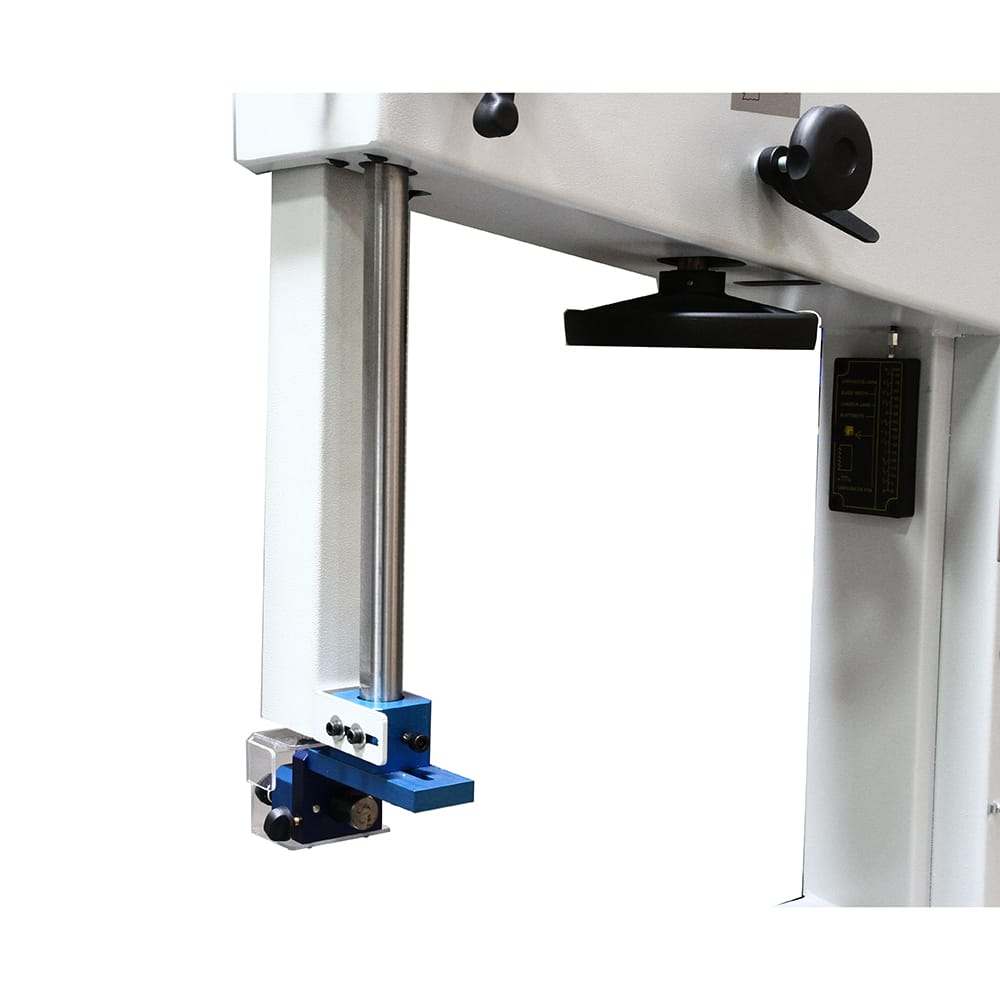

- Rack and pinion upper guide enables precise adjustment
- EZ tension indicator helps set blade tension quickly

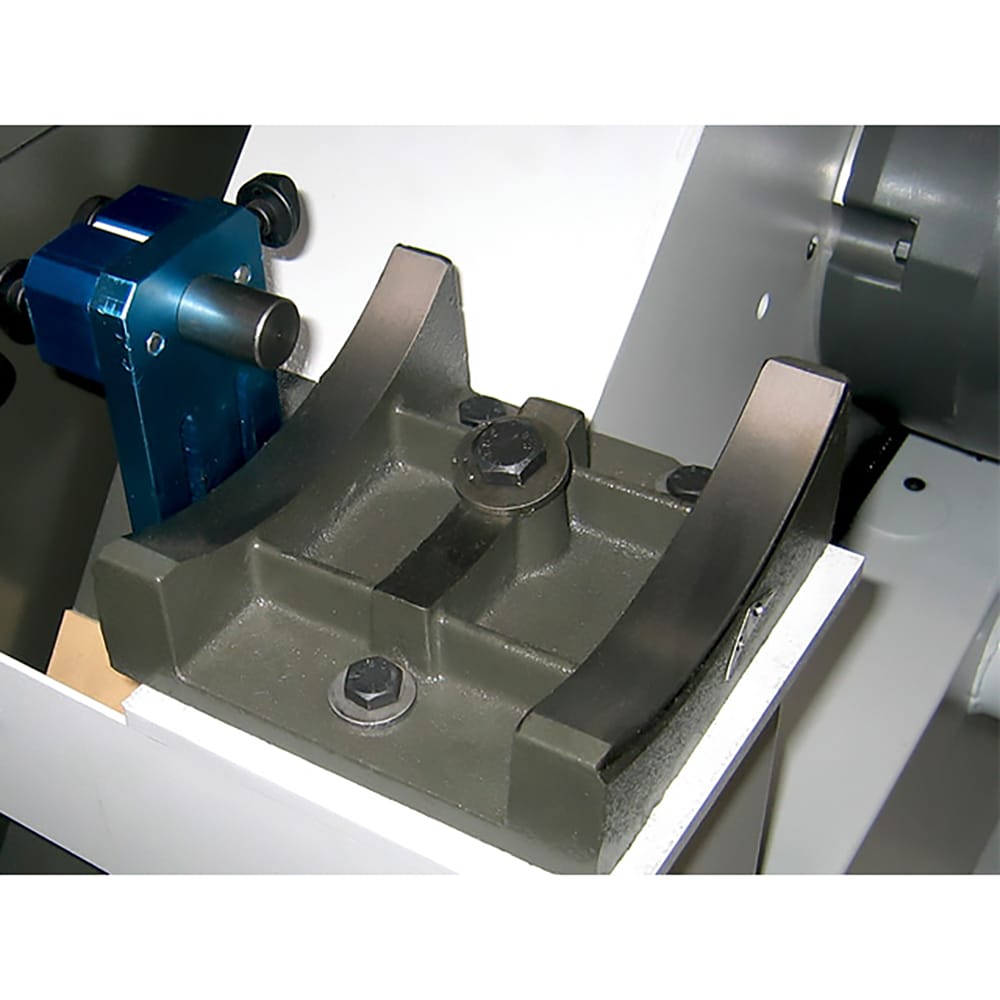

- Geared trunnions provide controlled table movement

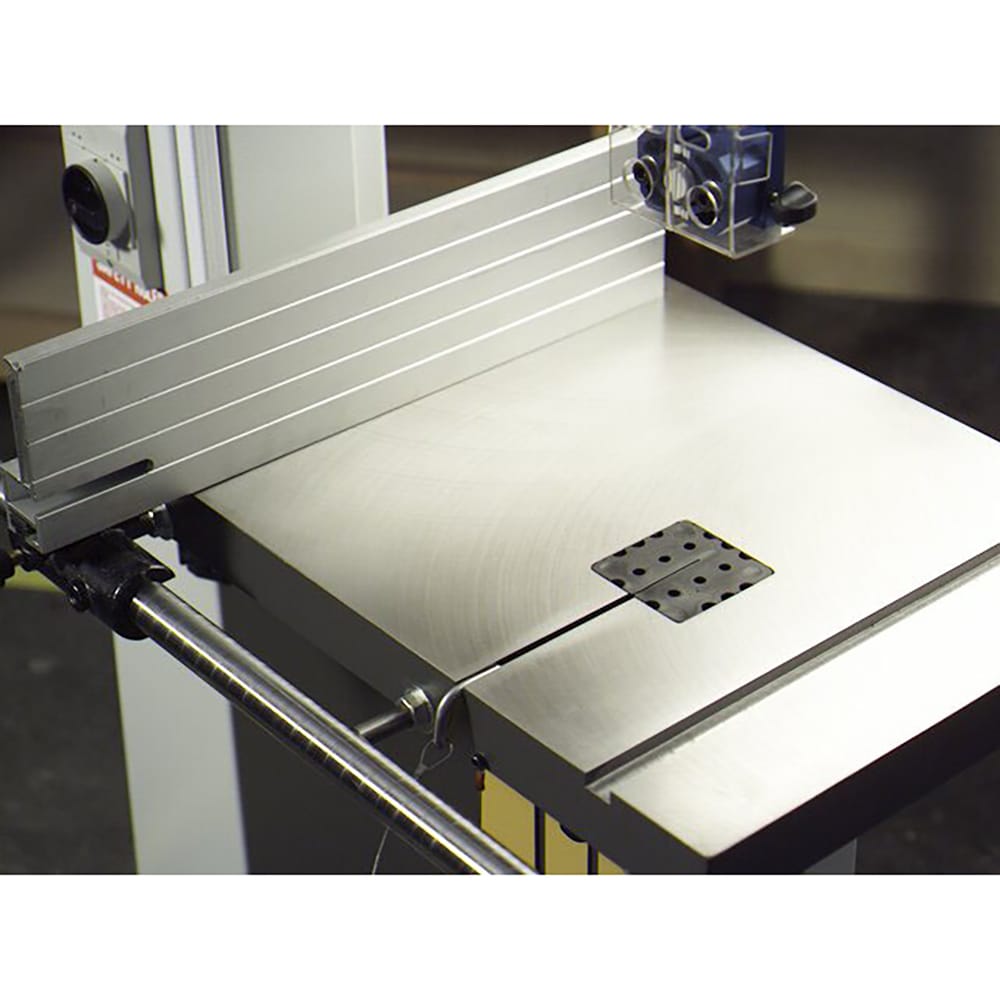

- High/low aluminum fence adjusts to different cutting heights
- Foot brake assists with controlled stopping
- 4" dust port supports dust collection
Specifications:
- Motor Power: 5 HP/7.5 HP
- Voltage: 220 V
- Phase: 1 Ph/3 Ph
- Recommended Breaker: 30/40 A
- Resaw Capacity: 17-5/8"
- Throat Capacity: 23-1/4"
- Blade Length: 183"
- Minimum Blade Width: 1/8"/1/4"
- Maximum Blade Width: 1-1/2"
- Blade Guides: Laguna Guides
- Upper Guide Type: Rack And Pinion
- Table Size: 24" x 34-1/2"
- Table Height: 35"
- Base Size: 15" x 41-3/8"
- Overall Height: 84-1/2"
- Dust Port Diameter: 4"
- Weight: 725 lb/825 lb
- Shipping Dimensions: 36" x 40" x 96"
What's Included:
- (1) Bandsaw unit
- (1) Table assembly
- (1) High/low aluminum fence
- (1) Laguna guide assembly set
- (1) Blade guard system
- (1) Dust port connection
Note: Blade Not Included
