Features:
- 5 HP motor maintains feed rate through thick stock
- 18‑3/8" resaw capacity reduces the number of passes required
- 17" throat capacity supports wider material

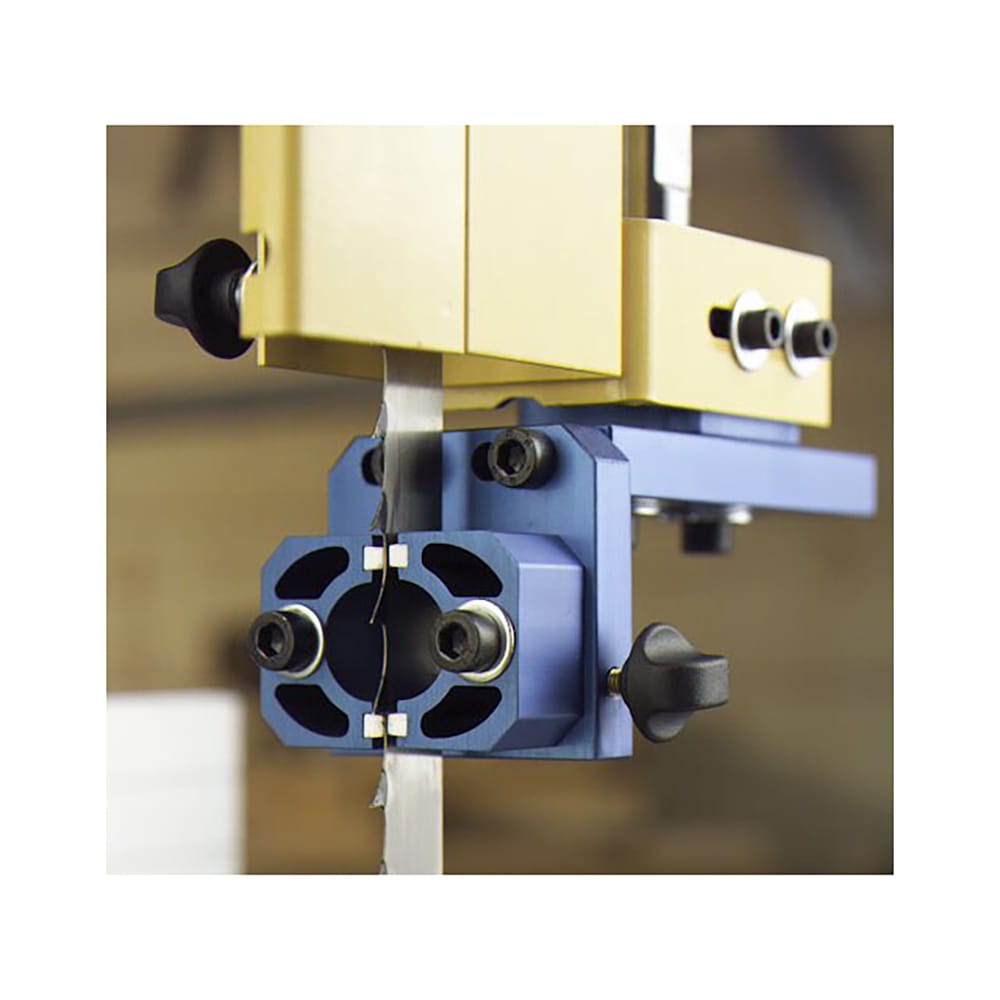

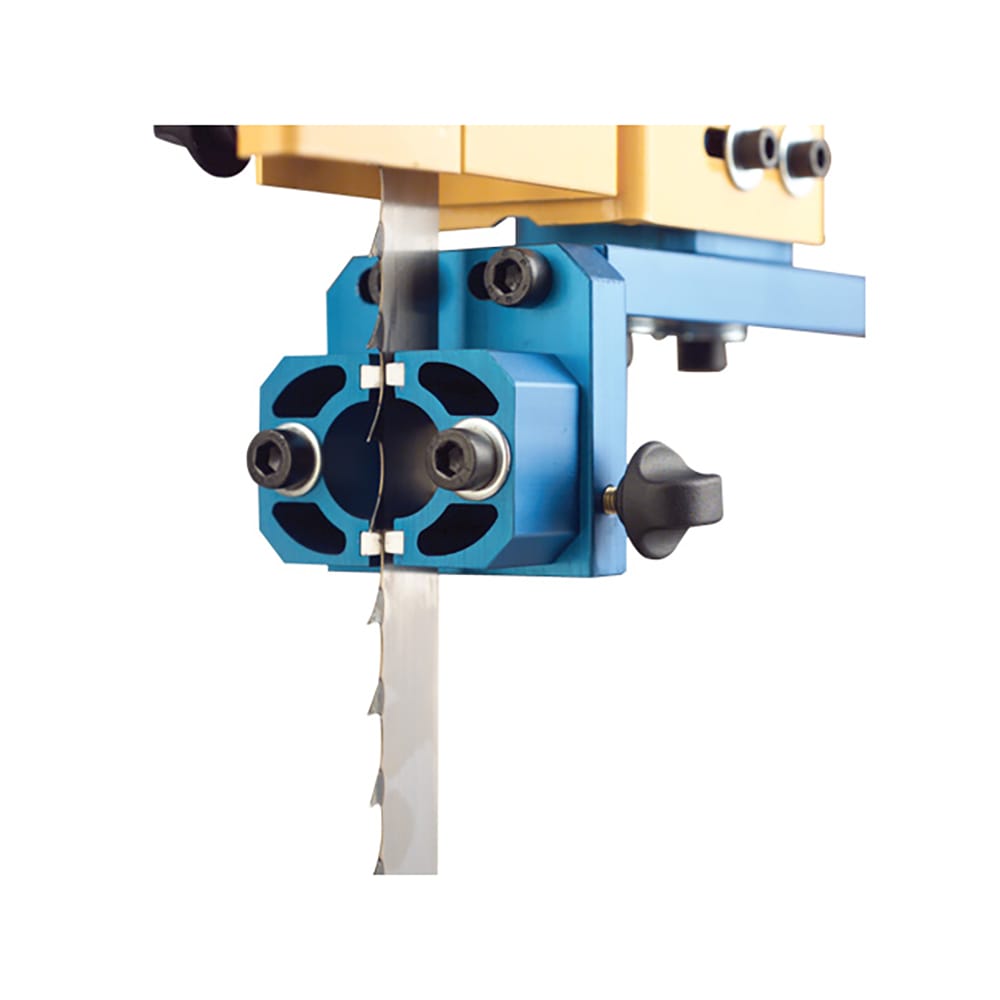

- Laguna guide system controls blade tracking under load

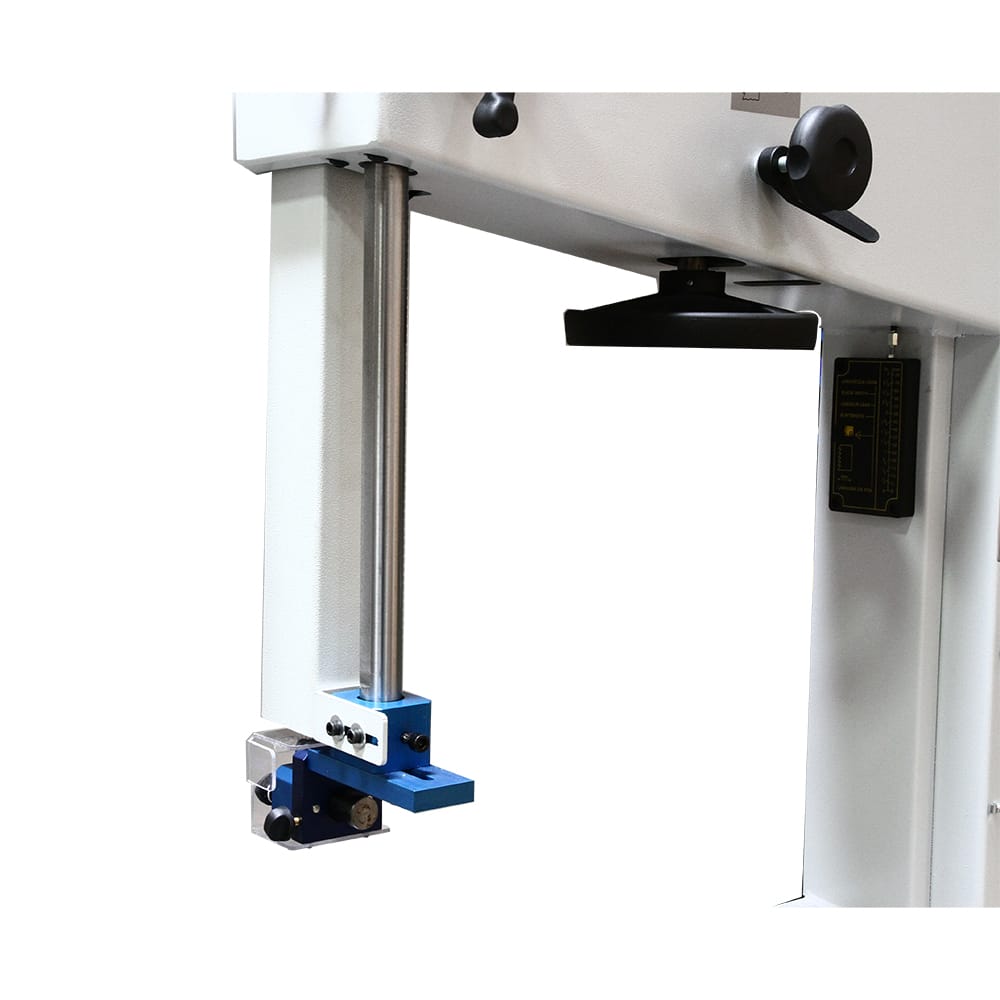

- Rack and pinion upper guide allows precise height adjustment
- EZ tension indicator simplifies blade setup

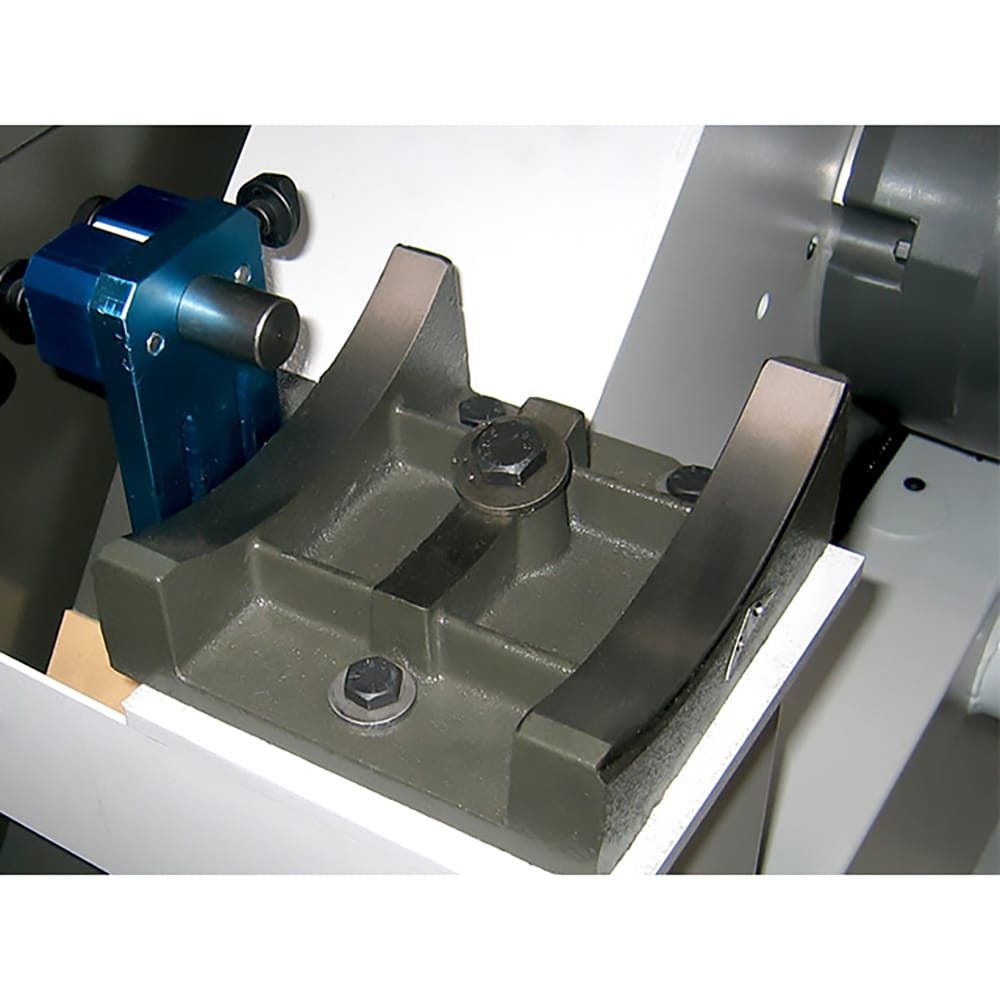

- Geared trunnions provide controlled table movement

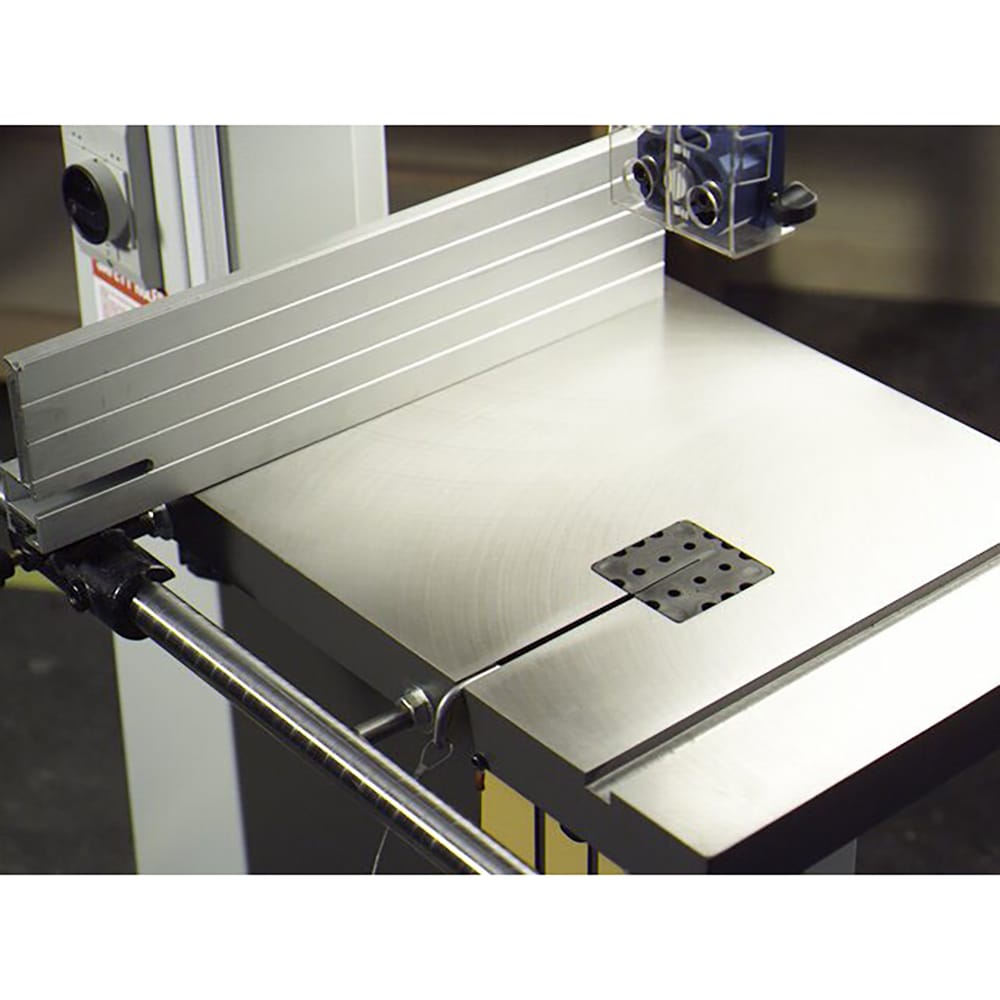

- High/low aluminum fence adjusts for resaw and standard cuts
- Wide blade capacity supports multiple cutting styles
- 4" dust port supports chip collection
Specifications:
- Motor Power: 5 HP
- Voltage: 220 V
- Phase: 1 Ph/3 Ph
- Recommended Breaker: 30 A
- Resaw Capacity: 18-3/8"
- Throat Capacity: 17"
- Blade Length: 158"
- Minimum Blade Width: 1/16"/1/4"
- Maximum Blade Width: 1-1/4"
- Blade Guides: Laguna Guides
- Upper Guide Type: Rack and Pinion
- Table Size: 19" x 25"
- Table Height: 33-1/2"
- Base Size: 15" x 27"
- Overall Height: 77-1/2"
- Dust Port Diameter: 4"
- Weight: 510 lb/550 lb
- Shipping Dimensions: 36" x 40" x 89"
What's Included:
- (1) Bandsaw unit
- (1) Table assembly
- (1) High/low aluminum fence
- (1) Laguna guide assembly set
- (1) Blade guard system
- (1) Dust port connection
Note: Blade Not Included
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 4 weeks.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
- Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time.
Return Information
Warranty Information
New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.
For warranty repair information, call 1-800-332-4094.
