Laguna

I|Flux: 10 Elite Dust Collector

Item #300246 Model MDCIF102203
$ 16,299 00
$ 16,299 00 Was $16,299.00
New
  • I|Flux: 10 Elite Dust Collector
1 1

Laguna

I|Flux: 10 Elite Dust Collector

Item #300246 Model MDCIF102203
$ 16,299 00
$ 16,299 00 Was $16,299.00
Laguna Model MDCIF102203 I|Flux 10 Elite Industrial Dust Collector is built for shops that require strong airflow combined with high filter capacity f. . . View More Details
Ships from Manufacturer Shipping Info

About This Product

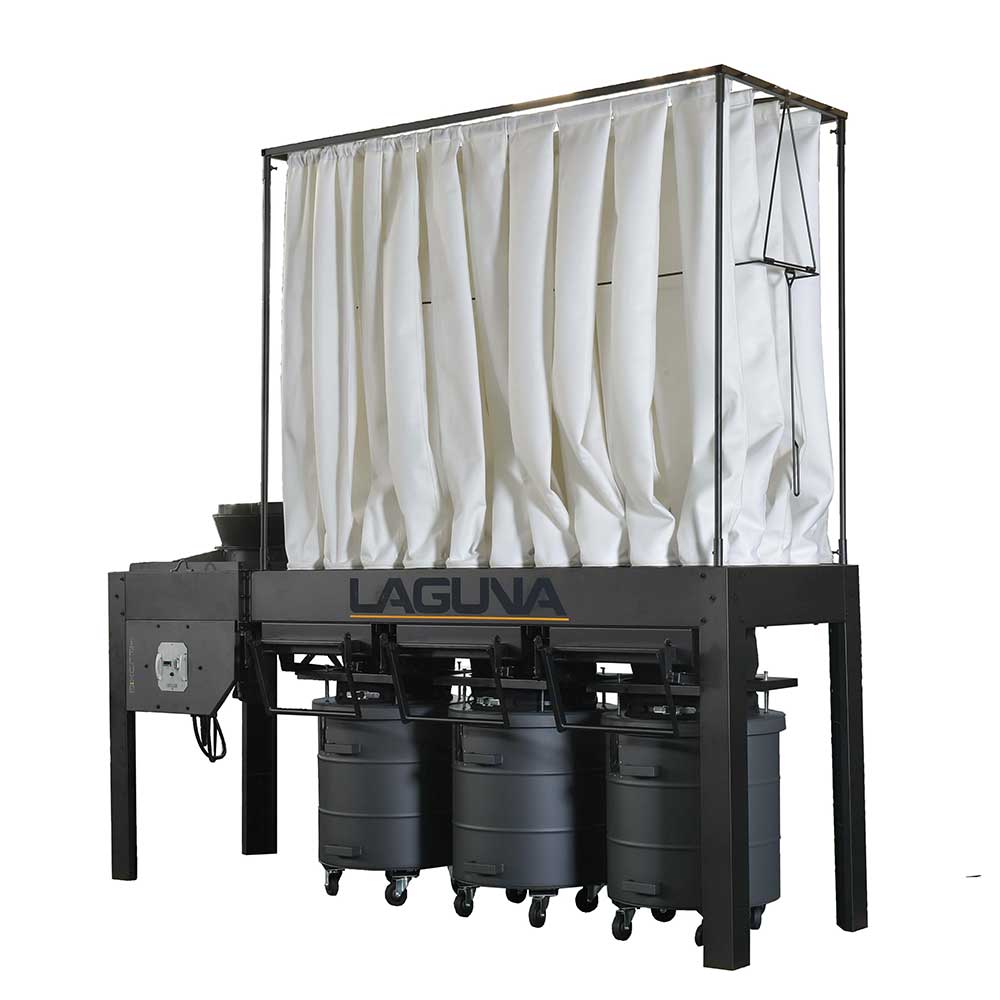

Laguna Model MDCIF102203 I|Flux 10 Elite Industrial Dust Collector is built for shops that require strong airflow combined with high filter capacity for fine dust control. It supports centralized dust collection where multiple machines run at the same time and airflow must stay consistent under load.
A high-capacity filter system provides 409 square feet of surface area, allowing more air to move through the collector compared to standard 10 HP units. This increased surface area keeps airflow from dropping as filters load with dust. The positive pressure design pushes air through the filters while dust separates and falls into the collection bins, helping the system maintain steady performance during longer runs.
With 5000 CFM at working pressure and a 15" inlet, the system supports demanding equipment without starving airflow at the source. The manual shaker helps release buildup from the filter bags, keeping air moving without relying on automated systems. This supports stable airflow across tools that require consistent dust removal to stay productive.
Three EZ-lift waste bins simplify cleanup with a quick release system that disengages the seal and rolls out for emptying. A control panel provides amperage monitoring so performance can be tracked during operation, while the remote allows control from a distance. The system complies with NFPA 664 and includes safety-focused electrical components to support proper installation.

Features:

  • High-capacity filter system increases airflow through 409 sq ft surface area
  • Positive pressure chamber moves dust into collection bins
  • Manual shaker helps clear filter buildup
  • 15" inlet supports large duct systems
  • EZ-lift bins with quick release design
  • Amperage display monitors system load
  • High-frequency remote control operation
  • Complies with NFPA 664 safety standards

Specifications:

  • Motor Power: 10 HP
  • Motor Speed: 1720 RPM
  • Voltage: 220 V
  • Frequency: 60 Hz
  • Phase: 3 Phase
  • Amperage: 24.8 A
  • Airflow: 5000 CFM @ 6" wc
  • Inlet Diameter: 15"
  • Filter Surface Area: 409 ft²
  • Filter Bag Quantity: 40
  • Filter Bag Size: 168 mm x 1800 mm
  • Filter Bag Material: Polyester
  • Filter Cleaning Type: Manual Shaker
  • Waste Bin Capacity: 64 gal x 3
  • Floor Space: 3424 mm x 1140 mm
  • Machine Weight: 1069 lb
  • Shipping Weight: 1113 lb
  • Shipping Dimensions: 75" x 39" x 80"

What's Included:

  • (1) I|Flux 10 Elite Dust Collector
  • (40) Filter Bags
  • (3) EZ-Lift Metal Waste Bins
  • (1) Remote Control

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 4 weeks.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
  • Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time.

Return Information

Laguna does not accept returns. If your shipment was damaged, please refuse delivery, for defective items, please contact Woodcraft Supply customer service @ 1-800-535-4482.

Warranty Information

New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.

For warranty repair information, call 1-800-332-4094.
