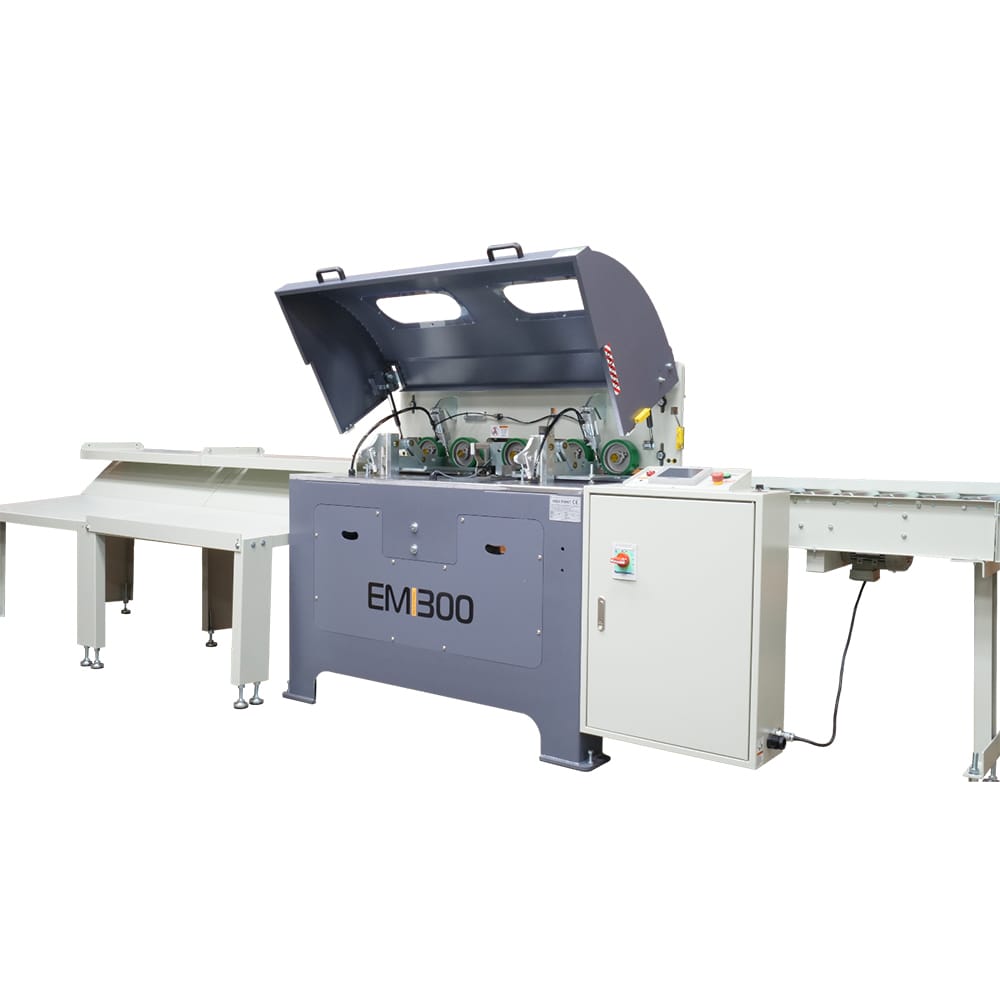

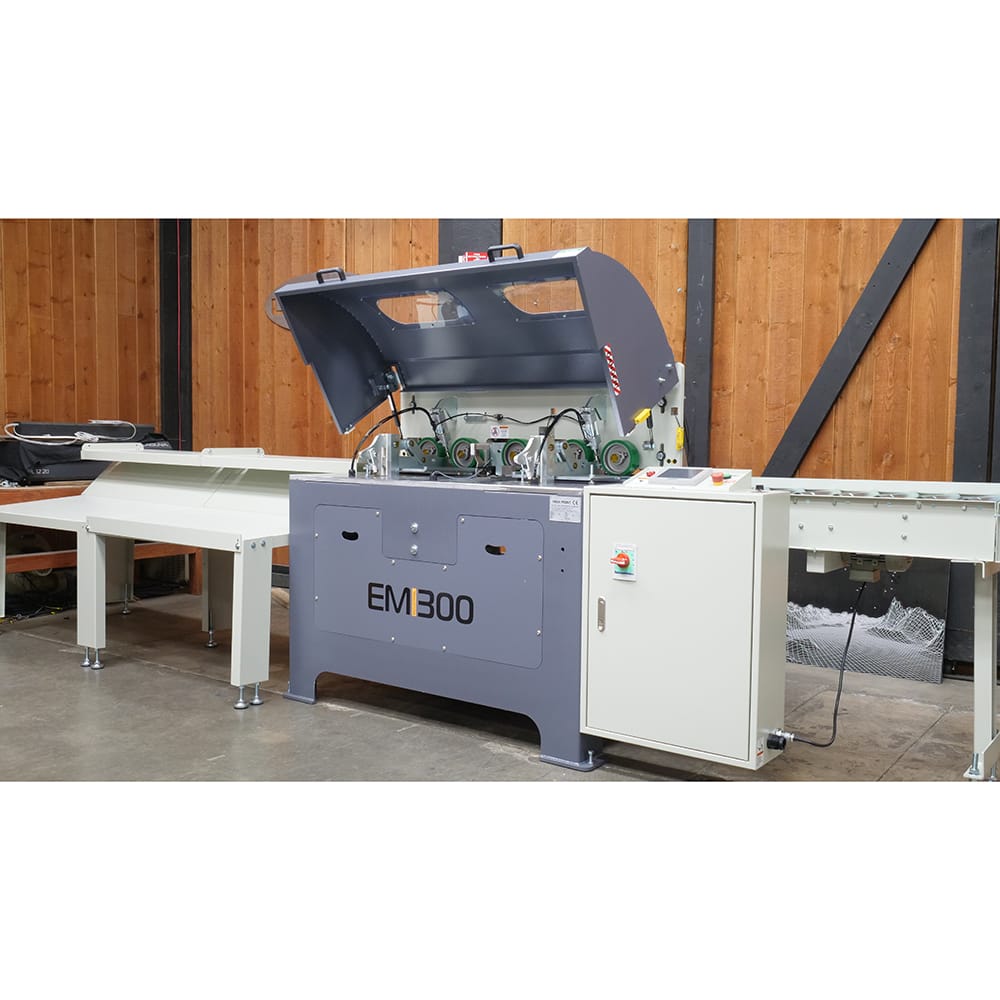

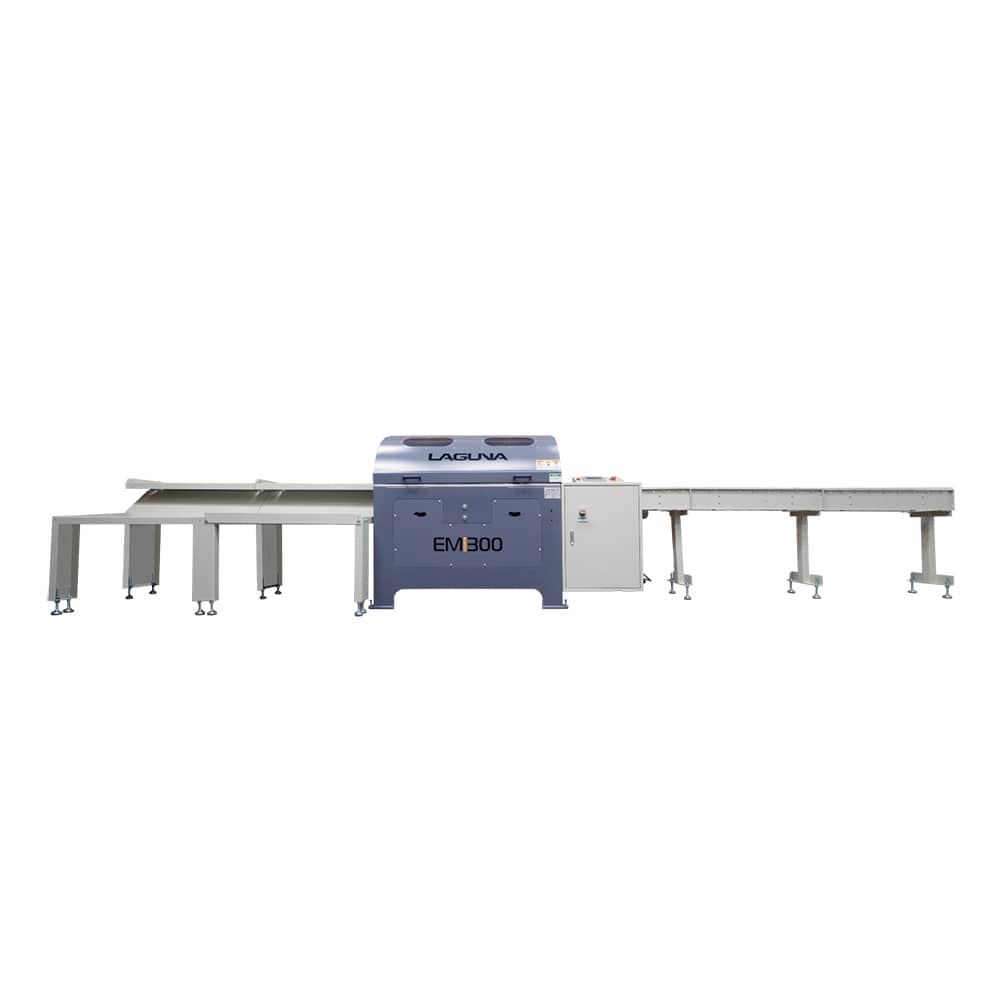

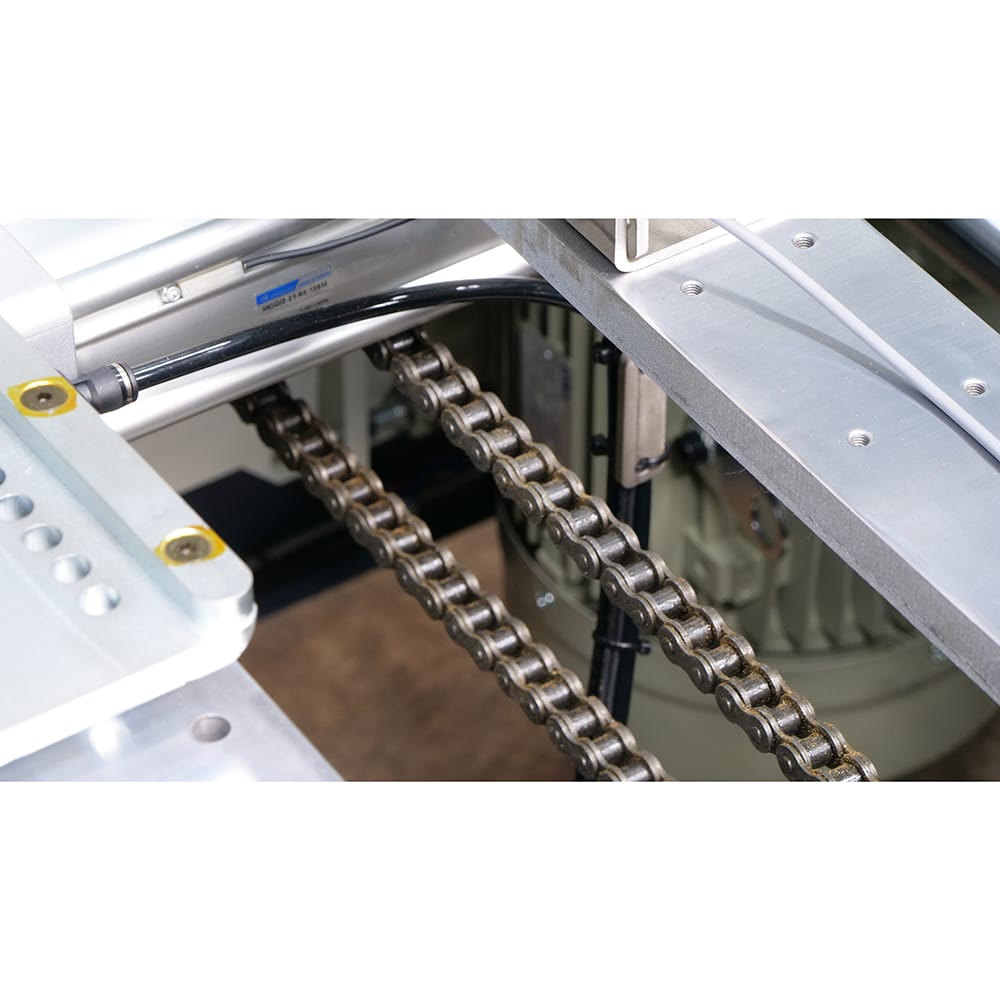

- Continuous feed conveyor processes random lengths down to 11"
- Dual 10 HP motors cut tongue and groove profiles simultaneously
- PLC touchscreen tracks linear footage and piece count
- Variable feed speed adjusts from low to high throughput rates
- Top and side clamping stabilizes material during cutting
- Mechanical actuator controls cutterhead travel
- TCT insert cutterheads support extended cutting performance

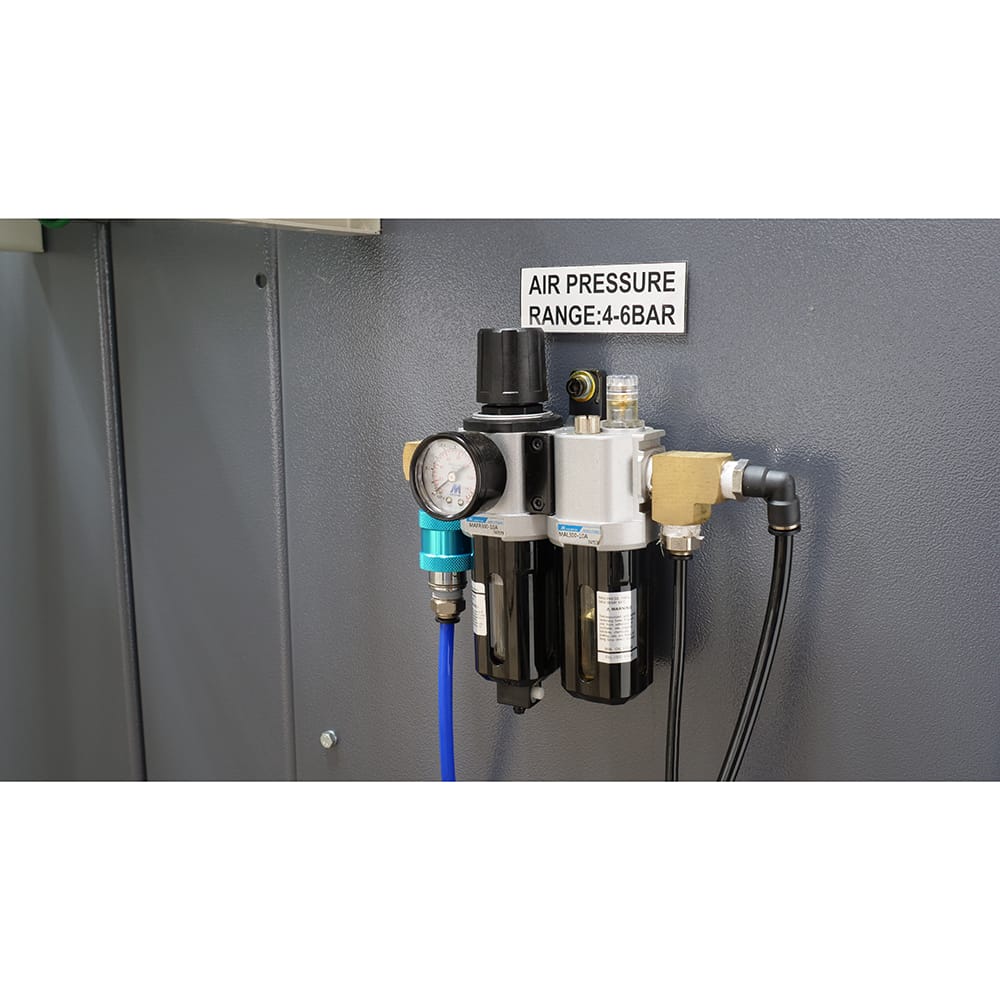

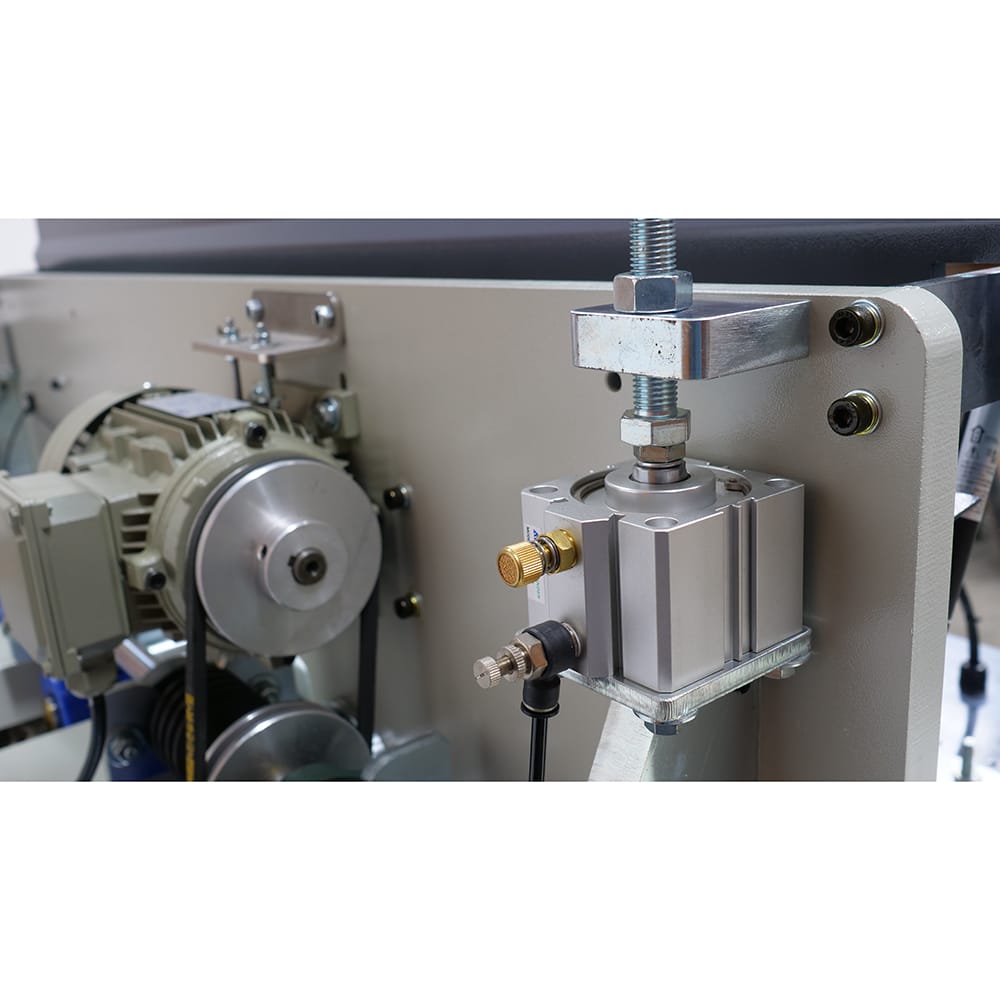

- Pneumatic feed and pressure systems maintain material control
- Manual or automatic operation modes
Specifications:
- Cutterhead Spindle Diameter: 40 mm
- Cutterhead Type: TCT Disposable Inserts
- Cutterhead Speed: 7000 RPM
- Feed Speed Range: 0–295 (unit not specified)

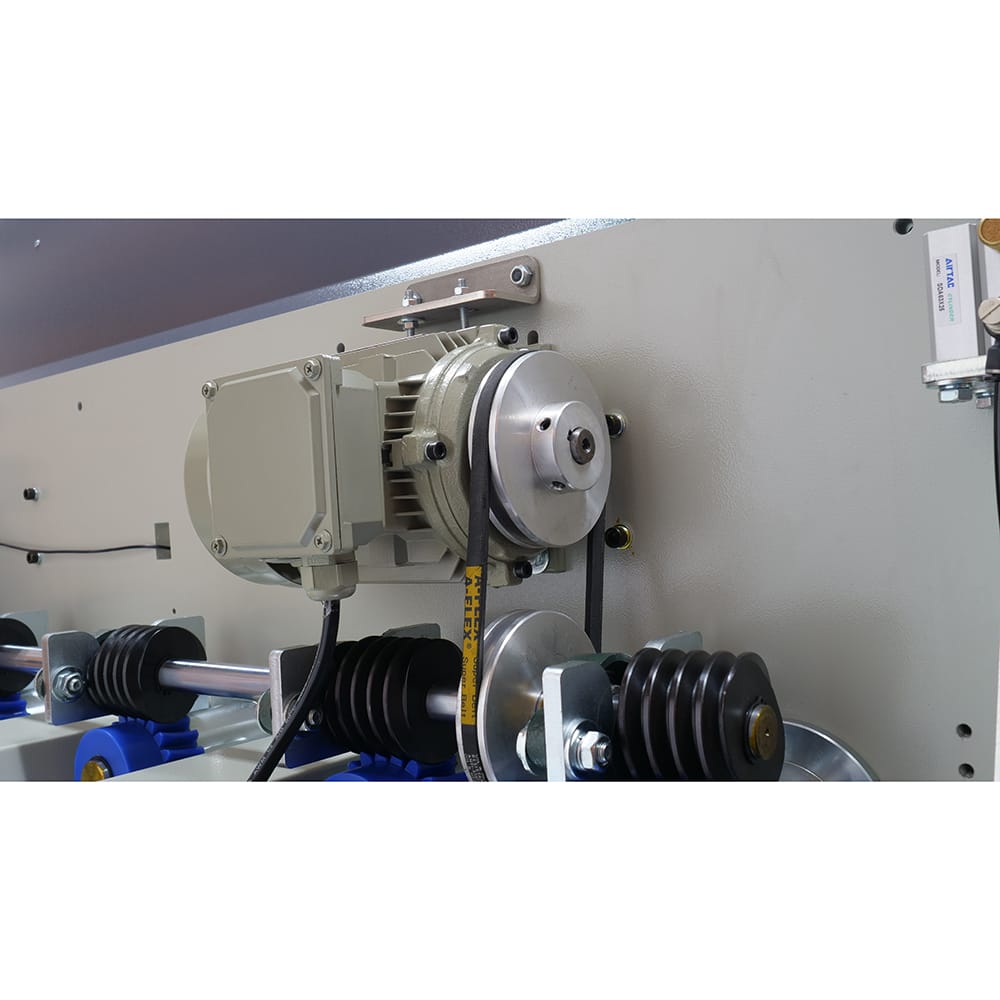

- Feeding Pressure Roller Motor: 1 HP
- Infeed Conveyor Motor: 1 HP Variable Speed
- Cutterhead Feed Motor: 1/2 HP
- Main Motor Power: 2 x 10 HP
- Controls: PLC Touchscreen
- Clamping: Top And Side
- Minimum Material Length: 11"
- Dust Collection: Not Specified
- Air Requirement: Not Specified
- Certification: CSA
- Machine Weight: 2420 lb
What's Included:
- (1) End Matcher Machine
- (1) Through-Feed Conveyor System
- (2) Cutterhead Assemblies

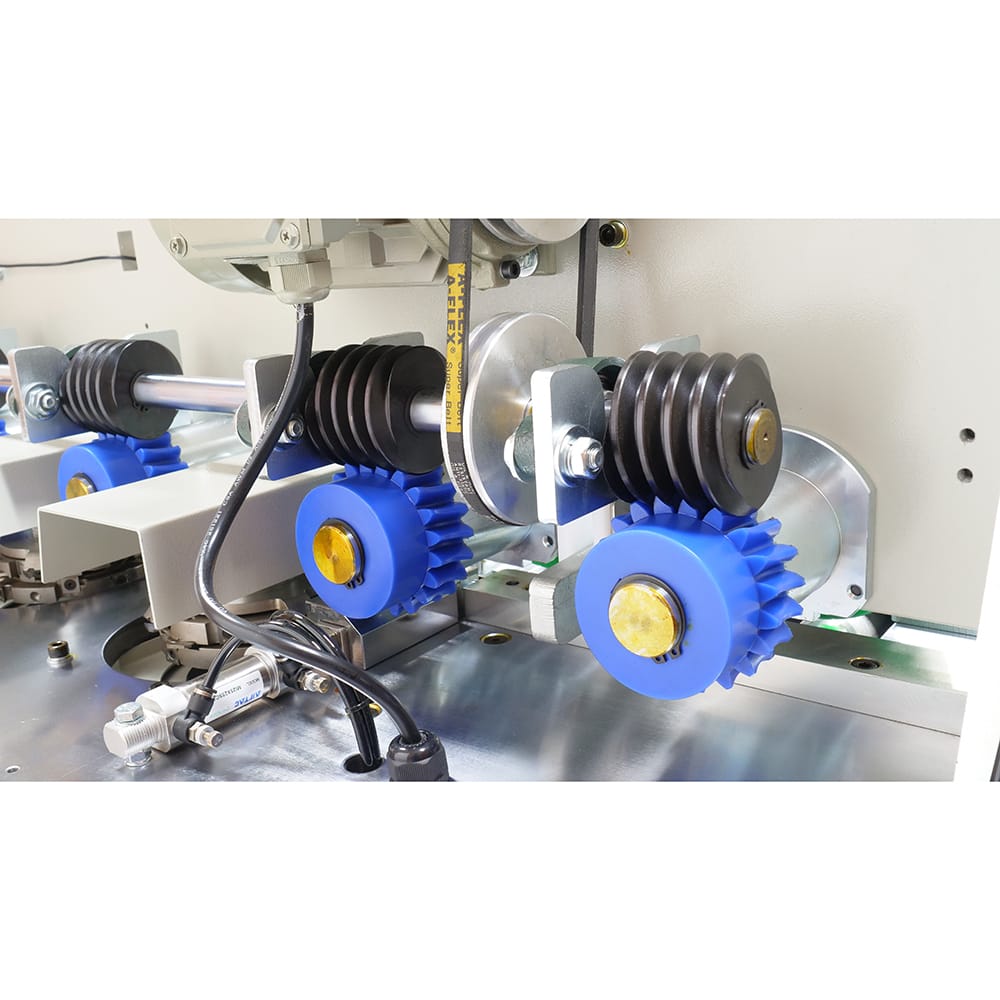

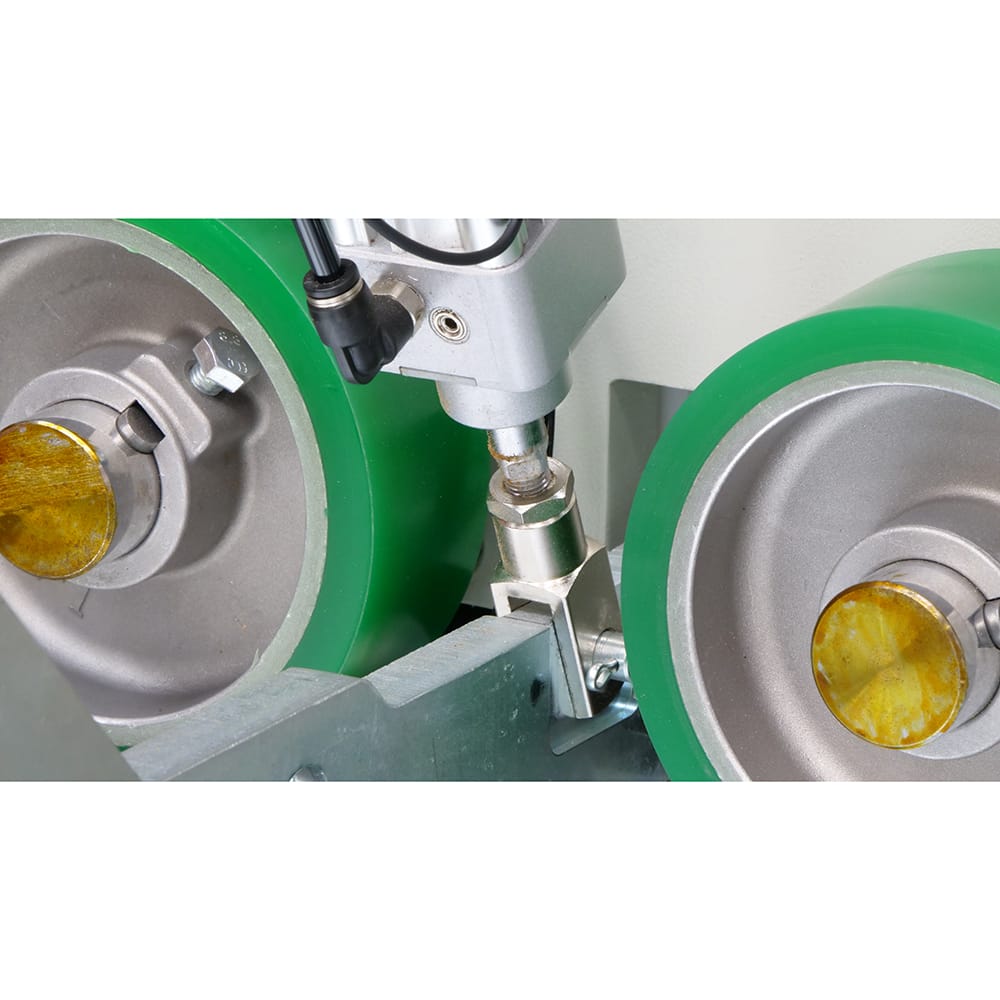

- (1) Feeding Pressure Roller System
- (1) Infeed Conveyor Table
- (1) Clamping System (Top And Side)
- (1) PLC Control Panel With Touchscreen
