- Automatic belt feed maintains consistent panel movement
- Glue pot accepts PVC, wood tape and laminate edging
- Heated infeed fence supports adhesive bonding
- Dual pressure rollers maintain edge contact

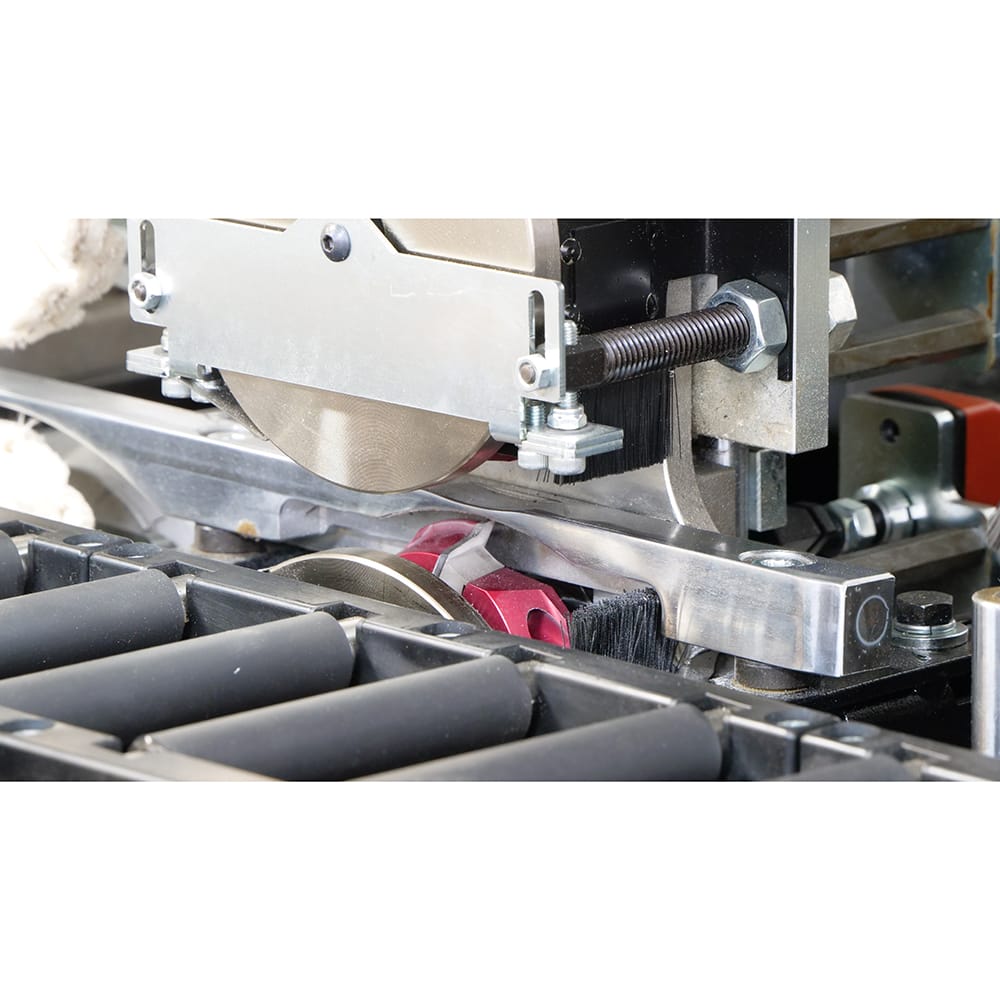

- End trim saws cut front and rear edges automatically

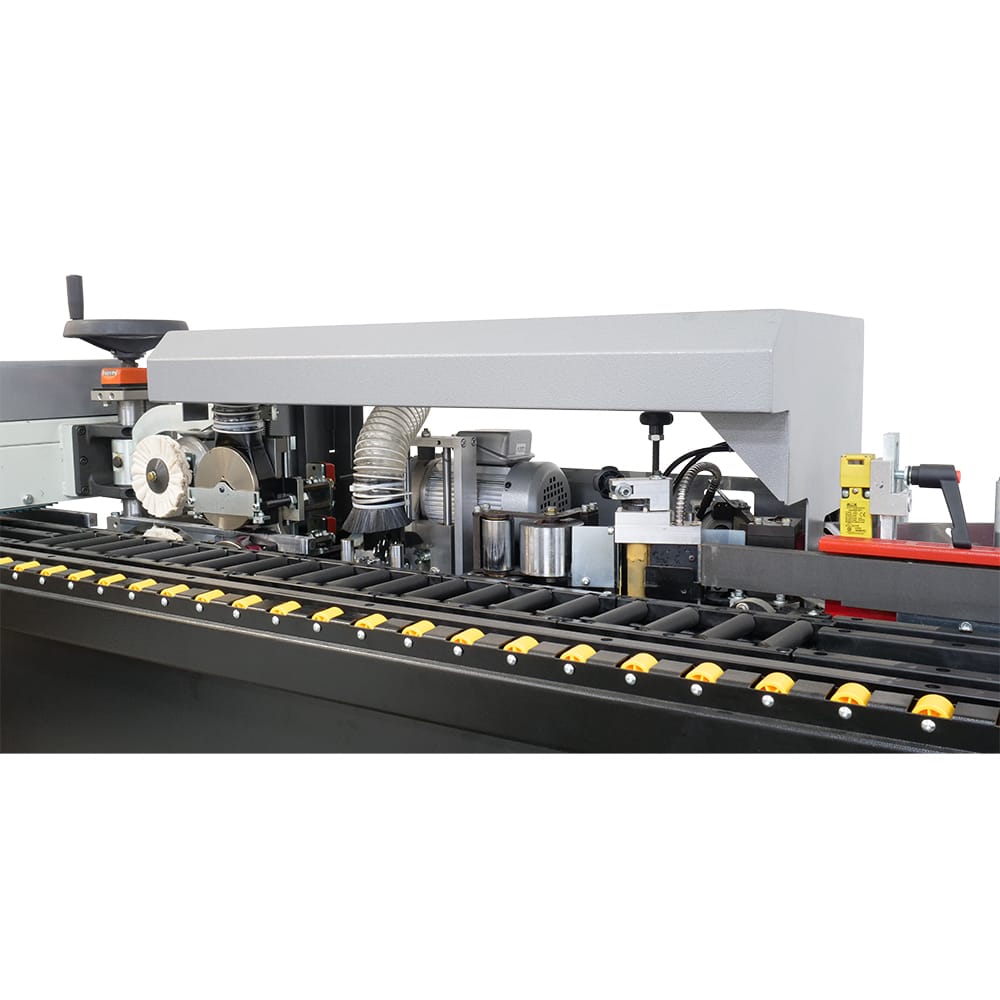

- Top and bottom edge trimming with carbide insert cutters
- Buffing units clean finished edges
- Electronic temperature control with digital readout
- Pull‑out support rollers assist wide panel handling

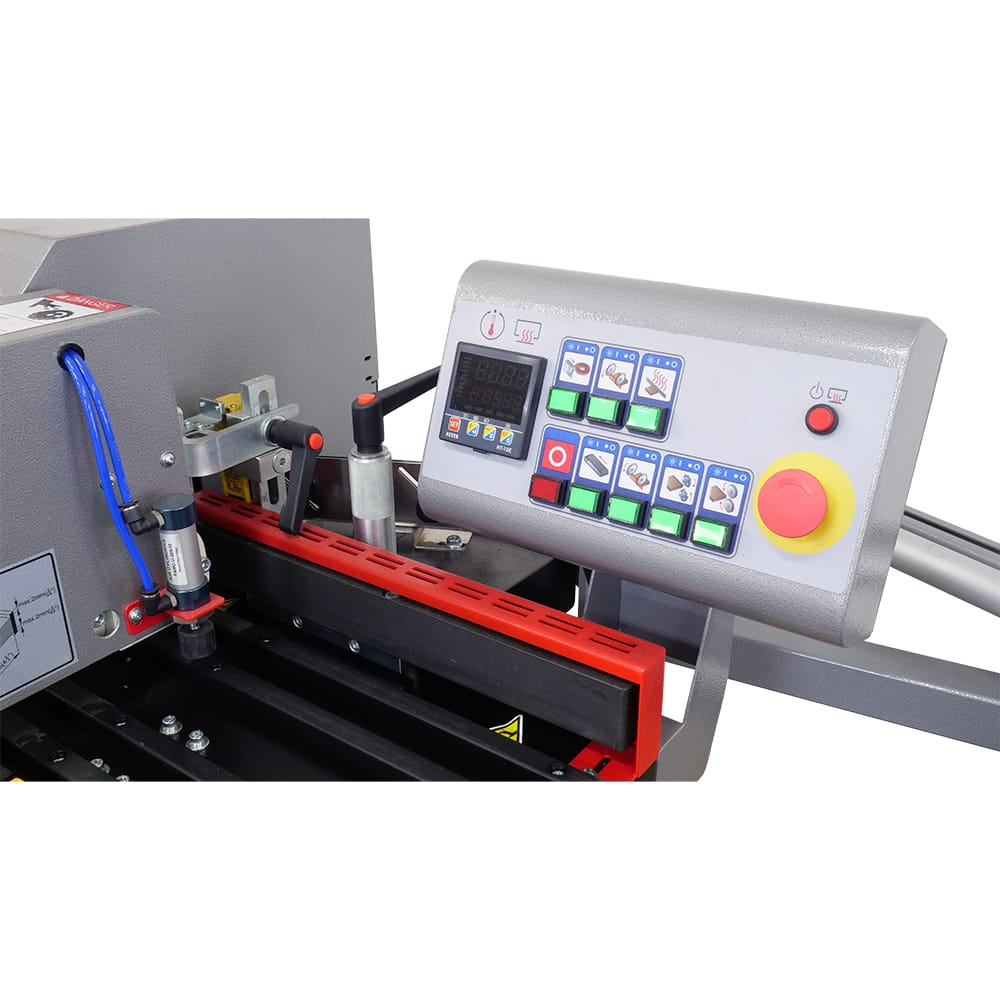

- Centralized PLC control system
Specifications:
- Voltage: 220 V
- Phase: 1PH
- Current: 40 A
- Air Requirement: 87 PSI
- Tape Thickness Capacity: 0.4 mm–2 mm
- Minimum Panel Length: 9.44"
- Minimum Panel Width: 4-3/4"
- Panel Thickness Capacity: 0.47"–1.77"
- Work Table Length: 79"
- Glue Tank Capacity: 30 oz
- Dust Port Size: 4"

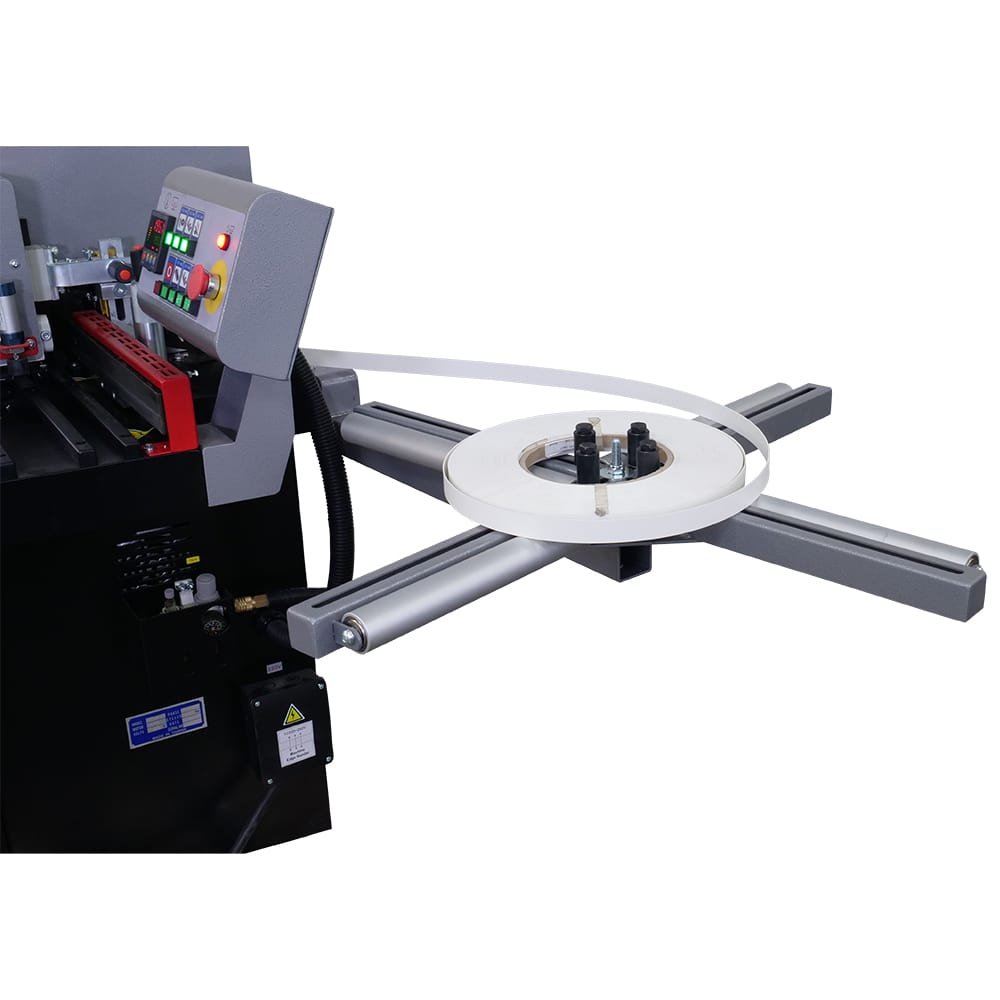

- Edgebanding Coil Capacity: 31-1/2" Diameter
- Weight: 1200 lb
- Shipping Dimensions: 84" x 29" x 52"
What's Included:
- (1) Edgebander Machine
- (1) Glue Application System
- (1) Infeed Support System
- (1) Conveyor Feed System
- (1) Pressure Roller System
- (1) End Trim System
- (1) Edge Trim System
- (1) Buffing System
- (1) Control Panel
- (1) Dust Port
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 4 weeks.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
- Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time.
Return Information
Warranty Information
New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.
For warranty repair information, call 1-800-332-4094.
