- Cuts dovetail joints at 40 to 50 boxes per hour
- Cuts pins and tails separately or simultaneously

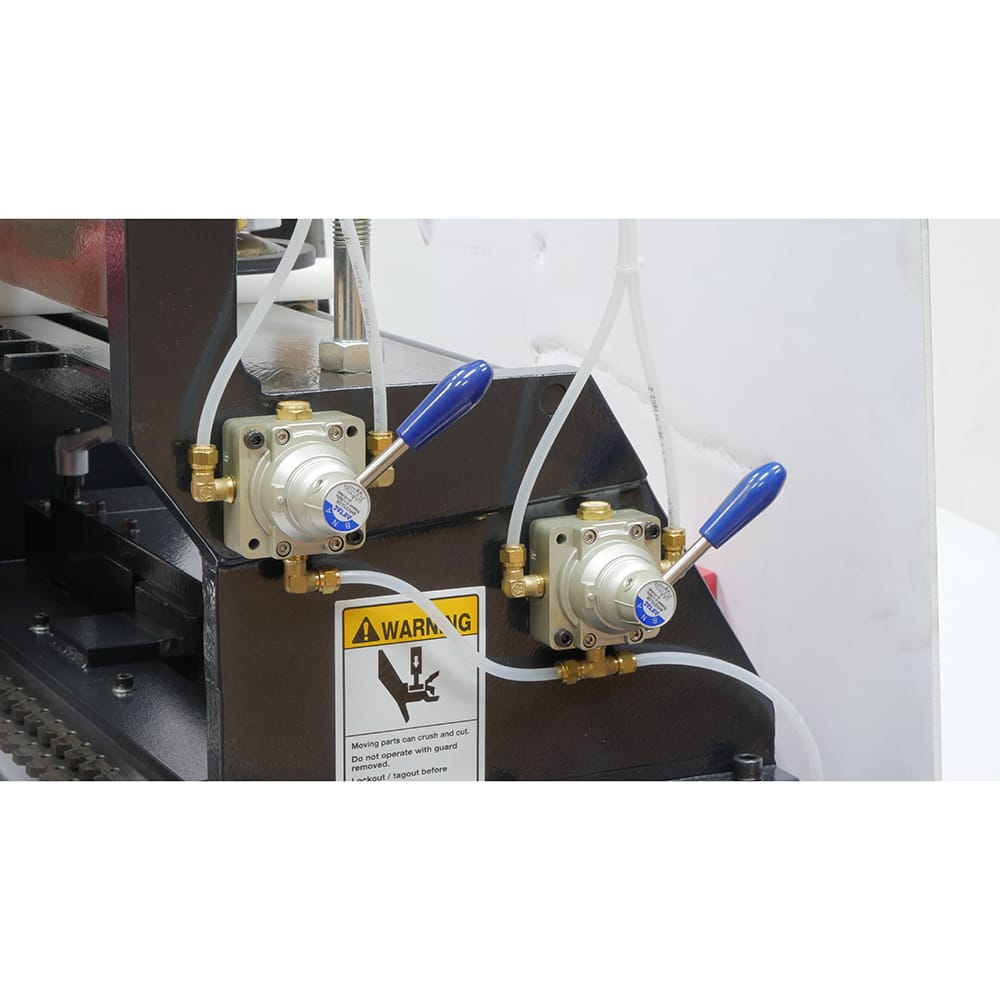

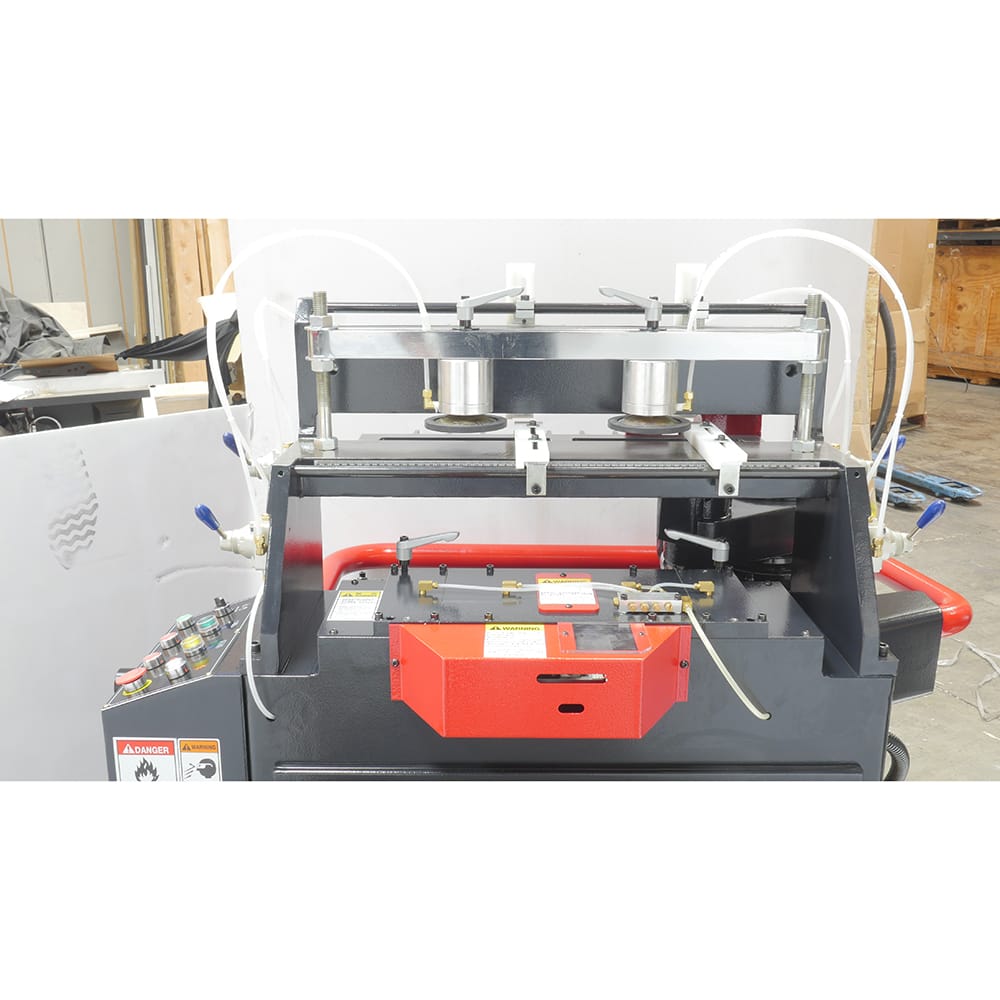

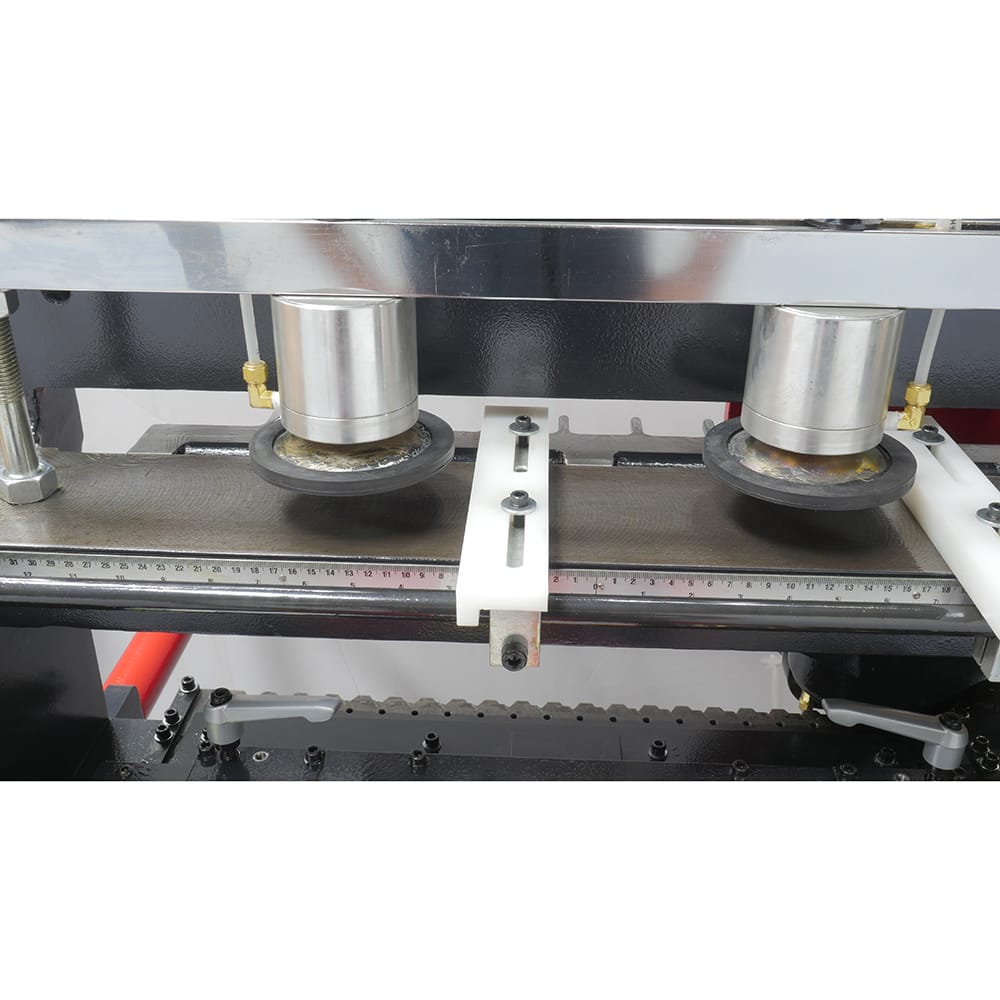

- Pneumatic clamps with individual controls secure workpieces

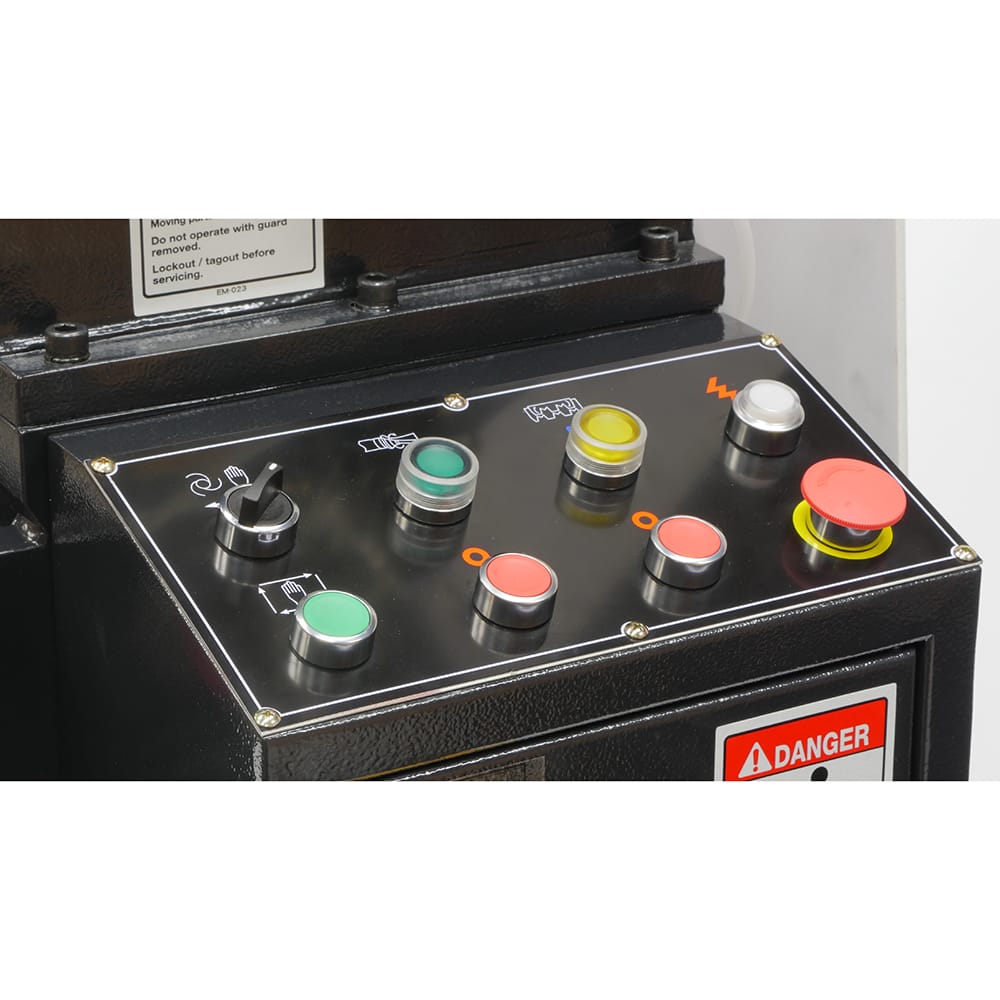

- Centralized control panel supports automatic operation

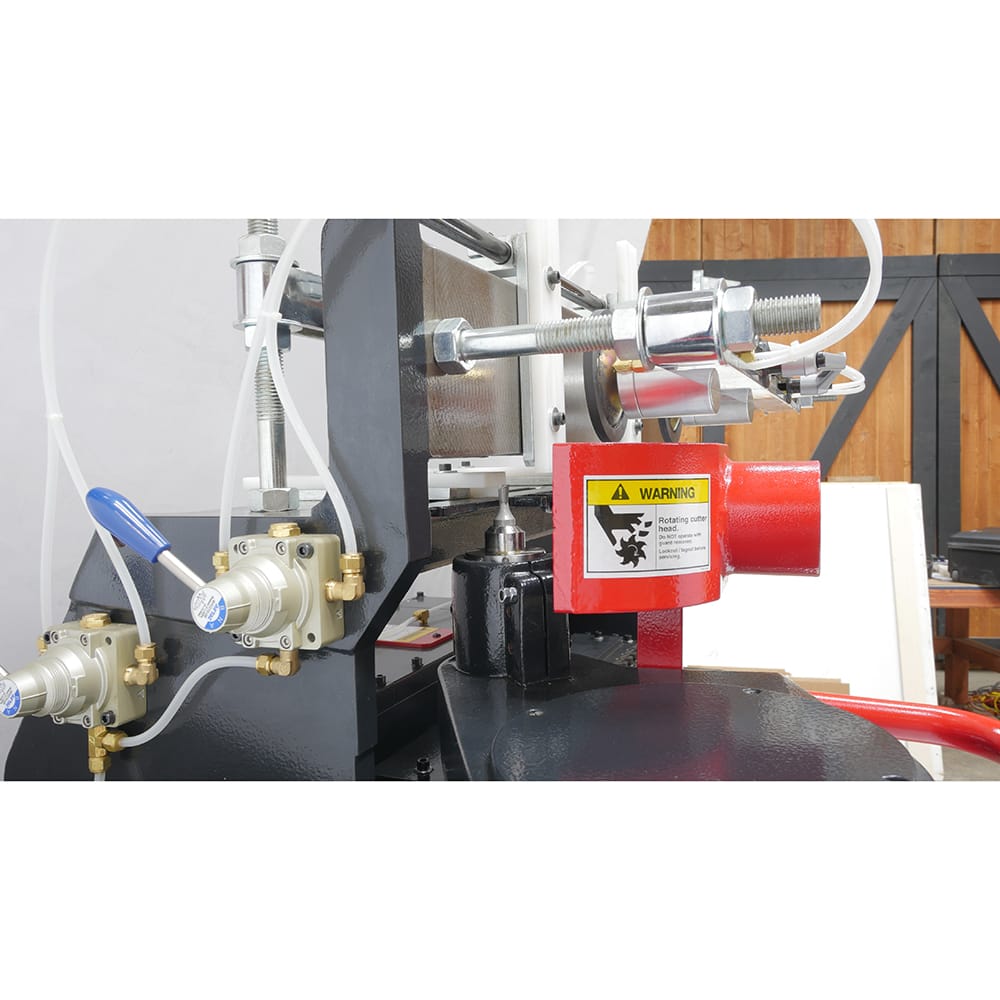

- Collet chuck allows quick cutter changes
- Scale-based adjustments support repeatable setups
- High spindle speed supports clean cutting performance
Specifications:
- Tenon Thickness Capacity: 1/8"–2-23/64"
- Tenon Width Capacity: 15/64"–23/32"
- Tenon Depth Capacity: 25/64"–1-3/16"
- Maximum Workpiece Size: 59" x 16"
- Cutter Adjustment Range: 1-3/16"
- Pneumatic Clamps: 4
- Spindle Speed: 21,500 RPM
- Motor Power: 2 HP
- Voltage: 220 V
- Phase: 3PH
- Base Size: 42" x 22"
- Machine Size: 56" x 36"
- Dust Port Size: 4"
- Air Pressure Requirement: 71 PSI
- Machine Weight: 1,320 lb
- Shipping Dimensions: 60" x 50" x 50"
What's Included:
- (1) Dovetail Machine
- (1) Cutting System
- (1) Work Support Table
- (4) Pneumatic Clamps
- (1) Material Positioning System
- (1) Control Panel
- (1) Dust Port
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 4 weeks.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
- Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time.
Return Information
Warranty Information
New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.
For warranty repair information, call 1-800-332-4094.
