- Single sanding head maintains even surface contact across full width
- 30 HP main motor handles high material removal rates
- Variable conveyor speed from 12 to 60 FPM
- Digital control panel with programmable logic system
- Auto-height adjustment with tolerance detection
- Belt oscillation distributes abrasive wear
- Steel cabinet supports stable operation
- Four dust ports assist with debris management
- Sanding belt motor brake provides controlled stopping
Specifications:
- Motor Type: 3 Phase
- Main Motor Power: 30 HP
- Feed Motor Power: 2 HP
- Table Lift Motor Power: 1/4 HP
- Belt Size: 51" x 75"
- Maximum Sanding Width: 51"
- Maximum Sanding Height: 6"
- Minimum Sanding Height: 26 Gauge
- Drum Diameter: 8"
- Drum Length: 52.1"
- Drum Speed: 1720 RPM
- Feed Speed: 12–60 FPM
- Dust Port Size: 5"
- Number Of Dust Ports: 4
- Footprint: 68" x 20-1/2"
- Conveyor Height: 31.9"
- Table Height: 37.4"
- Operating Air Pressure: 60 PSI
- Net Weight: 2976 lb
- Shipping Weight: 3527 lb
What's Included:

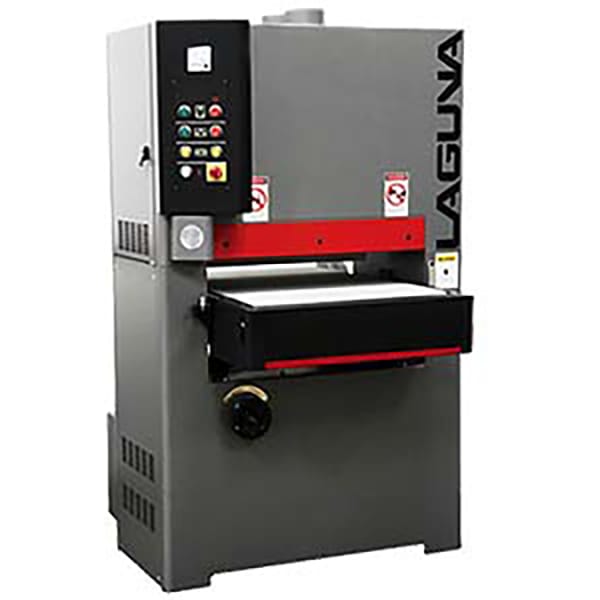

- (1) 51" Pro Metal Wide Belt Sander
- (1) 51" x 75" Sanding Belt
- (1) Owner’s Manual
- (4) Dust Ports
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 4 weeks.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
- Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time.
Return Information
Warranty Information
New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.
For warranty repair information, call 1-800-332-4094.
