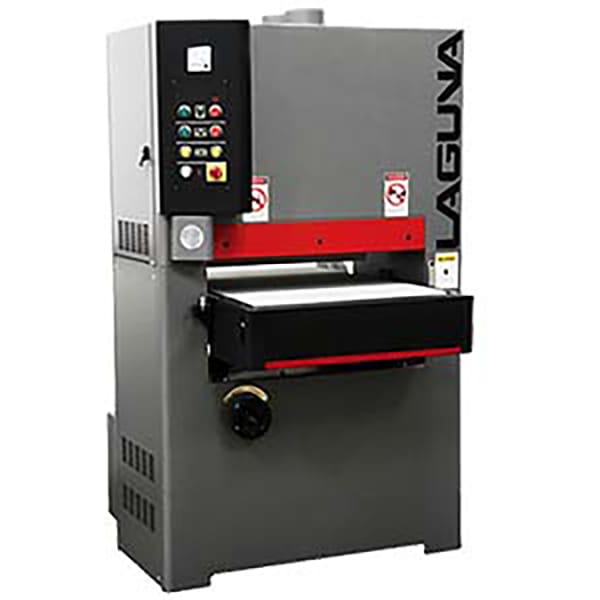

Features:
- 10 HP main motor drives wide belt sanding performance
- Combination drum and platen head allows multiple sanding modes
- 60" belt length runs cooler and extends abrasive life
- Two-speed conveyor adjusts feed rate for material control
- Electric table lift with manual micro adjustment
- Automatic thickness gauge sets table height
- Pneumatic belt oscillation distributes belt wear
- Air-operated disc brake stops belt quickly
- Three dust ports support dust collection
Specifications:
- Model Number: MSANWB37X60-1K-10-0197
- Motor Power: 10 HP
- Feed Motor Power: 1 HP
- Table Lift Motor Power: 0.25 HP
- Voltage: 220 V
- Phase: 1 Phase
- Frequency: 60 Hz
- Max Sanding Height: 5-9/10"
- Min Sanding Height: 1/4"
- Max Sanding Width: 36-1/2"
- Belt Size: 37" x 60"
- Drum Diameter: 4"
- Drum Length: 37"
- Drum Speed: 1725 RPM
- Conveyor Speed: 15/49 FPM
- Dust Port Size: 4"
- Dust Port Quantity: 3
- Footprint: 19" x 51"
- Overall Dimensions: 56-1/2" x 52"
- Height With Ports: 77-1/2"
- Height Without Ports: 71-1/2"
- Conveyor Height: 32"
- Operating Air Pressure: 6 bar
- Cabinet Material: Steel
- Certification: CSA
- Net Weight: 1980 lb
What's Included:
- (1) Widebelt Sander
- (1) Drum Assembly
- (1) Platen Assembly
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 4 weeks.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
- Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time.
Return Information
Warranty Information
New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.
For warranty repair information, call 1-800-332-4094.
