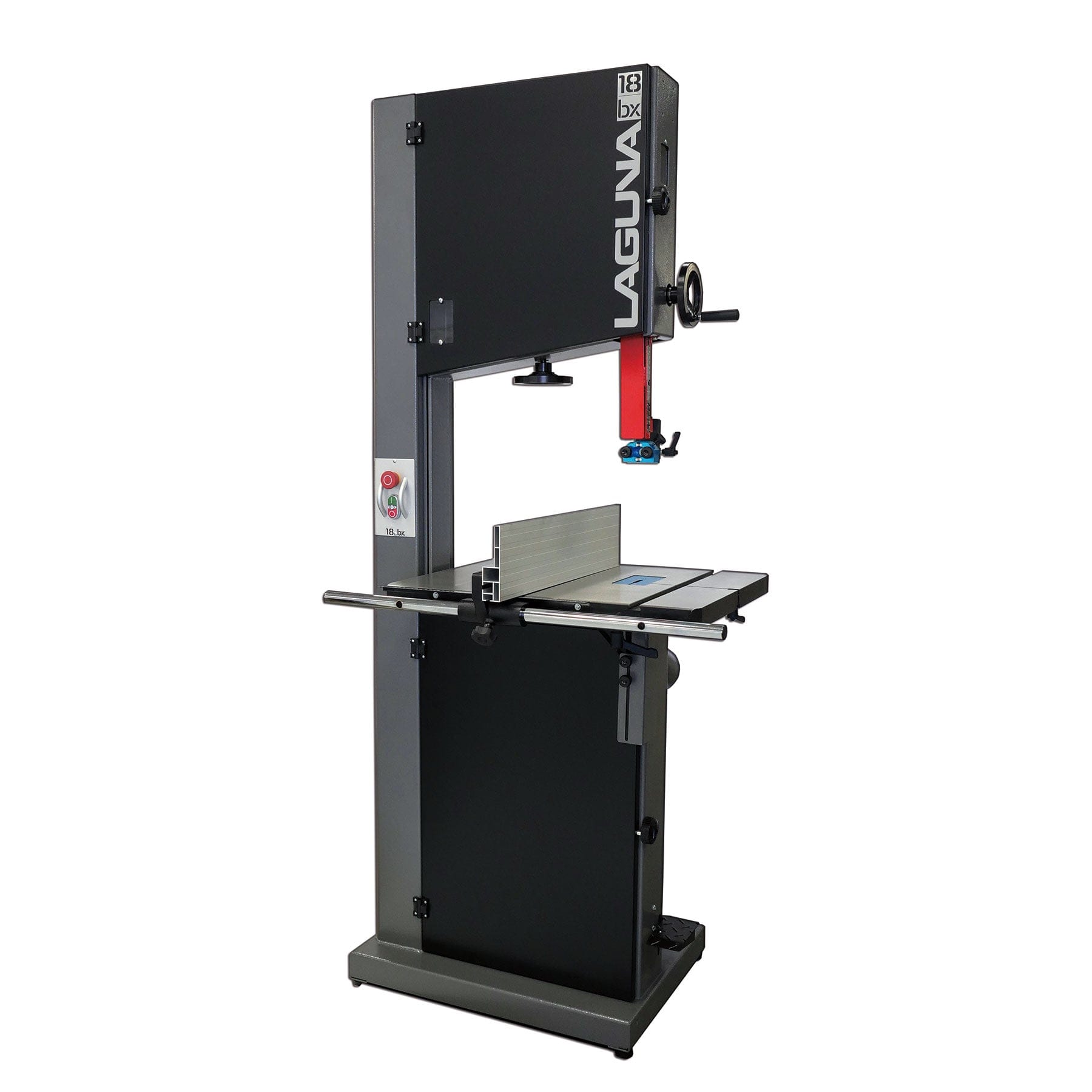

Laguna’s 18”| BX Bandsaw is made to perform the biggest jobs. Built around a 3HP, 220V motor and using a 145” blade for consistent results, cut after cut. This saw follows the Laguna tradition of reliability established by the Laguna 142/12 and 14 BX models.
Specifications

• Model MBAND18BX2203
• Motor: 3HP, 220V 1 PH, 12 Amp
• Recommended breaker: 20 Amp
• Magnetic Starter
• Min-Max Blade Width: 1/8” – 1-1/4”
• Resaw capacity: 16”
• Throat: 18”
• Blade length: 145"

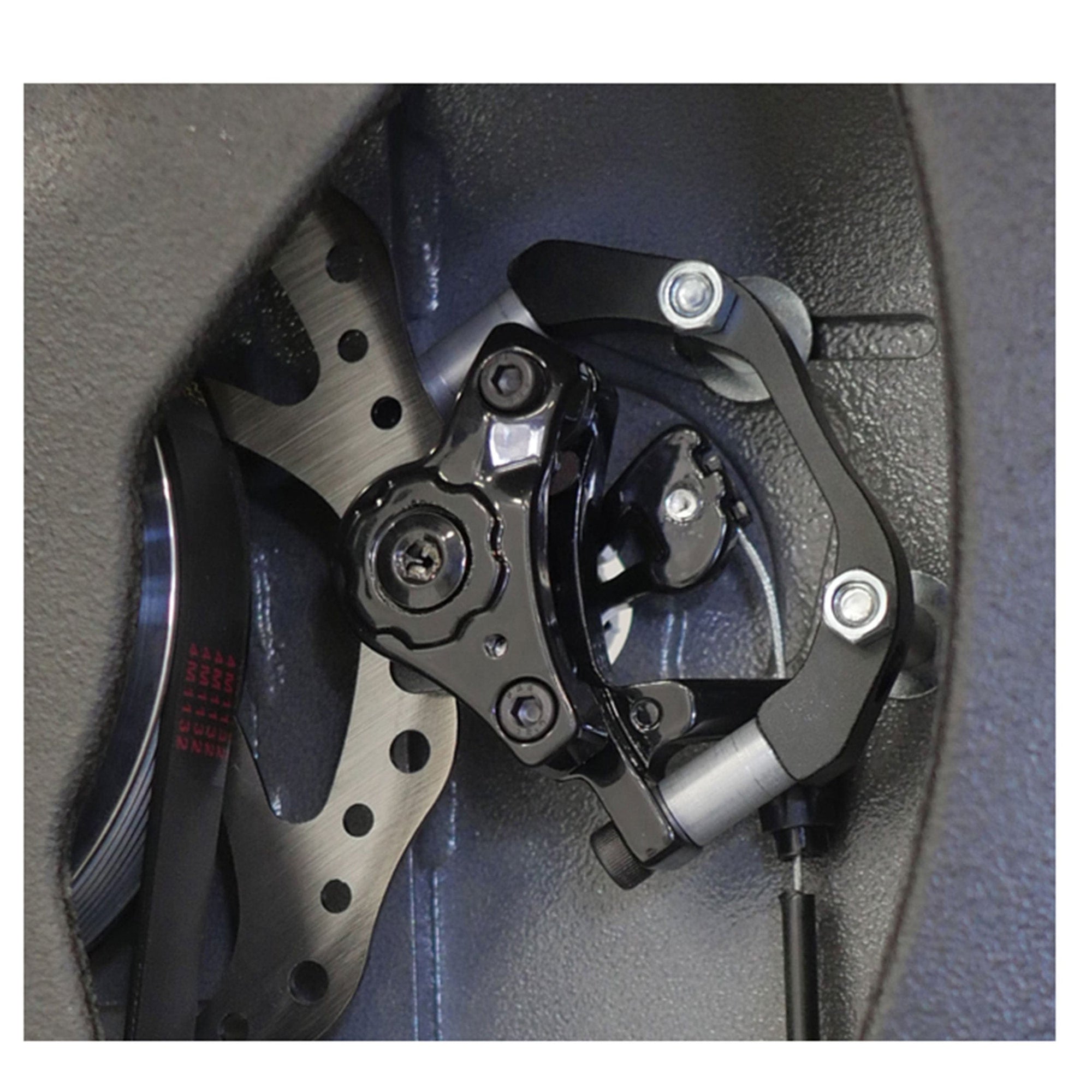

• Disc-brake with micro switch
• 220V Outlet on the back for Light

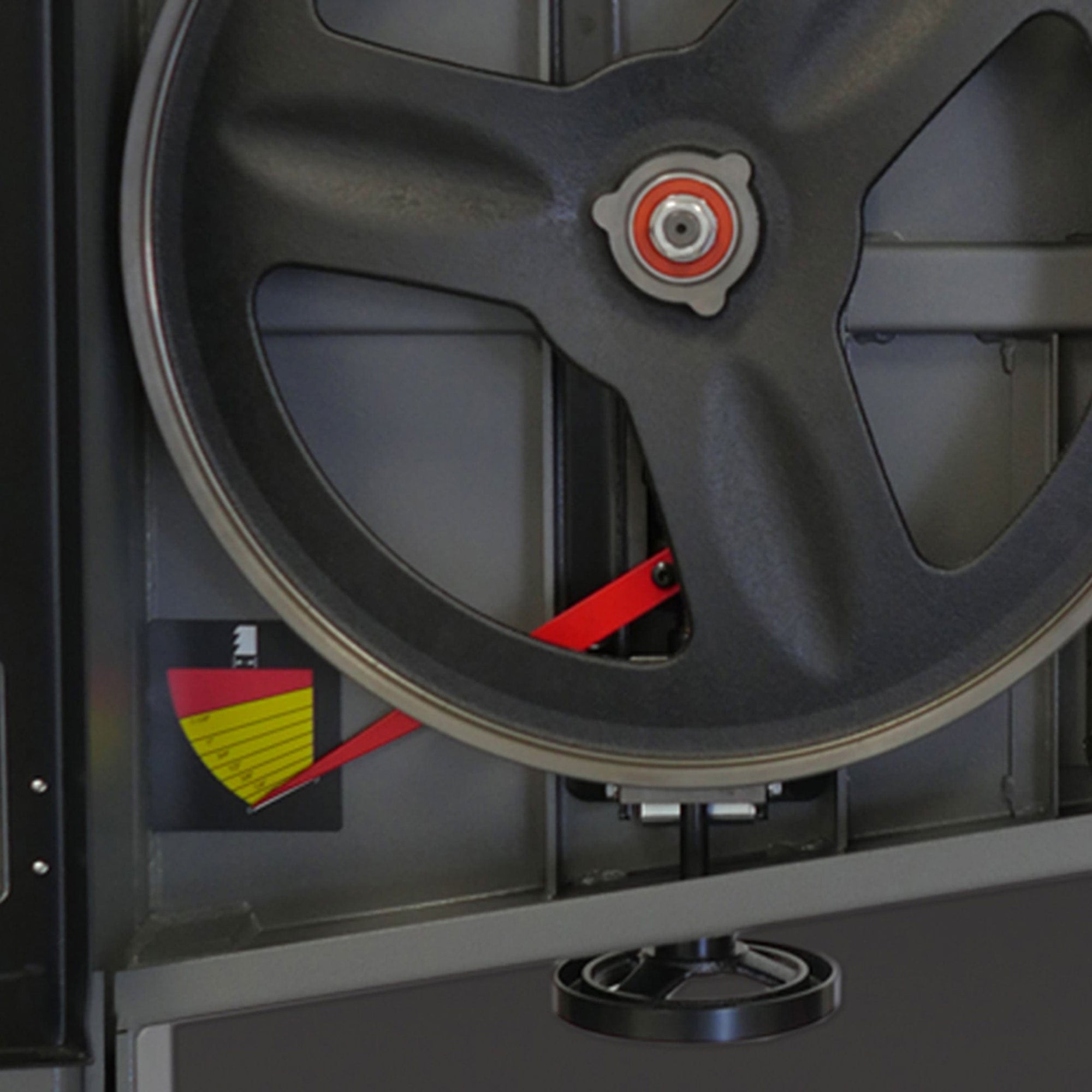

• Window for tension and tracking
• Magnetic blade tension guide
• Worm gear & pinion upper guide
• 10 Point Laguna ceramic guides
• Flat poly-groove drive belt
• Premium anodized insert with micro adjustment

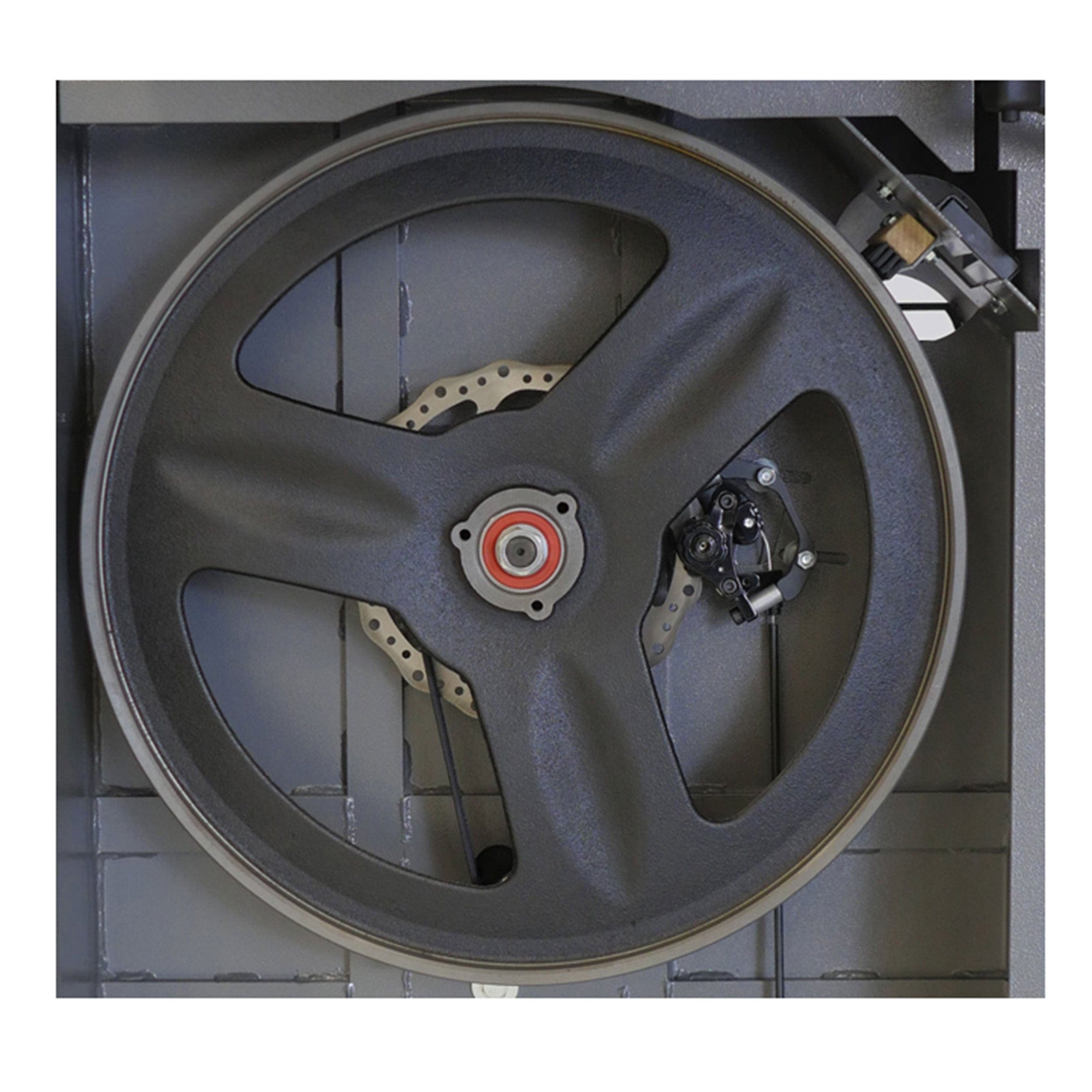

• Dynamically balanced cast iron wheels
• Urethane single piece snap-on-tire
• Cast Table: 20” x 26”
• Table tilt: -6 degree, 45 degree positive
• Quick release tension
• Hi/Low anodized aluminum fence: 22-1/2” x 5-3/4” x ½”
• Table height: 77-3/4”
• Dust port: 2” x 4”
• Overall height: 77-3/4”
• Base dimensions: 27” x 20”
• Overall dimensions: 36” x 30”
• Weight: 410; ship weight: 460

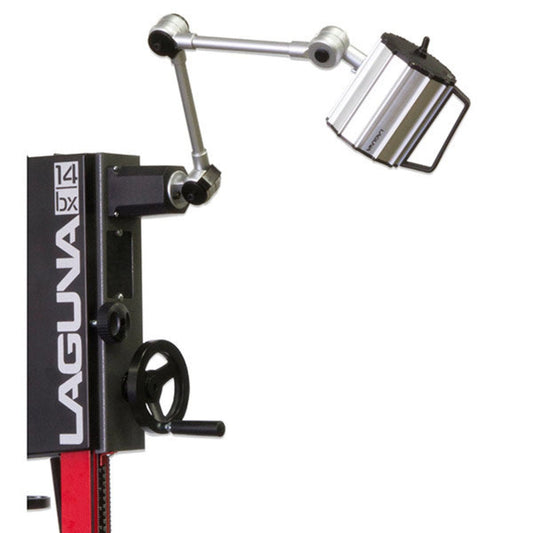

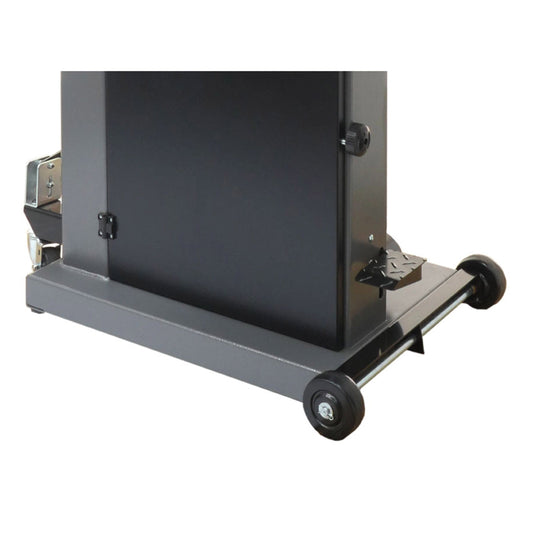

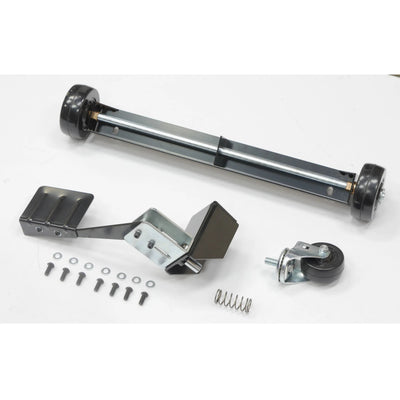

Optional 18BX Wheel System and Pro Light System (sold separately) can be used on the Laguna 18BX Bandsaw.

Laguna does not accept returns. If your shipment was damaged, please refuse delivery, for defective items, please contact Woodcraft Supply customer service @ 1-800-535-4482.

New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.

For warranty repair information, call 1-800-332-4094.
