Laguna

1-3/4HP 1PH 110V Fusion F2 Table Saw

Item #170828 Model MTSF236110175-0130
Regular price $1,619.10
Sale price $1,619.10 Regular price $1,799.00

This item has an additional shipping charge

Save 10%

Skip to product information
Sale
1 of 5

Laguna

1-3/4HP 1PH 110V Fusion F2 Table Saw

Item #170828 Model MTSF236110175-0130
Regular price $1,619.10
Sale price $1,619.10 Regular price $1,799.00

This item has an additional shipping charge

Save 10%

Designed for demanding woodworkers with a sleek look, the Fusion F2 Table Saw is ready to start processing wood in your shop. Permanently lubricated . . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

  • Saw Gauge with Dial Indicator

    Regular price $99.99
    Sale price $99.99 Regular price $99.99
    Saw Gauge with Dial Indicator
  • WW10407125 Woodworker II Carbide Tipped Circular Saw Blade - 10" x 40 Tooth

    Regular price $199.99
    Sale price $199.99 Regular price $199.99
    WW10407125 Woodworker II Carbide Tipped Circular Saw Blade 10" x 40 Tooth alt 0
  • Thin Kerf Riving Knife for Fusion F1, F2 or F3 Table Saws

    Regular price $40.50
    Sale price $40.50 Regular price $45.00
    Thin Kerf Riving Knife for Fusion F1, F2 or F3 Table Saws alt 0
  • PushPRO Push Stick

    Regular price $19.99
    Sale price $19.99 Regular price $19.99
    PushPRO Push Stick alt 0
  • Align-A-Saw Gauge & Base

    Regular price $89.99
    Sale price $89.99 Regular price $89.99
    Align-A-Saw Gauge & Base
  • Align-A-Saw Plate

    Regular price $159.99
    Sale price $159.99 Regular price $159.99
    Align-A-Saw Plate
  • Thin Rip Guide

    Regular price $169.99
    Sale price $169.99 Regular price $169.99
    Thin Rip Guide
  • Spline Jig

    Regular price $159.99
    Sale price $159.99 Regular price $159.99
    Spline Jig

Details

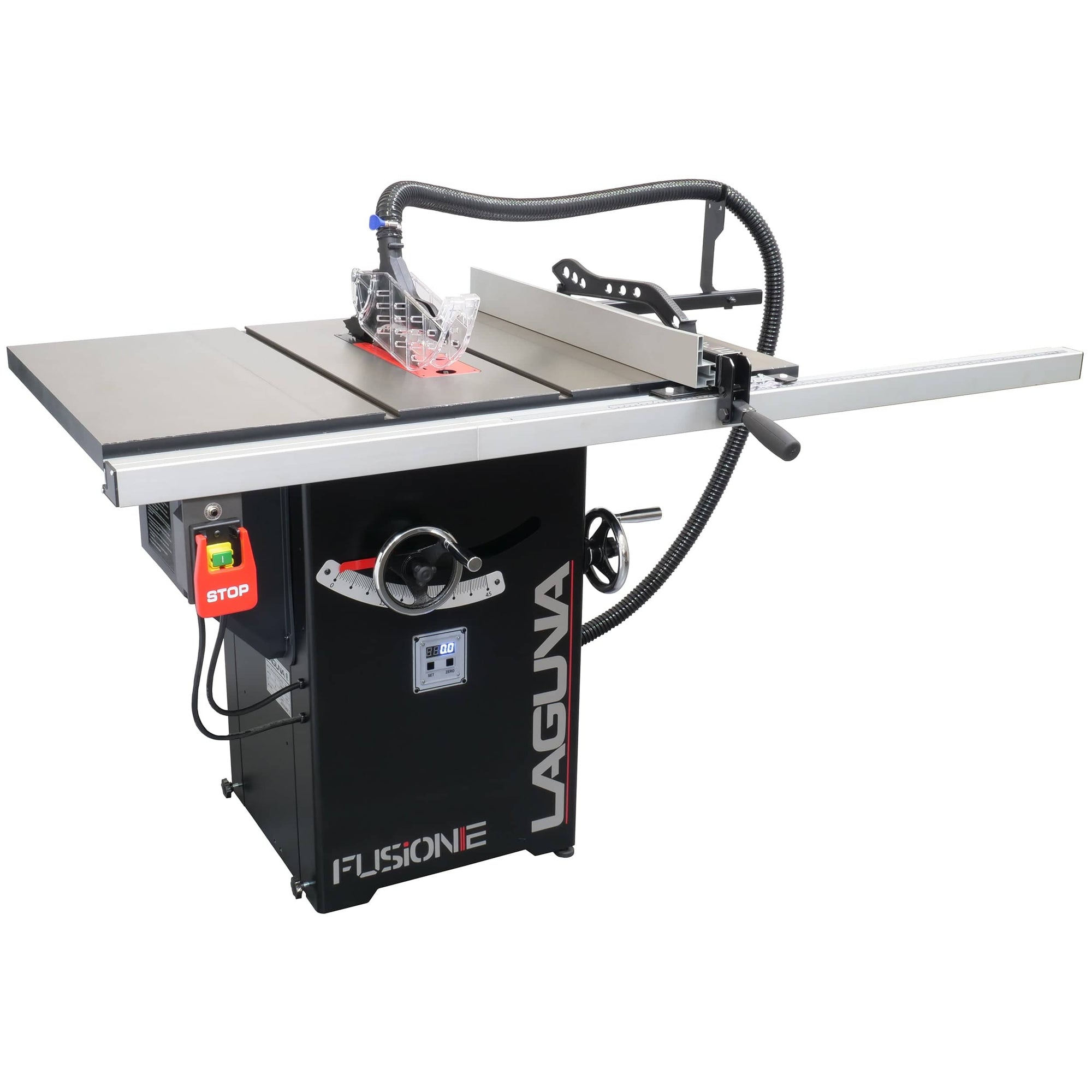

Designed for demanding woodworkers with a sleek look, the Fusion F2 Table Saw is ready to start processing wood in your shop.

Permanently lubricated bearings and Acme screws on the inside and a precision-ground cast iron table with cast aluminum alloy upper and lower trunnions mean this saw is built to last from the inside out. Precision-ground cast iron table wings and pre-formed steel cabinet complete the package.

Integrated dust collection keeps your work surface clear by utilizing dust collection over and under the blade along with a sealed base.

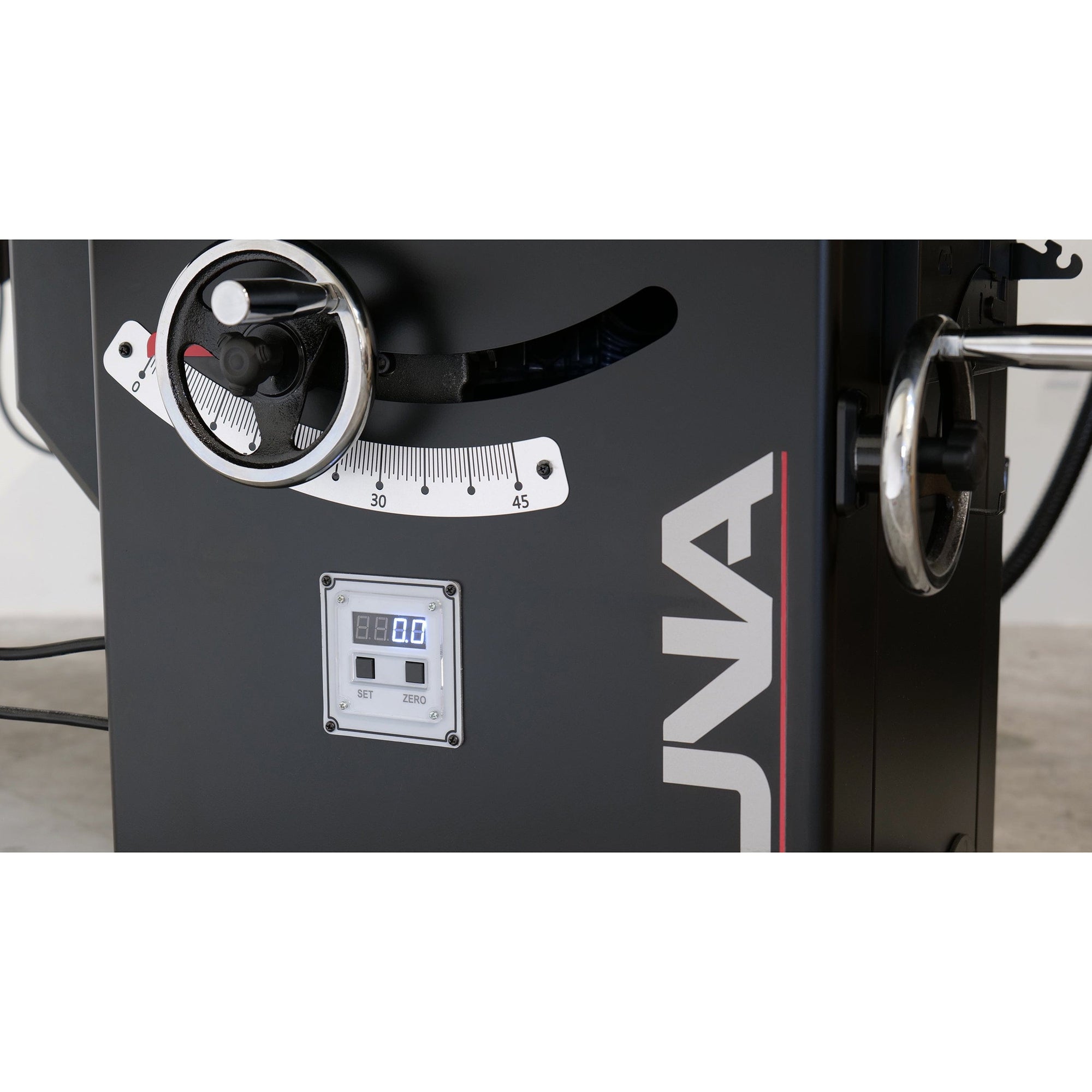

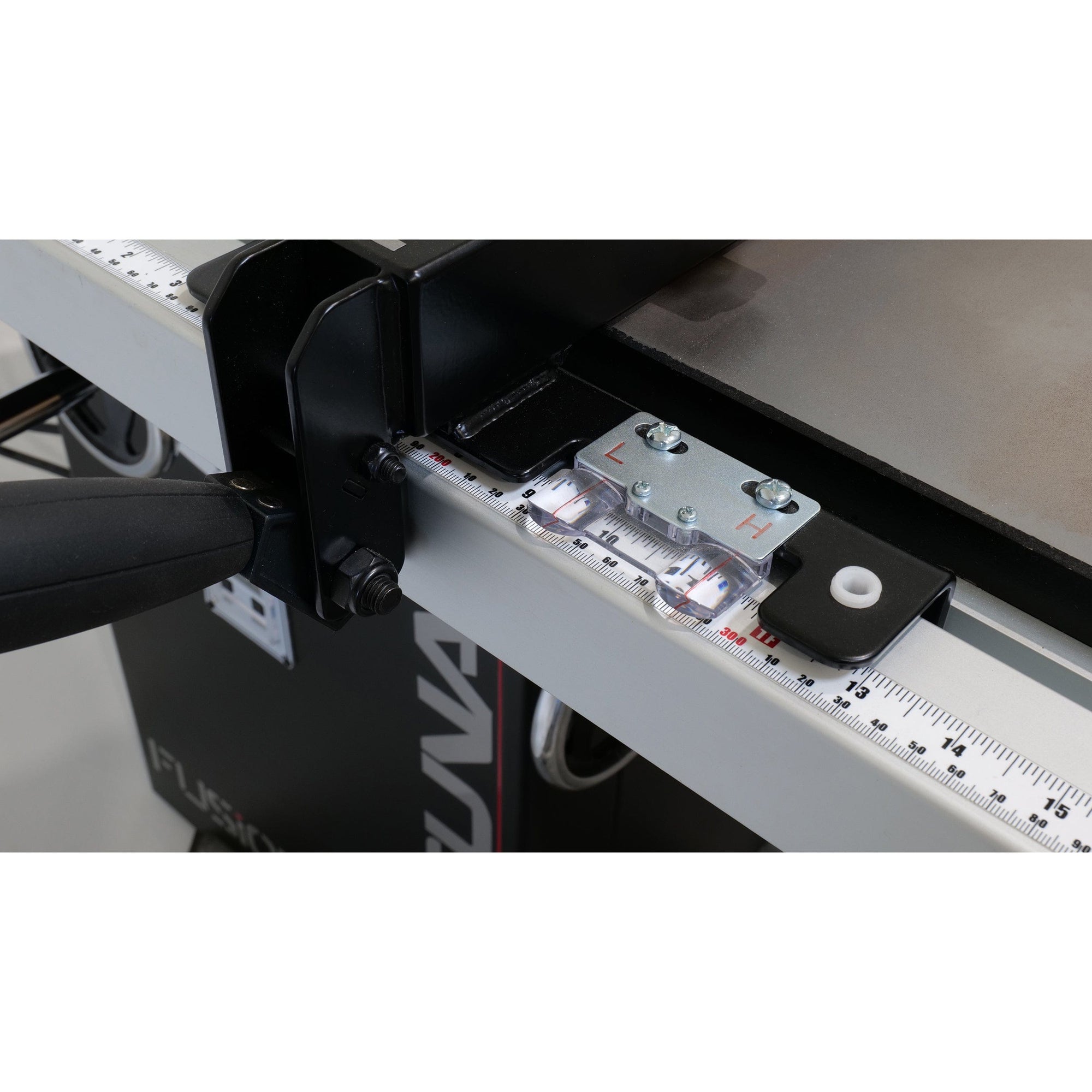

The digital readout allows for precise blade tilt adjustment and the fence features a Hi/Low window for easy set-up and accurate cuts.

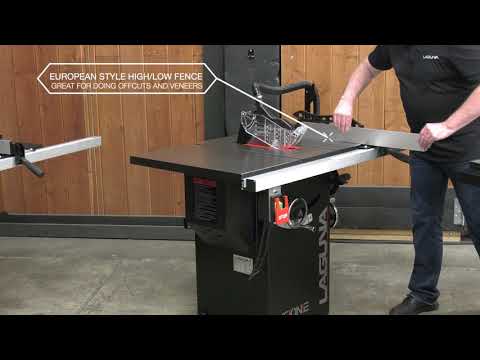

The on-board tool storage system keeps your European Hi/Low fence, miter gauge and push stick neatly stowed when not in use. While the built in mobile base allows you to move and store your saw wherever you need it.

Includes Laguna Fusion F2 Table Saw, 10” x 60T Saw Blade, Aluminum Rail-Steel Body Fence, Dust Collection Guard, Miter Gauge, Blade Guard, Arbor Wrench, Riving Knife, Push Stick, Blade Changing Tool and Premium Zero Clearance Throat Plate.

Specifications
  • Motor: 1.75 HP/110V/TEFC Capacitor Start Induction with Poly-V Belt Drive
  • Motor Speed: 3450 RPM
  • Starter Switch: Magnetic
  • Rip Capacity: 36"
  • Blade Size: 10"
  • Vertical Cut Height: 3-1/8”
  • Cut Height at 45°: 2-1/8"
  • Blade Tilt: 0-45° Left
  • Minimum Kerf: 3mm ~1/8" (actual: 0.1875")
  • Maximum Kerf (Dado Blade): 13/16"
  • Arbor Speed: 4500 RPM
  • Arbor Diameter: 5/8"
  • Miter Slot: 3/4" to 1" T-slot
  • Throat Plate: Zero Clearance Square Die-Cast, w/adjustment
  • Fence: Double Rail Cam Action
  • Base Size: 18-5/8" L x 19-1/4" W
  • Floor to Table Height: 34-3/4"
  • Table Size: 27"L x 20" W
  • Extension Wing: 27"L x 12" W (x2)
  • Throat Plate Size: 14-5/8" L x 4-1/16" W x 1/2" T
  • Dust Port Size: 3-7/8" OD
  • CFM Requirement: 400 CFM
  • Overall Size: 39-3/4" L x 65-5/8" W x 38" H
  • Machine Weight: 276 lb.
  • Shipping Weight: 359 lb.
  • Shipping Dimensions: 29-3/4" L x 46-5/8" W x 42-5/8" H
  • Warranty: 2 year
Electrical Specifications
  • Power Requirements: 110V-1PH-60HZ
  • Amperage (FLA): 14 AMP
  • Plug Included: 5-15
  • Circuit Breaker Required: 110V - 25 AMP
  • Receptacle Required: 5-15

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 7-21 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
  • Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time at no charge to you.

Return Information

Laguna does not accept returns. If your shipment was damaged, please refuse delivery, for defective items, please contact Woodcraft Supply customer service @ 1-800-535-4482.

Warranty Information

New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.

For warranty repair information, call 1-800-332-4094.
