Laguna

1-1/2HP 1PH 110V Fusion F1 Table Saw

Item #170811 Model MTSF132110150-0130
$1,199.00
$1,199.00 $1,199.00

This item has an additional shipping charge

The Laguna Fusion F1 Table Saw is a feature-rich cutting machine at an affordable price. Designed for demanding woodworkers with a sleek look, the Fusion F1 is ready to start. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

  • Align-A-Saw Plate

    $159.99
    $159.99 $159.99
    Align-A-Saw Plate

  • Align-A-Saw Gauge & Base

    $89.99
    $89.99 $89.99
    Align-A-Saw Gauge & Base

  • Spline Jig

    $159.99
    $159.99 $159.99
    Spline Jig

  • Thin Rip Guide

    $169.99
    $169.99 $169.99
    Thin Rip Guide

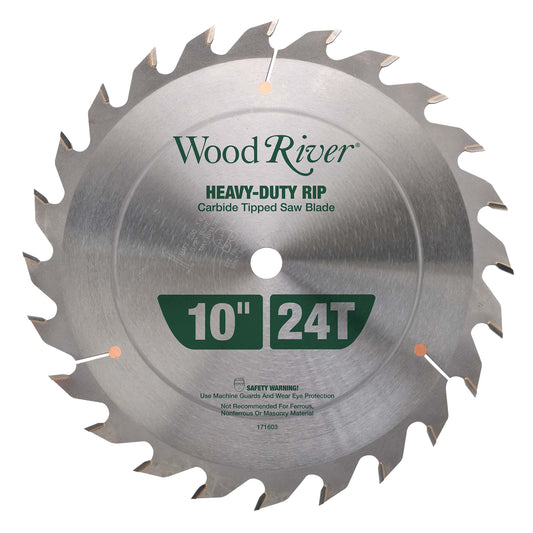

  • Heavy-Duty Rip Saw Blade - 10" x 5/8" Bore x 24T - FTG

    $63.99
    $63.99 $79.99
    Heavy-Duty Rip Saw Blade - 10" x 5/8" Bore x 24T - FTG alt 0

  • 11-in-1 Table Saw Mate Push Stick

    $15.99
    $15.99 $19.99
    11-in-1 Table Saw Mate Push Stick alt 0

  • Saw Gauge with Dial Indicator

    $99.99
    $99.99 $99.99
    Saw Gauge with Dial Indicator

  • Moby Stick - Single-Sided Push Stick

    $7.19
    $7.19 $8.99
    Moby Stick - Single-Sided Push Stick alt 0

Details

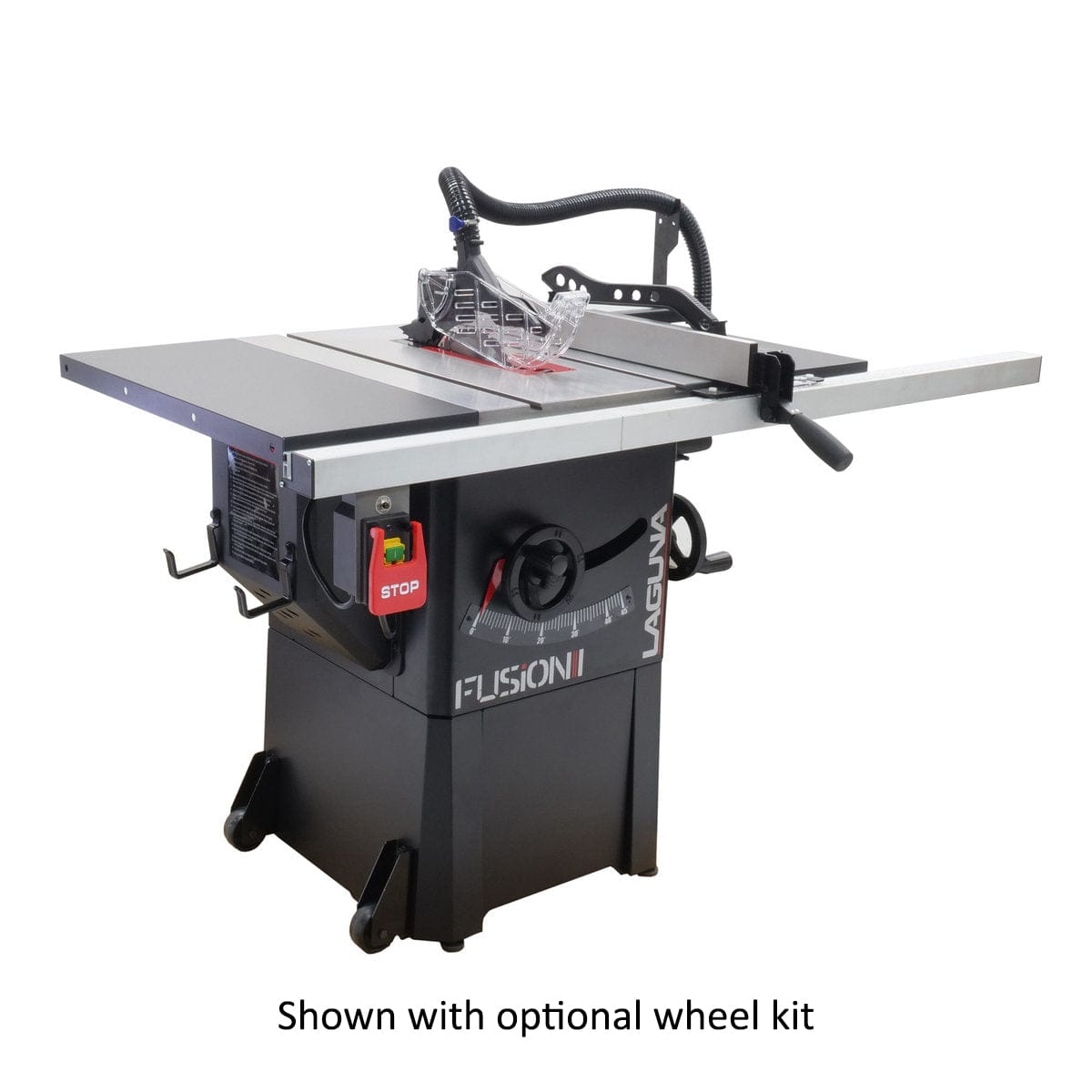

The Laguna Fusion F1 Table Saw is a feature-rich cutting machine at an affordable price. Designed for demanding woodworkers with a sleek look, the Fusion F1 is ready to start processing wood in your shop.

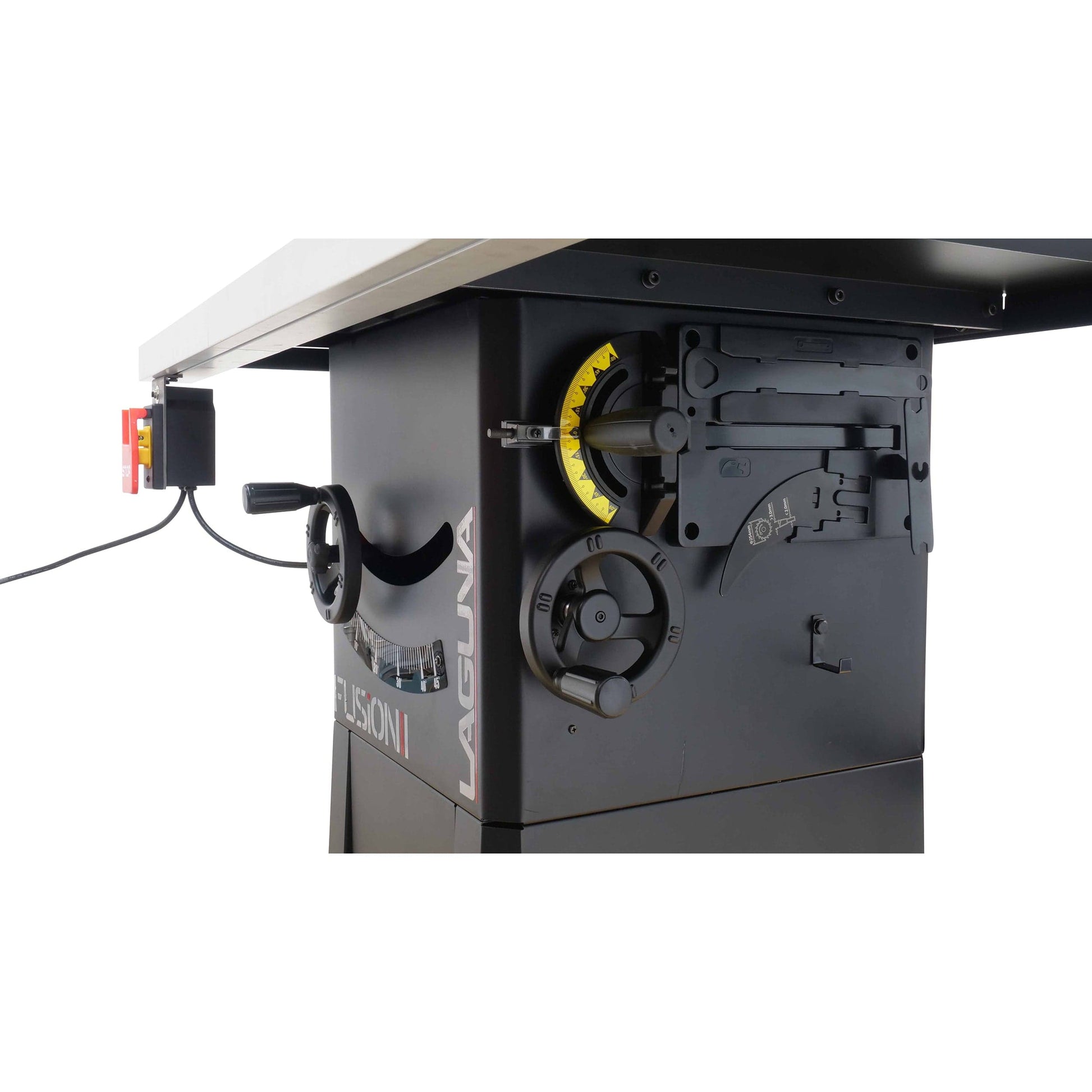

Permanently lubricated bearings and Acme screws on the inside and a precision-ground cast iron table with cast aluminum alloy upper and lower trunnions mean this saw is built to last from the inside out. Steel table wings and cabinet complete the package.

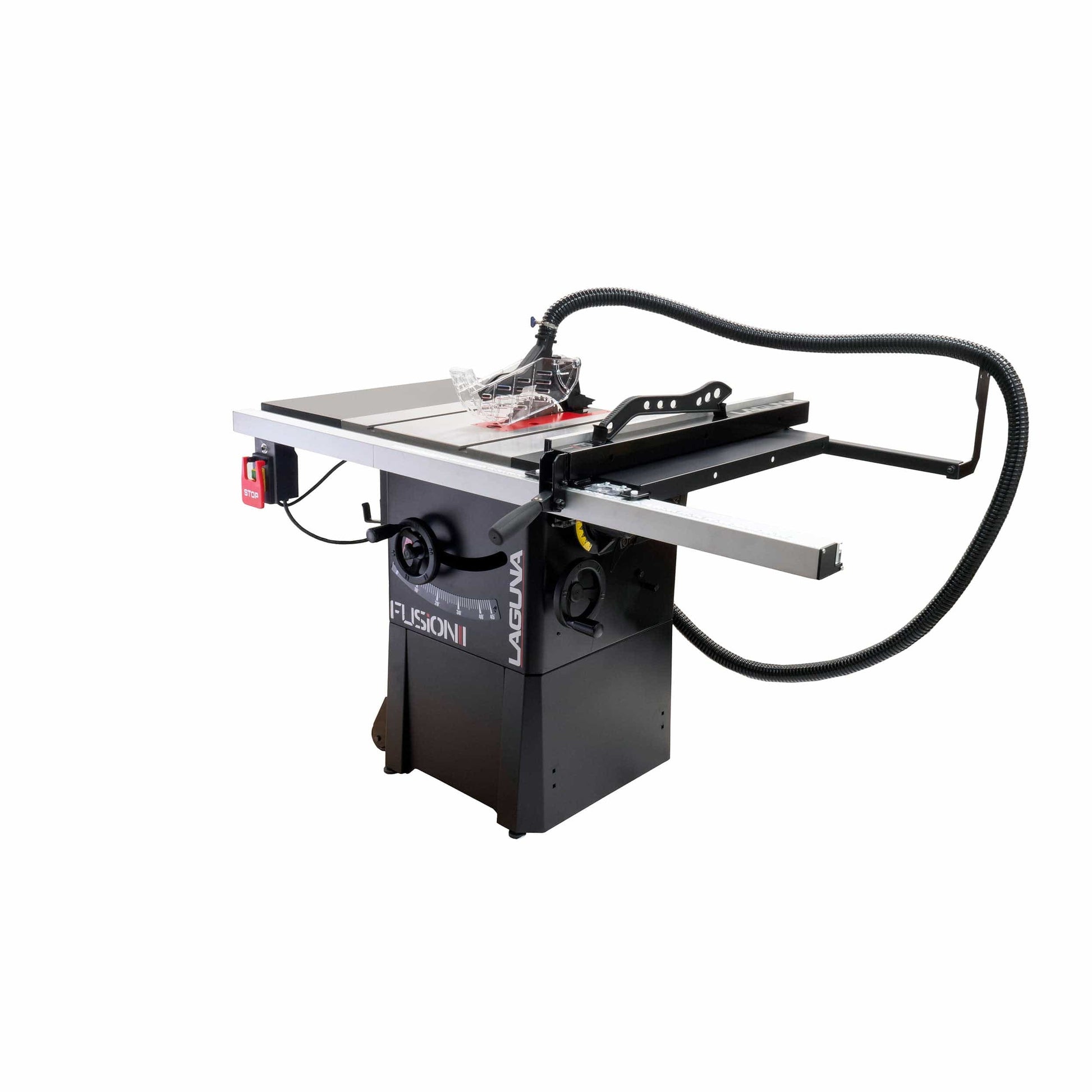

Integrated dust collection keeps your work surface clear by utilizing dust collection over and under the blade along with a sealed base.

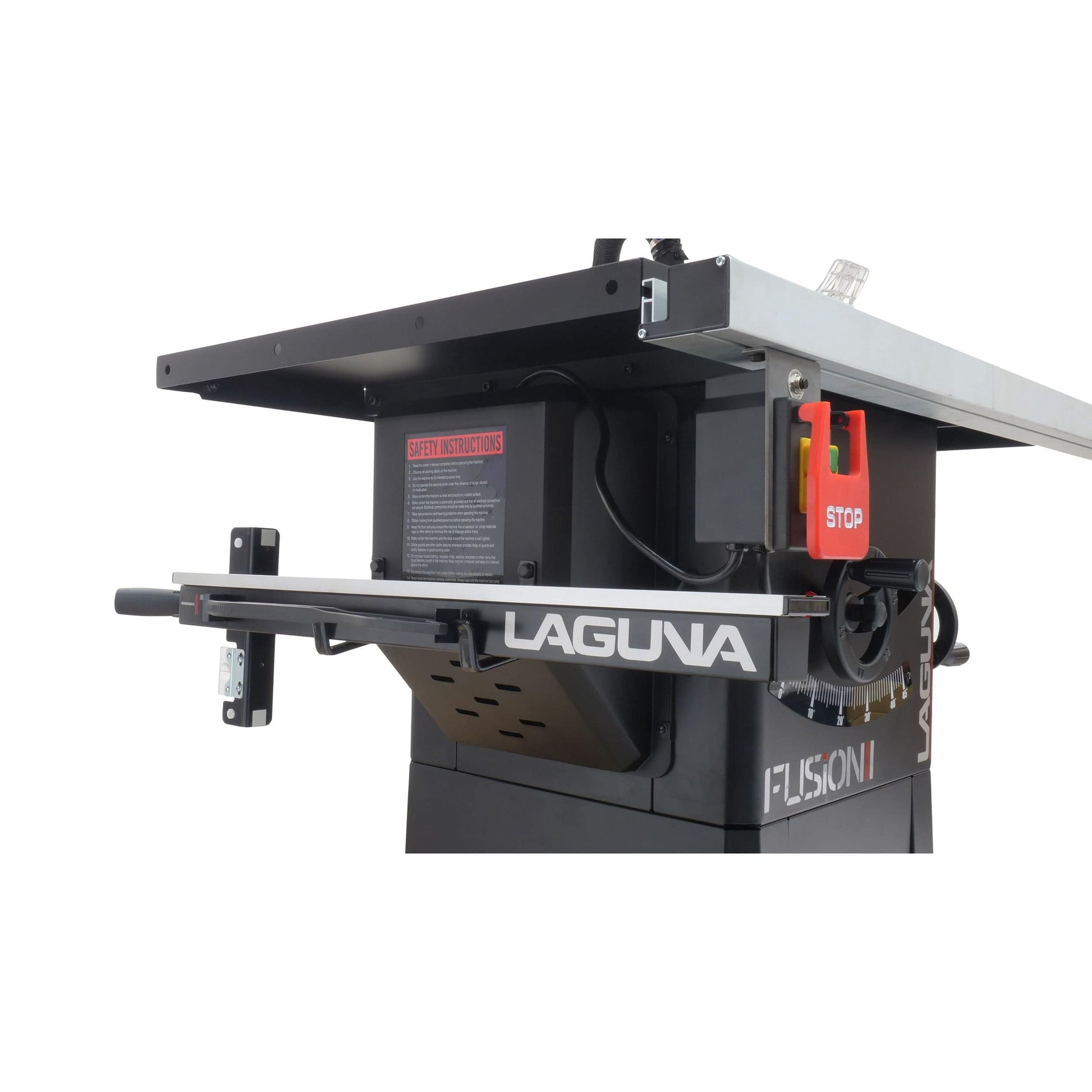

The on-board tool storage system keeps your fence, miter gauge and push stick neatly stowed when not in use.

Includes Laguna Fusion F1 Table Saw, 10” x 60T Saw Blade, Aluminum Rail-Steel Body Fence, Dust Collection Guard, Miter Gauge, Blade Guard, Arbor Wrench, Riving Knife, Push Stick, Blade Changing Tool and Standard Throat Plate.

Specifications
  • Motor: 1.5 HP/110V/TEFC Capacitor Start Induction with Poly-V Belt Drive
  • Motor Speed: 3450 RPM
  • Starter Switch: Magnetic
  • Rip Capacity: 30"
  • Blade Size: 10"
  • Vertical Cut Height: 3-1/8”
  • Cut Height at 45°: 2-1/8"

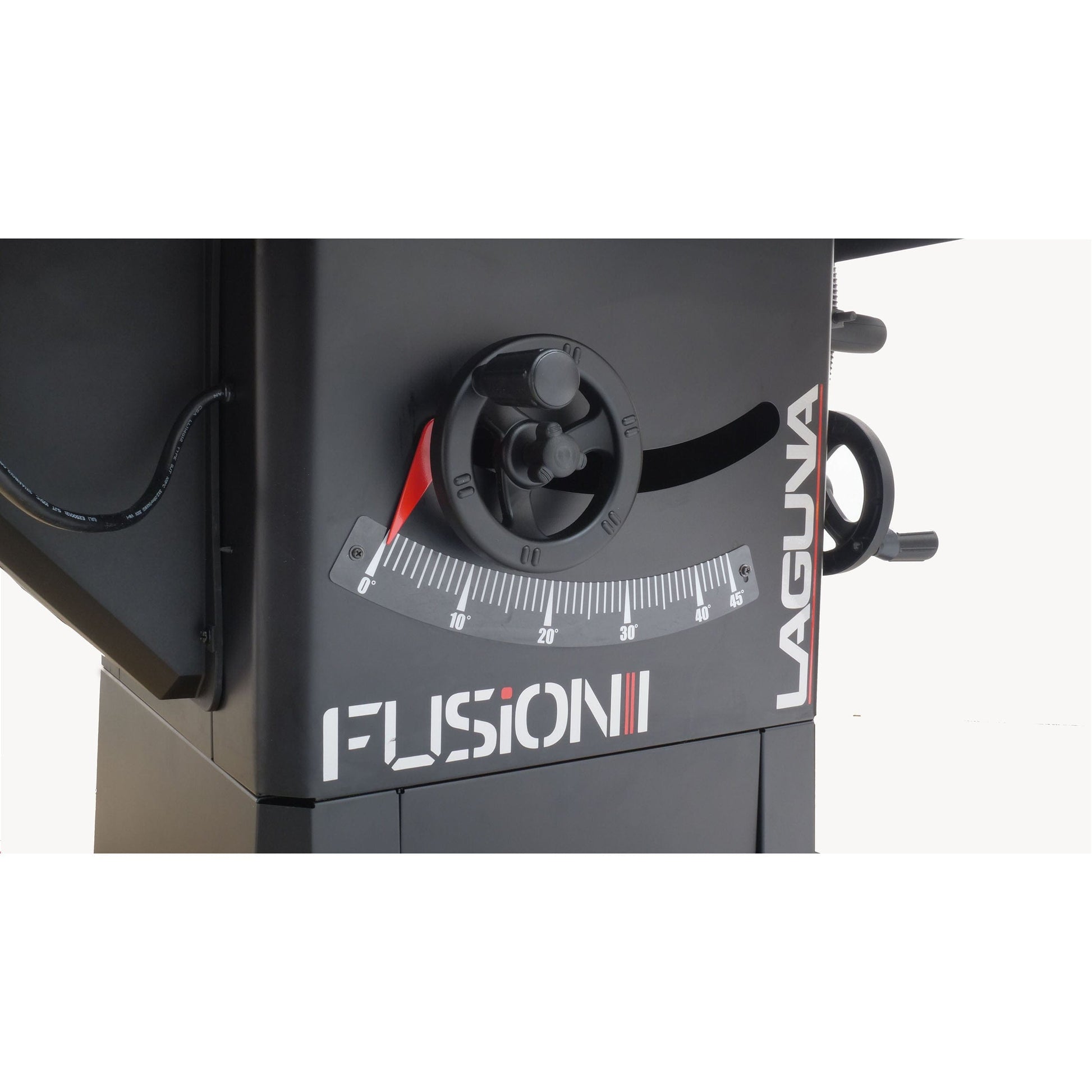

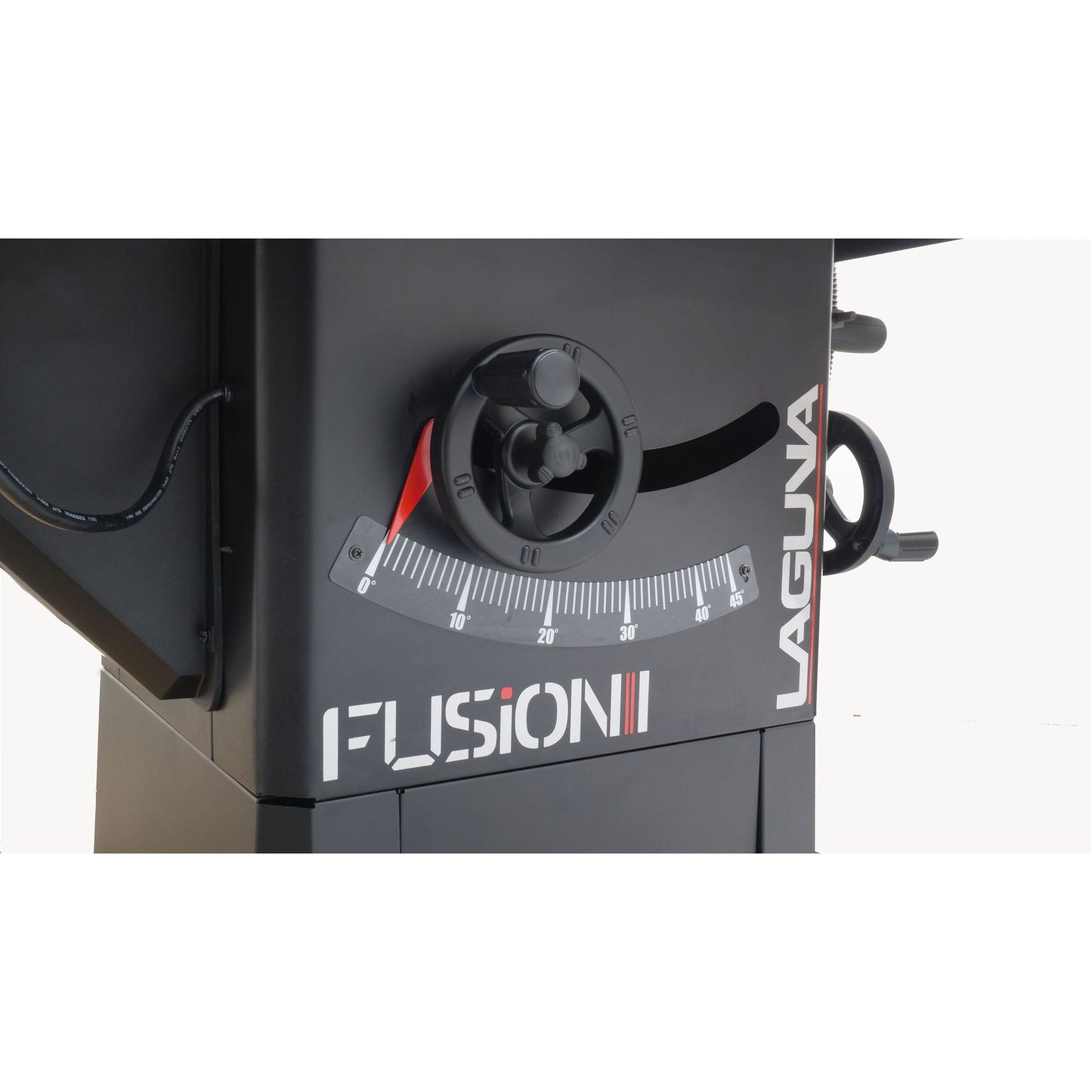

  • Blade Tilt: 0-45° Left
  • Minimum Kerf: 3mm ~1/8" (actual: 0.1875")
  • Maximum Kerf (Dado Blade): 13/16"
  • Arbor Speed: 4000 RPM
  • Arbor Diameter: 5/8"
  • Miter Slot: 3/4" to 1" T-slot
  • Throat Plate: Zero Clearance Square Die-Cast, w/adjustment

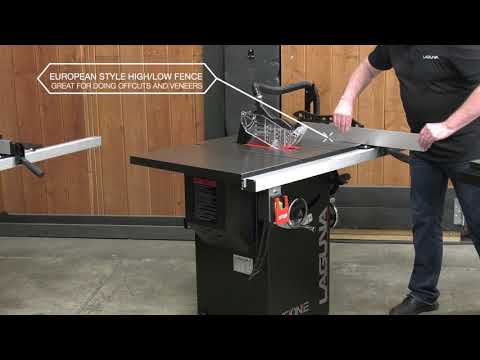

  • Fence: Single Rail Cam Action
  • Base Size: 19" L x 20" W
  • Floor to Table Height: 34-3/4"
  • Table Size: 27"L x 20" W
  • Extension Wing: L27" W12" (x2)
  • Throat Plate Size: 14-5/8" L x 4-1/16" W x 1/2" T
  • Dust Port Size: 3-7/8" OD
  • CFM Requirement: 400 CFM
  • Overall Size: 39-3/4" L x 59-5/8" W x 38" H
  • Machine Weight: 200 lb.
  • Shipping Weight: 280 lb.
  • Shipping Dimensions: 30" L x 40" W x 30" H
  • Warranty: 2 year
Electrical Specifications
  • Power Requirements: 110V-1PH-60HZ
  • Amperage (FLA): 12 AMP
  • Plug Included: 5-15
  • Circuit Breaker Required: 110V - 20 AMP
  • Receptacle Required: 5-15

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 7-21 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
  • Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time at no charge to you.

Return Information

Laguna does not accept returns. If your shipment was damaged, please refuse delivery, for defective items, please contact Woodcraft Supply customer service @ 1-800-535-4482.

Warranty Information

New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.

For warranty repair information, call 1-800-332-4094.
