Kreg

Drawer Slide Installation Jig

Item 162006
Model KHI-SLIDE
1 Review
Write a Review

$32.99

Ships Today!
Shipping Info
Check Local Store for Immediate Availability

The KREG® Drawer Slide Jig takes the guesswork out of installing drawer slides. This easy-to-use jig holds slides in position as you drill mounting holes in the cabinet, and it supports drawer boxes while mounting slides to the drawer. The jig works with ball-bearing, epoxy-coated, and...

More Details

Details

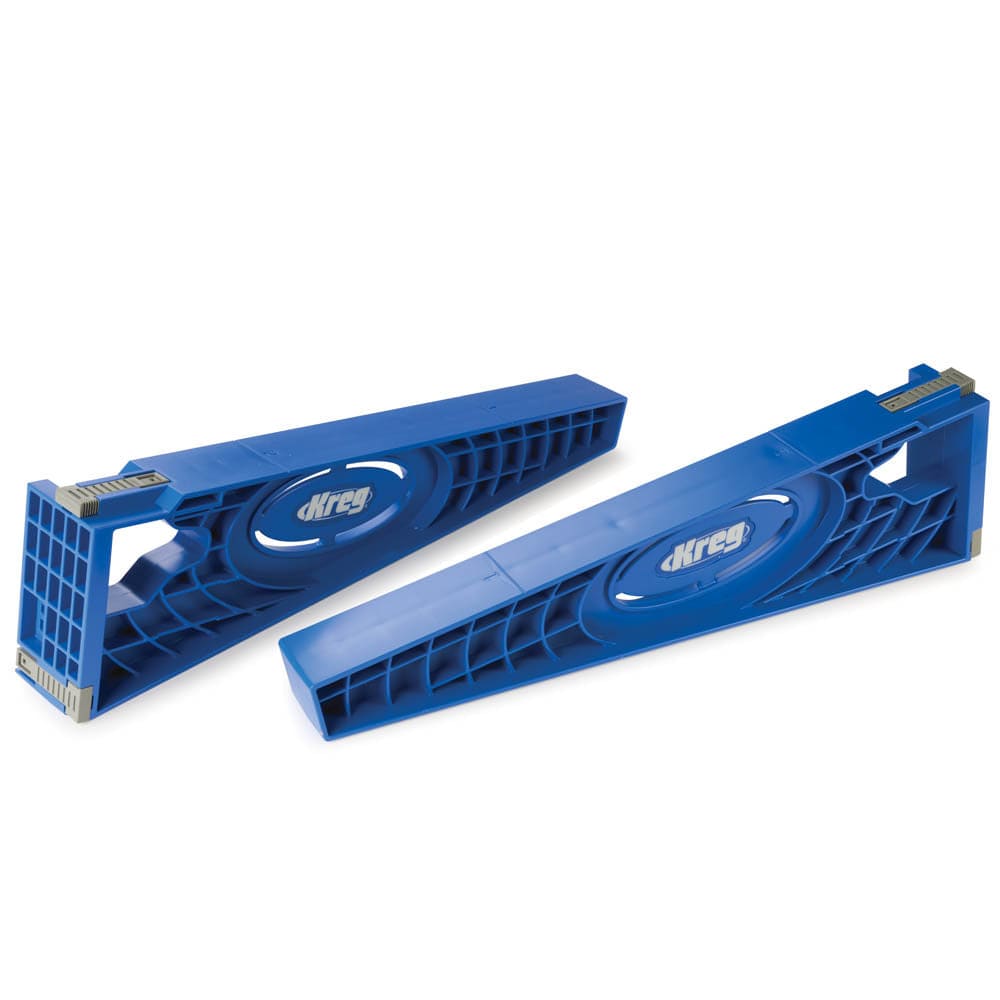

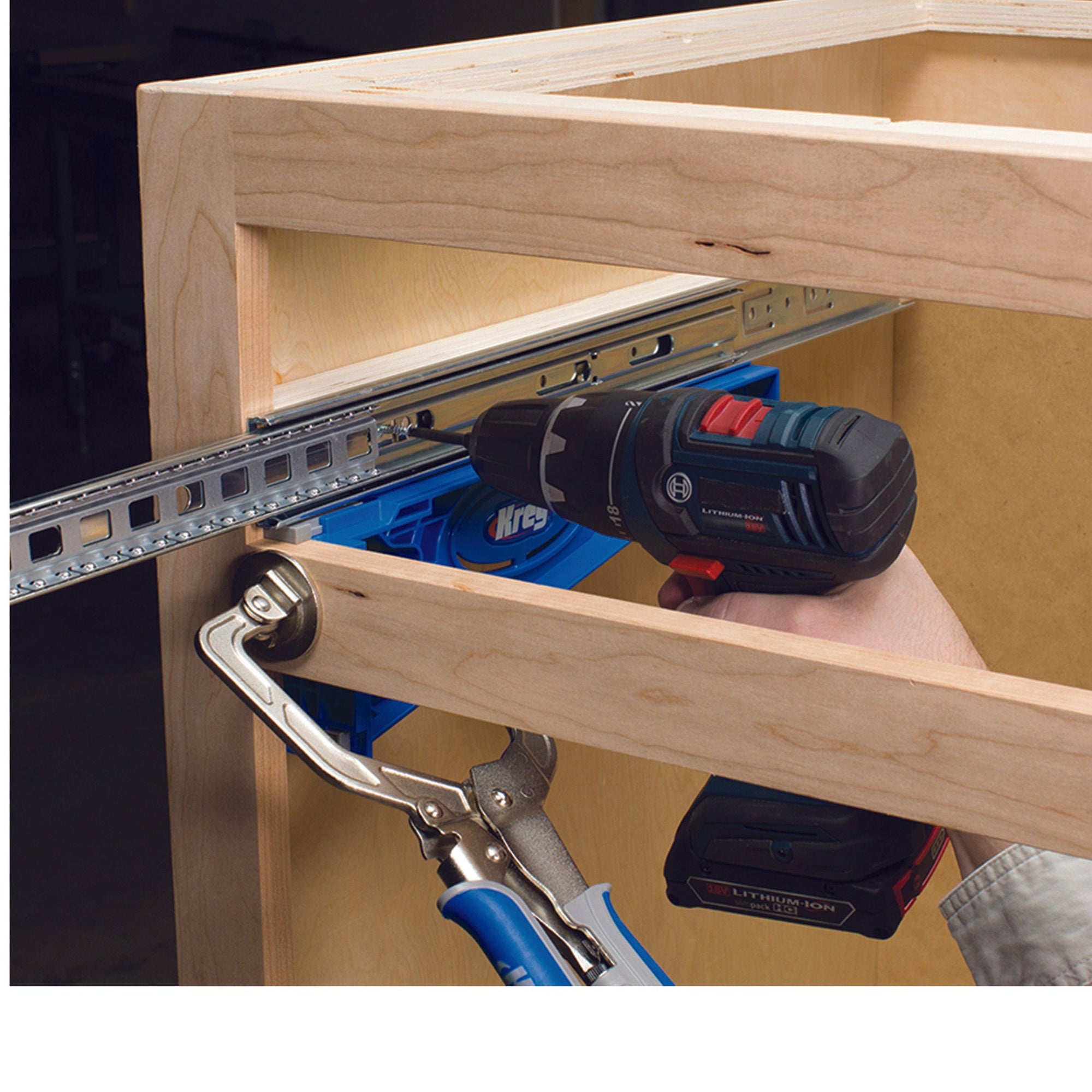

The KREG® Drawer Slide Jig takes the guesswork out of installing drawer slides. This easy-to-use jig holds slides in position as you drill mounting holes in the cabinet, and it supports drawer boxes while mounting slides to the drawer. The jig works with ball-bearing, epoxy-coated, and under-mount slides for perfect positioning every time. Built-in tabs make the jig easy to align to support the slide inside the cabinet, and to support the drawers as you attach the slides to them. The jig is simple to use, and it ensures that every drawer fits right and operates smoothly.
Features:
• Two brackets clamp in place inside the cabinet, one on each cabinet side, and align with cabinet face frame or with designated marks on frameless cabinets
• Built-in tabs make the jig easy to align to for either operation inside to cabinet, outside to drawer box

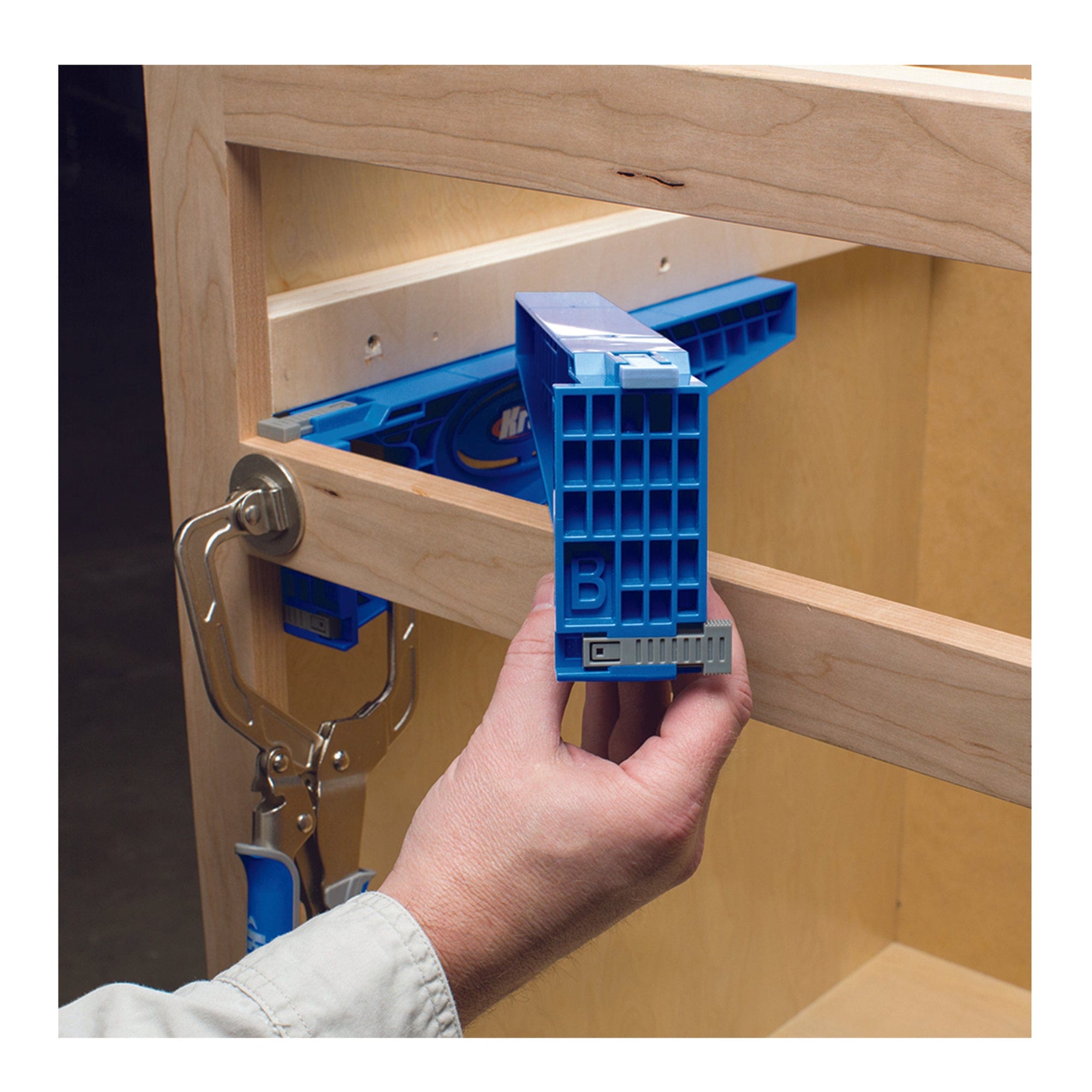

• Brackets are reversible to clamp in place to support the drawer as you mount slides to drawer box
• Works with most types of drawer slides: ball-bearing, epoxy-coated, and under-mount slides
• Minimum cabinet depth 14", 12" slides and longer

Instructions / MSDS

Articles & Blogs

Khi pull 200

When the last cookout is history and it’s time to move “indoors” and on to fall home and shop projects, Woodcraft suggests that you consider adding some new tools to your collection for easier home improvements and repairs.

Read More >
1 storagechestglamourimage

Finding more space to store and display all the “stuff” used for day-to-day living, as well as life’s pleasures, can be an adventure that ends with everything in its perfect place. Woodcraft can help you with a few ideas to kick-start your space hunt and then suggestions for tools and supplies to make your storage projects successful.

Read More >
Cnc cart yt thumb

Follow along as we build a mobile shop cart for our new CNC Machine!

Read More >

Reviews

1 Review
Write a Review
  1. by on

    Not great for face-frame without a rail

    If you look at all the pictures and videos on the web, you will notice for face-frame application, the only examples are those where the face frame stile and rail are present (like a top drawer of a base cabinet). But you won't find any where you just have to mount where there is only a stile. Instructions are the same. So I would say overall, it has limited usage.
