Jet

Details

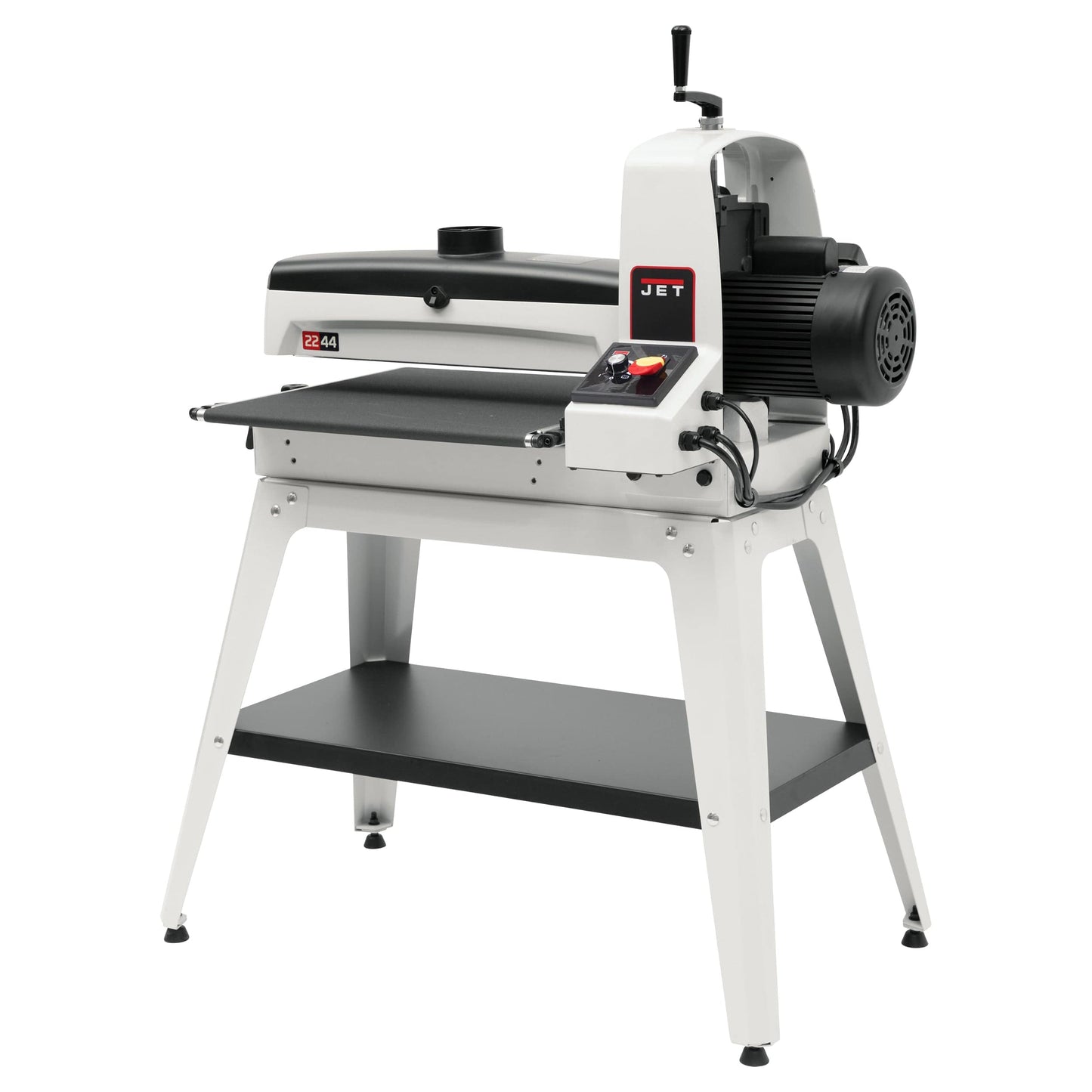

Jet® 2244 Drum Sander, Model 723540OSK, features a powerful 1-3/4 HP motor that will deliver the power to handle just about any sanding task in your shop. With an innovative tool-less parallelism system, adjustments a simple and easy, while a turn of the parallelism dial allows the worktable to be positioned correctly. Variable-speed rate allows for optimal feed rate for a full range of projects and the Sandsmart™ feature continuously monitors the load on the drum motor to prevent an overload situation. Optimizing dust collection, the 2244 features a hood that mirrors the shape of the drum to prevent chips and dust from getting between your work-piece and the finish. This drum sander delivers everything you need for an effortless finish.

Features:

Sandsmart control constantly monitors drum load, regulates speed of the conveyor motor to maintain the highest feed rate without overload
Conveyor Bed parallelism adjusted by a simple turning of the dial on the outside of the bed, no tools required
Parallelism Dial adjust features a stop to quickly return the conveyor bed to a flat position
Dust Hood mirrors drum profile to eliminate chips and dust between drum and wood
Sanding Drum is precision machined and dynamically balanced extruded aluminum, designed to dissipate heat and protect the work surface from heat damage
Precision-flattened reinforced steel conveyor bed
Conveyor system, redesigned to pull the workpiece through instead of pushing

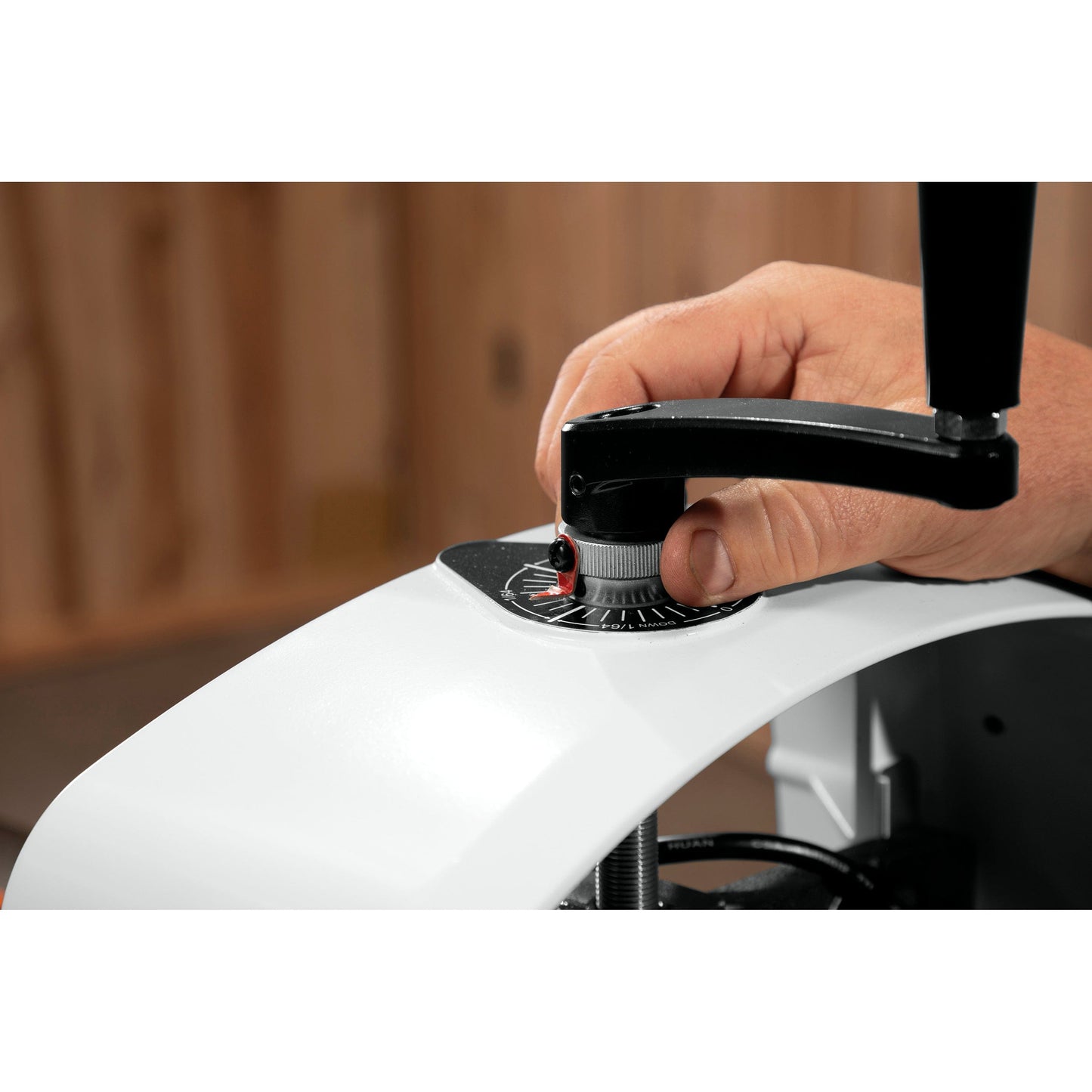

Top-position handwheel adjusts drum height by 1/16” per single rotation

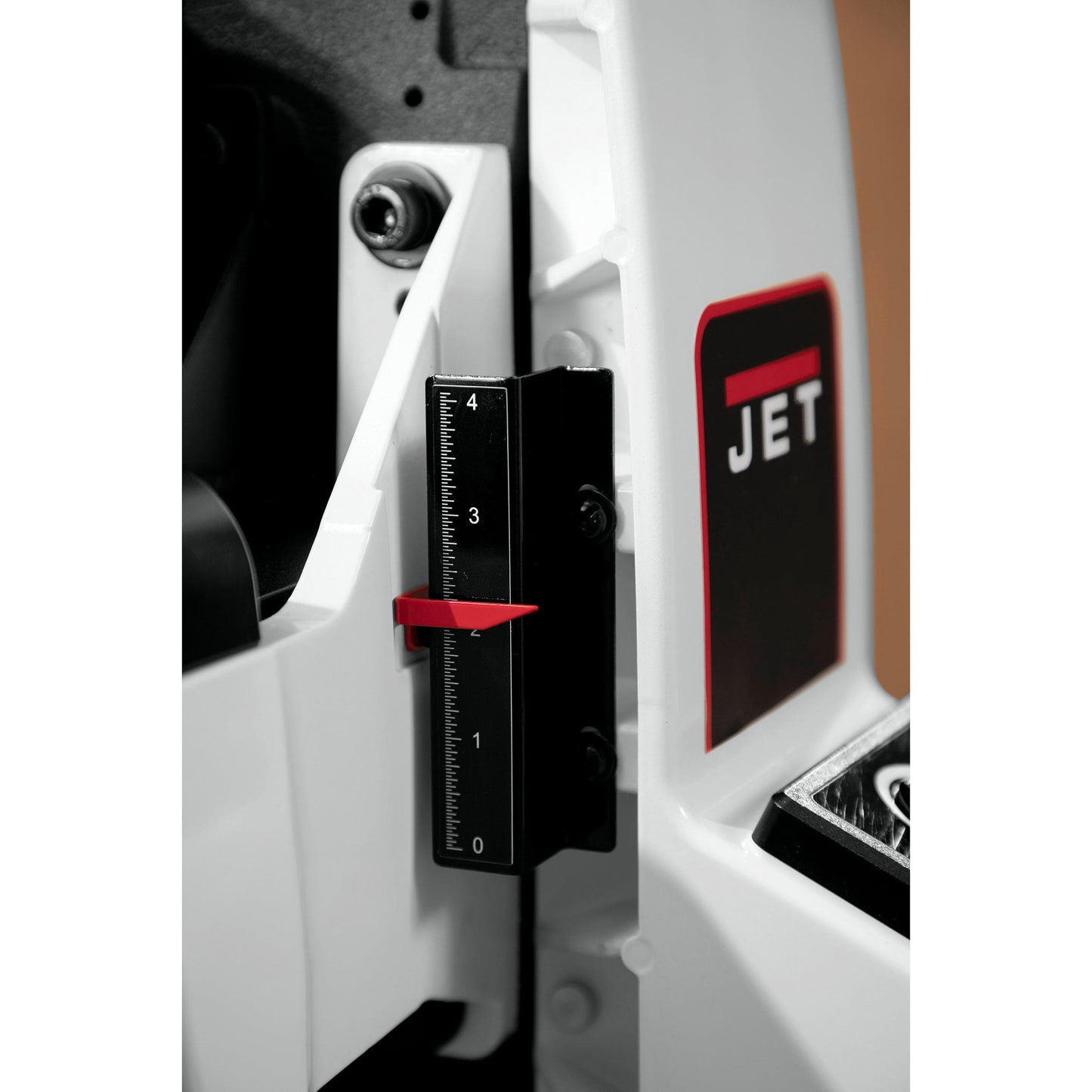

Depth Scale on the handwheel allows to reset measurements for every project

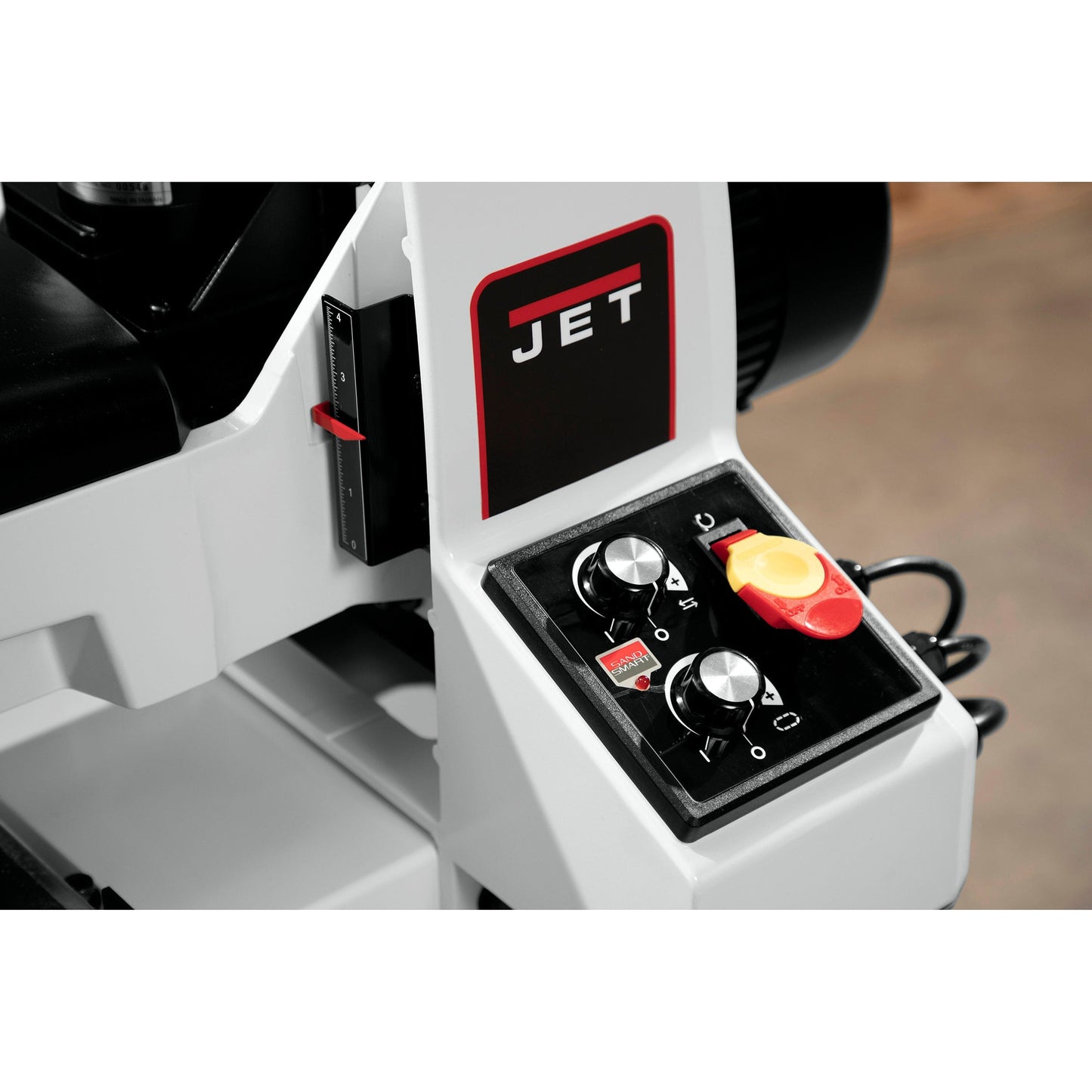

Variable speed control of up to 10’ feet per minute allowing for optimal feed rate
5-Year Warranty

Specifications:

Motor: 1-3/4 HP, 1Ph, 15A, 115V/60Hz
Drum speed: 1720 RPM
Dust port: 4"
Drum length: 22-1/4"
Drum diameter: 5”
Conveyor speed: 0-10 FPM
Abrasive installed: 80 grit
Maximum board thickness: 4”
Minimum board thickness: 1/32”
Minimum board length: 3-2/8”
Maximum board width: 22" with one pass
Maximum board width: 44” with 2 passes
Open stand included
On/off switch: Toggle with safety key
Overall size: 42" L x 24" W x 52" H
Style: Floor standing model
Net weight: 177 lb - machine only

What's Included:

(1) Jet® - 22" Drum Sander with Open Stand - 1-3/4 HP 1 Ph 115V - JWDS-2244
