• Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
• Wide stance heavy-duty trunnion for stability and smooth blade positioning
• Left and right cast iron extension wings
• Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
• Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement

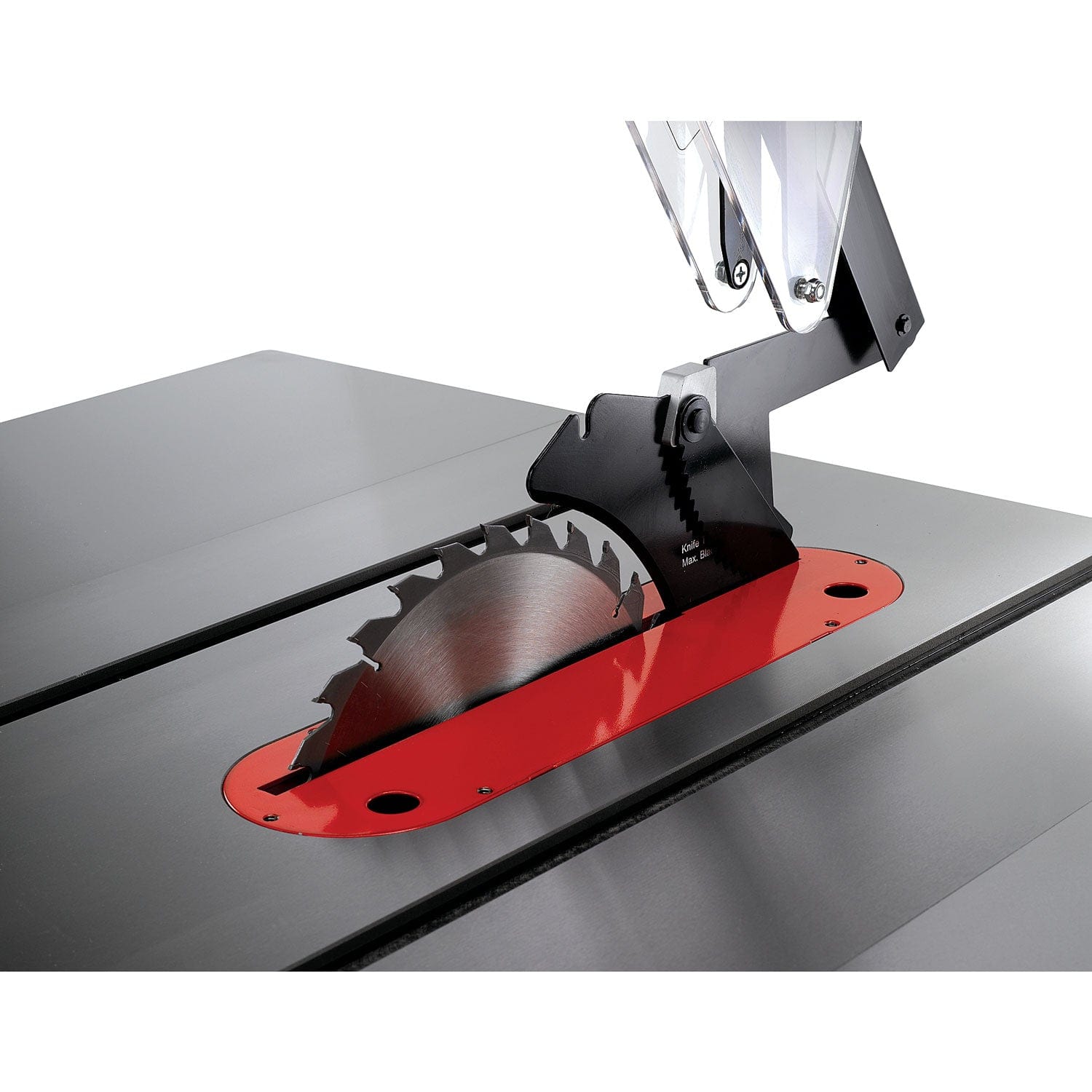

• Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt

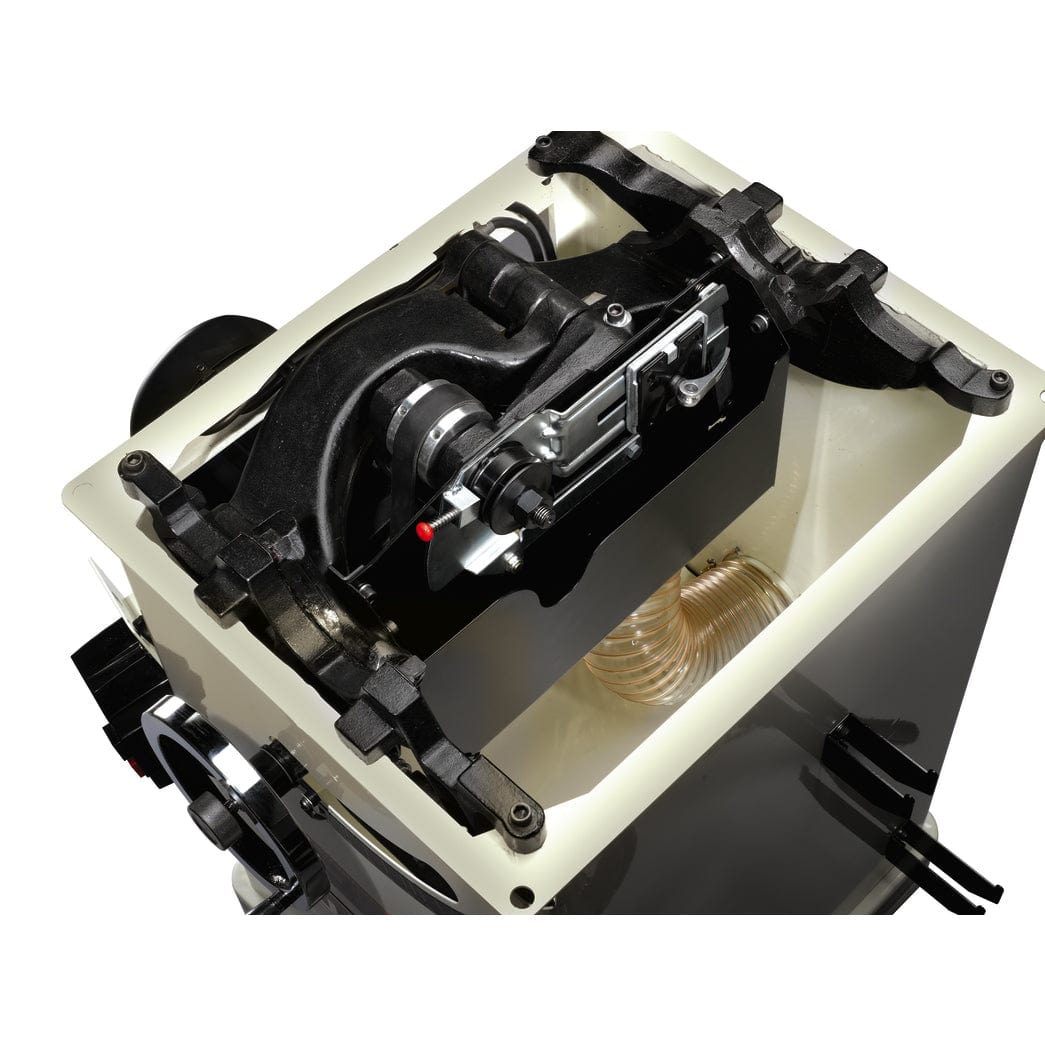

• Hinged motor cover on cabinet gives quick access to the motor and belts
• Rail-mounted magnetic switch is easy to reach and provides overload protection
• Powder coated paint for a long-lasting, chip-resistant finish

• Motor: 3 HP, 1 Ph, 14.5A, 230V
• Prewired Voltage: 230V
• Arbor Speed: 4300 RPM
• Blade Diameter: 10"
• Arbor Diameter: 5/8"
• Maximum Depth of Cut: 3"
• Maximum Depth of Cut at 45 Degrees: 2-1/8"
• Maximum Rip Right of Blade: 50"
• Maximum Rip Left of Blade: 13"
• Table in Front of Saw Blade at Maximum Depth of Cut: 10"
• Maximum Diameter of Dado: 8"
• Maximum Width of Dado: 13/16"
• Table Type: Cast Iron
• Table Height: 34"
• Table Size with Standard Extension: 29" D x 42" W
• Table Size without Extension: 29" L x 20" W
• Miter Gauge Type: Deluxe
• Dust Port Outside Diameter: 4"
• Dust Collection Minimum CFM Required: 350 CFM
• Net Weight: 330 lbs

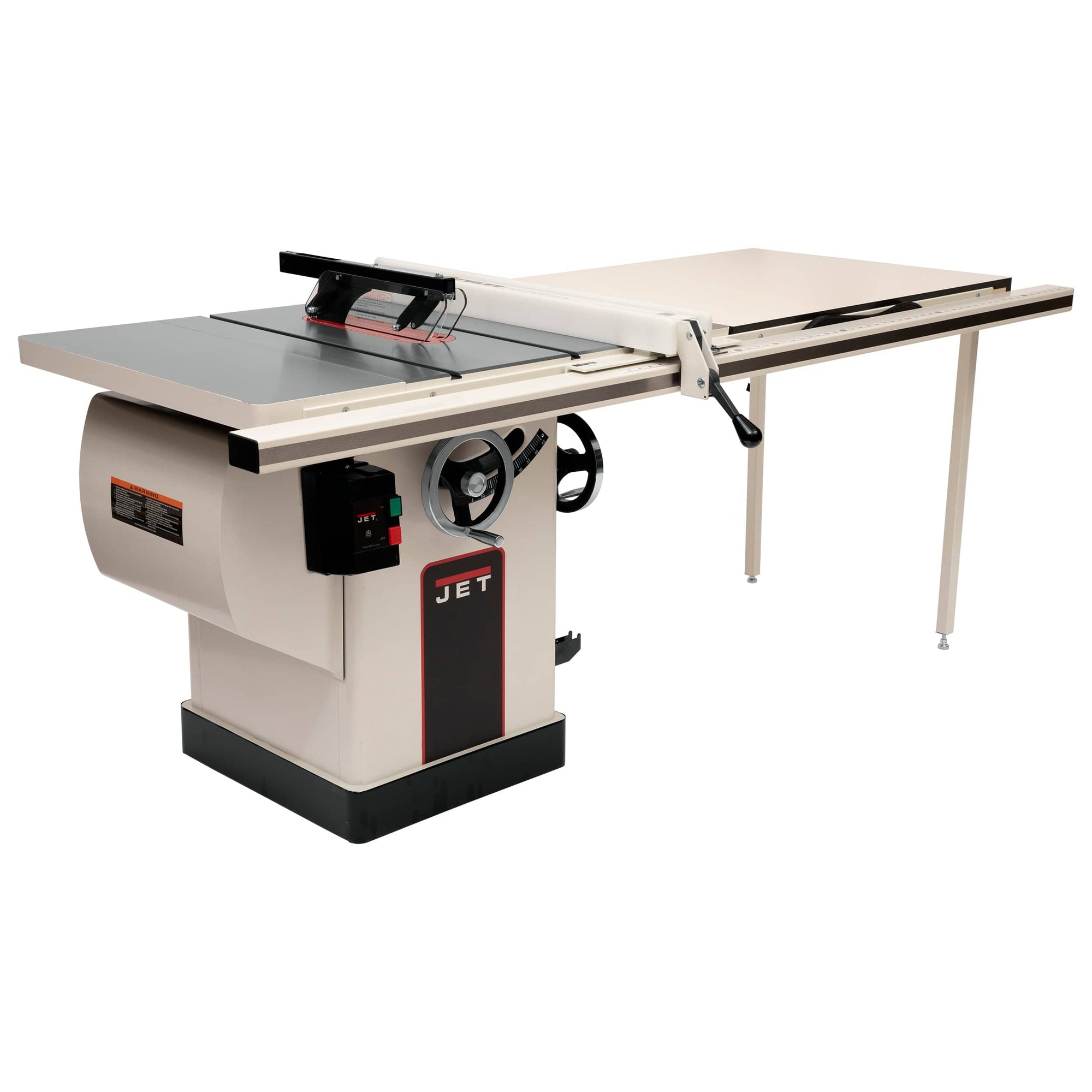

• (1) Jet® XACTASAW Deluxe 10" Table Saw with Cast Wings and 50" Rip Capacity - 3 HP 1 Ph 230V - JTAS-10DX
