Jet

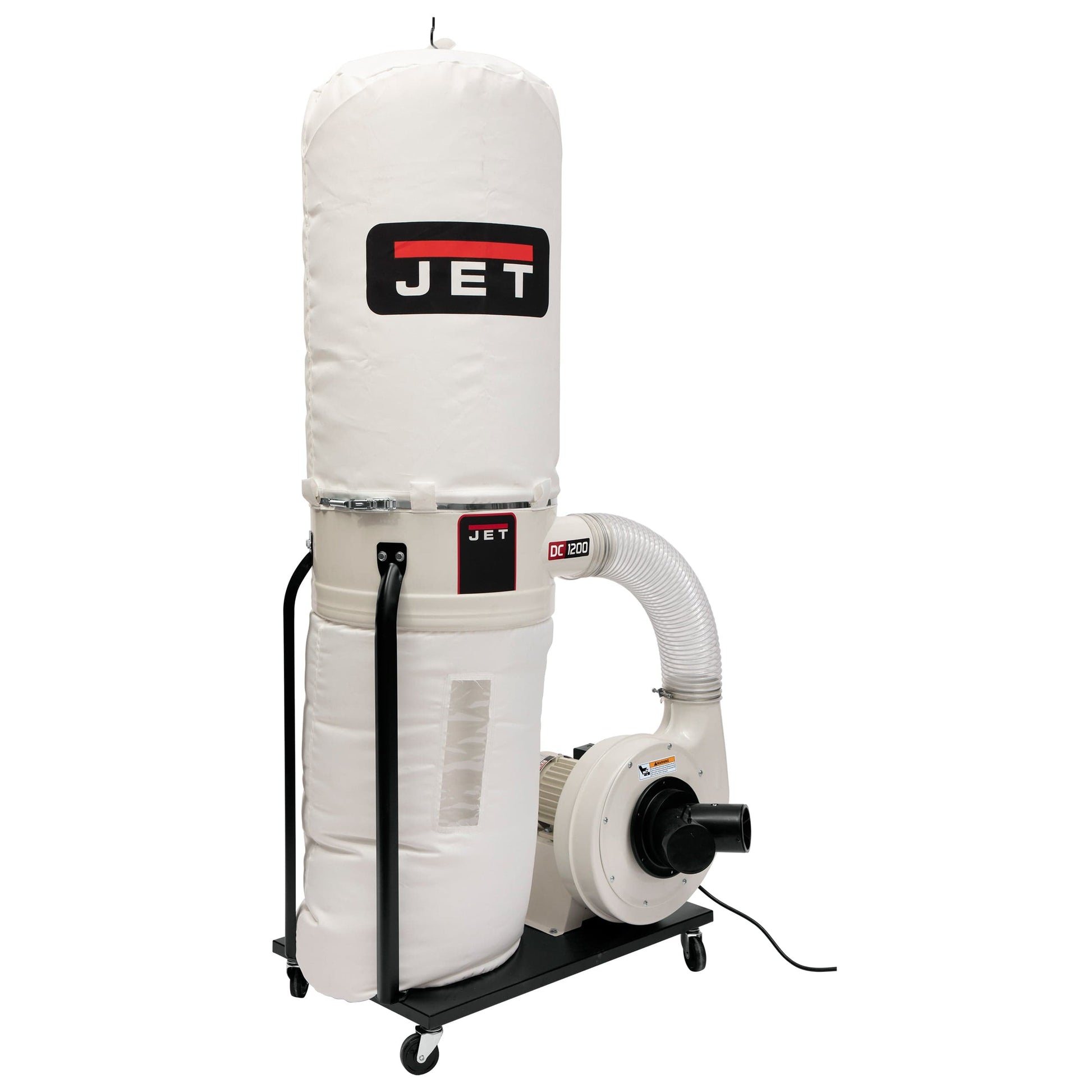

Vortex Cone Dust Collector with 30-Micron Bag Filter Kit - 2 HP 3 Ph 230/460V - DC-1200VX-BK3

Item #849652 Model JT9-710703K
Regular price $849.99
Sale price $849.99 Regular price $849.99

This item has an additional shipping charge

Skip to product information
1 of 2

Jet

Vortex Cone Dust Collector with 30-Micron Bag Filter Kit - 2 HP 3 Ph 230/460V - DC-1200VX-BK3

Item #849652 Model JT9-710703K
Regular price $849.99
Sale price $849.99 Regular price $849.99

This item has an additional shipping charge

The Jet® DC-1200VX features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter, and increases packi. . . View More Details

Ships from Manufacturer

Shipping Info

Purchase Note: This machine requires 3-phase power. Most residential power is single or 1-phase. Verify your power requirements before ordering.

Details


The Jet® DC-1200VX features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop. This Jet® Dust Collector is an excellent choice for woodworkers who want the very best in dust collection efficiency and durability. With its powerful motor, high air flow and efficient 30-micron bag filter, this dust collector will keep your workshop clean and free of debris.

Features:


  • Vortex Cone improves chip separation and collector bag packing efficiency
  • Eliminates premature filter clogging for sustained performance
  • Single-stage design for economical and quiet operation
  • Industrial controls designed for years of trouble-free use
  • Quick-connect collection bags with elastic band for fast, easy installation and removal
  • High air velocity (CFM) design stands up to any competitive specifications
  • Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
  • Includes four casters for maneuverability and total portability

Specifications:

  • Model: DC-1200VX-BK3
  • Motor Type: TEFC
  • Motor: 2 HP
  • Motor Phase: 3Ph
  • Motor Voltage: 230/460V
  • Prewired Voltage: 230V
  • Motor Current: 6/3A
  • Overall Size (L x W x H): 37" x 28" x 79"
  • Net Weight: 127 lb
  • Sound Rating at 3' Distance: 80-85db
  • 1-Hose Connection Diameter: 6"
  • 2-Hose Connection Diameter: 4"
  • Bag Diameter: 20"
  • Filter Bag Length (installed): 32"
  • Collector Bag Capacity (cubic feet): 5.3
  • Collector Bag Length: 29"
  • Air Flow at 4" (CFM): 1,200
  • Static Pressure (inches of water): 11-1/2"
  • Filter Bag Efficiency: 96% of 30 micron particles
  • Air Inlet: (1) at 6" or (2) at 4"
  • Impeller Diameter: 12"
  • Impeller Material: Steel
  • Separator Tank Diameter: 20"
  • Separator Tank Height: 10"

What's Included:

  • (1) Jet® Vortex Cone Dust Collector with 30-Micron Bag Filter Kit - 2 HP 3 Ph 230/460V - DC-1200VX-BK3

Shipping / Billing Information

All shipments must be inspected and any damage reported within 3 days of receipt.
Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:

  • Your order will ship in 7-10 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.
