• Vortex Cone improves chip separation and collector bag packing efficiency
• Eliminates premature filter clogging for sustained performance
• Single-stage design for economical and quiet operation
• Industrial controls designed for years of trouble-free use
• Quick-connect collection bags with elastic band for fast, easy installation and removal
• High air velocity (CFM) design stands up to any competitive specifications
• Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
• Includes four casters for maneuverability and total portability

• Model: DC-1200VX-BK1
• Motor Type: TEFC
• Motor: 2 HP
• Motor Phase: 1Ph
• Motor Voltage: 230V
• Prewired Voltage: 230V
• Motor Current: 8A
• Overall Size (L x W x H): 37" x 22" x 18"
• Net Weight: 127 lb
• Sound Rating at 3' Distance: 80-85db
• 1-Hose Connection Diameter: 6"
• 2-Hose Connection Diameter: 4"
• Bag Diameter: 20"
• Filter Bag Length (installed): 32"
• Collector Bag Capacity (cubic feet): 5.3
• Collector Bag Length: 29"
• Air Flow at 4" (CFM): 1,200
• Static Pressure (inches of water): 11-1/2"
• Filter Bag Efficiency: 96% of 30 micron particles
• Air Inlet: (1) at 6" or (2) at 4"
• Impeller Diameter: 12"
• Impeller Material: Steel
• Separator Tank Diameter: 20"
• Separator Tank Height: 10"

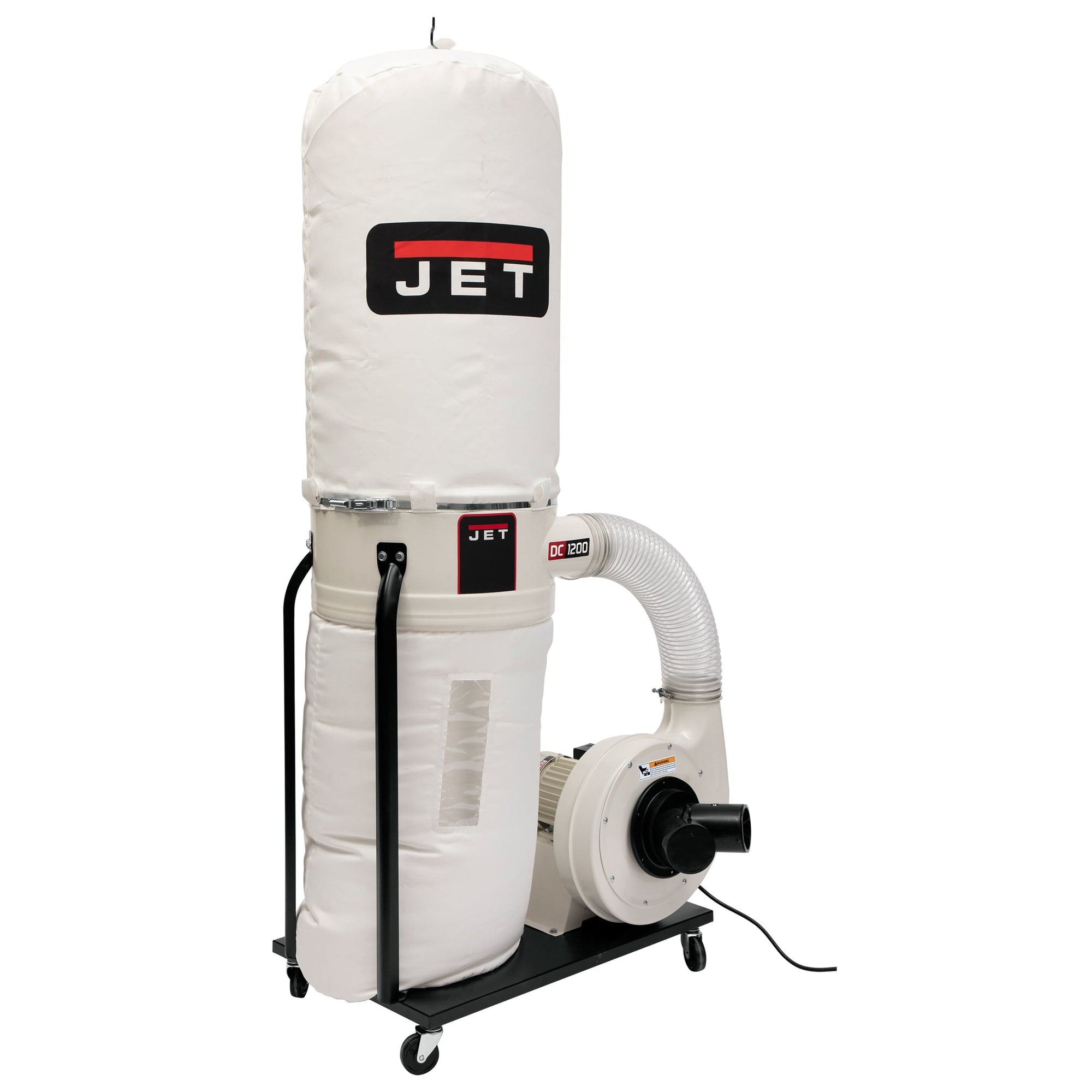

• (1) Jet® Vortex Cone Dust Collector with 30-Micron Bag Filter Kit - 2 HP 1 Ph 230V - DC-1200VX-BK1
