Jet

Vortex Cone Dust Collector with 2-Micron Canister Kit - 2 HP 3 Ph 230/460V - DC-1200VX-CK3

Item #849653 Model JT9-710704K
Regular price $934.99
Sale price $934.99 Regular price $1,099.99

This item has an additional shipping charge

Save 15% - JET Woodworking Tools & Accessories November 22 - December 2 Only!

Skip to product information
Sale
1 of 2

Jet

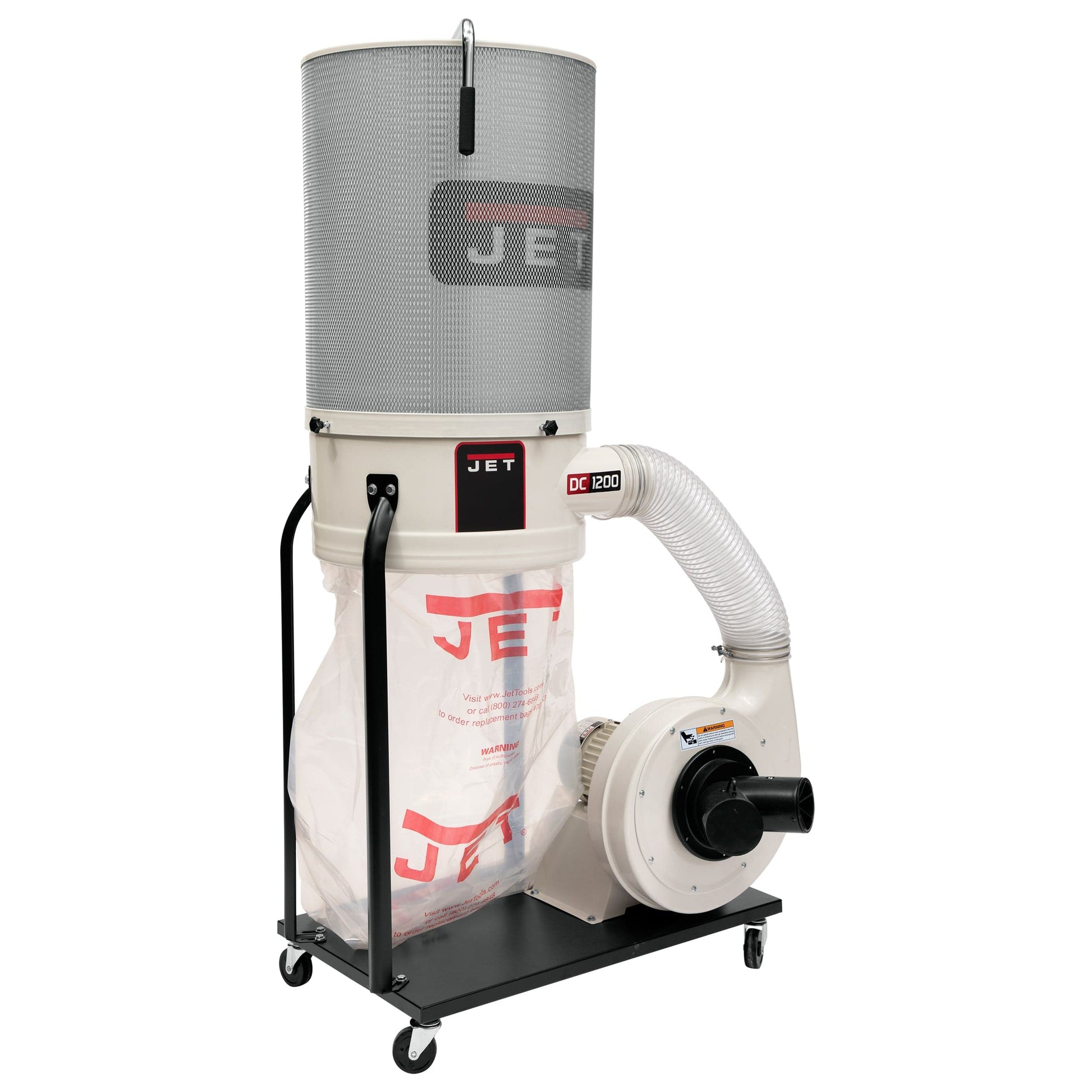

Vortex Cone Dust Collector with 2-Micron Canister Kit - 2 HP 3 Ph 230/460V - DC-1200VX-CK3

Item #849653 Model JT9-710704K
Regular price $934.99
Sale price $934.99 Regular price $1,099.99

This item has an additional shipping charge

Save 15% - JET Woodworking Tools & Accessories November 22 - December 2 Only!

The Jet® DC-1200VX-CK3 Dust Collector offers superior particle collection thanks to its exclusive Vortex Cone™ technology, which improves ch. . . View More Details

Ships from Manufacturer

Shipping Info

Purchase Note: This machine requires 3-phase power. Most residential power is single or 1-phase. Verify your power requirements before ordering.

Details



The Jet® DC-1200VX-CK3 Dust Collector offers superior particle collection thanks to its exclusive Vortex Cone™ technology, which improves chip separation to prevent the filter's clogging, strengthening performance quality and extending the lifespan of the machine. The totally enclosed, fan-cooled, 2-horsepower motor is rated for continuous duty with more than enough horsepower for efficient air movement, while the precision-balanced, all-steel impeller maximizes air intake. The see-through design of the dust bag prevents premature bag change-outs while filtering up to 98% of 2-micron particles, and the sewn-in snap ring makes for rapid insertion and removal. Its canister is installed and removed without tools thanks to the large, ergonomic knobs that are easy to handle. Plus, four heavy-duty casters make for easy mobility around the workshop.

Features:


  • Vortex Cone improves chip separation and collector bag packing efficiency
  • Eliminates premature filter clogging for sustained performance
  • Single-stage design for economical and quiet operation
  • Industrial controls designed for years of trouble-free use
  • Quick-connect collection bags with elastic band for fast, easy installation and removal
  • High air velocity (CFM) design stands up to any competitive specifications
  • Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
  • Includes four casters for maneuverability and total portability

Specifications:

  • Model: DC-1200VX-CK3
  • Motor Type: TEFC
  • Motor: 2 HP
  • Motor Phase: 3Ph
  • Motor Voltage: 230/460V
  • Prewired Voltage: 230V
  • Motor Current: 6/3A
  • Overall Size (L x W x H): 37" x 28" x 79"
  • Net Weight: 127 lb
  • Sound Rating at 3' Distance: 80-85db
  • 1-Hose Connection Diameter: 6"
  • 2-Hose Connection Diameter: 4"
  • Bag Diameter: 20"
  • Filter Bag Length (installed): 25"
  • Collector Bag Capacity (cubic feet): 5.3
  • Collector Bag Length: 29"
  • Air Flow at 4" (CFM): 1,200
  • Static Pressure (inches of water): 11-1/2"
  • Filter Bag Efficiency: 98% of 2 micron
  • Air Inlet: (1) at 6" or (2) at 4"
  • Impeller Diameter: 12"
  • Impeller Material: Steel
  • Separator Tank Diameter: 20"
  • Separator Tank Height: 10"

What's Included:

  • (1) Jet® Vortex Cone Dust Collector with 2-Micron Canister Kit - 2 HP 3 Ph 230/460V - DC-1200VX-CK3
