Jet

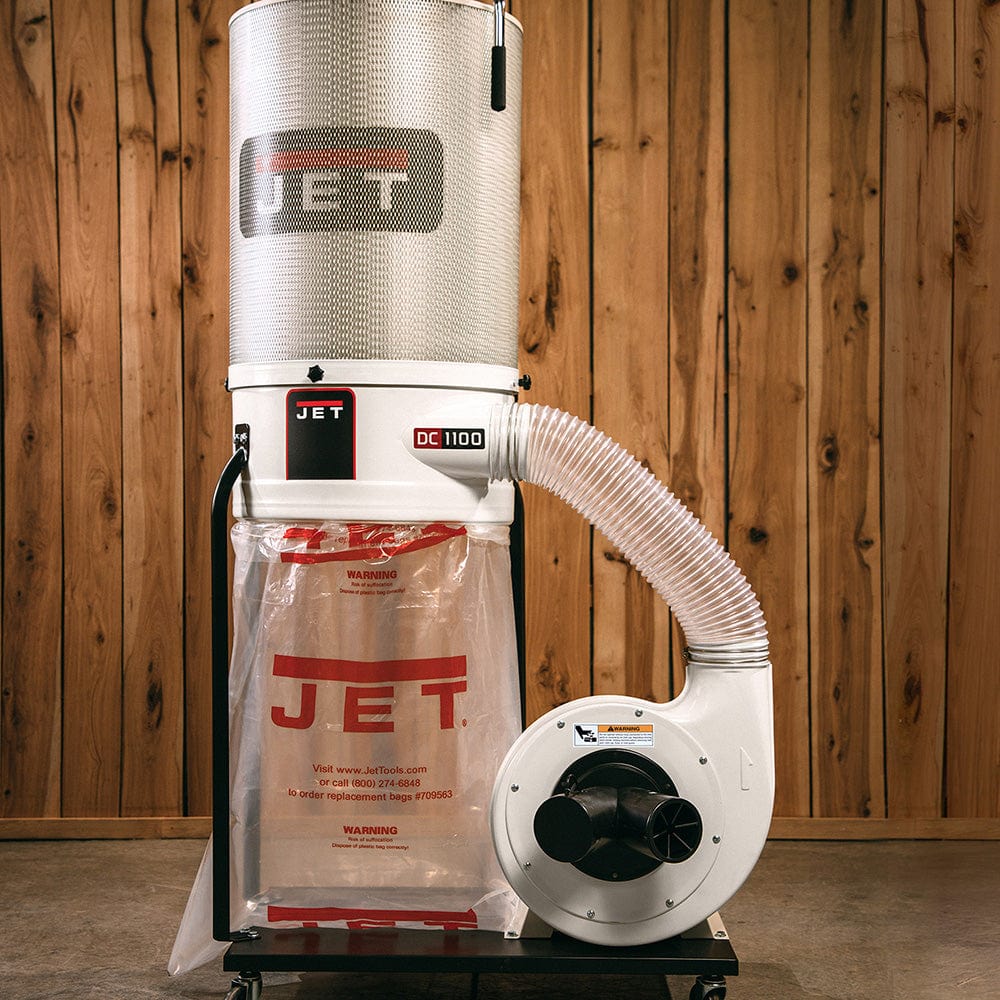

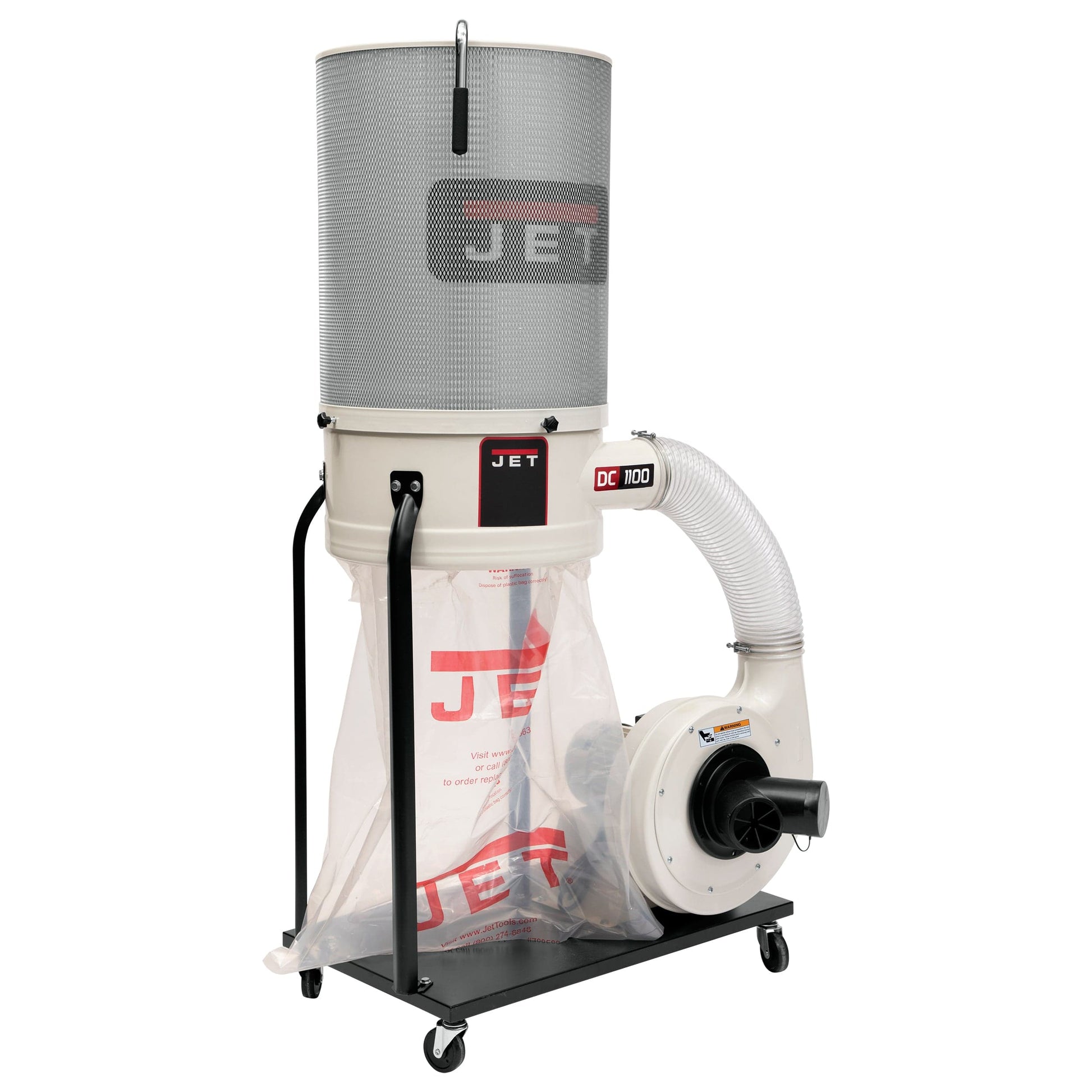

Vortex Cone Dust Collector with 2-Micron Canister Kit - 1-1/2 HP 1 Ph 115/230V - DC-1100VX-CK

Item #849645 Model JT9-708659K
$ 899 99
$ 899 99 Was $899.99
1 7

Jet

Vortex Cone Dust Collector with 2-Micron Canister Kit - 1-1/2 HP 1 Ph 115/230V - DC-1100VX-CK

Item #849645 Model JT9-708659K
$ 899 99
$ 899 99 Was $899.99
The Jet® DC-1100VX Dust Collector offers superior particle collection thanks to its exclusive Vortex Cone™ technology, which improves chip s. . . View More Details
Estimated Ship Date September 10, 2025 Shipping Info
Items you may need

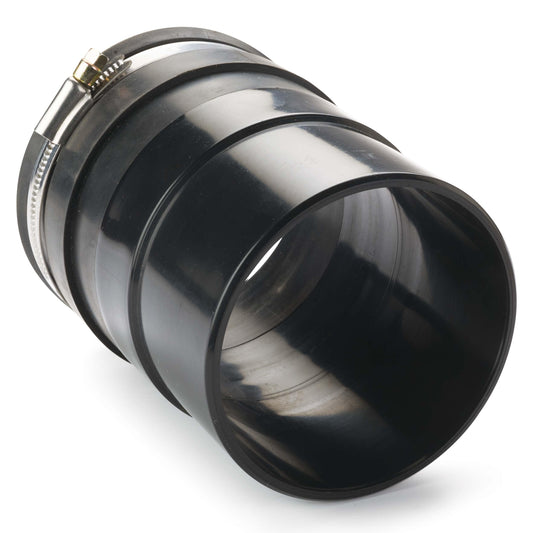

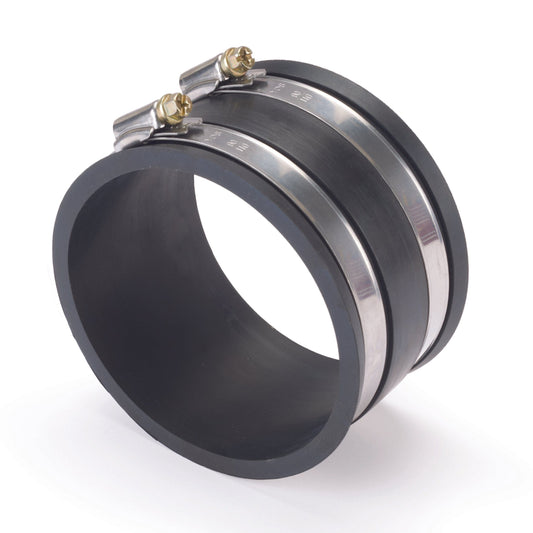

  • Dust Control Flex Cuff w/ Hose Clamps - 4"

    $ 11 89
    $ 11 89 Was $13.99 Save $2.10 (15% off)
    4" Dust Control Flex Cuff w/ Hose Clamps alt 0

  • Duct Wrap for Dust Collection Fittings & Hoses - 1-1/2 W x 25' L

    $ 22 94
    $ 22 94 Was $26.99 Save $4.05 (15% off)
    Duct Wrap for Dust Collection Fittings & Hoses - 1-1/2 W x 25' L alt 0

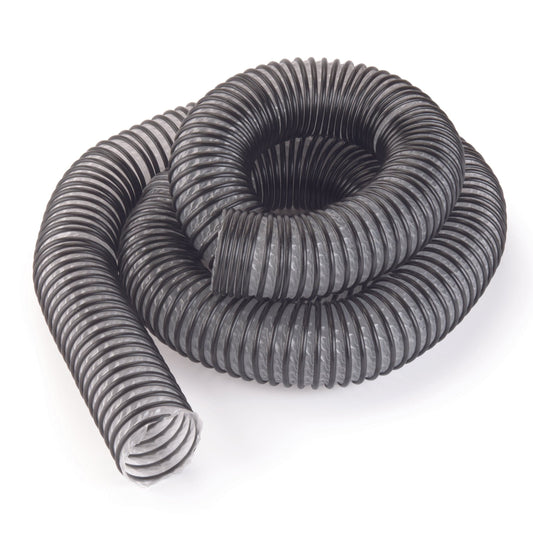

  • Light-Duty Dust Collection Hose - 4" x 10' - Semi-Clear

    $ 30 59
    $ 30 59 Was $35.99 Save $5.40 (15% off)
    4" x 10' Light-Duty Dust Collection Hose - Semi-Clear alt 0

  • Flexadux PV Dust Collection Hose - 4" x 10' - Clear

    $ 42 49
    $ 42 49 Was $49.99 Save $7.50 (15% off)
    4" x 10' Flexadux PV Dust Collection Hose - Clear alt 0

  • Flex-Tube Anti-Static Dust Collection Hose - Clear - 4" x 10

    $ 63 74
    $ 63 74 Was $74.99 Save $11.25 (15% off)
    4" x 10' Flex-Tube Anti-Static Dust Collection Hose - Clear alt 0

  • TPR Quick Connect Hose Adapter 4"

    $ 12 74
    $ 12 74 Was $14.99 Save $2.25 (15% off)
    4" TPR Quick Connect Hose Adapter alt 0

Details

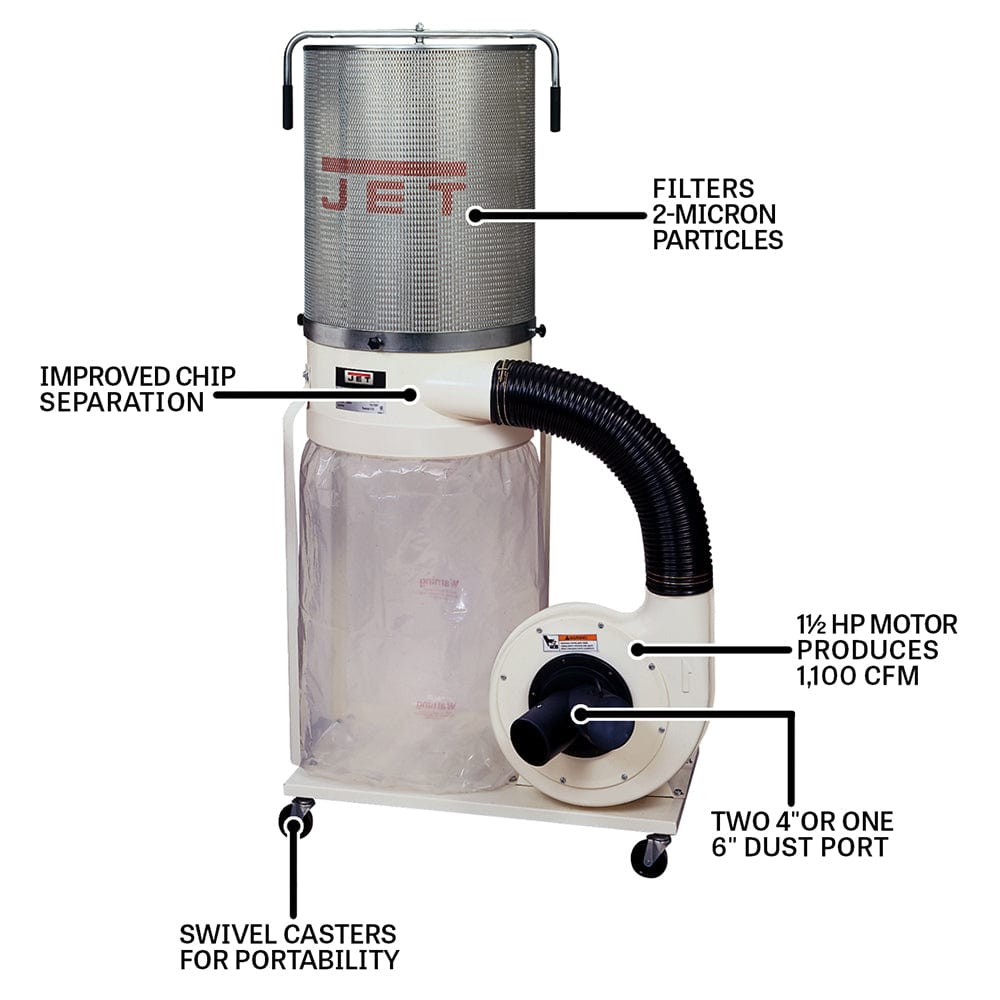

The Jet® DC-1100VX Dust Collector offers superior particle collection thanks to its exclusive Vortex Cone™ technology, which improves chip separation to prevent the filter's clogging, strengthening performance quality and extending the lifespan of the machine. The totally enclosed, fan-cooled, 1-1/2-horsepower motor is rated for continuous duty with more than enough horsepower for efficient air movement, while the precision-balanced, all-steel impeller maximizes air intake. The see-through design of the dust bag prevents premature bag change-outs while filtering up to 98% of 2-micron particles, and the sewn-in snap ring makes for rapid insertion and removal. Its canister is installed and removed without tools thanks to the large, ergonomic knobs that are easy to handle. Plus, four heavy-duty casters make for easy mobility around the workshop.

Features:

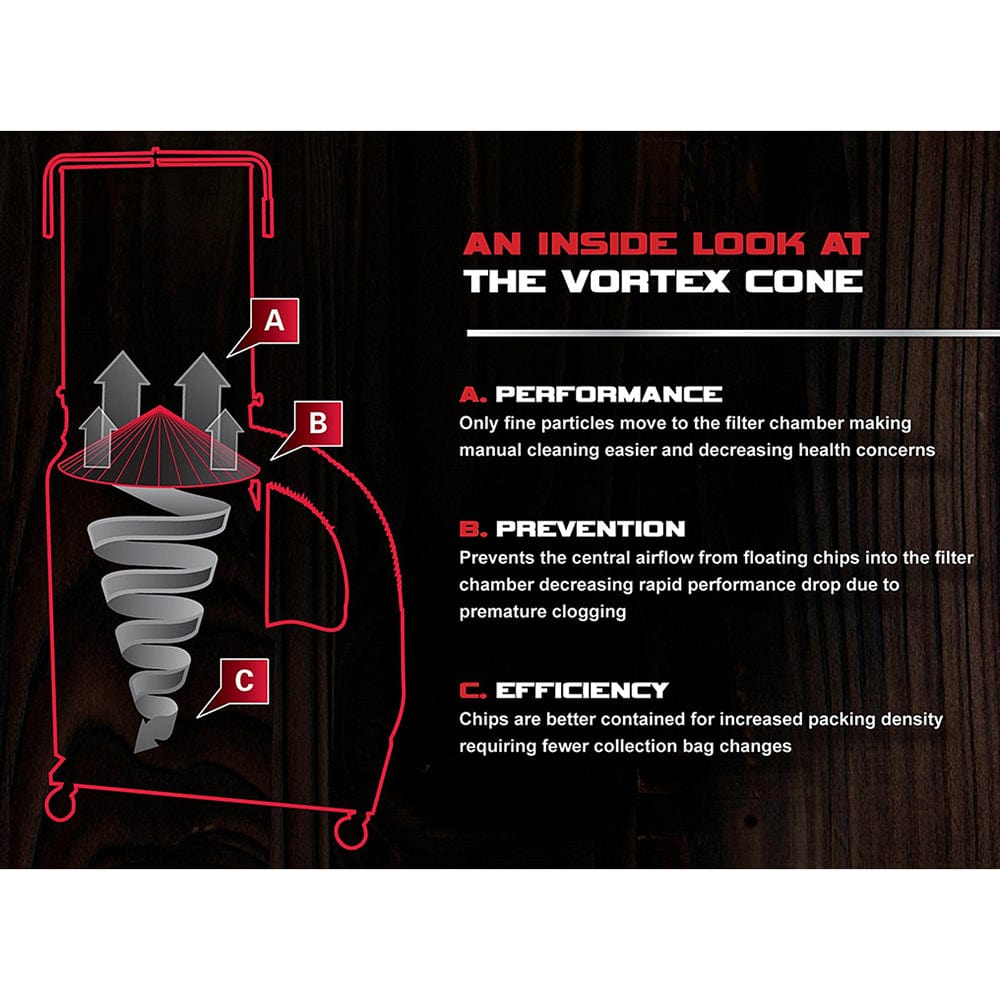

  • Vortex Cone improves chip separation and collector bag packing efficiency
  • Eliminates premature filter clogging for sustained performance
  • Single-stage design for economical and quiet operation
  • Industrial controls designed for years of trouble-free use
  • Quick-connect collection bags with elastic band for fast, easy installation and removal
  • High air velocity (CFM) design stands up to any competitive specifications
  • Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
  • Includes four casters for maneuverability and total portability

Specifications:

  • Model: DC-1100VX-CK
  • Motor Type: TEFC
  • Motor: 1-1/2 HP
  • Motor Phase: 1Ph
  • Motor Voltage: 115/230V
  • Prewired Voltage: 115V
  • Motor Current: 11/5.5A
  • Overall Size (L x W x H): 37" x 22-1/2" x 18"
  • Net Weight: 103 lb
  • Sound Rating at 3' Distance: 70-80db
  • 1-Hose Connection Diameter: 6"
  • 2-Hose Connection Diameter: 4"
  • Bag Diameter: 20"
  • Filter Bag Length (installed): 25"
  • Collector Bag Capacity (cubic feet): 5.3
  • Collector Bag Length: 29"
  • Air Flow at 4" (CFM): 1,100
  • Static Pressure (inches of water): 10-1/2"
  • Filter Bag Efficiency: 98% of 2 micron particles
  • Air Inlet: (1) at 6" or (2) at 4"
  • Impeller Diameter: 11"
  • Impeller Material: Steel
  • Separator Tank Diameter: 20"
  • Separator Tank Height: 10"

What's Included:

  • (1) Jet® Vortex Cone Dust Collector with 2-Micron Canister Kit - 1-1/2 HP 1 Ph 115/230V - DC-1100VX-CK

Shipping / Billing Information

All shipments must be inspected and any damage reported within 3 days of receipt.
Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:

  • Your order will ship in 7-10 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.
