When your in need of a space-saving shaper for your shop, the new JET® JWS-20CS Shaper is what you need. This compact powerhouse features a 8000 a. . .
View More Details
Items you may need
-

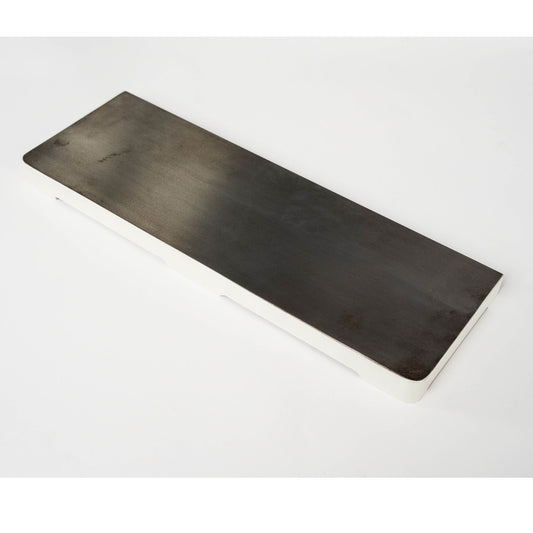

7" Extension Table for Jet JWS-20CS Spindle Shaper
Regular price $199.99Sale price $199.99 Regular priceUnit price per$199.99
Details

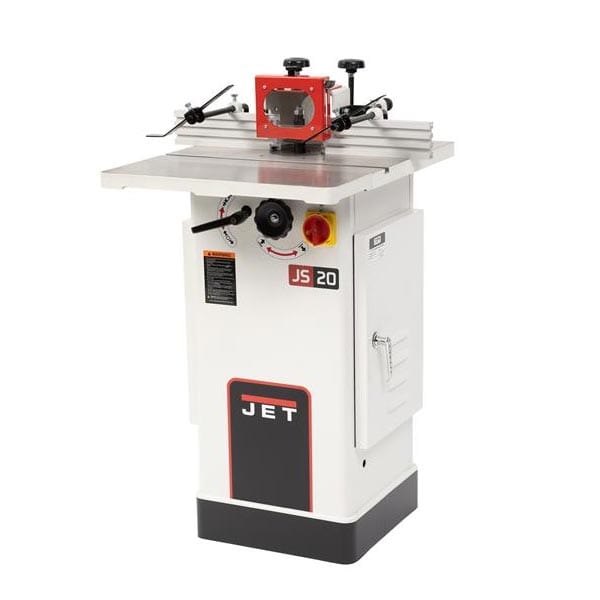

When your in need of a space-saving shaper for your shop, the new JET® JWS-20CS Shaper is what you need. This compact powerhouse features a 8000 and 10000 RPM reversing 1-1/2 HP motor. The sleek 18"(L) X 20" (W) precision ground cast iron table provides a durable work area for various projects. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independent left and right fences feature micro-adjustment, and a built in 4” dust port. When add the new JET JWS-20CS Shaper in your shop today, you'll know why JET products are "Built Better to Build Better."
Features:
Features:
- Powerful 1-1/2 HP motor delivers dependable power, even on heavy jobs

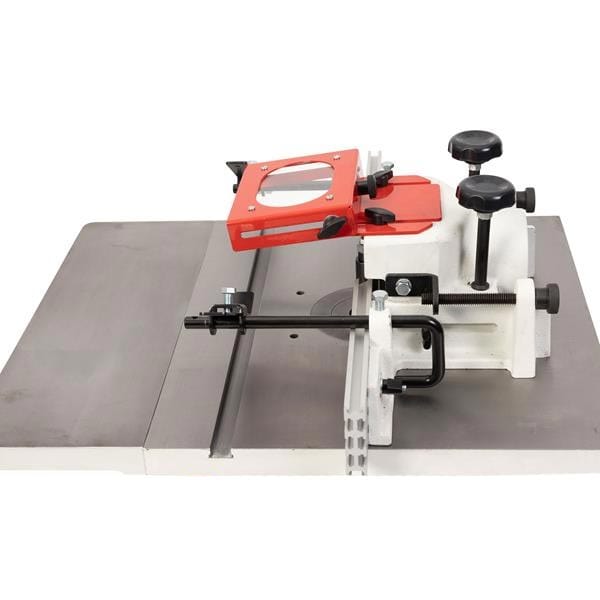

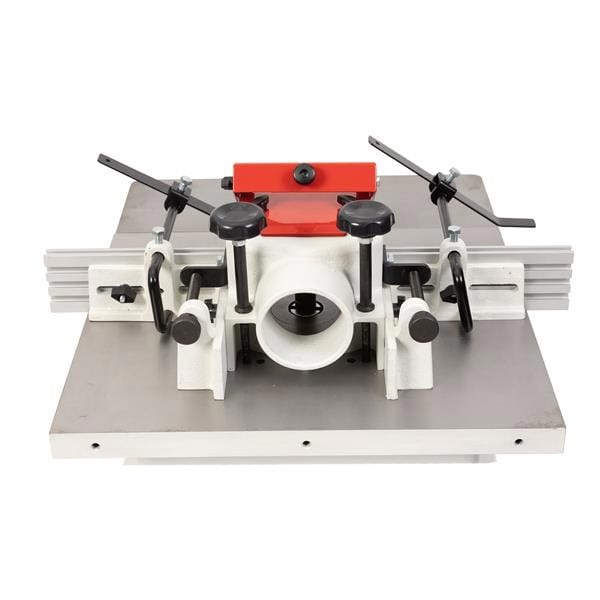

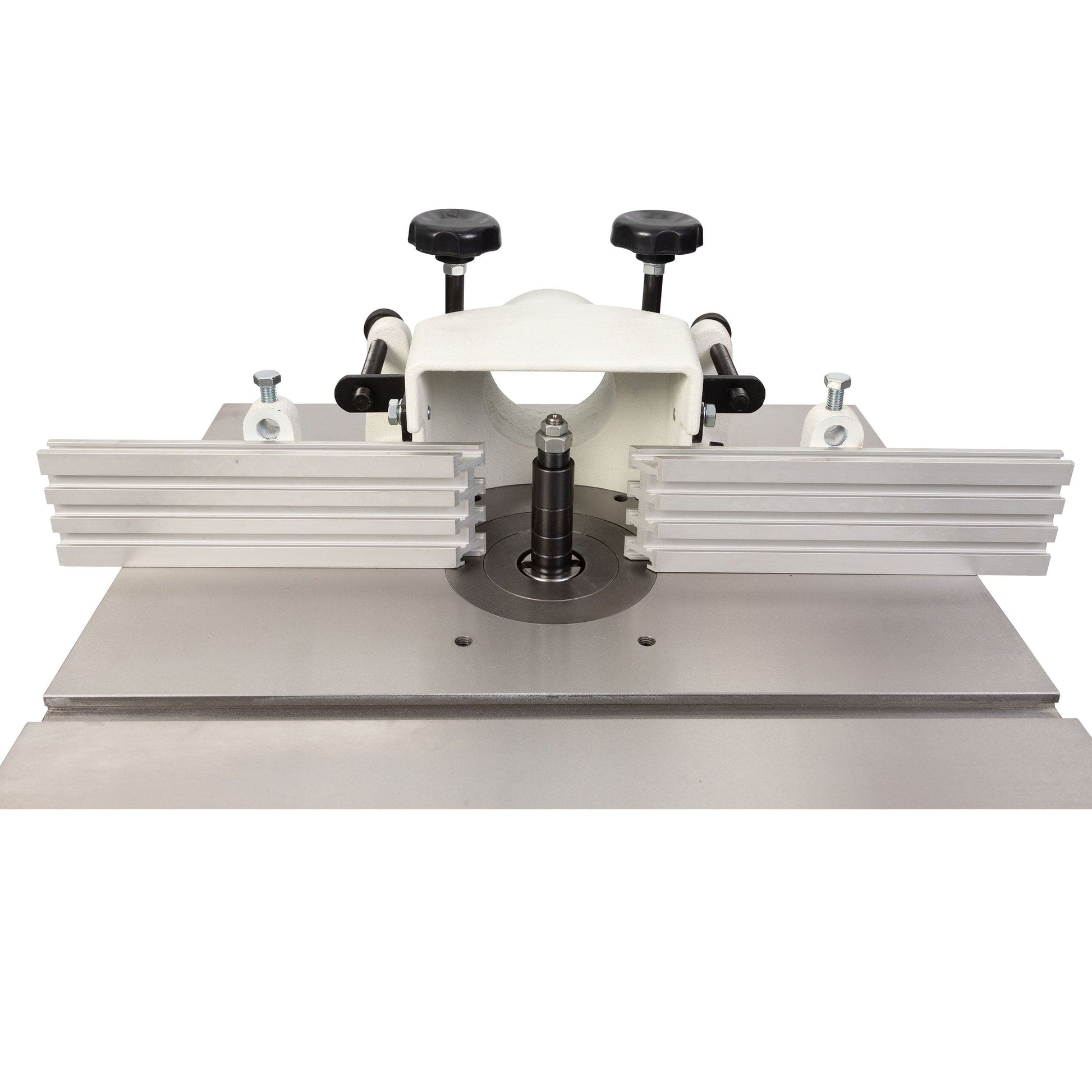

- Independent left and right fences feature micro-adjustment and have zero-clearance capability
- Fully enclosed, heavy-duty steel stand has a removable cover for easy motor access
- Forward/reverse switch for left and right hand operation

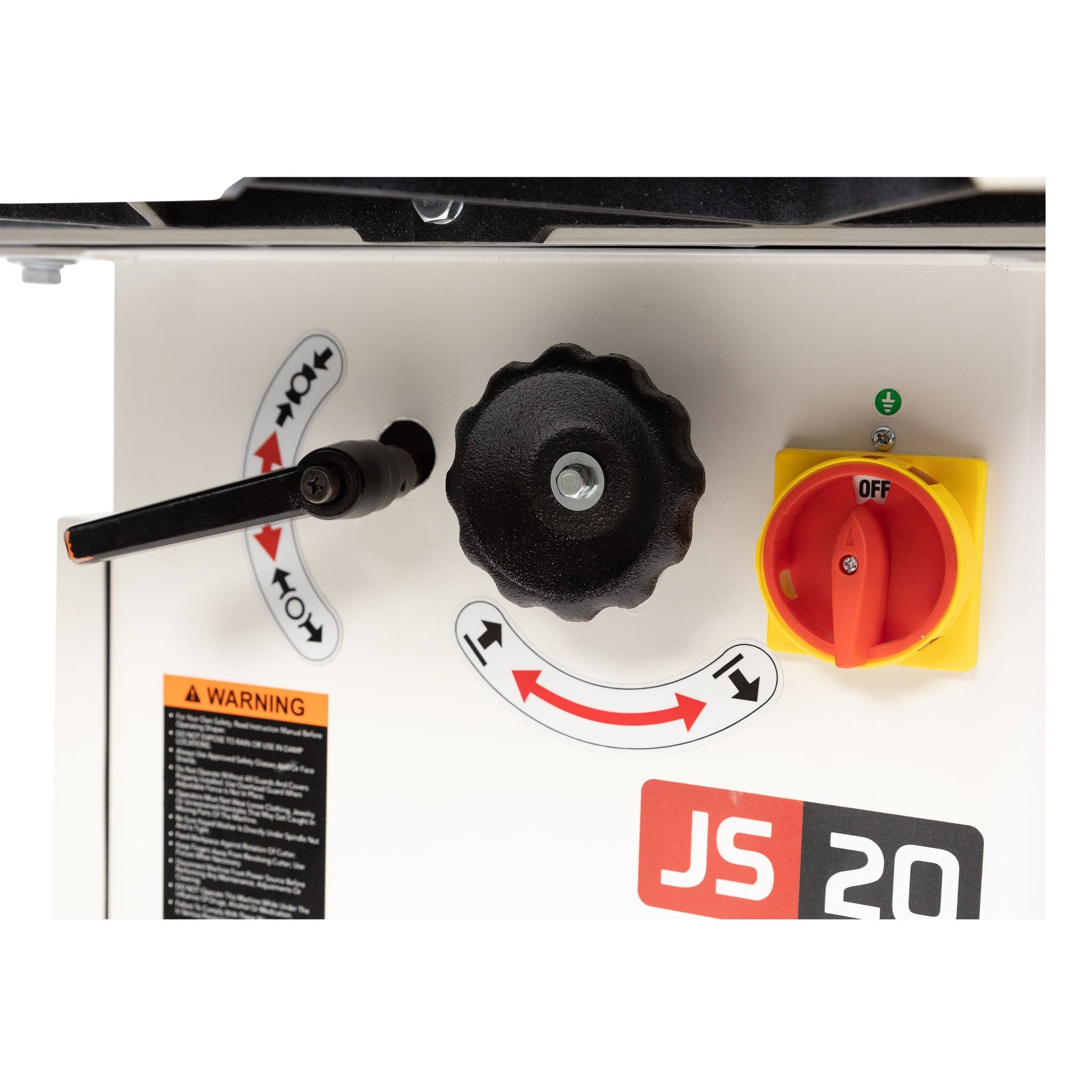

- Extra-large handwheel is conveniently located for fast, easy, and accurate spindle height adjustments
- 1/2" and 3/4" interchangeable spindles and router bit collets for use with shaper cutter and router bits
- Two adjustable work hold-downs to secure your work while shaping
- Two reversible spindle speeds lets you select the best speed and torque for different cutter diameters
Specifications:
- Minimum Dust Collection: 300 CFM
- 4" Dust Port Outside Diameter
- Electrical Controls: Manual
- Fence Size: 10"L x 3"H

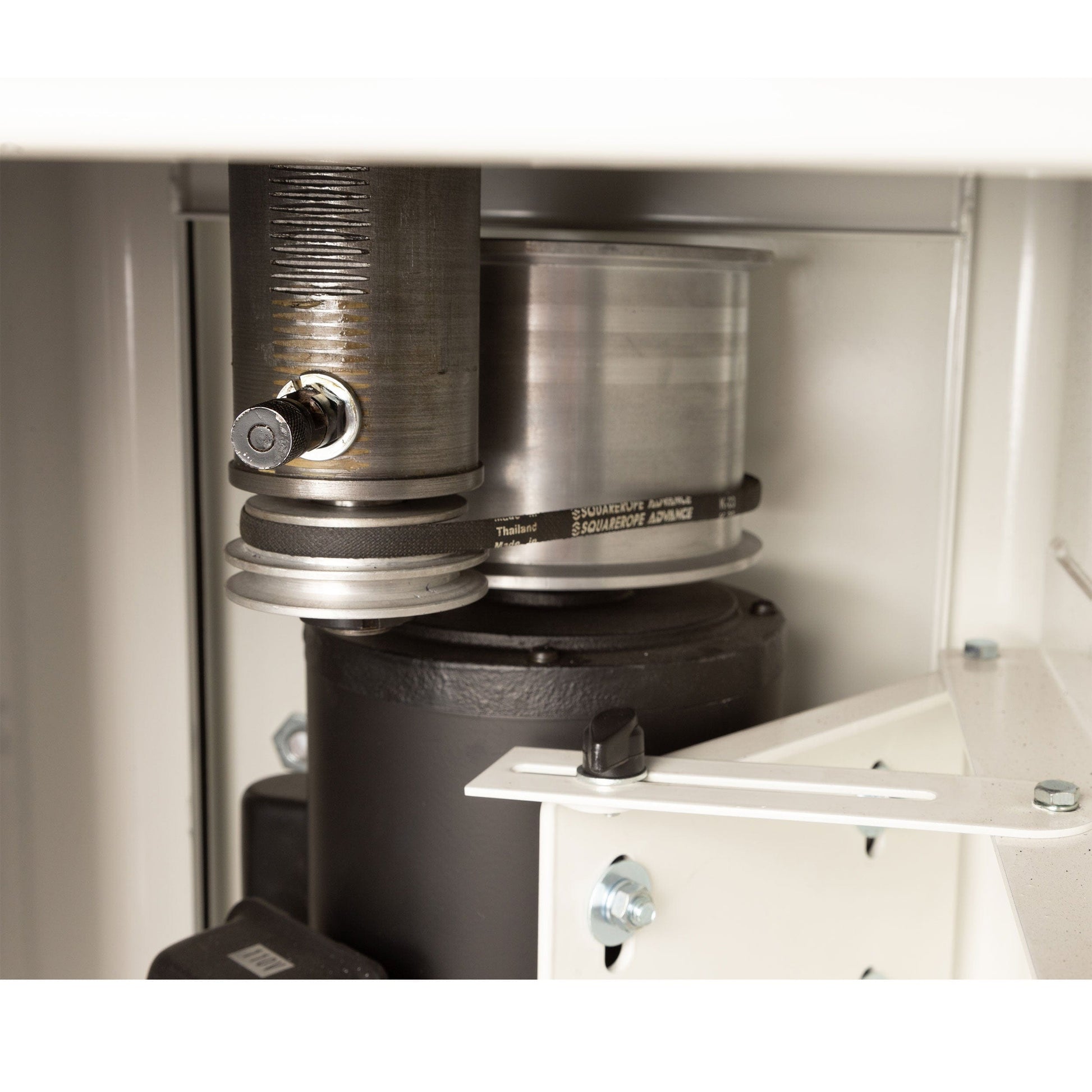

- Motor: 1.5 HP, 1PH, 115V, 15/7.5 Amps
- Reversible
- 1/2" Collet
- Spindle Speed: 8,000 and 10,000 RPM's
- Spindle Travel: 2"
- Floor Standing Model: 33-1/2 H
- Table Size: 18" L x 20" W
What's Included:
- (1) Shaper

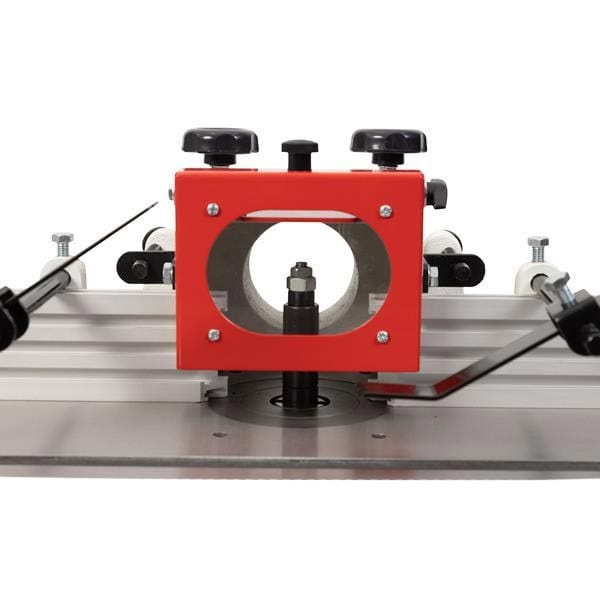

- (1) Dust Chute
- (1) Miter Gauge
- (1) Draw Bar & Nut
- (1) 1/2” Spindle Assembly
- (1) 3/4” Spindle Assembly
- (1) 1/4" Router Collet
- (1) 1/2" Router Collet
- (1) Arbor Wrench
- (1) 3mm Hex Key Wrench
- (1) 12mm / 14mm Open End Wrench
