Jet

Oscillating Spindle Sander - 1 HP 1 Ph 115V - JOSS-S

Item #421627 Model JT9-723950
$2,099.99
$2,099.99 $2,099.99

This item has an additional shipping charge

The Jet® Oscillating Spindle Sander Model JOSS-SS is the perfect tool for sanding curves, arcs, and other irregular shapes with precision and ease. . . View More Details

Ships from Manufacturer

Shipping Info

Details

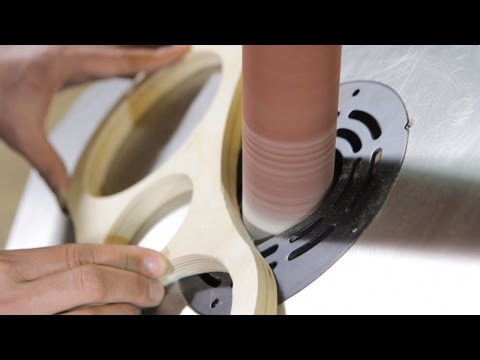

The Jet® Oscillating Spindle Sander Model JOSS-SS is the perfect tool for sanding curves, arcs, and other irregular shapes with precision and ease. Its powerful 1/2 HP motor drives a spindle that oscillates up and down, ensuring that the sanding sleeve covers more area and reduces heat build-up. With a table that tilts up to 45 degrees, the JOSS-SS accommodates any sanding angle you may need. The table also features a slotted design that allows for easy installation and secure clamping of auxiliary fences, ensuring accuracy and safety.


The JOSS-SS is equipped with a dust collection port that can be connected to an external vacuum system. This keeps your workspace clean and free from potentially harmful dust particles. The spindle sander also comes with a variety of sanding sleeves, ranging from 1/4" to 4" in diameter, to handle any sanding task you may encounter. These sleeves are easy to change thanks to the tool-free system, allowing you to switch between grits and diameters quickly and efficiently.

Overall, the Jet® Oscillating Spindle Sander Model JOSS-SS is a versatile and reliable tool that will help you achieve professional-level sanding results for years to come.

Features:


  • 1-1/2" oscillating action reduces friction heat to protect wood and prolong sleeve life
  • Baffles create a chamber under the table for improved dust collection
  • Includes 1/4", 3/8", 1/2", 5/8", 3/4", 1", 1-1/2", 2", 3" and 4" spindle assemblies
  • Integrated paddle switch with safety key
  • Main spindle support runs on precision ball bearings and is oscillated by a heavy-duty worm and gear mechanism for consistent performance
  • Powerful 1HP motor is independently mounted inside the base for easy access and service
  • Sealed access door minimizes dust in the storage area
  • Table tilts 45° front and 15° back and features a 90° quick index
  • Worm and gear mechanism runs in an oil bath to prolong its life and durability

Specifications:

  • Motor: 1HP, 1 Ph, 44A, 115/230V/60Hz
  • Spindle Speed (RPM): 1720
  • Spindle oscillations per minute: 75
  • Spindle oscillations length: 1-1/2"
  • Spindle lock: Yes
  • Table size (L x W): 24-1/2" x 24-1/2"
  • Table height from floor: 39-3/16"
  • Table tilt: 45° front - 15° back
  • Dust port: 4"
  • Dust collection minimum (CFM): 300
  • Overall dimensions with 4" sanding drum: 24-1/2" W x 24-1/2" L x 44-3/16" H
  • Net weight: 216 lbs

What's Included:

  • (1) Jet® Oscillating Spindle Sander - 1 HP 1 Ph 115V - JOSS-S
