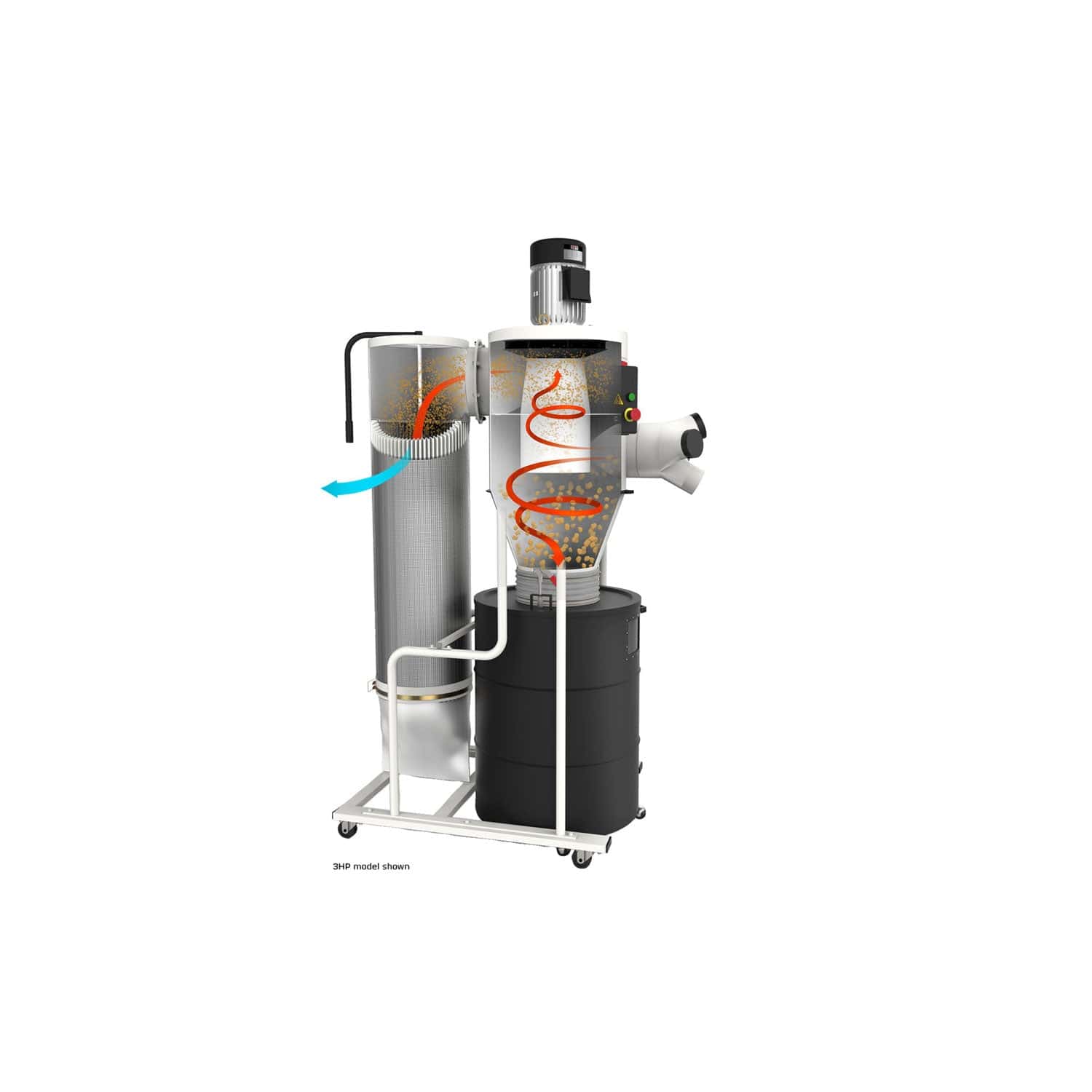

• Get more working CFM than comparable horsepower single stage units with the cyclone's two stage separation
• Heavy debris is pulled down to collection bin before debris stream reaches the filter, providing constant suction
• Direct mounted filter allows unrestricted airflow, increasing system efficiency

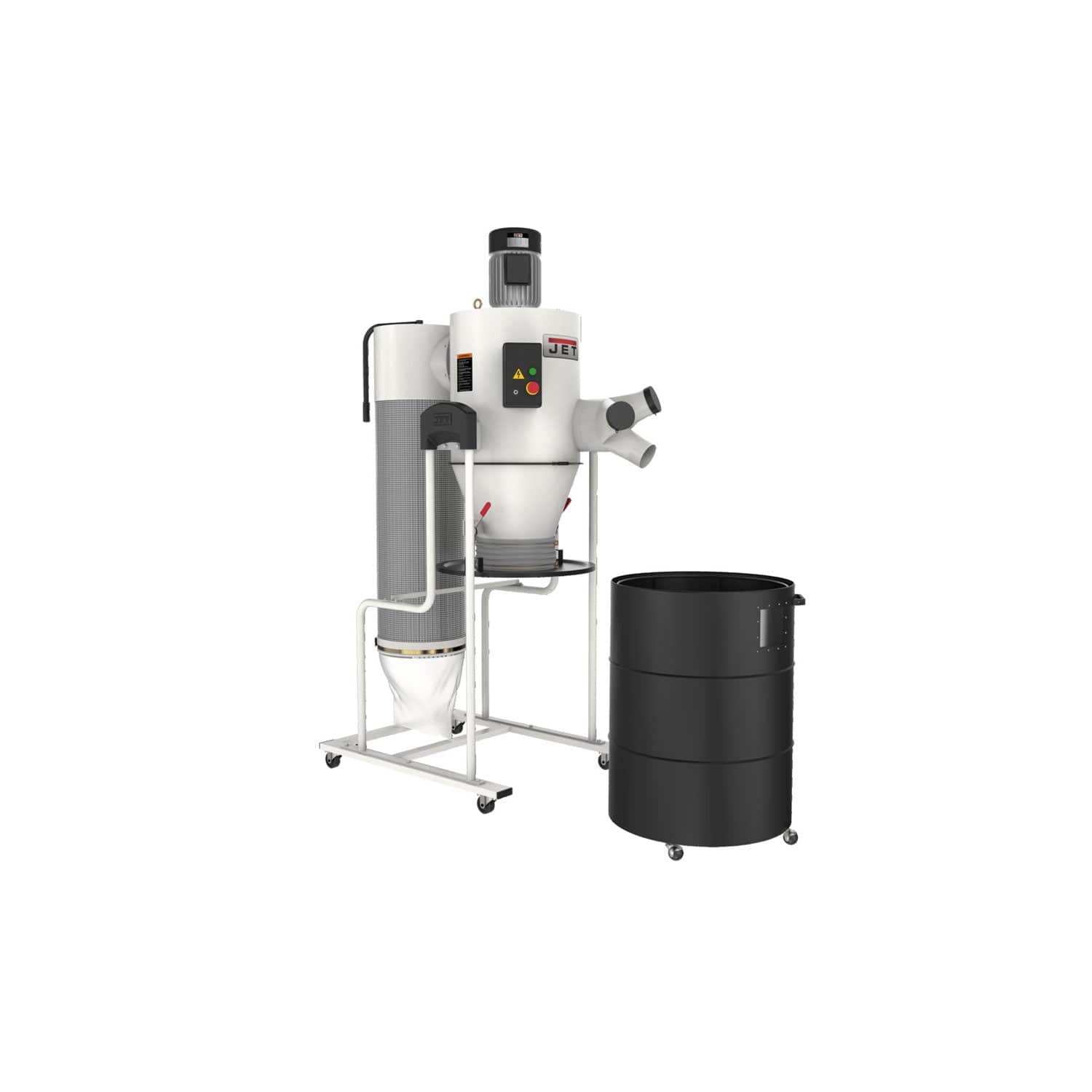

• Heavy debris is captured in the 55 gallon drum with a quick release and independent casters for quick emptying
• Radio frequency remote control turns on dust collection from up to 50 feet away
• Remote timer settings allows system to run for 2, 4, 6, or 8 hours before automatic shutoff
• Double paddle manual cleaning system quickly cleans the pleated filter
• Swivel casters make it easy to move the unit around the shop

• Static Pressure Loss (US Method) (Wc.): 1.26
• Static Pressure Loss (EU Method) (Wc.): 2.047
• MERV Value: 13
• Filter Efficiency: 1 Micron
• Canister Filter Length: 38-3/8"
• Collection Drum Capacity: 55 gallon
• Impeller Material: Steel
• Motor Power: 3 HP
• 1-Hose Connection Diameter: 8"
• 3-Hoses Connection Diameter: 4"
• Motor Voltage: 230V
• Prewired Voltage: 230V
• Motor Amps: 13A

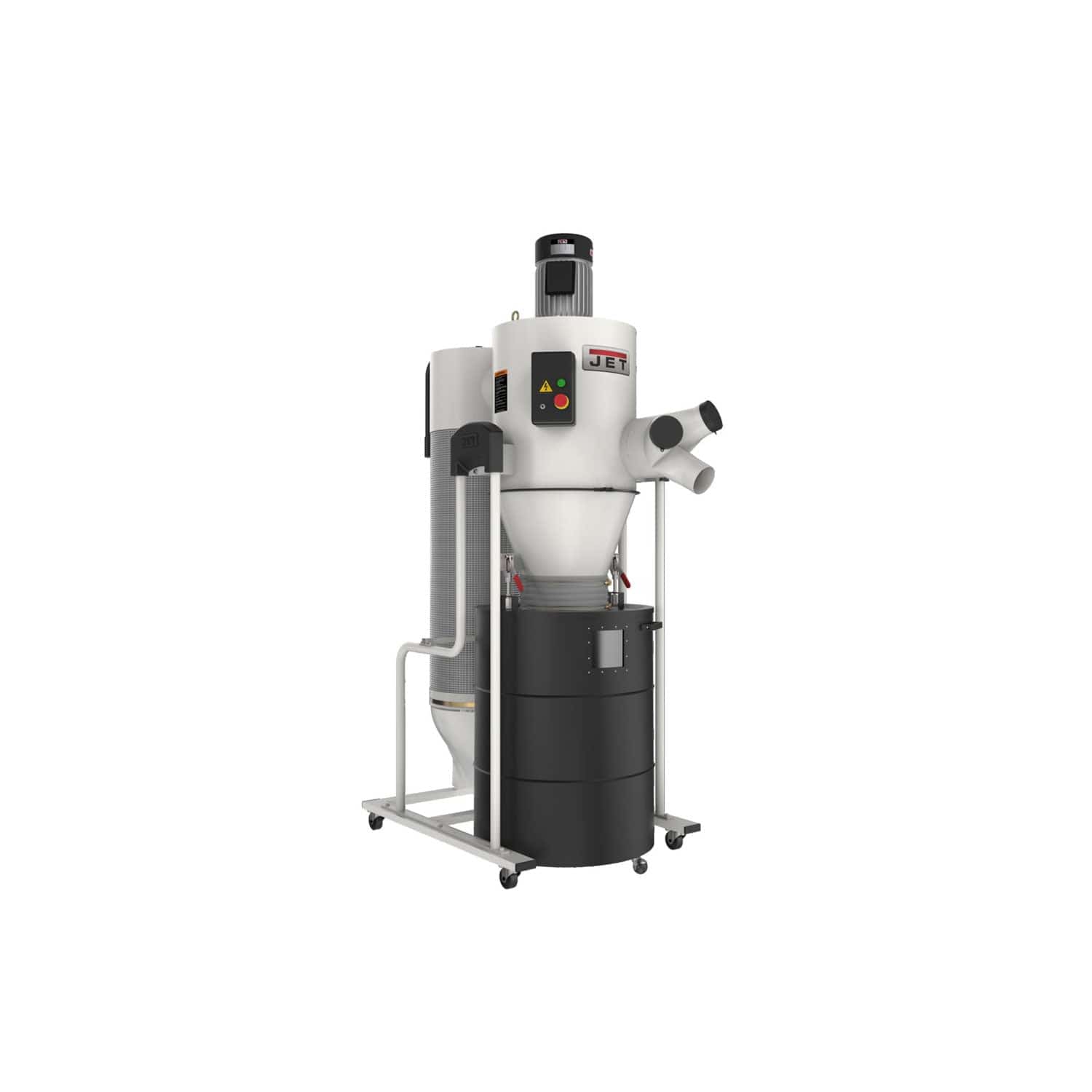

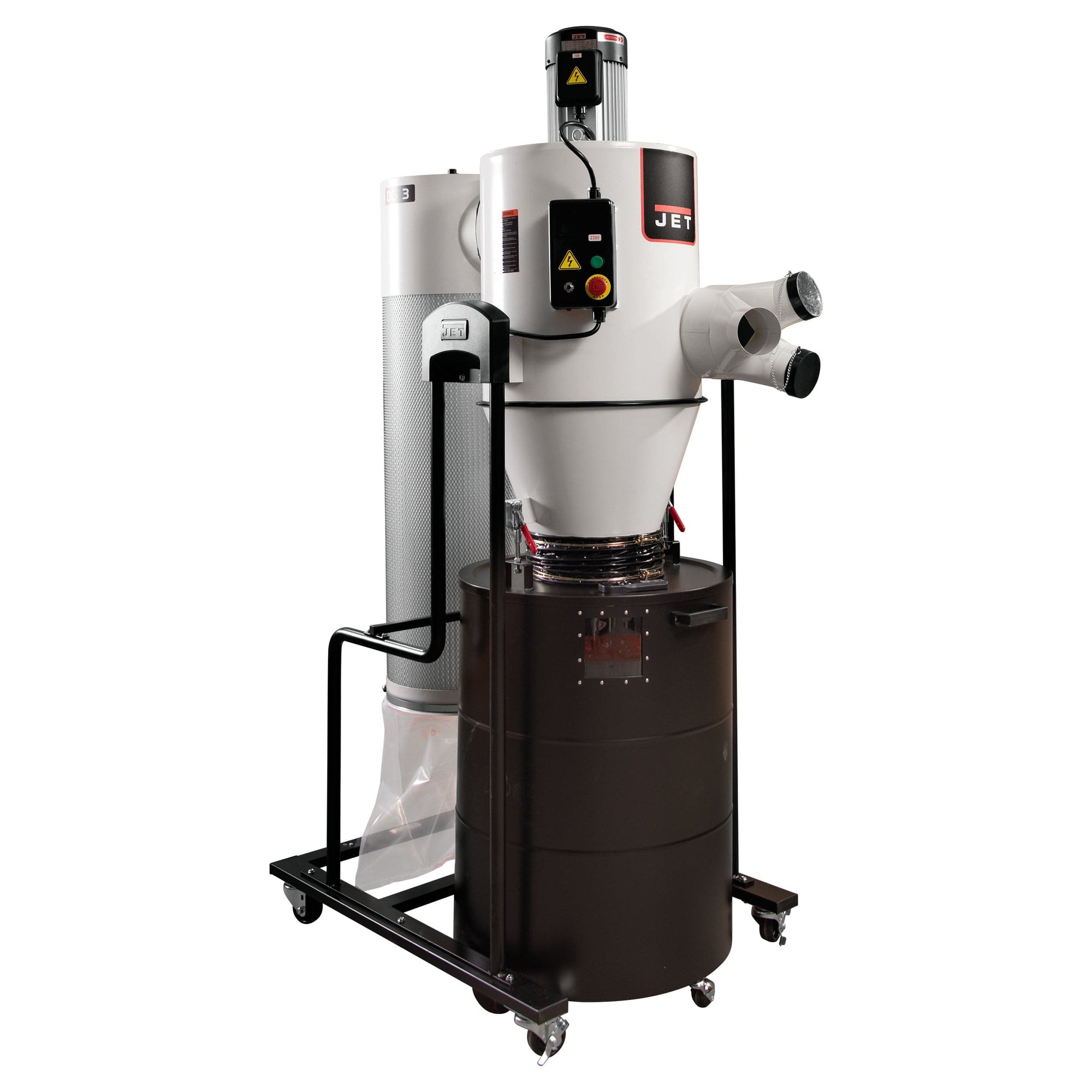

• (1) Jet® Cyclone Dust Collector with 2-Micron Canister Filter - 3 HP 1 Ph 230V - JCDC-3
