Jet

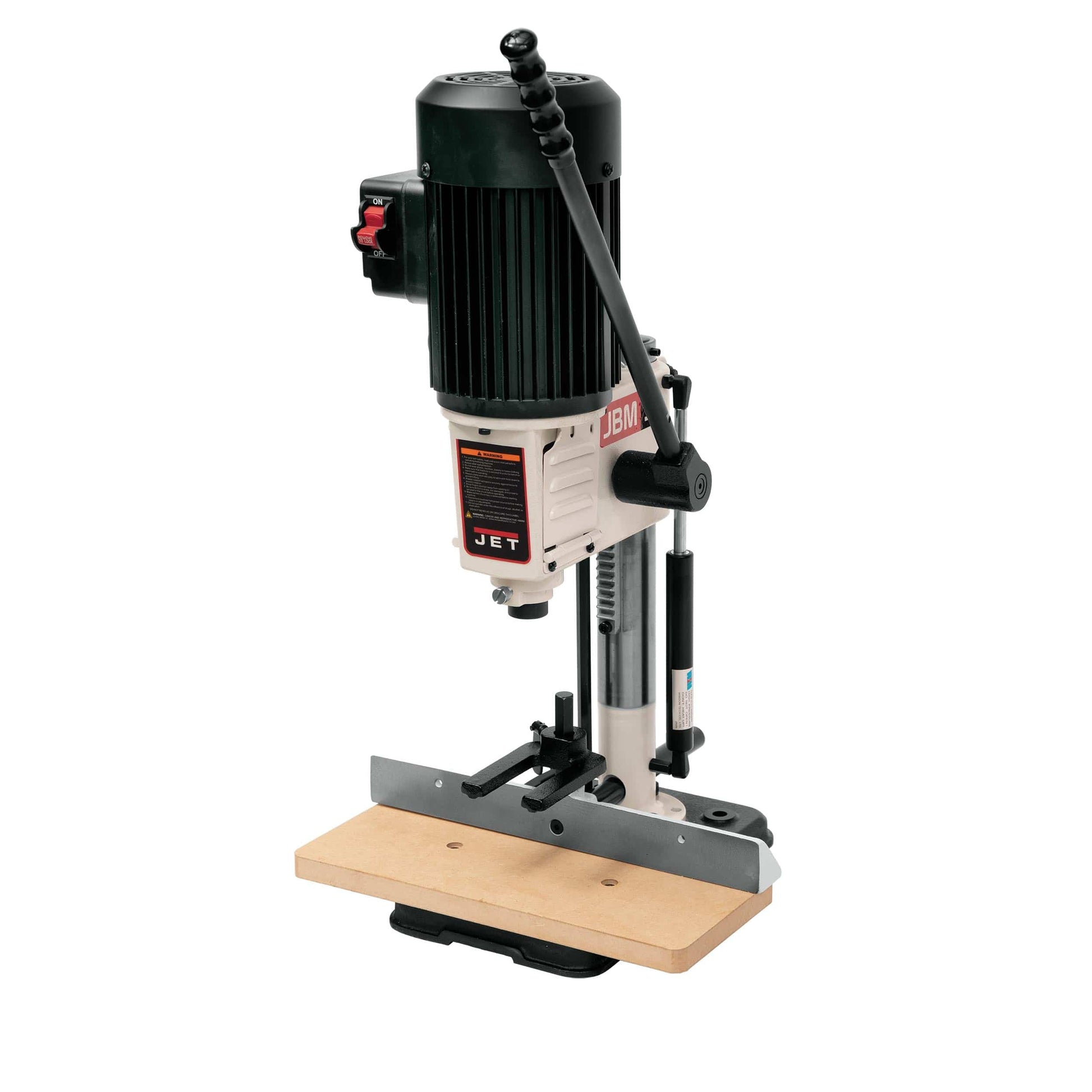

Benchtop Mortiser - 1750 RPM 1/2 HP 1 Ph 115V - JBM-5

Item #814541 Model 708580
Regular price $499.99
Sale price $499.99 Regular price $499.99

This item has an additional shipping charge

Mortising has never been easier or more accurate. Jet® Model JBM-5 Benchtop Mortiser features include: powerful 1/2 HP TEFC 1725 RPM motor for sol. . . View More Details

Ships from Manufacturer

Shipping Info

Details



Mortising has never been easier or more accurate. Jet® Model JBM-5 Benchtop Mortiser features include: powerful 1/2 HP TEFC 1725 RPM motor for solid performance and trouble-free operation, heavy-duty cast iron and steel construction for durability and stability, three jaw drill chuck with extended chuck key for ease of positive grip on mortise drill bit. Rack and pinion head raising and lowering allow for positive drilling control. Two hinged side doors to allow for complete drill chuck access. Removable safety toggle switch for prevention of accidental turn on 1/2" max. mortise chisel capacity. 4-3/4" head stroke.

Features:


  • Powerful 1/2 HP motor provides consistently smooth performance
  • Heavy duty cast iron steel construction
  • Rack and pinion system for smooth, accurate movement of the headstock and chisel
  • Multi-position mortising handle allows you to reposition the feed handle for easier operation
  • Three-jaw drill chuck keeps a positive grip on mortising bits with up to 3/8" diameter shanks
  • Quick adjust depth stop for uniform mortise depths
  • Reversible column for mortising larger stock
  • On/off toggle switch with removable safety key prevents accidental or unauthorized use of the tool
  • Two hinged side doors allow easy access to the drill chuck

Specifications:

  • Product: Mortiser
  • Style: Benchtop
  • Motor Type: TEFC - Totally Enclosed, Fan Cooled
  • Power Transfer: Direct drive
  • Motor Power: 1/2 HP
  • Motor Voltage: 115V
  • Motor Amps: 6A
  • Motor Phase: Single
  • Motor / Spindle Speed: 1725 RPM
  • Prewired Voltage: 115V
  • Chuck Capacity - Maximum Bit Shank Diameter: 3/8"
  • Chisel Capacity: 1/2" x 1/2"
  • Chisel Shank Capacity: 5/8" and 3/4"
  • Chisel Stroke or Head Stroke: 4-3/4"
  • Chisel Center to Fence (Maximum): 3-3/16"
  • Capacity Under Hold Down: 4"
  • On/Off Switch: Toggle with removable safety key
  • Fence Size: 1-9/16" x 13-3/4"
  • Table Size: 6" x 13-1/2"
  • Base Size: 7-5/8" x 12-3/16"
  • Bushing Sizes: 5/8" and 3/4"
  • Overall Height - Assembled: Maximum - 30"; Minimum - 21"
  • Head and Base Materials: Cast iron and steel
  • Table Material: MDF
  • Column Material: Steel
  • Net Weight: 44 lbs.
  • Shipping Weight: 51 lbs.

What's Included:

  • (1) Jet® Benchtop Mortiser - 1750 RPM 1/2 HP 1 Ph 115V - JBM-5

Note:

  • Chisel and mortising bits are not included.
