• Powerful 1-1/2 HP motor easily handles the toughest sanding operations
• Heavy-duty steel open-style stand provides solid support
• Graphite covered steel platen runs cooler increasing machine and belt life
• Specially designed belt guard allows full use of the 6" belt width and length
• Two precision-ground cast iron tables have positive stops at 90° and 45° for sanding flat pieces or mitered angles; allows belt sander to be used vertically, horizontally or anywhere in-between
• Single 4" dust port on the back of the base collects dust effectively from both the belt and disc
• Exclusive dual thumbscrew belt tracking adjustment locks to keep belt on track during use
• Quick-lock dust cover allows fast disc changes
• Quick-release belt tension lever makes belt changes fast and easy
• Tracking adjustment knob with quick-lock handle keeps belt on track during use

• Motor: TEFC Induction
• Motor Power: 1-1/2 HP, 1Ph
• Voltage: 115/230V
• Pre-wired Voltage: 115V
• Motor Amps: 12.8/6.2A
• Hertz: 60Hz
• Belt Size: 48" x 6"
• Belt Table Tilt: -20° to 45°
• Belt Table Dimensions: 14-3/4" L x 7-1/2" W
• Miter Groove: 3/4" x 3/8"
• Belt Speed (SFPM) 2500
• Belt Table Positive Stops: 45° and 90°
• Disc Diameter: 12"
• Arbor Size: 3/4"
• Disc Table Tilt: -25° to 45
• Disc Table Dimensions: 16-1/2" L x 9" W
• Disc Miter Groove: 3/4" x 3/8"
• Disc Speed (RPM): 1725
• Disc Table Positive Stops: 45° and 90°
• Dust Port Diameter: 4"
• Dust Collection Minimum Capacity (CFM): 450
• Overall Dimension with Belt Arm Horitontal (L x W x H): 35" x 22" x 18"
• Overall Dimension with Belt Arm Vertical (L x W x H): 35" x 22" x 34-1/2"
• Overall Dimension Footprint: 18-1/2" x 15"

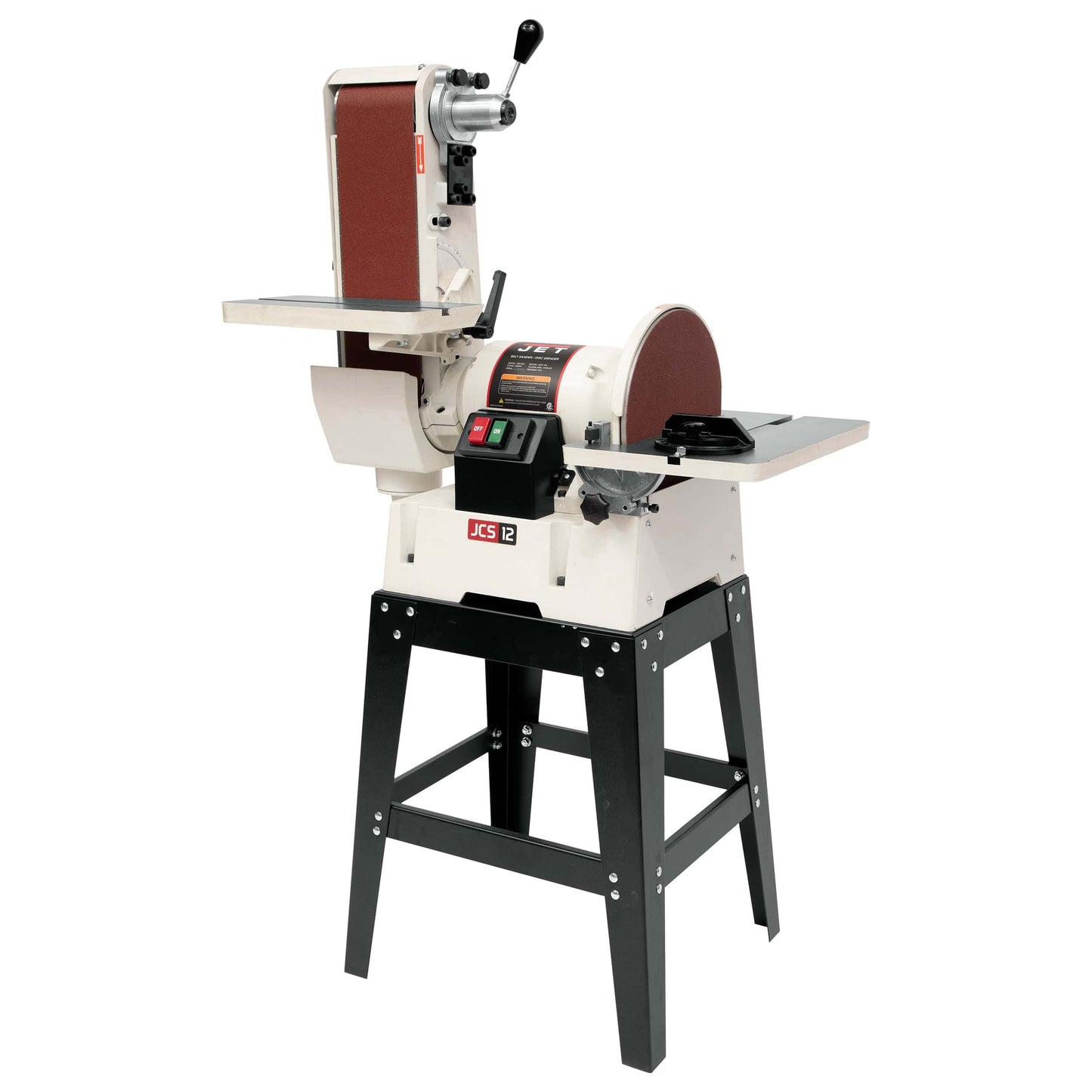

• (1) Jet® 6" x 48" Belt/12" Disc Sander with Open Stand - 1-1/2 HP 1 Ph 115/230V - JSG-6DCK
