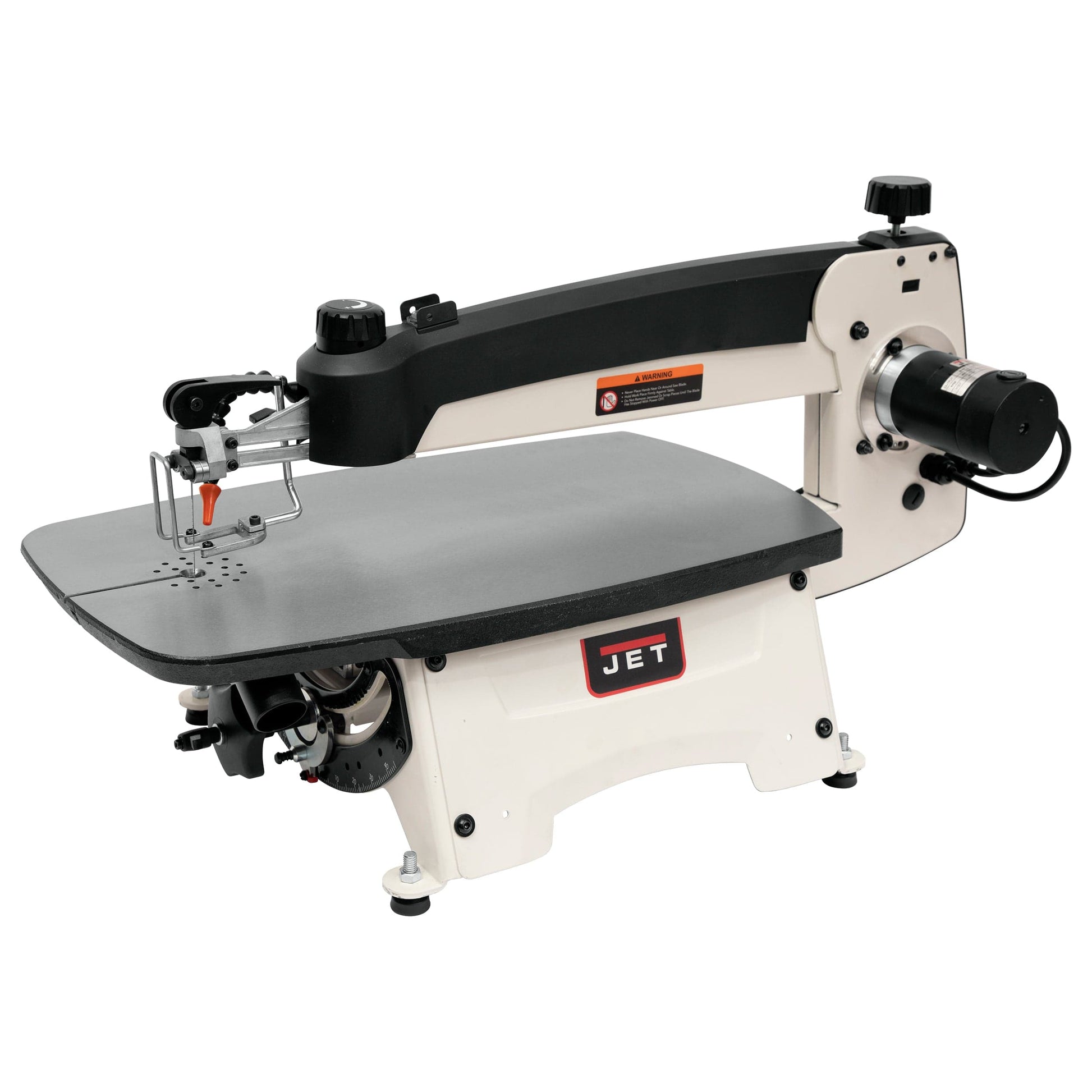

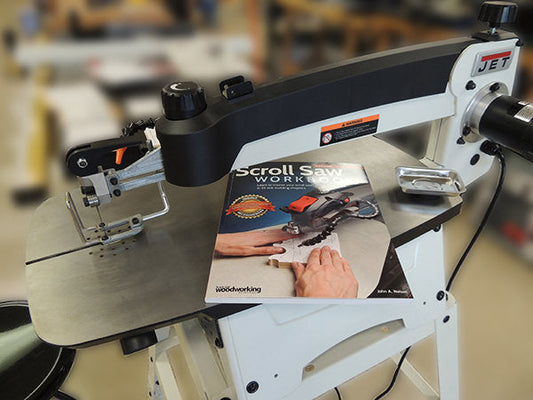

22" Variable Speed Scroll Saw with Foot Switch - 1 Ph 120V - JWSS-22B

You can have best-in-class features with innovation and thoughtful design all in one machine with the Jet® 22" Scroll Saw. The blade change process is the best thing about this saw. The exclusive upper mechanism clamps and tensions the blade in one step. In addition to the upper mechanism, the toolless lower blade holder is removable and the table features a slot for the blade. This saw also offers 22" of throat capacity and an arm that tilts 40° left and 45° right. It’s designed to optimize your scrolling experience. From the variable speed range to a top lift, spring loaded arm it comes fully loaded with all the features you would expect.

Features:

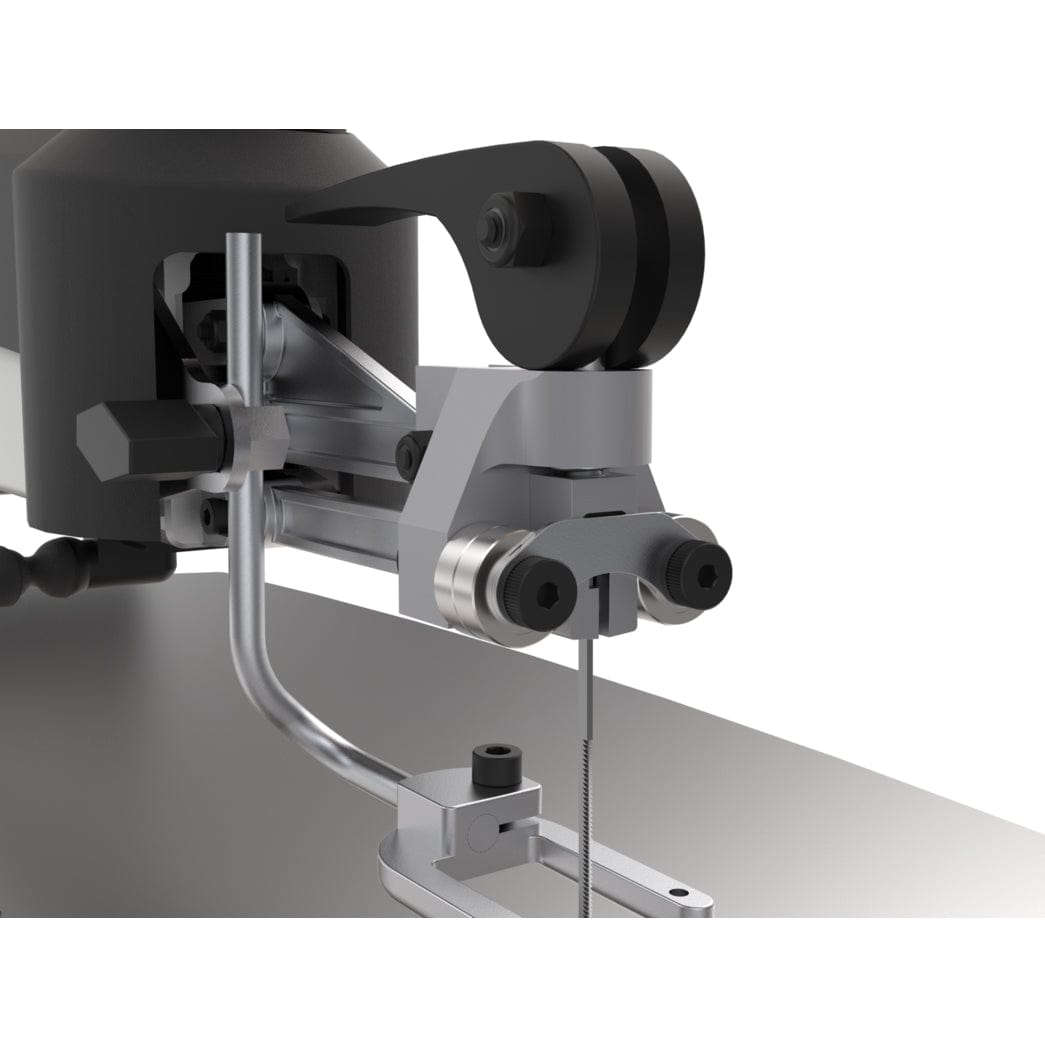

• Clamps and tensions blade in one step
• Removable lower blade holder snaps quickly and securely in to place
• Large 12-7/8” x 23” cast iron table provides a stable working surface while also limiting vibration
• Slotted table for easier and quicker blade changes
• 22” throat capacity

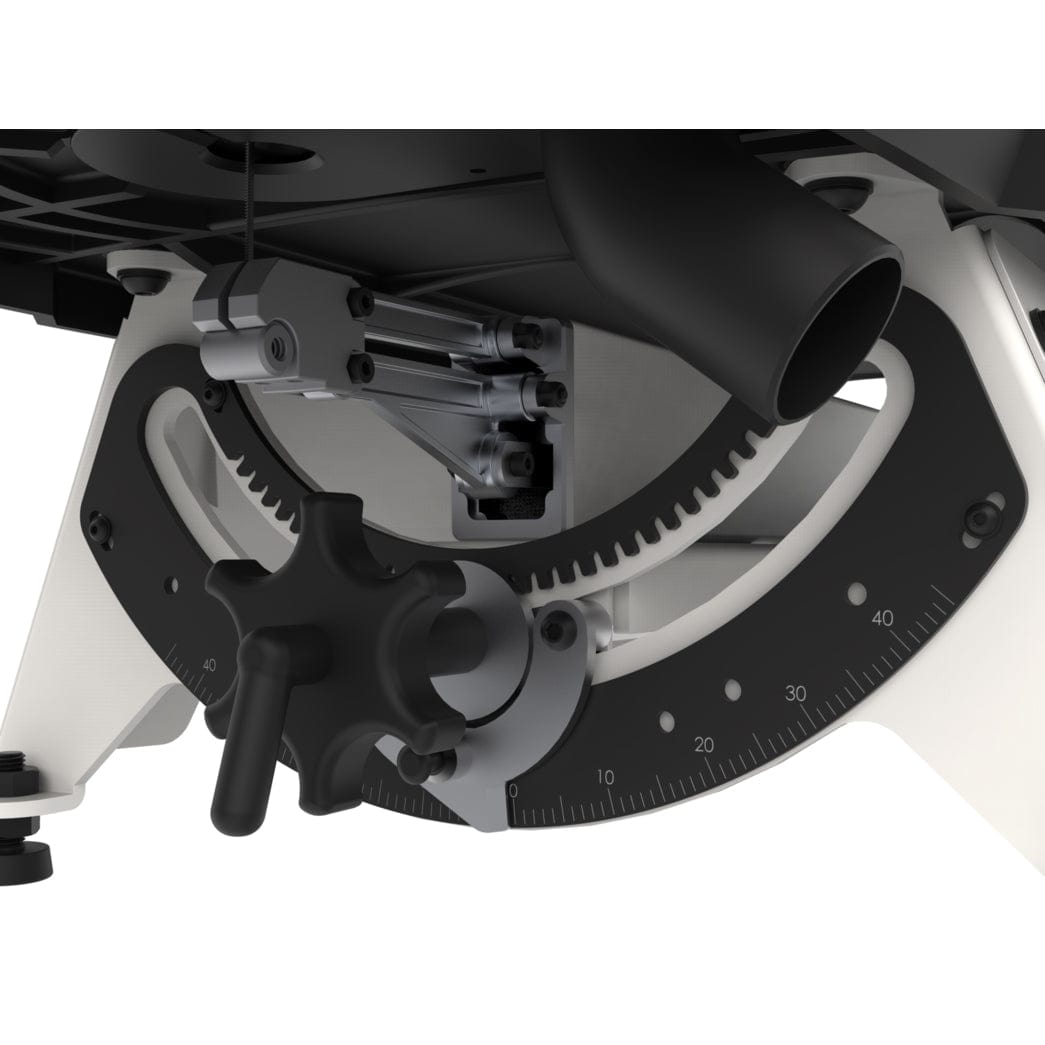

• Arm tilts 45° right and 40° left, keeping the work table flat for more accurate cutting
• Integrated blade storage features slots for pre-loaded blades and a built-in wrench for changing blades
• Blade storage can be positioned on the right or left of the machine
• Top lift, spring loaded arm raises 10” and stays up until pulled back down

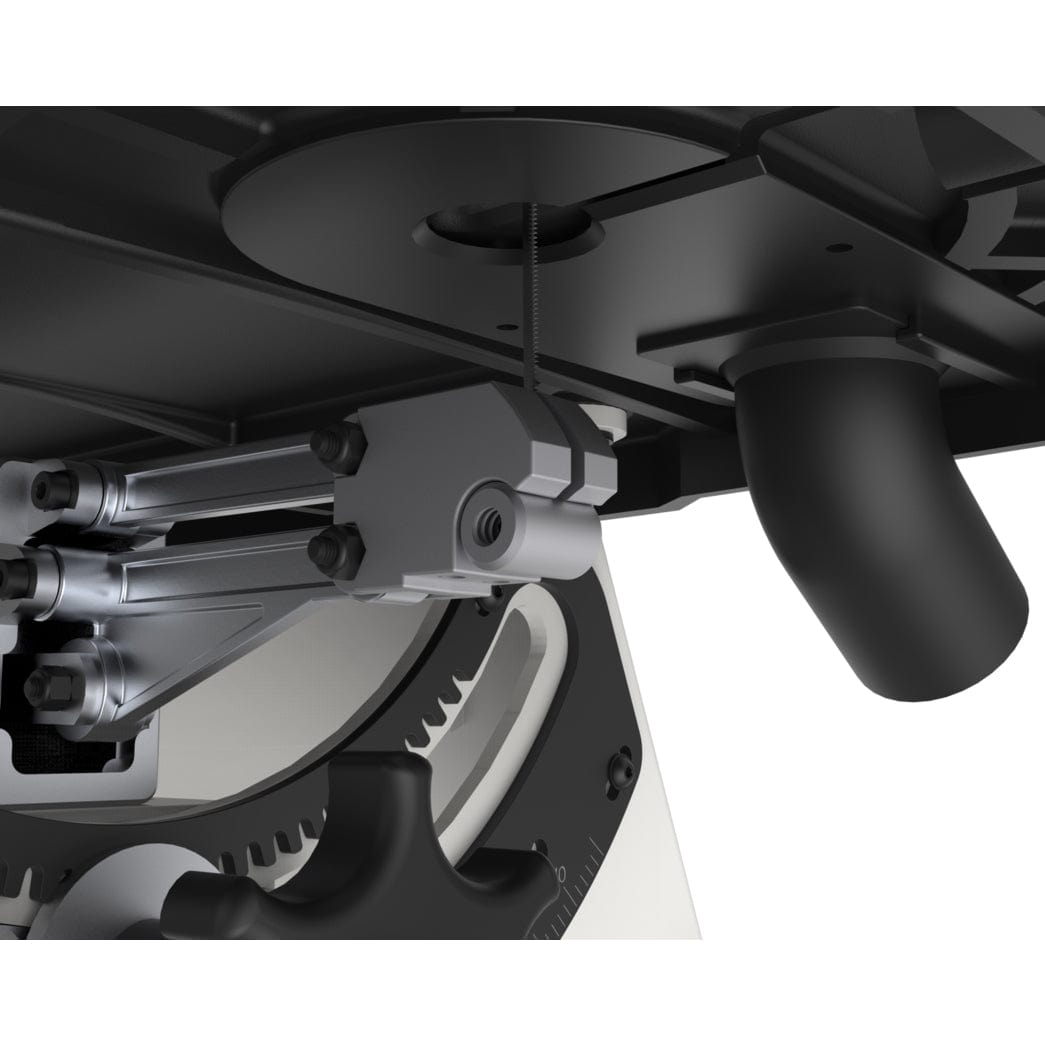

• Removable dust port on underside of table to collect dust at the source
• Conveniently located speed and tension controls

• Motor Type: Brushed DC
• Motor: 1/16 HP (50W), 1Ph, 120V/60 Hz
• Listed FLA (full load amps): 1.3A
• Starting Amps: 2A
• Running Amps (no load): 0.5 A
• Stroke: 3/4"
• Speed Speed Range: 400 to 1550 strokes per minute
• Throat Capacity: 22-3/8 in.
• Blade Type Used: Plain-end (pinless) 5"
• Maximum Cutting Depth: 2"
• Arm Tilt: 45° right and 40° left
• Body and Tool Tray (Material): Steel
• Main Table (Material): Ground cast iron
• Trunnion (Material): Steel
• Arm (Material): Steel, plastic cover
• Table Size (L x W): 12-2/3" x 23-5/8"
• Dust Collection Port (Outside Diameter): 1-1/2”
• Recommended Dust Extraction Volume: 300-350 CFM (8.5–10 CMM)

• (1) Jet® 22" Variable Speed Scroll Saw with Foot Switch - 1 Ph 120V - JWSS-22B
