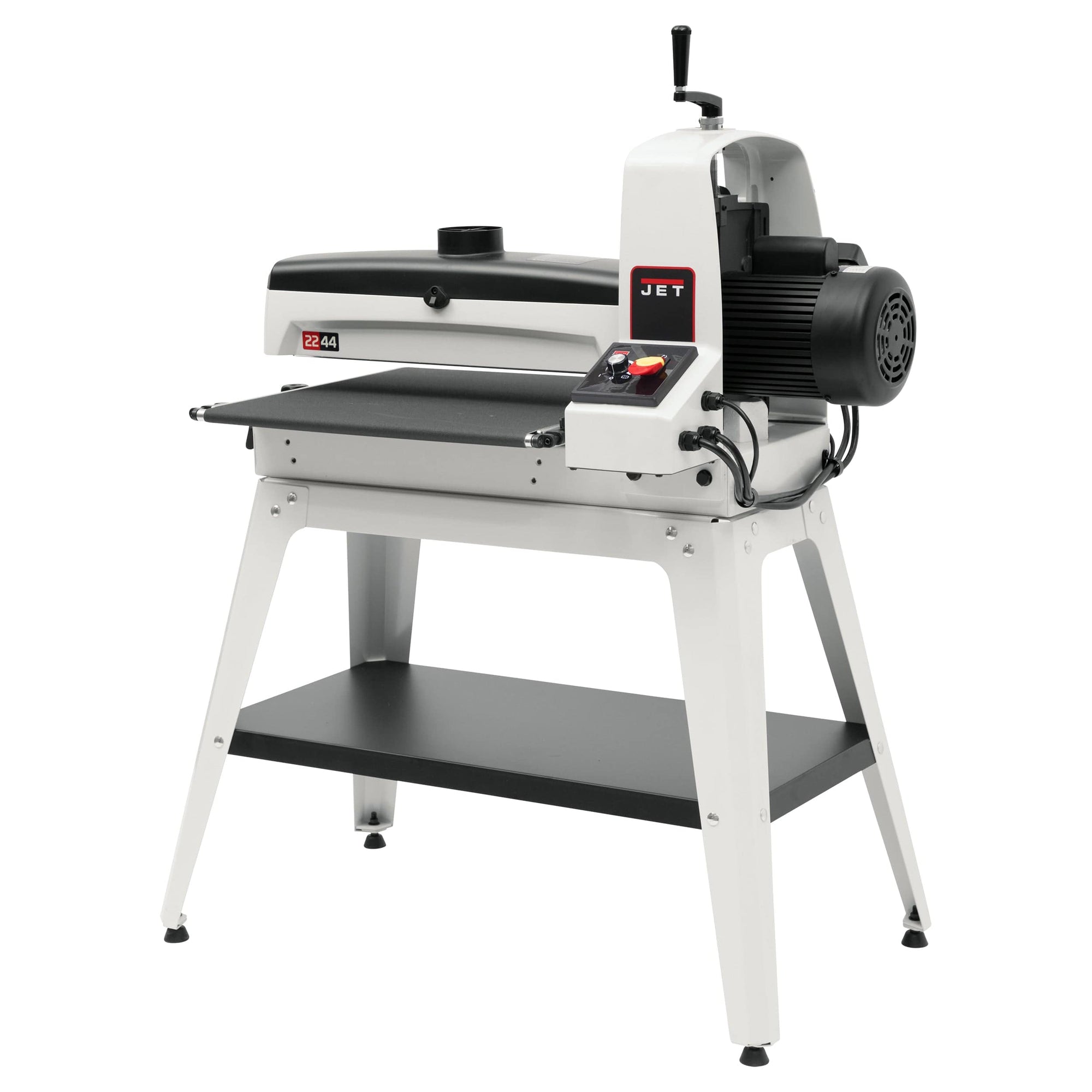

Jet® 2244 Drum Sander, Model 723540OSK, features a powerful 1-3/4 HP motor that will deliver the power to handle just about any sanding task in your shop. With an innovative tool-less parallelism system, adjustments a simple and easy, while a turn of the parallelism dial allows the worktable to be positioned correctly. Variable-speed rate allows for optimal feed rate for a full range of projects and the Sandsmart™ feature continuously monitors the load on the drum motor to prevent an overload situation. Optimizing dust collection, the 2244 features a hood that mirrors the shape of the drum to prevent chips and dust from getting between your work-piece and the finish. This drum sander delivers everything you need for an effortless finish.

Features:

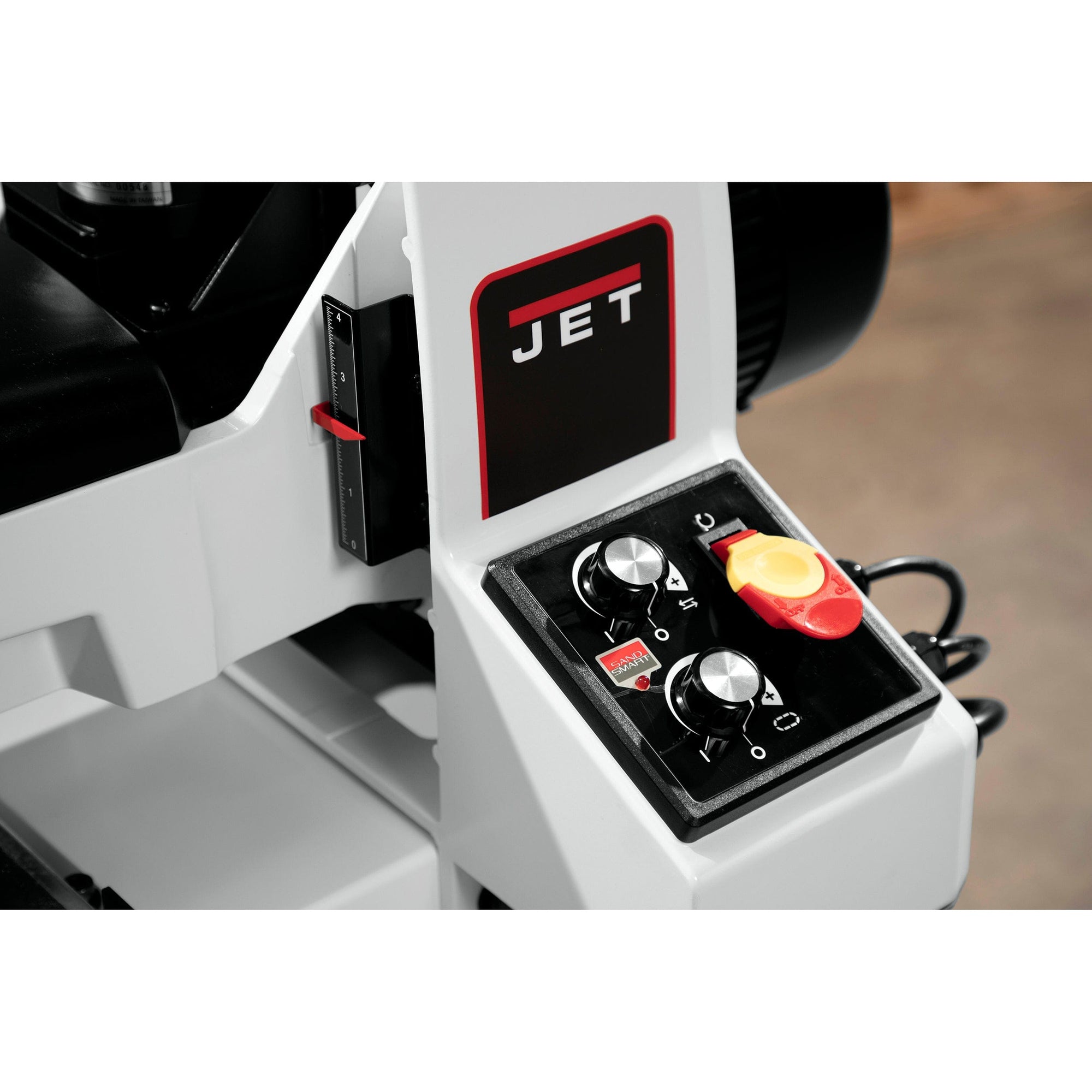

• Sandsmart control constantly monitors drum load, regulates speed of the conveyor motor to maintain the highest feed rate without overload
• Conveyor Bed parallelism adjusted by a simple turning of the dial on the outside of the bed, no tools required
• Parallelism Dial adjust features a stop to quickly return the conveyor bed to a flat position
• Dust Hood mirrors drum profile to eliminate chips and dust between drum and wood
• Sanding Drum is precision machined and dynamically balanced extruded aluminum, designed to dissipate heat and protect the work surface from heat damage
• Precision-flattened reinforced steel conveyor bed
• Conveyor system, redesigned to pull the workpiece through instead of pushing

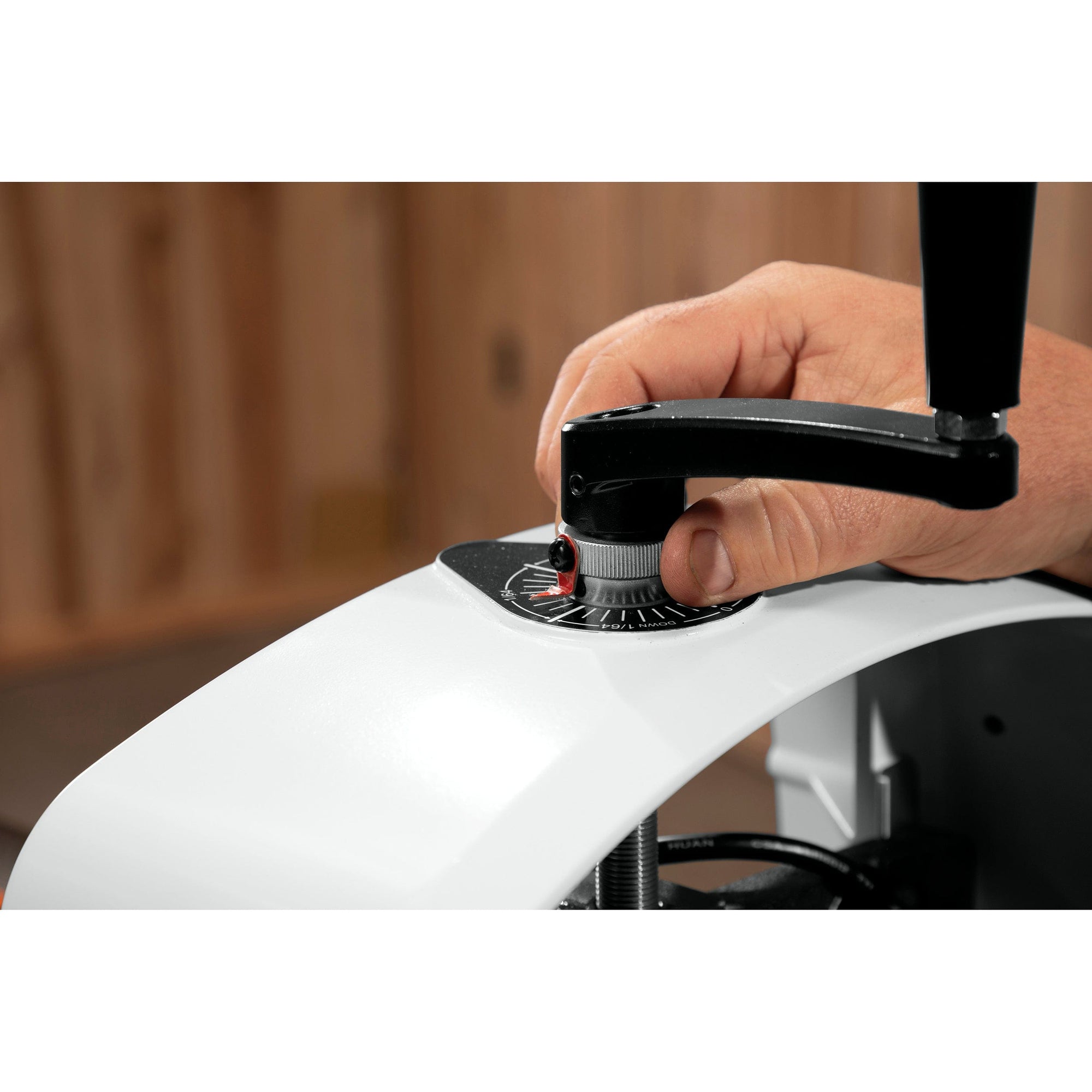

• Top-position handwheel adjusts drum height by 1/16” per single rotation

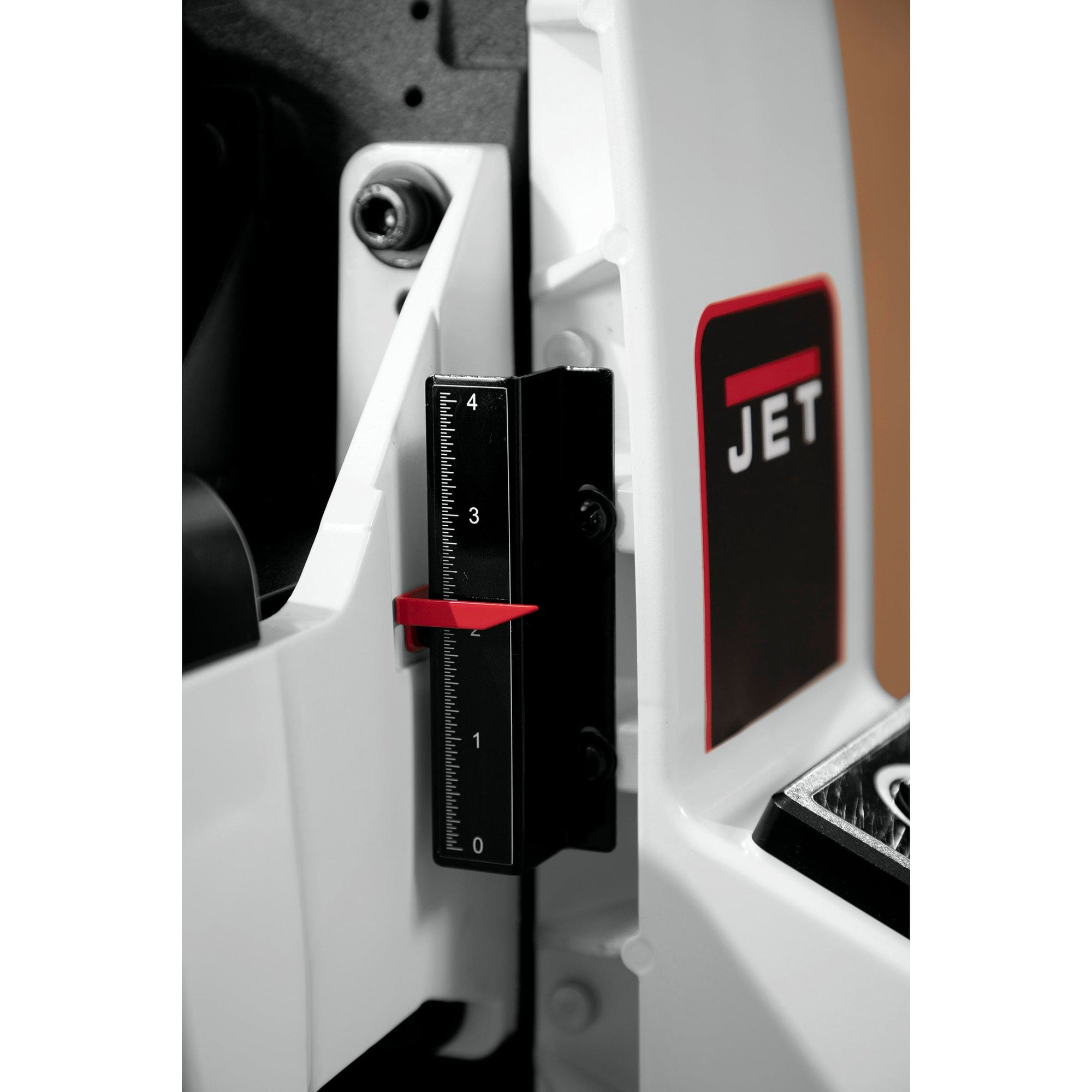

• Depth Scale on the handwheel allows to reset measurements for every project
• Variable speed control of up to 10’ feet per minute allowing for optimal feed rate
• 5-Year Warranty

Specifications:

• Motor: 1-3/4 HP, 1Ph, 15A, 115V/60Hz
• Drum speed: 1720 RPM
• Dust port: 4"
• Drum length: 22-1/4"
• Drum diameter: 5”
• Conveyor speed: 0-10 FPM
• Abrasive installed: 80 grit
• Maximum board thickness: 4”
• Minimum board thickness: 1/32”
• Minimum board length: 3-2/8”
• Maximum board width: 22" with one pass
• Maximum board width: 44” with 2 passes
• Open stand included
• On/off switch: Toggle with safety key
• Overall size: 42" L x 24" W x 52" H
• Style: Floor standing model
• Net weight: 177 lb - machine only

What's Included:

• (1) Jet® - 22" Drum Sander with Open Stand - 1-3/4 HP 1 Ph 115V - JWDS-2244
