Jet

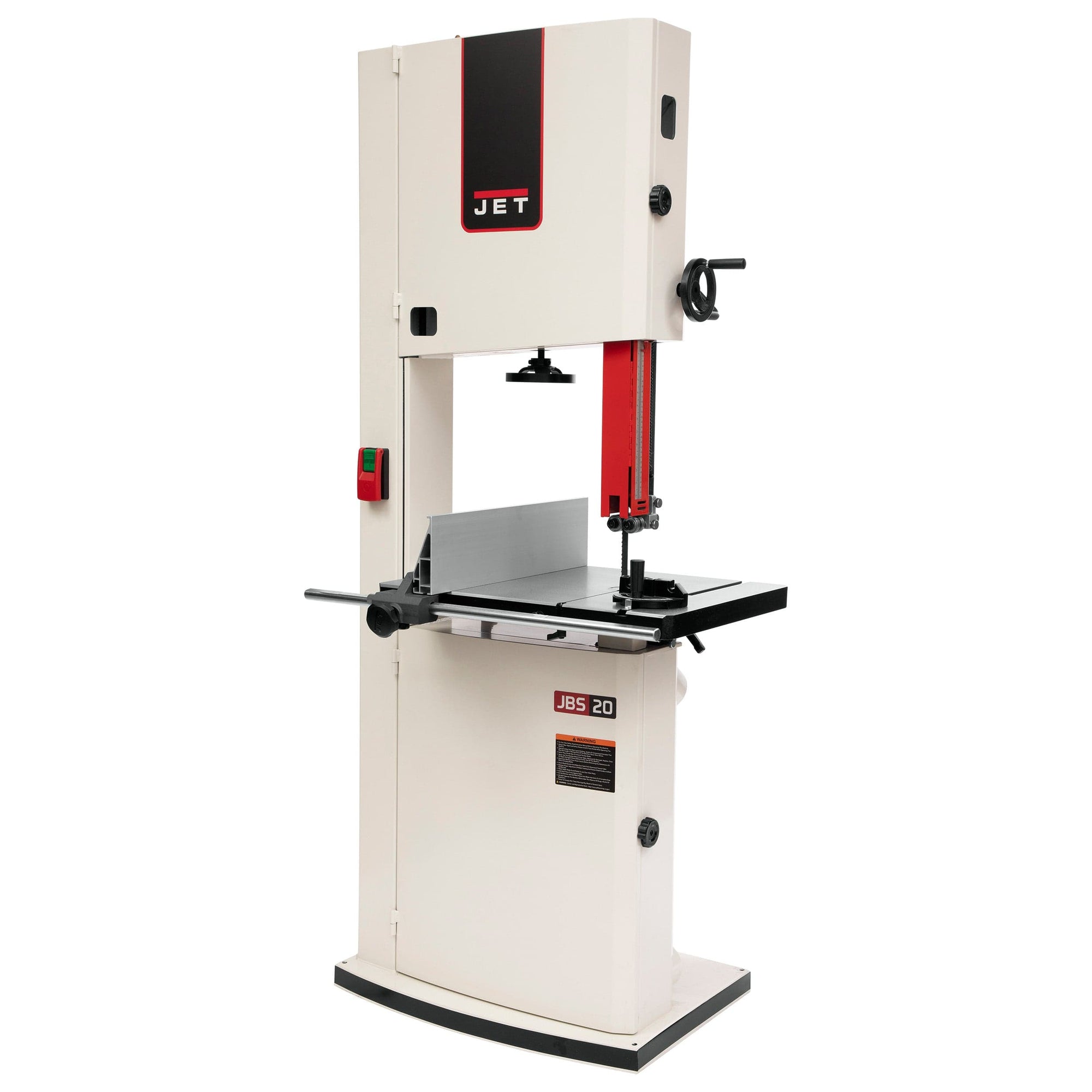

20" Woodworking Bandsaw - 3 HP 1 Ph 230V - JWBS-20-3
Regular price
$3,899.99
Sale price
$3,899.99
Regular price
$3,899.99
Unit price
/
per
This item has an additional shipping charge
Jet
20" Woodworking Bandsaw - 3 HP 1 Ph 230V - JWBS-20-3
Regular price
$3,899.99
Sale price
$3,899.99
Regular price
$3,899.99
Unit price
/
per
This item has an additional shipping charge
More re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. T. . .
View More Details
Details
More re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The Jet® JWBS-20-3 20” steel frame bandsaw is engineered to build great projects through superior performance. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up.
Features:
- 16 resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
- 27-1/4 x 20" precision ground cast iron table for added stability and work support
- Fence system features a micro-adjustable, dual-position side plate
- Tool-less, independently adjustable, upper and lower ball bearing guides

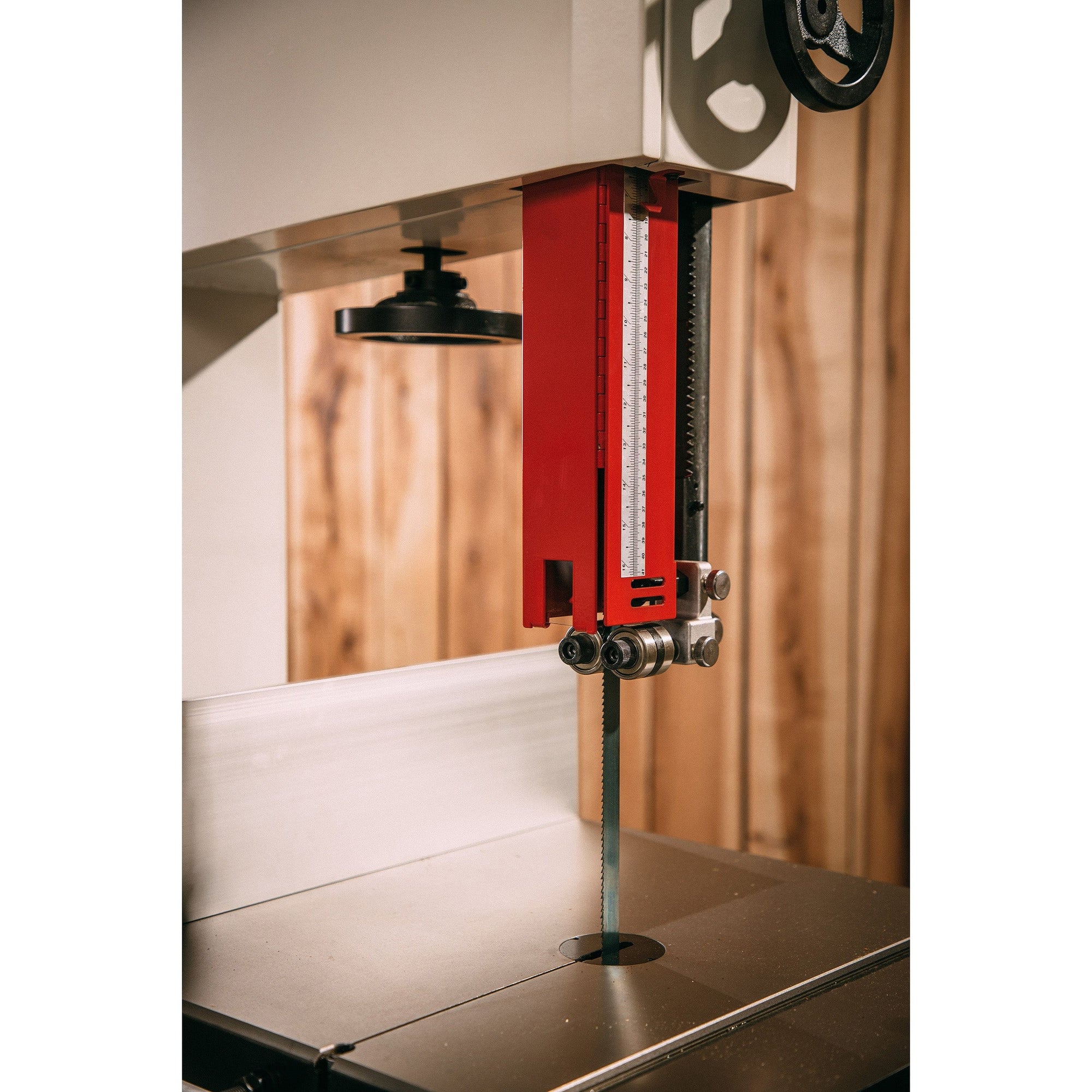

- Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
- Easy-to-read blade tension scale can be viewed through upper door window
- Single knob adjustment simplifies the blade tracking process
- Blade tracking window provides clear view of blade during tracking

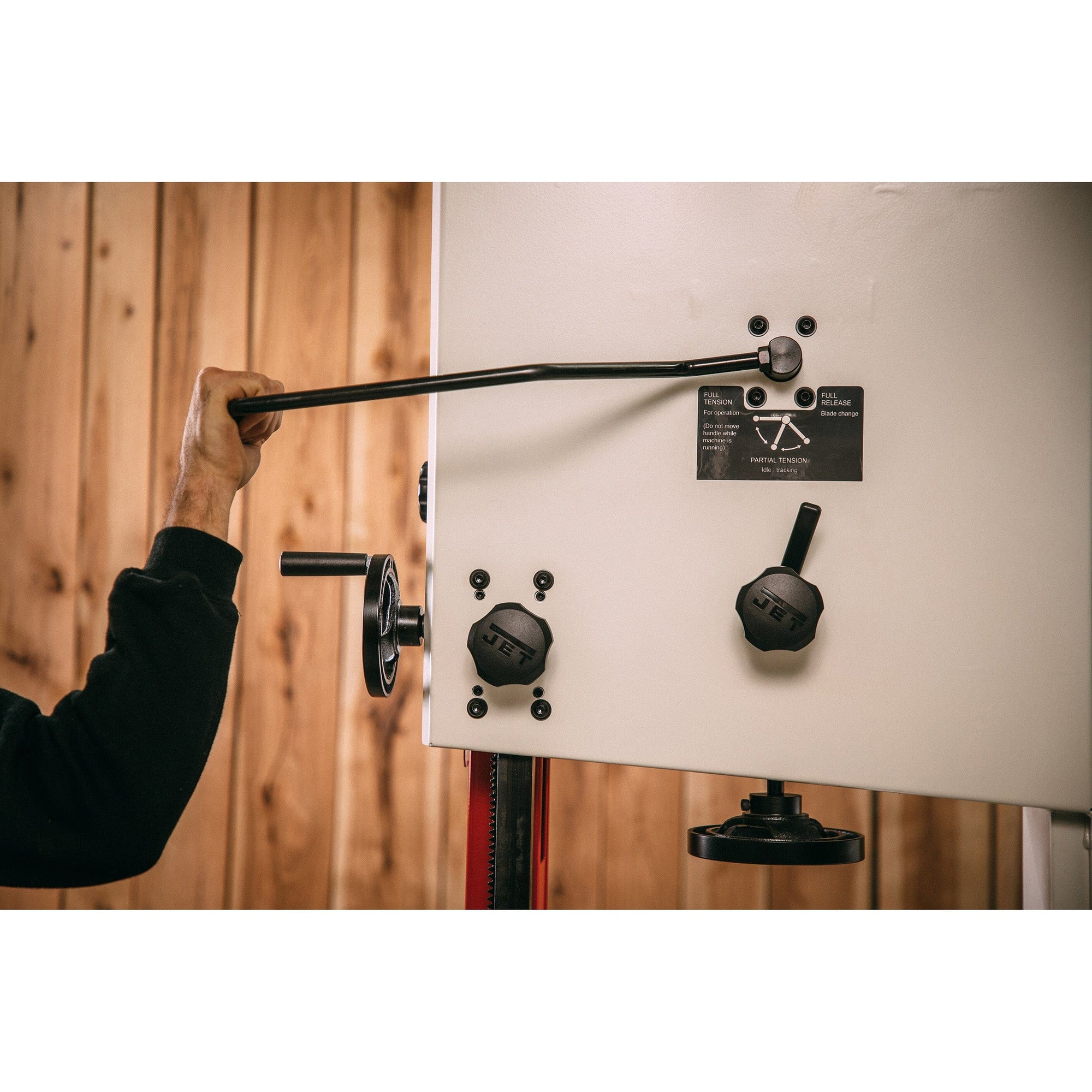

- Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release

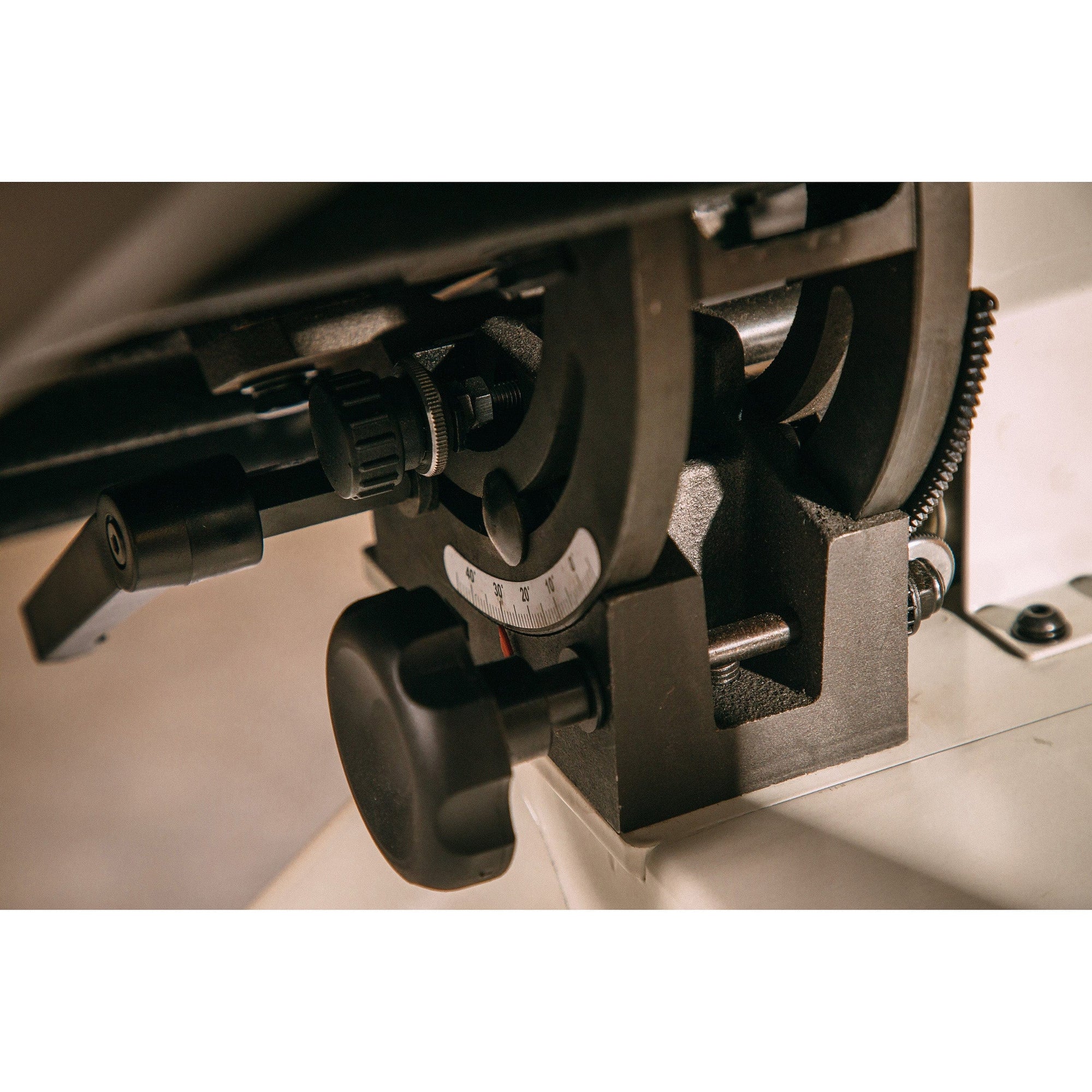

- Cast iron trunnion for maximum support and stability
- Slotted table allows for front blade removal
- Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy
- Round table insert features leveling screws for precise adjustment
- Conveniently located dual 4 dust collection ports catch dust and chips at the source
- Table tilts 5° left and 45° right to accommodate a wide variety of cuts
Specifications:
- Motor Type: TEFC (totally-enclosed fan-cooled), induction, capacitor start
- Motor Power: 3 HP
- Motor Amps: 12A
- Motor Phase: 1 Phase
- Voltage: 230V
- Cycle: 60 Hz
- Recommended Circuit Size (Amps): 30A
- Wheel Diameter: 20-1/4"
- Cutting Capacity Height: 16"
- Cutting Capacity Width: 20"
- Maximum Rip - Left of Blade w/ Fence: 18-1/2"
- Maximum Rip - Left of Blade w/ Fence: 4-1/2"
- Blade Length: 158"
- Maximum Blade Width: 1-1/2"
- Minimum Blade Width: 1/8"
- Blade Speed: 2530/4850 SFPM
- Table Size (L x W x T): 27-1/4 x 20 x 1-3/4
- Table Tilt: 5° left, 45° right
- Table Height from Floor: 37"
- Overall Dimensions (L x W x H): 37" x 33-1/8" x 88"
- Resaw / Rip Fence Dimensions (L x W x H): 22-1/2" x 1-3/4" x 6"
- Dust Port Outside Diameter: 4" (x2)
- Dust Collection Minimum CFM Required: 400 CFM
- Net Weight: 544 lbs.
What's Included:
- (1) Jet® 20" Woodworking Bandsaw - 3 HP 1 Ph 230V - JWBS-20-3
- (1) Rip Fence/Resaw Fence
- (1) Miter Gauge
- (1) Bandsaw Blade - Hook - 158" x 1" x 0.035" - 3 TPI
