Jet

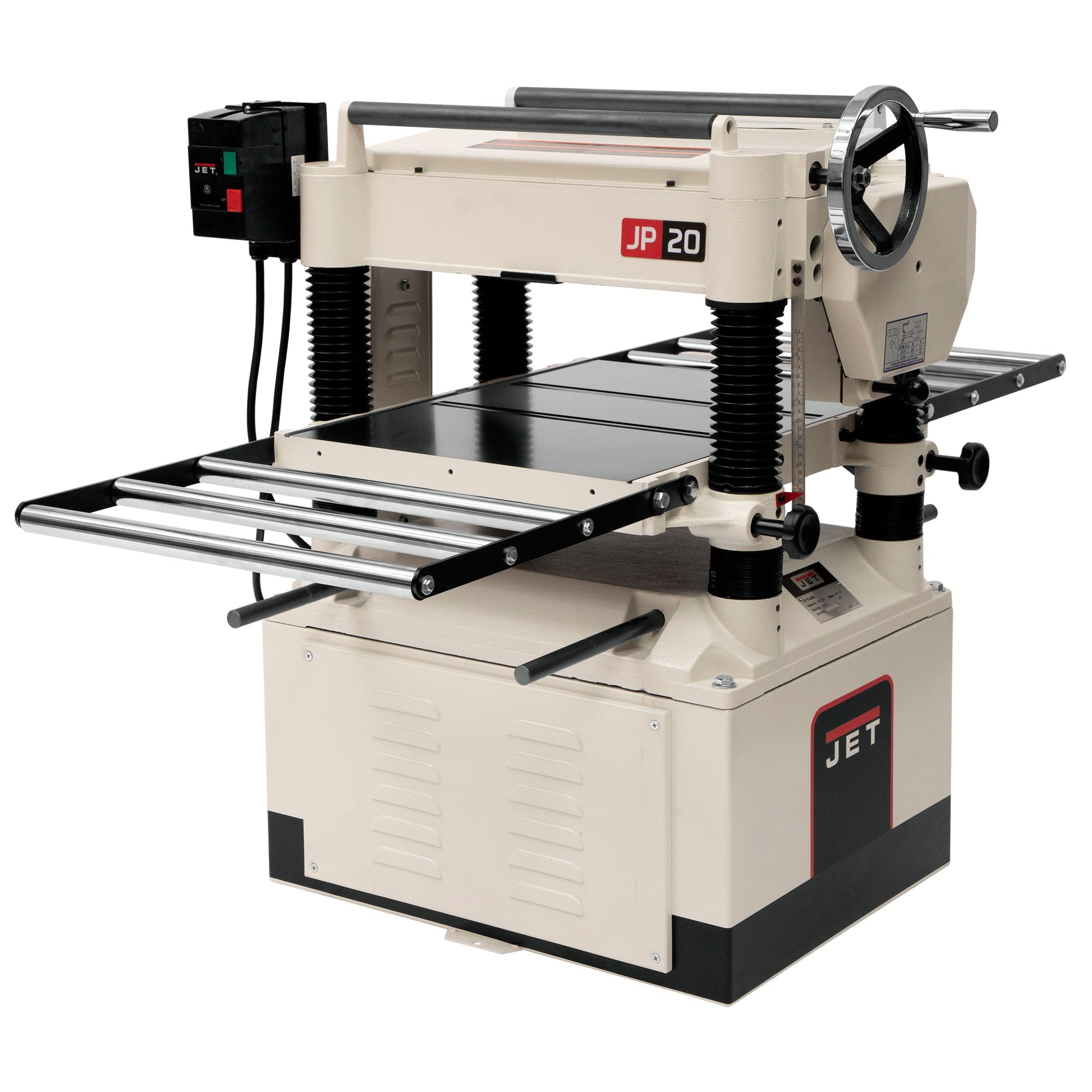

20" Planer - 3 HP 1 Ph 230V - Straight Knife - JWP-208-1
This item has an additional shipping charge
Get Up To A $750 Gift Card Rebate With $2,500 Or More JET® Purchase Through Manufacturer's Mail-In Offer!
Jet
20" Planer - 3 HP 1 Ph 230V - Straight Knife - JWP-208-1
This item has an additional shipping charge
Get Up To A $750 Gift Card Rebate With $2,500 Or More JET® Purchase Through Manufacturer's Mail-In Offer!
Details
The Jet® JWP-208-1 20" Planer is a robust and reliable machine perfect for professional woodworkers and DIY enthusiasts. With a 3 HP motor and a two-speed gearbox, this planer can easily handle even the most challenging materials. The machine's cast iron construction provides stability and durability. At the same time, four high-speed steel cutter knives produce faster, smoother cutting.
The JWP-208-1 features a large cast iron table providing ample workpiece space. The table is precision-machined for a smooth finish and is adjustable for accurate planing. Overall, the JWP-208-1 20" Planer is a top-of-the-line machine with exceptional performance and precision. It is built to last and will be a valuable addition to any woodworking shop, whether you are working on small DIY projects or large-scale professional jobs.
Features:
- Powerful 3 HP TEFC induction motor with three V-belt transmission for smooth and consistent power
- Heavy-duty cast iron and steel construction for added strength and durability
- Two-speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs
- Large, cast iron, precision ground table for precise workpiece support
- Sets of three steel infeed and outfeed rollers to help in the prevention of snipe
- Positive gear drive moves table quickly and accurately
- Work table is precision-ground and polished for consistently smooth operation
- Large handwheel with positive gear drive allows for quick and accurately table adjustments
- 1/16" increment height scale lets you make the most precise adjustments for fine cuts
- 5" dust port provides efficient chip and dust collection
- One-piece welded steel base offers solid support and stability
- Magnetic controls provide long life and reliability
- Four high-speed steel cutter knives produce faster, smoother cutting
- Type: Straight Knife Cutterhead
- Style: Floor Standing Model
- Motor Type: TEFC - Totally Enclosed, Fan-Cooled
- Motor Power: 3 HP
- Motor Phase: Single (1 Ph)
- Motor Voltage: 230V Only (pre-wired 230V)
- Motor Amps: 18A
- Motor Cycle: 60 Hz
- Cutterhead Speed: 5,000 RPM
- Cuts per Minute: 20,000 CPM
- Cutterhead Diameter: 3-3/16"
- Number of Knives: Four
- Standard Knife Size: 20" x 1" x 1/8"
- Feed Rate: 24 & 31 FPM
- Maximum Planing Width: 20"
- Maximum Planing Thickness: 8"
- Full Width Cutting Depth: 3/32"
- Minimum Planing Length: 6-3/4"
- Dust Chute Diameter: 5"
- Table Area (D x W): 25-3/4" x 20"
- Overall Dimensions (L x W x H): 26 x 36-5/8 x 41-3/8
- Net Weight: 640 lbs.
- (1) Jet® 20" Planer - 3 HP 1 Ph 230V - Straight Knife - JWP-208-1
