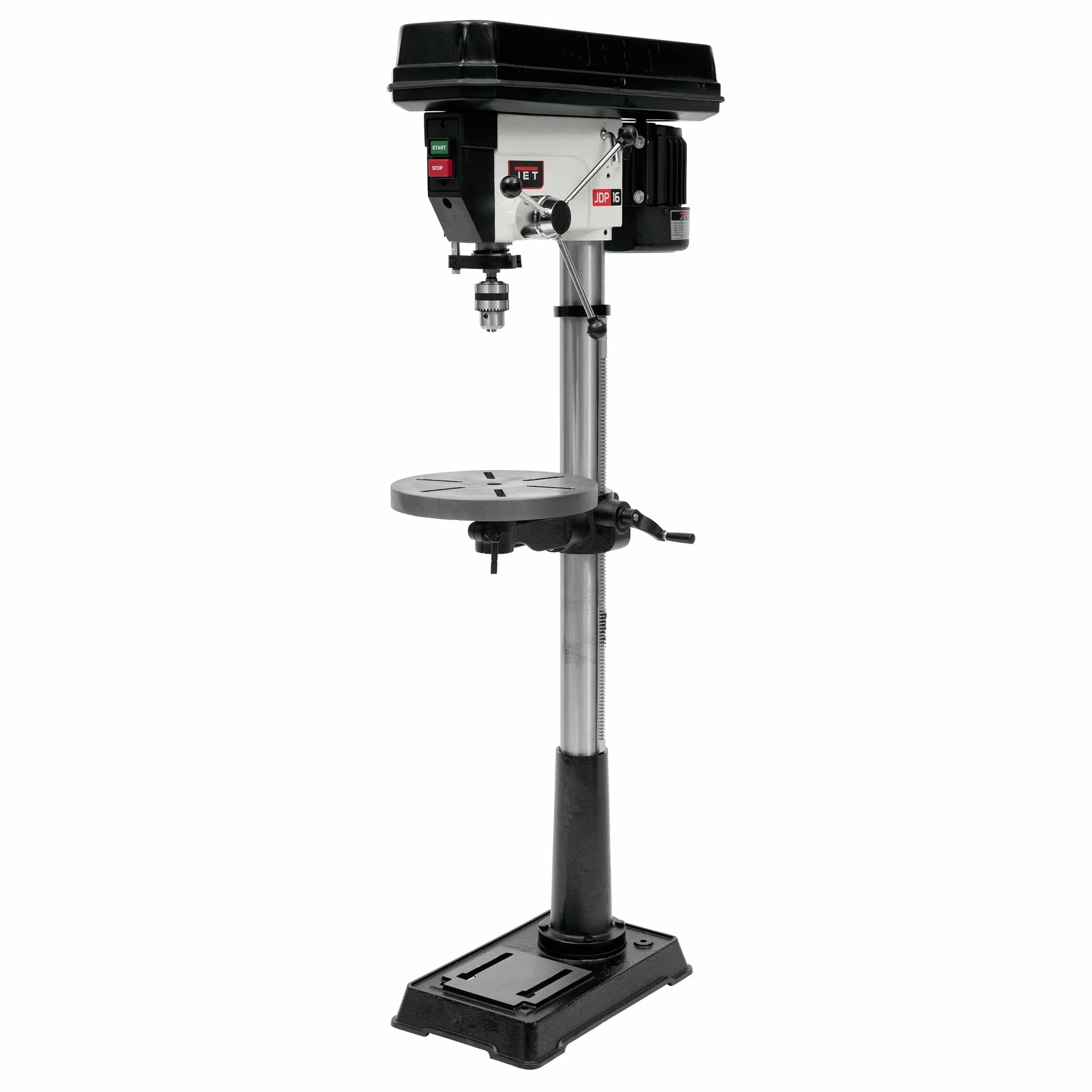

16-1/2" Floor Drill Press - 3/4 HP 1 Ph 115V - JDP-17MF

Item #943732 Model 354169
Regular price $1,099.99
Sale price $1,099.99 Regular price $1,099.99

This item has an additional shipping charge

The Jet® JDP-17MF Drill Press is a high-quality drilling machine designed for precision and accuracy in woodworking and metalworking applications. . . . View More Details

Ships from Manufacturer

Shipping Info


The Jet® JDP-17MF Drill Press is a high-quality drilling machine designed for precision and accuracy in woodworking and metalworking applications. A powerful 3/4 HP motor delivers reliable performance for heavy-duty tasks, and 16 different speed settings, ranging from 200 to 3,630 RPM, make it suitable for a wide range of drilling applications. The speed settings are easily adjustable with a simple belt tensioning system, allowing you to switch between different materials and bit sizes.

One of the key benefits of the JDP-17MF is its versatility. The large, 13-3/4" diameter worktable tilts up to 45 degrees, providing ample space for larger workpieces and greater versatility in drilling angles. The table is also height-adjustable, which enables you to position it at the perfect height for comfortable and efficient work. Additional features include an adjustable tension spindle return spring ideal for repetitive drilling of the same depth, and an easy-to-read depth scale, allowing you to set your drilling depth accurately. A convenient built-in work light (bulb not included) illuminates the work area making it easier to see your drilling target. Finally, the JDP-17MF is designed to provide years of dependable service backed by a manufacturer's 5-year warranty making it an excellent investment for any workshop.


  • 16 speeds lets you choose the best speed for the job
  • Quick release crank operated worktable height adjustment rotates + or - 45° for versatility

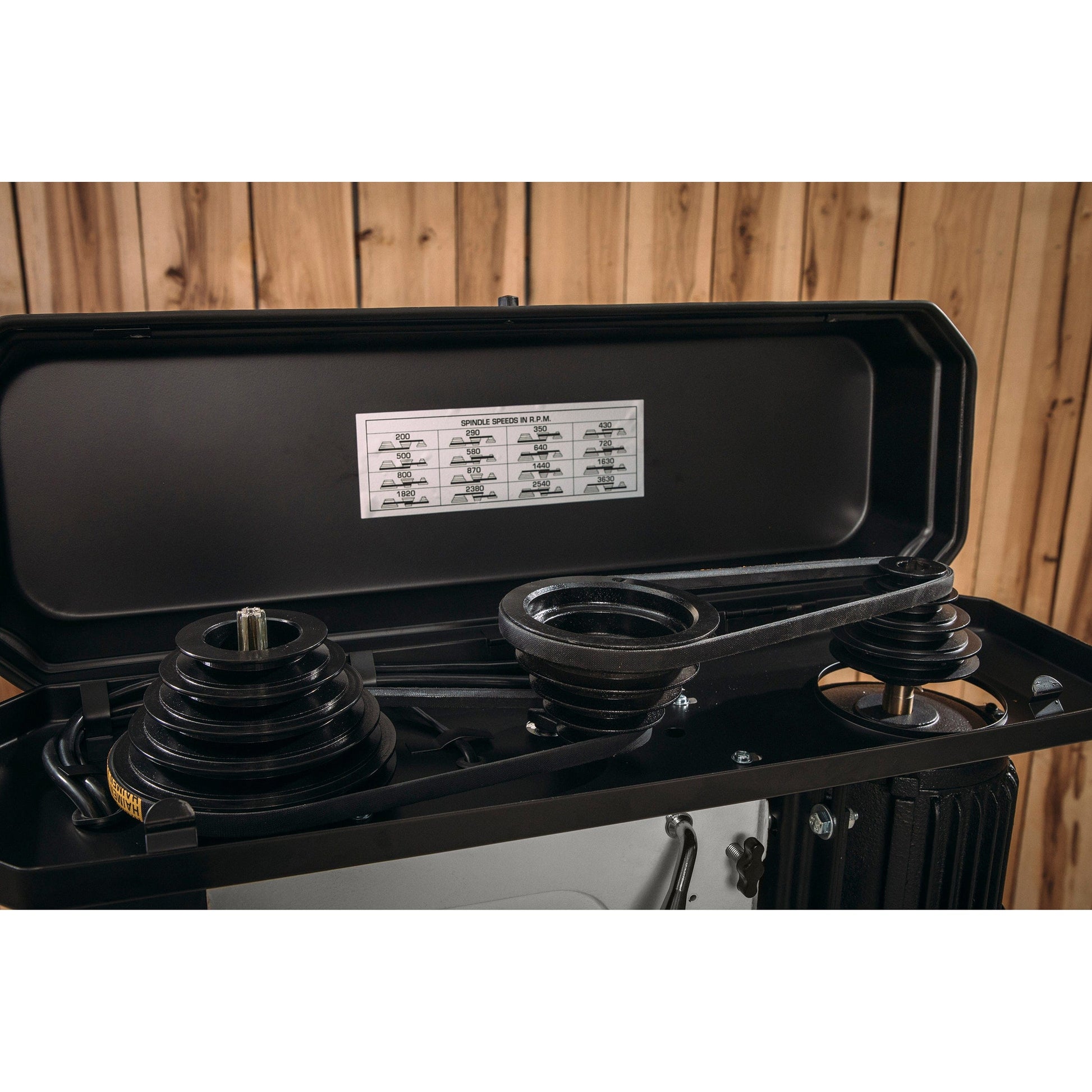

  • Hinged metal belt and pulley cover provide easy access to the quick adjustment motor mount to allow rapid spindle speed changes
  • "X" pattern mounting grooves in table allow mounting a fence when table is in reverse position

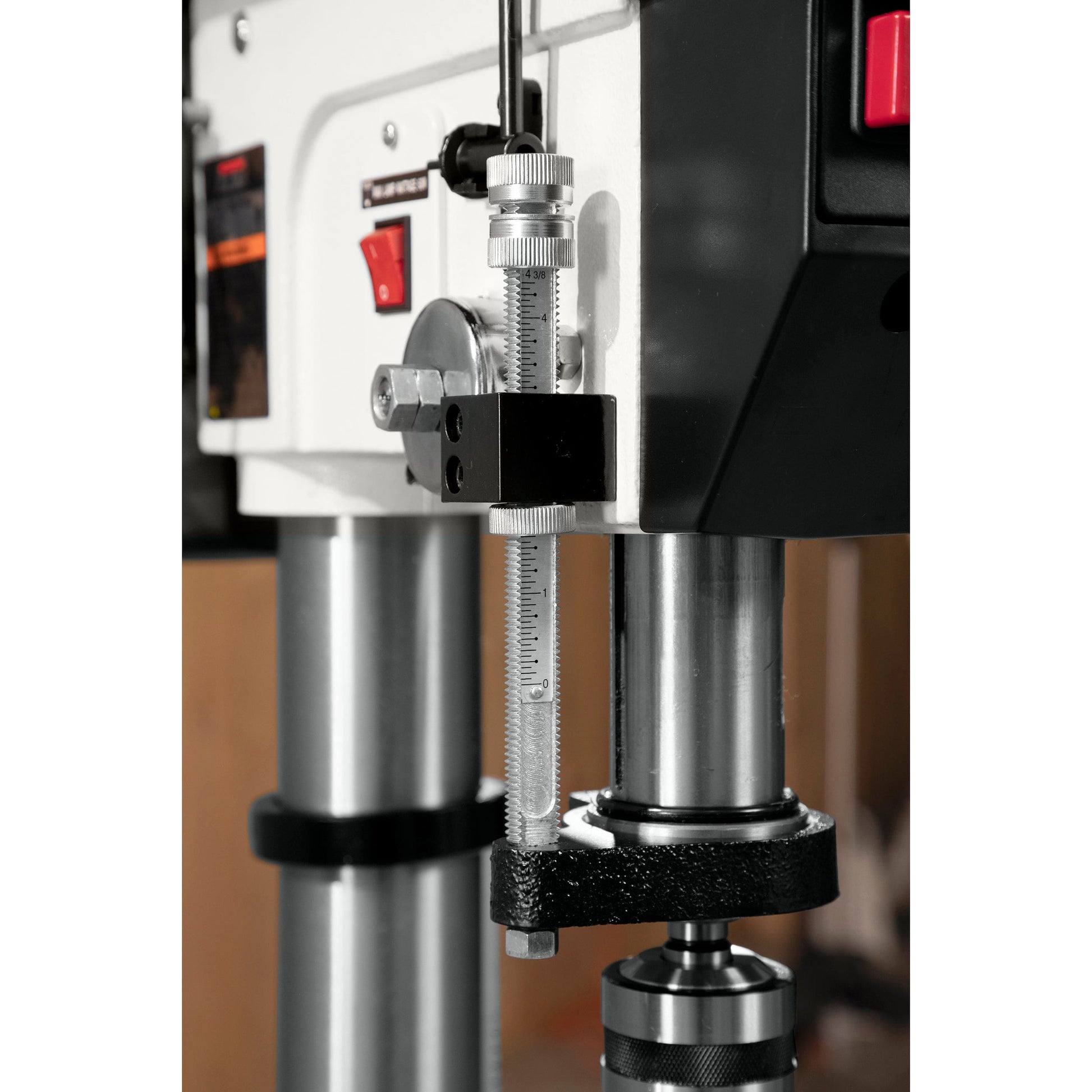

  • Depth stop displays inch/mm and has a quick set bolt for fast, accurate adjustments
  • Spindle has high-quality ball bearing construction for long life
  • Adjustable tension spindle return spring is ideal for repetitive drilling of the same depth
  • Built-in worklight (bulb not included) provides additional visibility of your work


  • Product: Drill Press
  • Style: Floor Model
  • Motor Power: 3/4 HP
  • Motor Phase: Single
  • Motor Voltage: 115/230V
  • Motor Amps: 9A/4-1/2A
  • Prewired: 115V
  • Number of Spindle Speeds: 16
  • Maximum No-Load Spindle Speed Range: 200-3630 RPM
  • Swing: 16-1/2"
  • Maximum Spindle Travel: 4-3/8"
  • Maximum Spindle Distance to Table: 29-1/8"
  • Maximum Spindle Distance to Base: 49"
  • Spindle Taper: MT-2
  • Chuck Style: Keyed
  • Chuck Size: 5/8"
  • Column Diameter: 3-1/8"
  • Table Size - Diameter: 13-3/4"
  • Table Tilt: 45° Left and Right
  • Base Size (L x W): 12-1/2" x 19-5/8"
  • Overall Height: 66"
  • Weight: 189 lbs.

What's Included:

  • (1) Jet® 16-1/2" Floor Drill Press - 3/4 HP 1 Ph 115V - JDP-17MF


  • Mortising attachment is sold separately.
  • Work Light: Install a light bulb (not included), no larger than 60 watts into the socket accessed from beneath the head. See manual for additional details.
