Jet
15" Woodworking Bandsaw - 3 HP 1 Ph 230V - JWBS-15-3
Regular price
$2,549.99
Sale price
$2,549.99
Regular price
$2,549.99
Unit price
/
per
This item has an additional shipping charge
Gain more re-saw capacity, greater throat depth, and the horsepower you need with this Jet® JWBS-15 steel frame bandsaw. Tackle bigger boards, cre. . .
View More Details
Details
Gain more re-saw capacity, greater throat depth, and the horsepower you need with this Jet® JWBS-15 steel frame bandsaw. Tackle bigger boards, create smoother edges and master intricate cuts. This bandsaw has a heavy-duty cast-iron fence system built to give you the sturdiness and support you need for every project and a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. Engineered to build great projects through superior performance.
Features:
- 14” resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
- 21-1/2 x 16" precision ground cast iron table for added stability and work support
- Fence system features a micro-adjustable, dual-position side plate
- Tool-less, independently adjustable, upper and lower ball bearing guides
- Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
- Easy-to-read blade tension scale can be viewed through upper door window
- Single knob adjustment simplifies the blade tracking process
- Blade tracking window provides clear view of blade during tracking
- Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
- Cast iron trunnion for maximum support and stability
- Slotted table allows for front blade removal
- Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy
- Round table insert features leveling screws for precise adjustment
- Conveniently located dual 4" dust collection ports catch dust and chips at the source
- Table tilts 5° left and 45° right to accommodate a wide variety of cuts
Specifications:
- Motor Type: TEFC (totally-enclosed fan-cooled), induction, capacitor start
- Motor Power: 3HP
- Motor Phase: 1 Phase
- Voltage: 230V
- Cycle: 60 Hz
- Recommended Circuit Size (Amps): 30A
- Wheel Diameter: 14-3/4 (375 mm)
- Cutting Capacity Height: 14"
- Cutting Capacity Width: 14-1/8"
- Maximum Rip - Left of Blade w/ Fence: 12-3/8" (316 mm)
- Maximum Rip - Left of Blade w/ Fence: 2-7/8" (73 mm)
- Blade Length: 133"
- Maximum Blade Width: 1"
- Minimum Blade Width: 1/8"
- Blade Speed: 3100 SFPM
- Table Size (L x W x T): 21-1/5" x 16" x 2"
- Table Tilt: 5° left, 45° right
- Table Height from Floor: 35"
- Overall Dimensions (L x W x H): 29-1/2" x 32" x 74"
- Resaw / Rip Fence Dimensions (L x W x H): 18-1/8" x 1-3/4" x 6"
- Dust Port Outside Diameter: 4" (x2)
- Dust Collection Minimum CFM Required: 400 CFM
- Net Weight: 382 lbs.
What's Included:
- (1) Jet® JWBS-15-3 15" Bandsaw

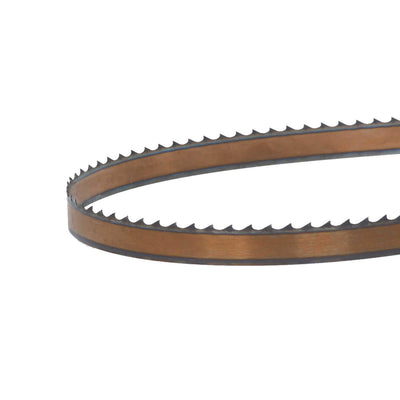

- (1) Bandsaw Blade - Hook - 133" x 1/2" x 0.0256" - 6 TPI
- (1) Rip Fence/Resaw Fence
- (1) Miter Gauge
