Jet

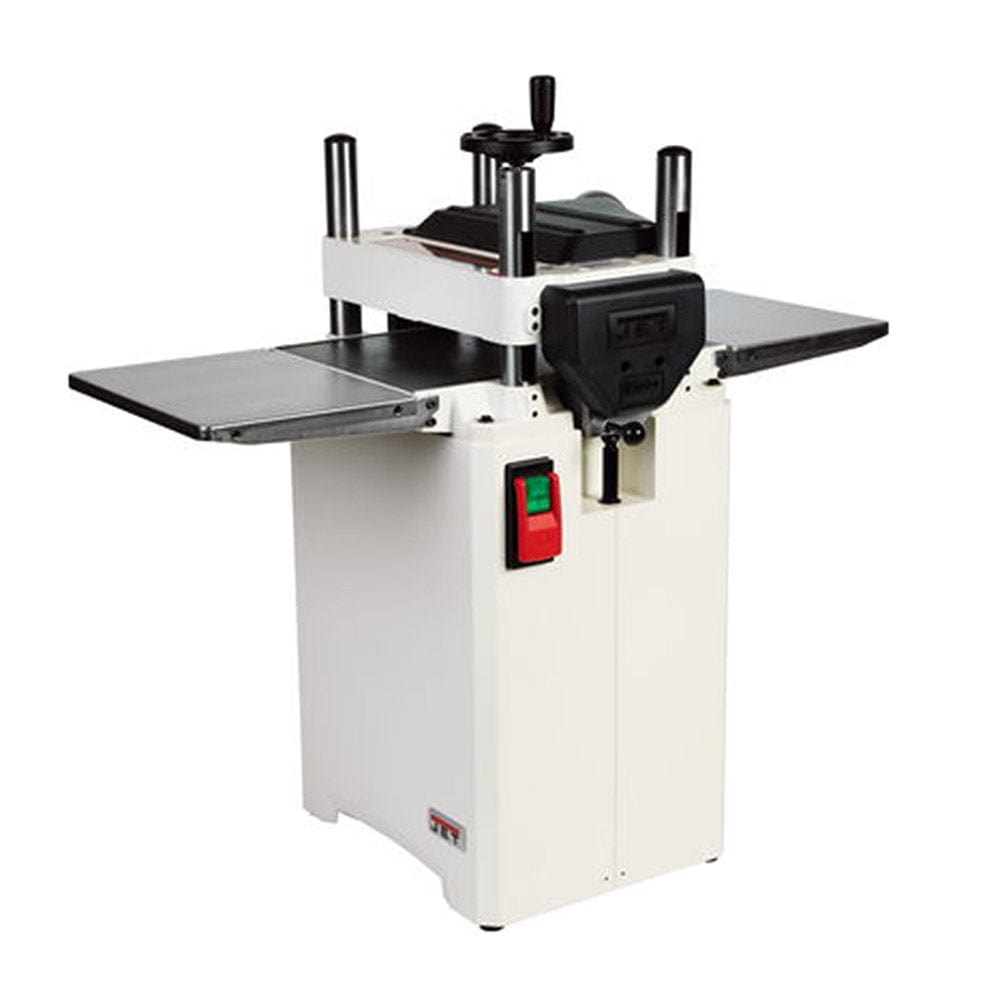

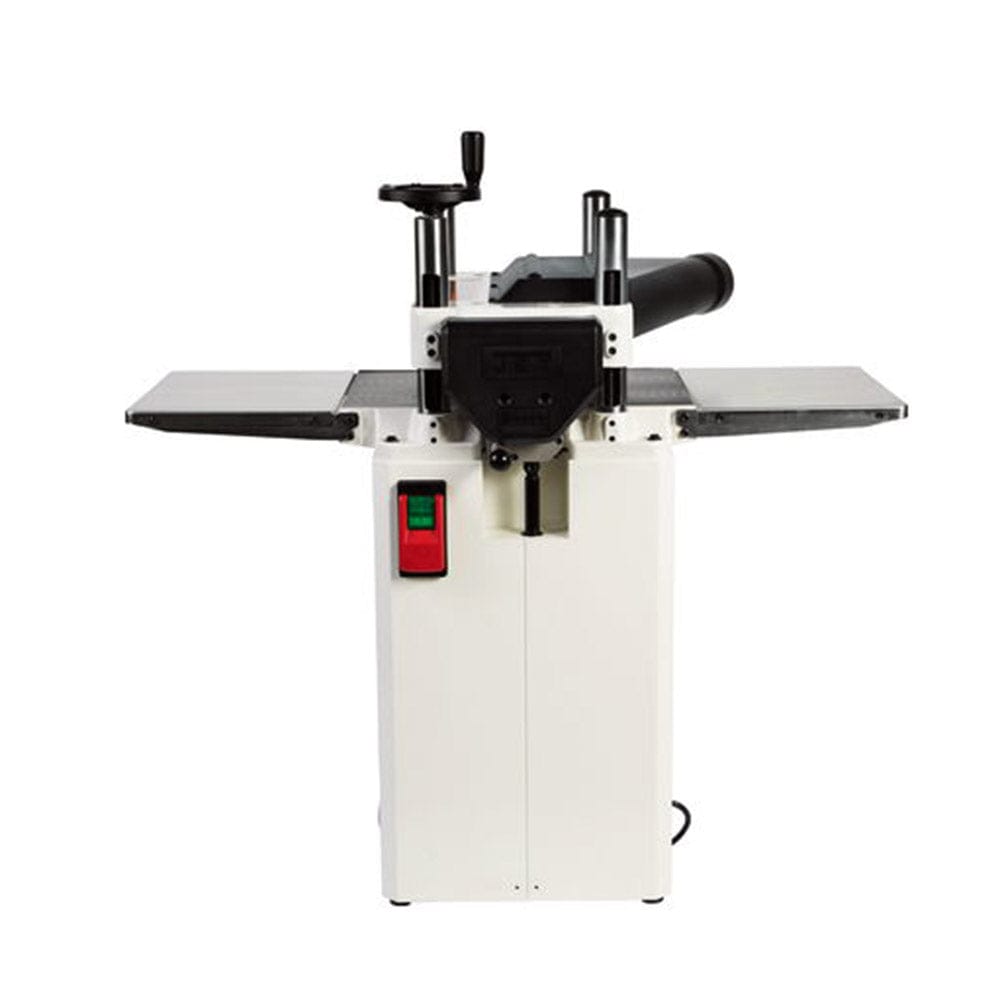

15" Planer - 3 HP 1 Ph 230V - Straight Knives - JWP-15B
Item #167190
Model 722150
Regular price
$2,349.99
Sale price
$2,349.99
Regular price
$2,349.99
Unit price
per
For precision planing, the Jet® JWP-15B will do the job efficiently, providing outstanding results for a reasonable price. This sweet machine feat. . .
View More Details
Items you may need
-
15" Planer Side Roller Table
Regular price $149.99Sale price $149.99 Regular priceUnit price per$149.99
Details
For precision planing, the Jet® JWP-15B will do the job efficiently, providing outstanding results for a reasonable price. This sweet machine features a monster 3-horsepower motor with a two-speed gearbox to adjust your feed rate for a better-finished surface. The innovative Precision Air Strut System provides consistent upward pressure on the cutterhead, reducing the chance of board snipe. The cast iron table is rock-solid and features steel infeed/outfeed table extensions that conveniently fold out of the way. And because even the most incredible power planer is one of the messiest machines on the planet, Jet's angled 4" dust port keeps your dust hose out of the way for easy hookup on your shop's dust collection system. Add knowledgeable customer service professionals standing by if you need them, and you're good to go.
Features:
- Powerful 3-HP motor with v-belt transmission reduces vibration and running noise
- Innovative Precision Air Strut System provides consistent upward pressure on the cutterhead, reducing the chance of board snipe

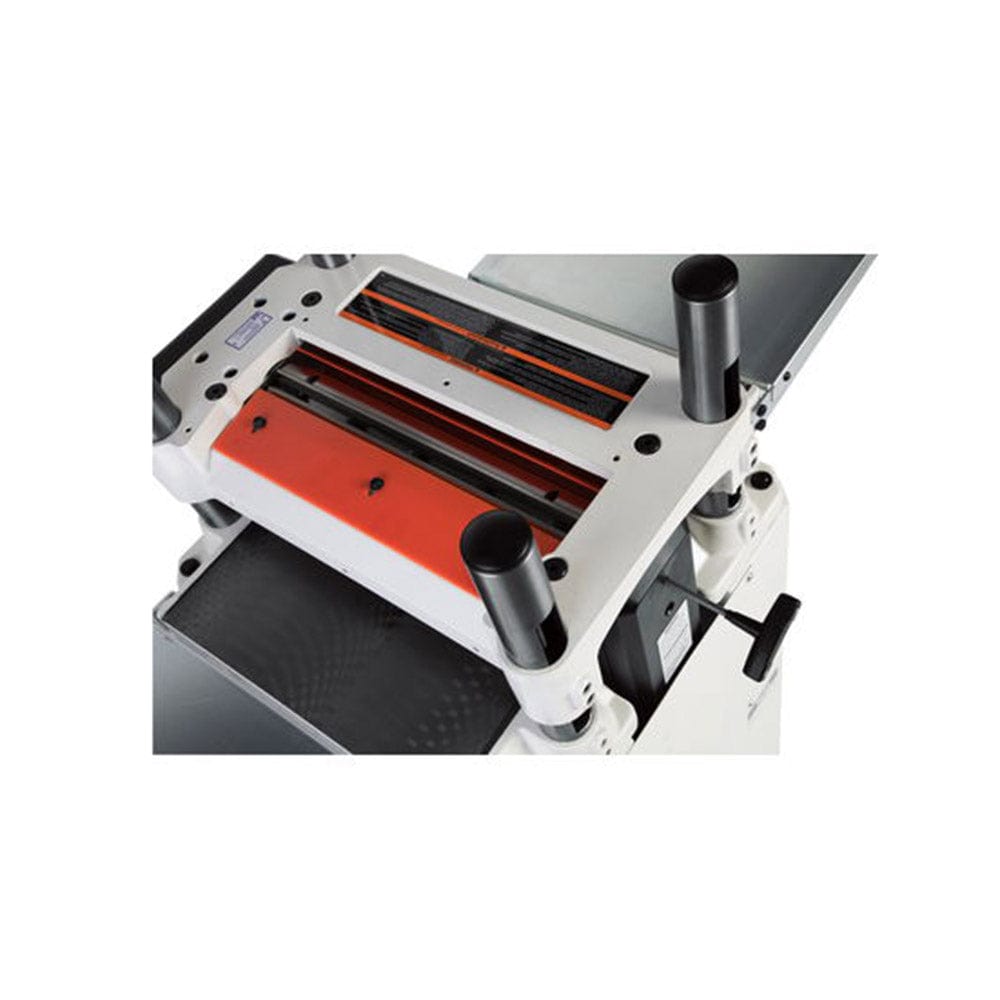

- Straight cutterhead has three high-speed steel knives that lock firmly in place to prevent movement while in use
- Maximum depth of cut 1/8", 6" cutting height and 15" width capacity
- Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer
- Dual infeed speed control for 16-fpm or 20-fpm, maximizes cut efficiency

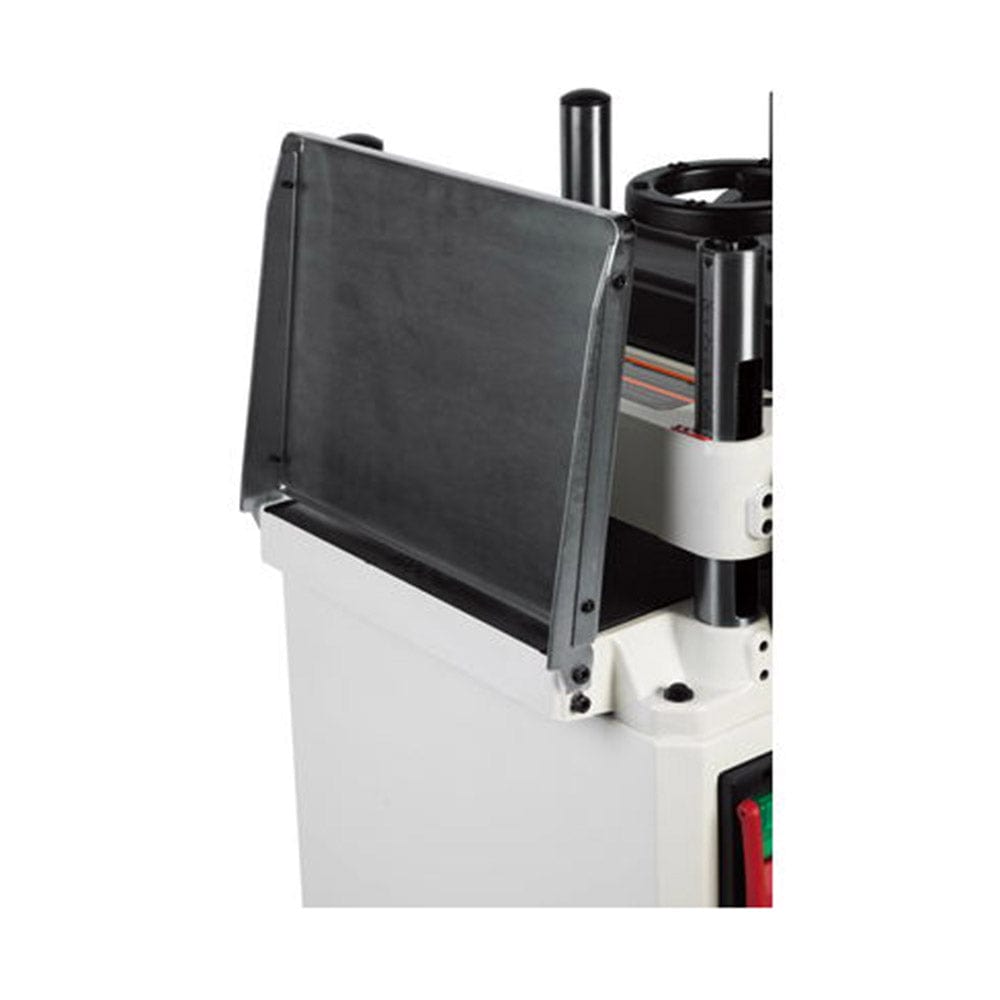

- Heavy-duty folding infeed/outfeed tables provide support for work pieces and fold for convenience

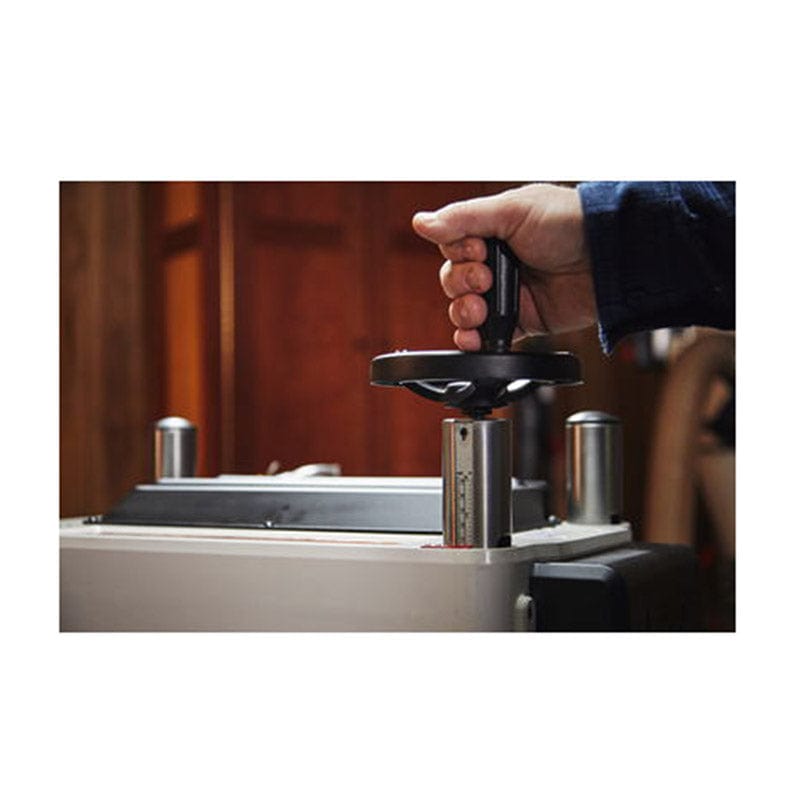

- Large hand wheel with positive gear drive easily moves the head to the desired board thickness

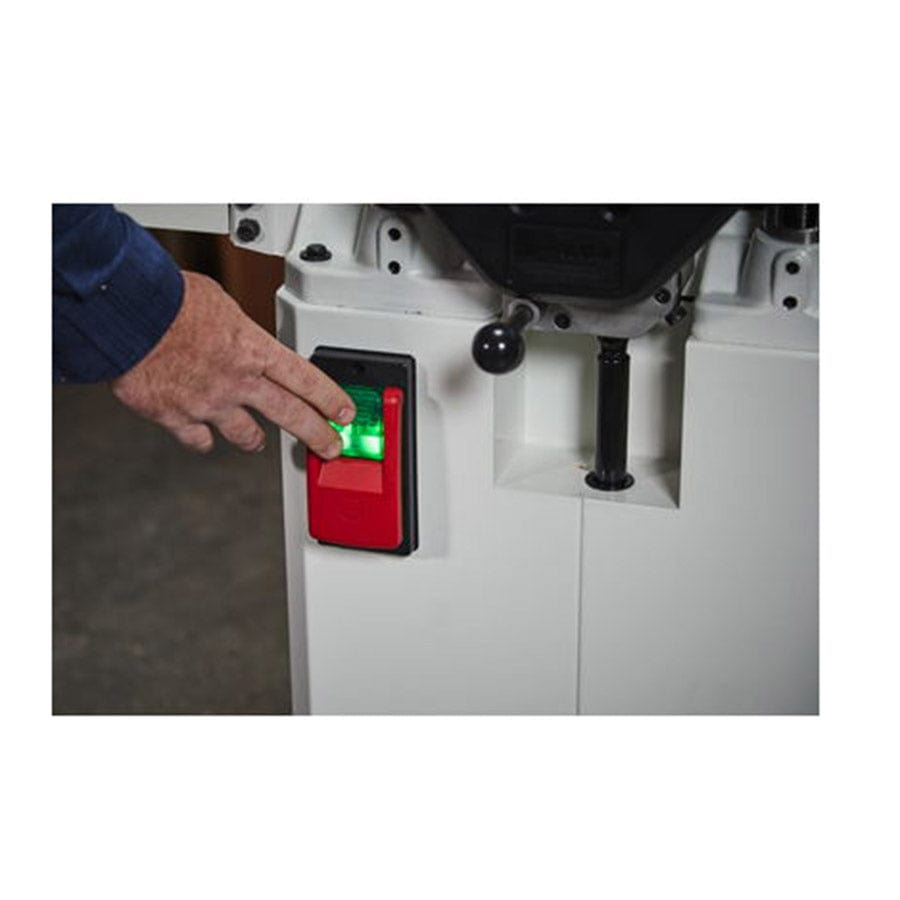

- Magnetic Switch with green safety light illuminates when powered

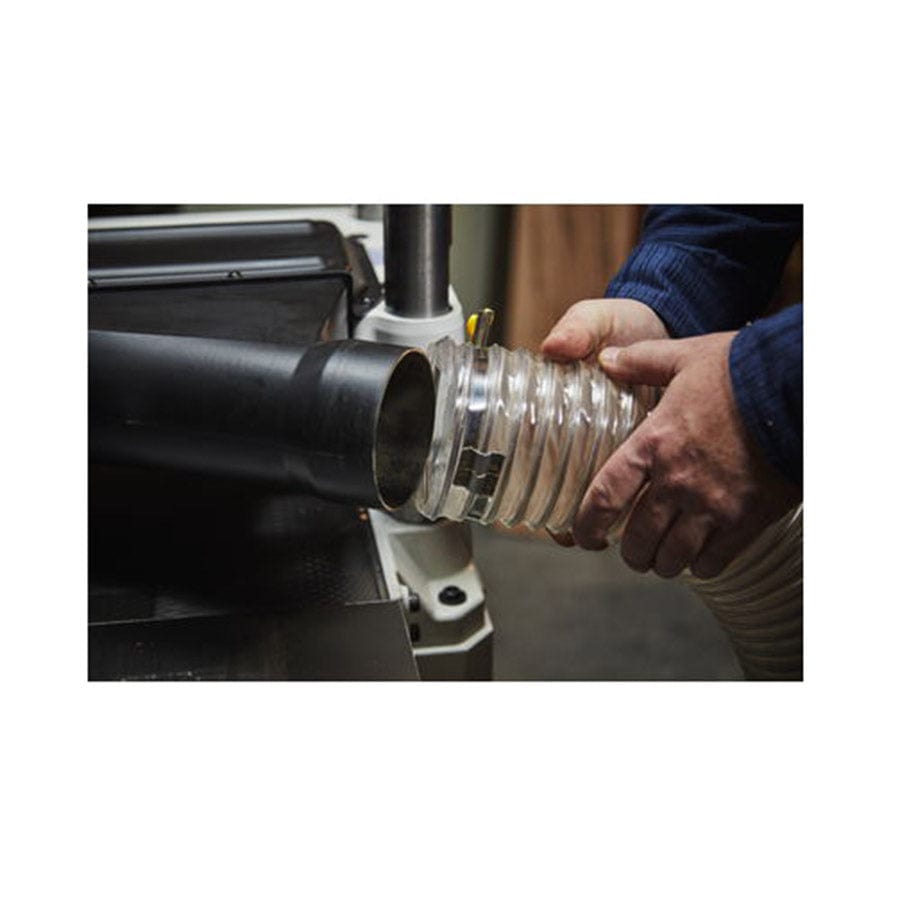

- 4" Dust port hooks up to dust management system and helps keep shop clean
Specifications:
- Style: Floor Standing
- Type: Straight Knife Cutterhead
- Number of Knives: 3
- Cutterhead Diameter: 2-5/8"
- Cutterhead Speed: 5200 rpm
- Maximum Depth of Cut: 3/16"
- Maximum Full Width Depth of Cut: 1/8"
- Maximum Planing Width: 15"
- Maximum Planing Thickness: 6"
- Minimum Planing Length: 21.5"
- Feed Rate: 16 FPM - 20 FPM
- Motor Power: 3 HP
- Motor Amp: 15A
- Voltage: 230V
- Motor Phase: Single
- Speeds: 2
- Table Size with Extensions: 15" x 21.45"
- Dust Port: 4" (102 mm)
- Dust Collection Minimum CFM Required: 600 CFM
What's Included:
- (1) Jet® 15" Planer - 3 HP 1 Ph 230V - Straight Knives - JWP-15B
- (1) Handwheel assembly
- (1) Dust port

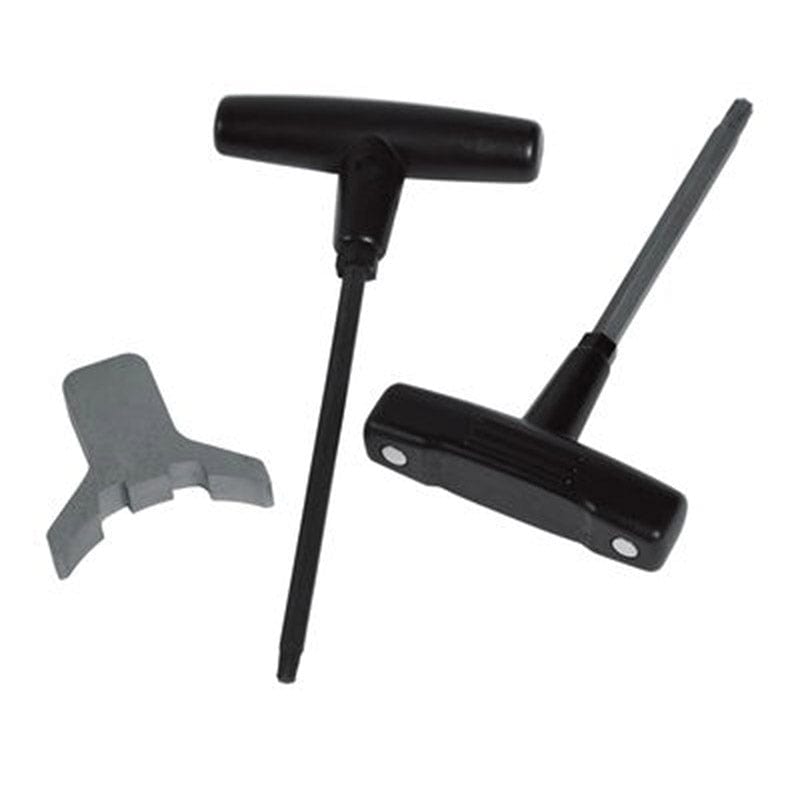

- (1) Torx point screwdriver T30 (with magnets)
- (2) Steel extension tables
- (1) Hex wrench 6 mm
- (1) Knife gauge
- (1) Hardware package (p/n JWP15B-HP)
- (1) Operating Instructions and Parts Manual
- (1) Product registration card
