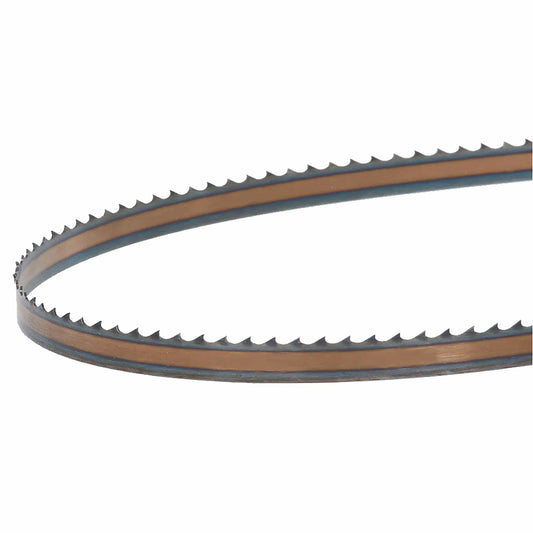

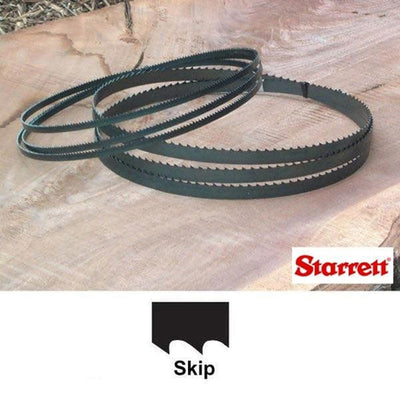

Duratec SFB Bandsaw Blade - 116" x 1/4" x .025" x 6 TPI - Skip
Regular price $22.99Sale price $22.99 Regular priceUnit price / per$22.99 -

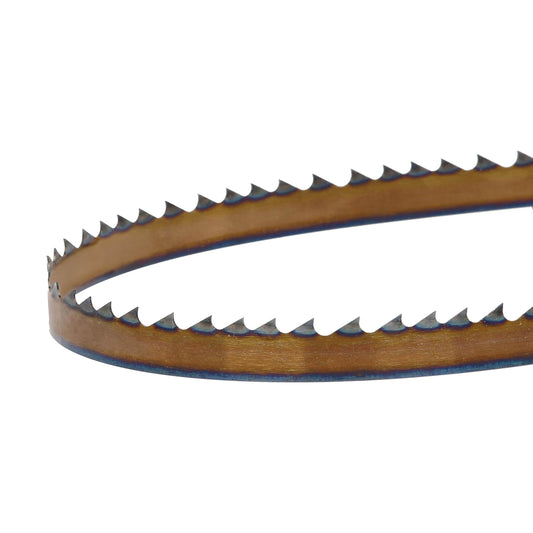

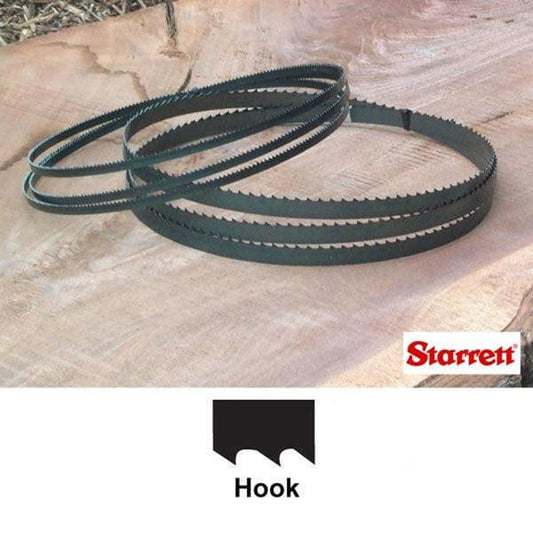

Duratec SFB Bandsaw Blade - 116" x 3/8" x .025" x 4 TPI - Hook
Regular price $23.99Sale price $23.99 Regular priceUnit price / per$23.99 -
Duratec SFB Bandsaw Blade - 116" x 3/4" x .032" x 4 TPI - Hook
Regular price $29.99Sale price $29.99 Regular priceUnit price / per$29.99 -

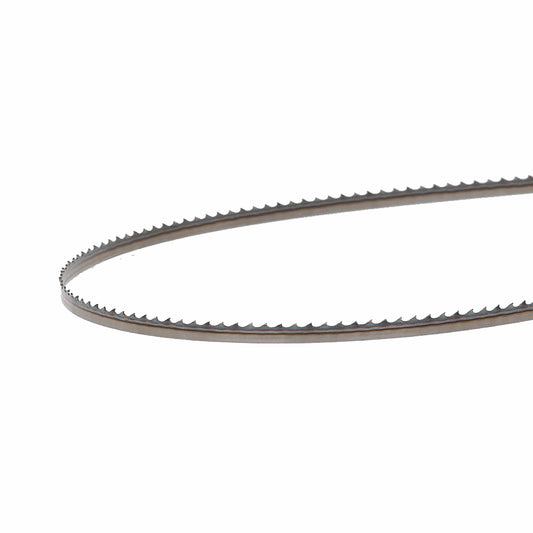

Bandsaw Blade - 116" x 1/4" x .025" x 6 TPI - Positive Claw
Regular price $47.99Sale price $47.99 Regular priceUnit price / per$47.99 -
Bandsaw Blade - 116" x 1/2" x .025" x 4 TPI - Positive Claw
Regular price $50.99Sale price $50.99 Regular priceUnit price / per$50.99 -
Bandsaw Blade - 116" x 3/4" x .025" x 2/3 TPI - Variable Positive Claw
Regular price $58.99Sale price $58.99 Regular priceUnit price / per$58.99 -
Bandsaw Blade - 116" x 3/4" x .025" x 3 TPI - Thin Positive Claw
Regular price $58.99Sale price $58.99 Regular priceUnit price / per$58.99 -

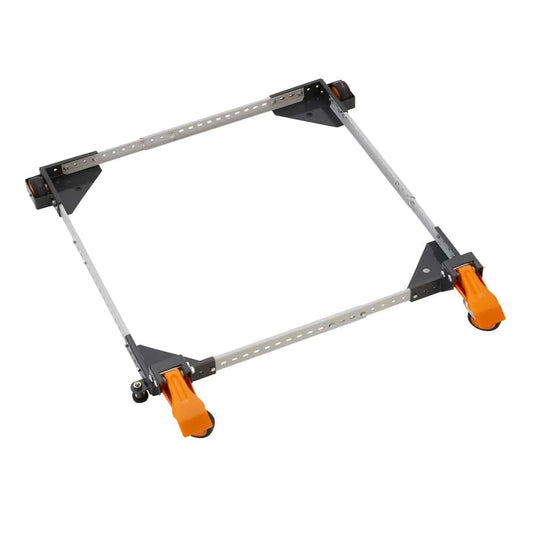

Heavy-Duty Universal Mobile Base
Regular price $109.99Sale price $109.99 Regular priceUnit price / per$109.99
Details

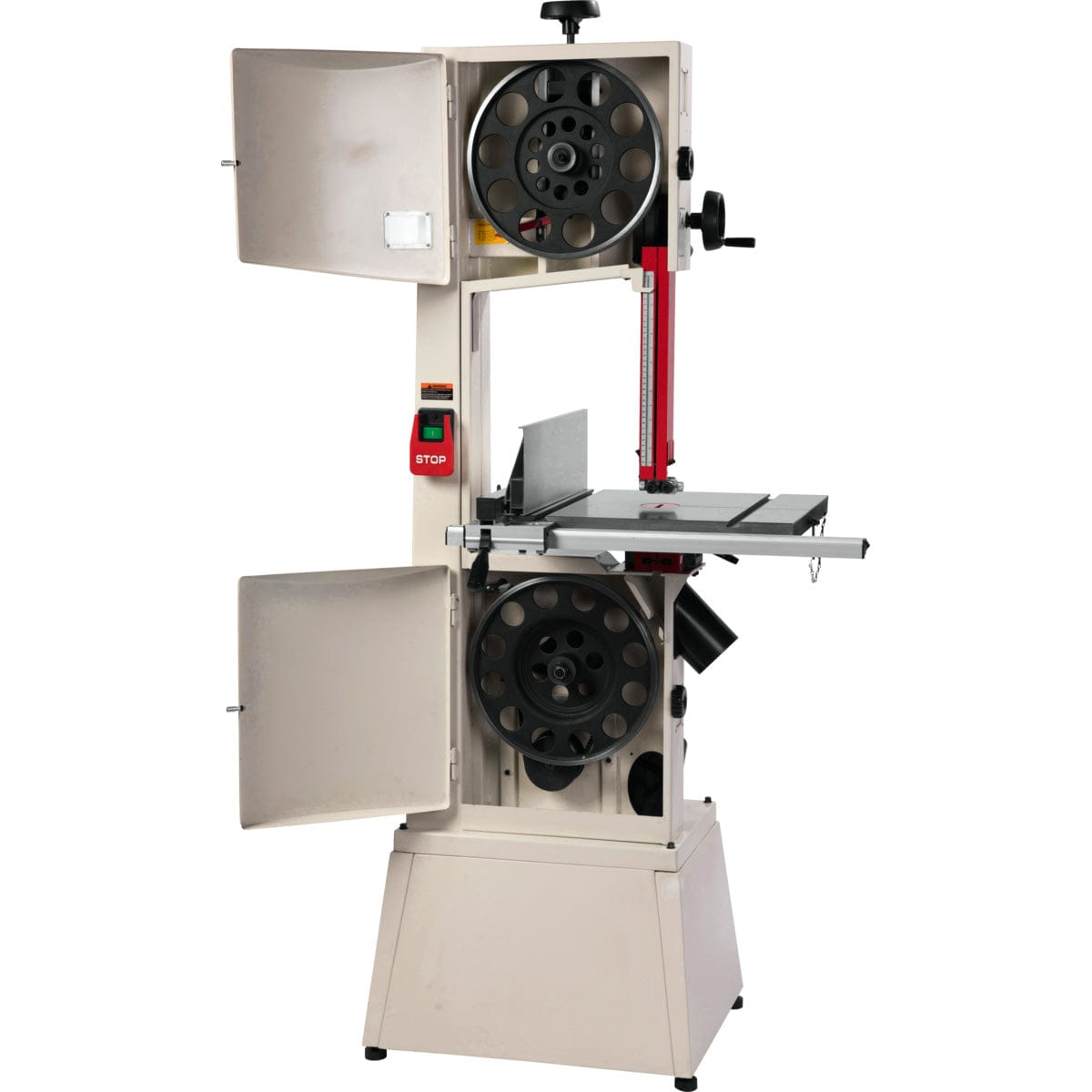

The Jet® 14" SFX Steel Frame Bandsaw redefines the line between functionality and affordability. The large, cast-iron table’s 360 square inches of work surface ensure greater workpiece support when making deep cuts. The machined aluminum fence system features easily visible measurements for the most accurate cutting. This saw is equipped with Jet's blade guide system, making adjustments quick and simple. With over 13 inches of resaw capacity, the Jet 14" SFX Steel Frame Bandsaw leads its class. Dual 4" dust ports allow for maximum dust collection efficiency. The heavy-duty tubular steel welded construction, robust stamped steel doors with welded steel pin hinges, and heavy-duty base provide stability and durability when sawing large workpieces.
Features:
- Deeper table with a massive 360 sq. in. of cast-iron work surface for greater workpiece support
- Over 13" resaw capacity for cutting large pieces of wood, slicing veneers, and cutting book-matched panels
- Heavy-duty tubular steel welded construction with a total weight of over 300 lbs.

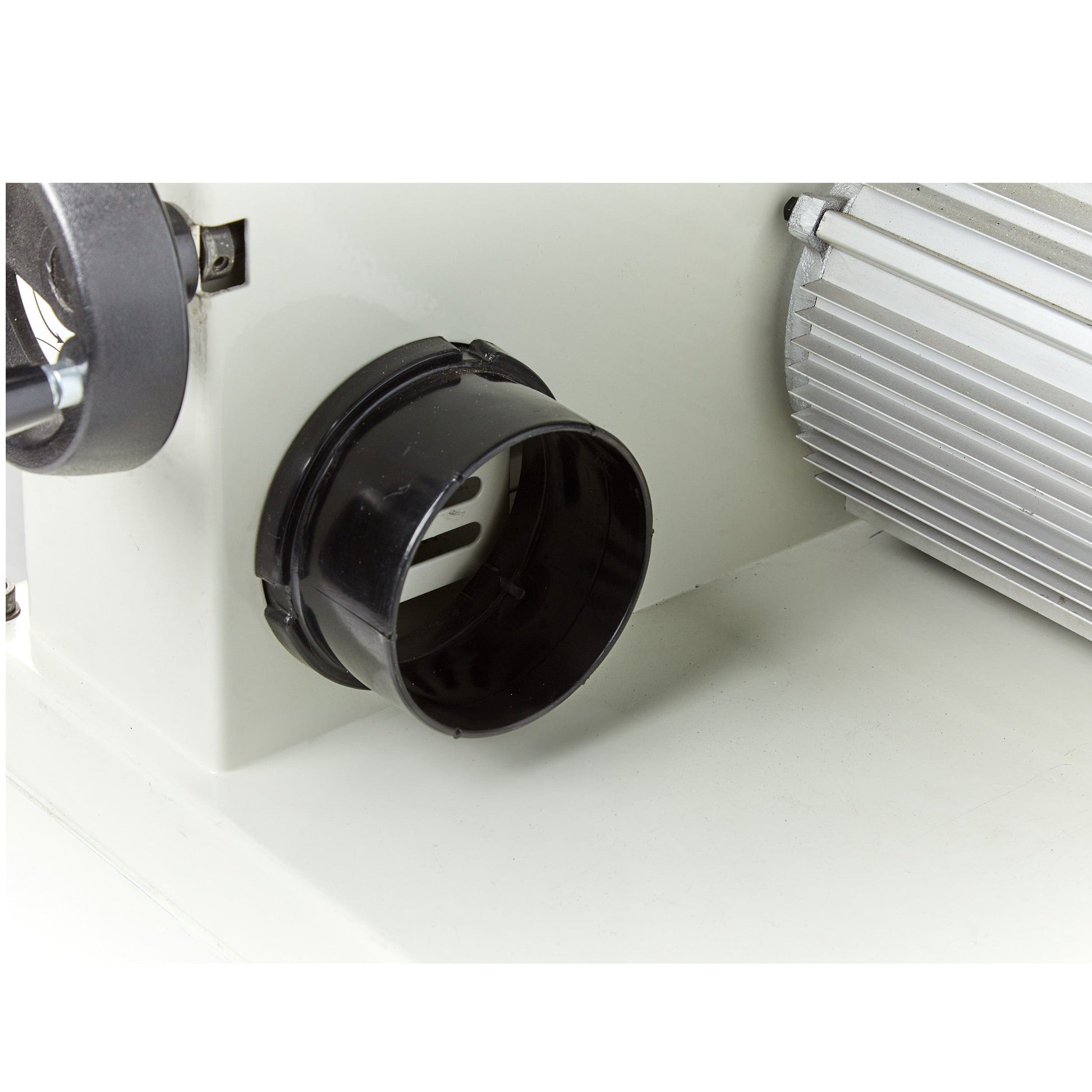

- Dual 4" dust ports for maximum dust collection efficiency
- Independently adjustable, upper and lower ball bearing blade guides
- Convenient 115V AC outlet location for optional accessories

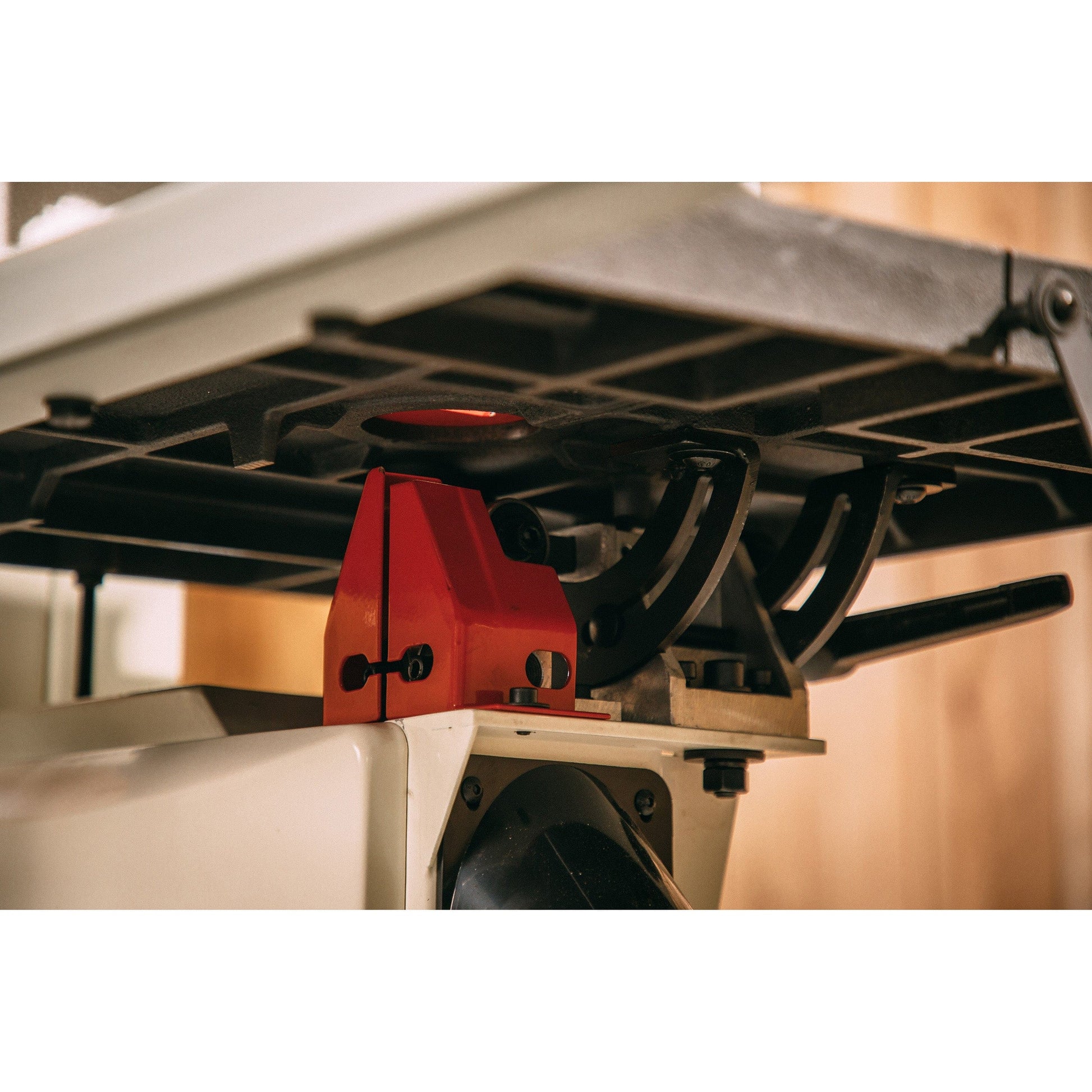

- Engineered die-cast and steel trunnion system allows for single joint adjustments when moving table
- Larger machined aluminum fence surface with easily visible measurements for the most accurate cutting
- Robust stamped steel doors with welded steel pin hinges for greater product durability
- Cast Iron Wheels
Specifications:
- Power: 1-3/4 HP
- Voltage: 115 Volt (prewired) / 230V
- Recommended Circuit Size: 20A
- Motor Phase: 1 Phase
- Motor Speed: 1720 RPM
- Power Transfer: V-belt
- Power Cord and Plug: SJT 14AWGx3C, 6 ft., 5-15P plug
- Recommended Circuit Size: 20A (for 115V), 15A (for 230V)
- Sound Emission without Load: 75 dB at 3 ft. (900 mm) from blade
- Bandsaw Nominal Size: 14"
- Bandsaw Wheel Diameter: 14"
- Blade Length: 116"
- Blade Width: 1/8" to 3/4"
- Cutting Capacity: 12" W; 13.3" H
- Blade Speed: 3,000 SFPM
- Wheel Speed: 765 RPM
- Table Material: Ground cast iron
- Table Insert Material: Anodized aluminum
- Table Height: 40"
- Table Size: 21-1/2" x 17"
- Table T-Slot: 3/4" (x2)
- Table Tilt: 45° R
- Stand Type: Closed
- Frame Material: Steel
- Wheels: Cast iron
- Tires: Polyurethane
- Blade guides: Ball bearings, aluminum block
- Resaw Fence: Extruded aluminum
- Resaw Fence Size (L x W x H): 18-1/4" x 6" (463 x 155 mm)
- Dust Collection Minimum Required: 350 CFM
- Dust Port: 4" Outer Diameter (x2)
- Overall Assembled Dimensions (L x W x H): approximately 37" x 27-1/2" x 75-3/8"
- Footprint (L x W): 24-7/8" x 17-3/4"
- Net Weight (approx.): 300 lb.
- Warranty: 5-year JET Red Assurance
What's Included:
- (1) Jet® 14" Steel frame bandsaw
- (1) Steel stand
- (1) Table with insert pre-installed
- (1) Dust chute
- (1) Resaw fence
- (4) Hex wrenches, 2.5/4/5/6mm (not shown)
- (1) Operating Instructions and Parts Manual
- (1) Hardware pack
