Jet

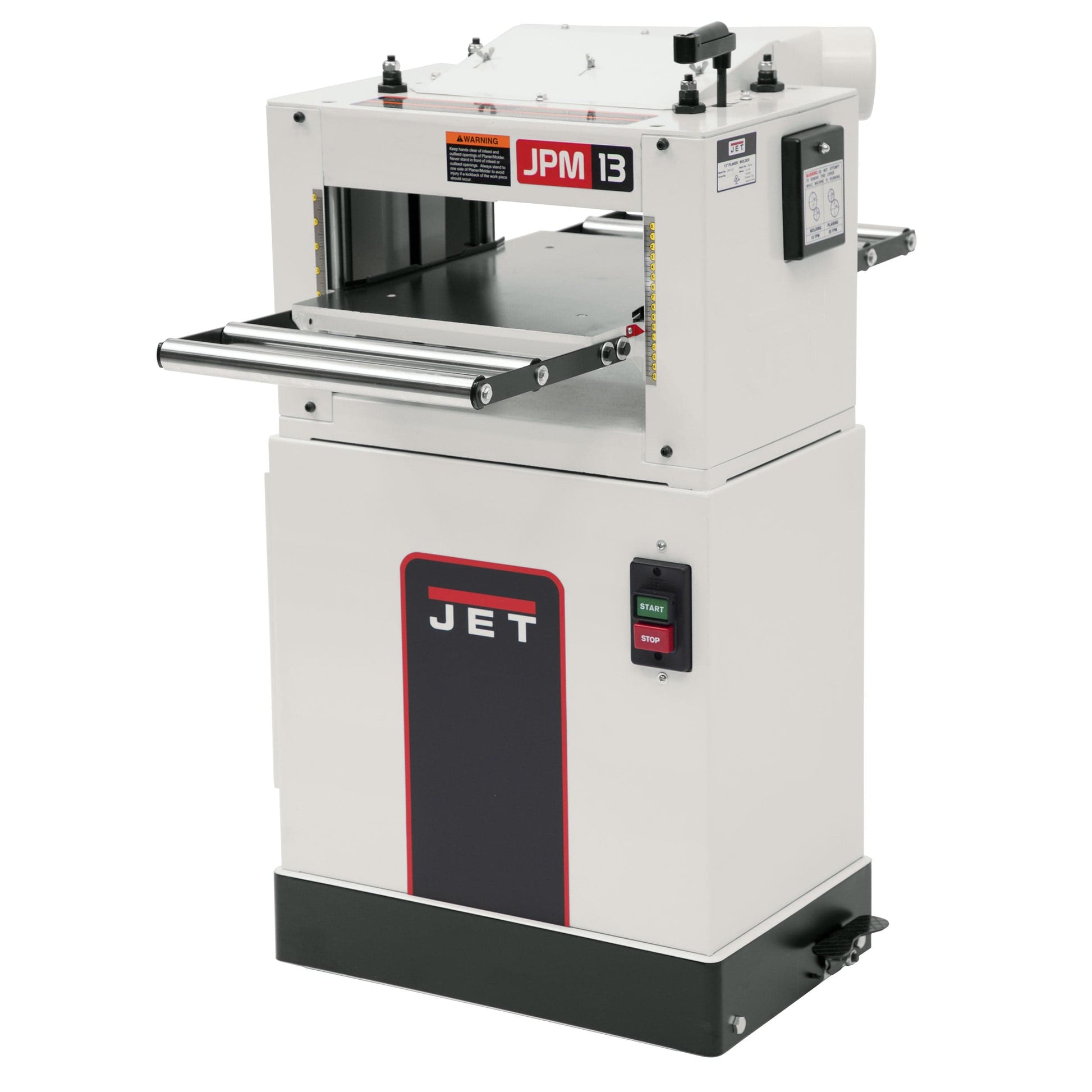

13" Planer/Molder with Closed Stand - 1-1/2 HP 1 Ph 115/230V - Straight Knife - JWPM-13CS

Item #815472 Model JT9-708524
Regular price $1,699.99
Sale price $1,699.99 Regular price $1,699.99

This item has an additional shipping charge

Skip to product information
1 of 1

Jet

13" Planer/Molder with Closed Stand - 1-1/2 HP 1 Ph 115/230V - Straight Knife - JWPM-13CS

Item #815472 Model JT9-708524
Regular price $1,699.99
Sale price $1,699.99 Regular price $1,699.99

This item has an additional shipping charge

The Jet® JWPM-13CS 13" Closed Stand Planer / Molder boasts a 1-1/2 HP motor. The sturdy cast iron table and base provide strength and reduce vibration during use. The. . . View More Details

Ships from Manufacturer

Shipping Info

Details




The Jet® JWPM-13CS 13" Closed Stand Planer / Molder boasts a 1-1/2 HP motor. The sturdy cast iron table and base provide strength and reduce vibration during use. The three-knife cutter head design produces a superior finish. Built-in lockable caster adds support and stability to the machine while allowing it to be maneuverable. One of the standout features of the JWPM-13CS is its molder head, which will enable you to create custom moldings and trim pieces easily. The molding cutter head accommodates over 40 standard molding cutter sets. You can install most 2" or smaller heads without removing the planning knives, saving valuable setup time. Overall, the Jet JWPM-13CS is a top-of-the-line machine with exceptional performance and versatility. It is built to last and will be a valuable addition to any woodworking shop.

Features:


  • Cast iron table and base provide strength and reduce vibration during use
  • Four precision-ground column design feature adds stability when raising and lowering the table
  • Two speed gear box has feed rates set for optimum planing and molding results
  • Three cutter head design produces a superior finish in either application
  • Molding cutter head accommodates over 40 standard molding cutter sets; most 2" or smaller heads can be installed without removing the planning knives to save you set-up time
  • Infeed and outfeed rollers are adjustable and rubber-coated to support your workpiece without marring the wood
  • Top-mounted height adjustment handle is easy to use for quick table height changes
  • Totally enclosed fan-cooled 1-1/2HP motor uses two matched V-belts to deliver smooth, consistent power to the cutter head
  • Exclusive angled 4" dust port keeps the dust hose out of the way while providing efficient chip and dust removal
  • Built-in lockable casters add support and stability to machine while in use

Specifications:

  • Type: Straight Knife Cutterhead
  • Style: Floor Standing Model
  • Motor Type: TEFC - Totally Enclosed, Fan-Cooled, induction
  • Motor Power: 1-1/2 HP
  • Motor Phase: Single (1 Ph)
  • Motor Voltage: 115/230 V
  • Cycle: 60 Hz
  • Prewired Voltage: 115 V
  • Motor Current: 15A / 7.5 A
  • Number of Knives: 3
  • Knife Size (L x W x H): 13-1/16" 1/8" x 5/8"
  • Cutterhead Speed: 4500 RPM
  • Cutterhead Diameter: 2-9/16"
  • Maximum Planing Width: 13"
  • Maximum Planing Thickness: 6-1/8"
  • Full Width Depth of Cut: 1/16"
  • Minimum Planing Length: 14"
  • Cuts Per Minute: 13500
  • Feed Rate - Planing: 20 FPM
  • Feed Rate - Molding: 10 FPM
  • Dust Port Diameter: 4"
  • Minimum Dust Extraction Volume Required: 350 CFM
  • Overall Dimensions (W x D x H): 23-31/32" x 36-1/2" x 43-1/2"
  • Net Weight: 225 lbs.

What's Included:

  • (1) Jet® 13" JWPM-13CS Planer/Molder - 1-1/2 HP 1 Ph 115/230V - Straight Knife
