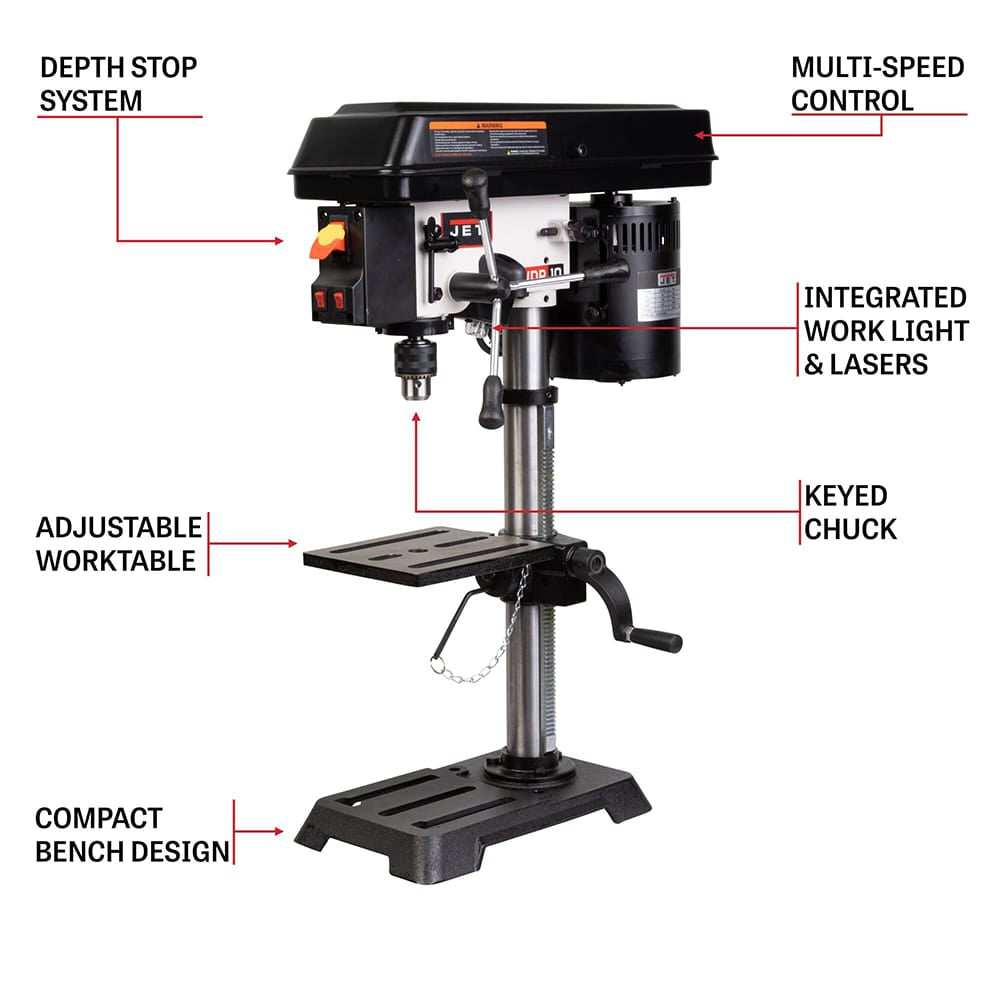

Features:
10" swing capacity for a compact benchtop drilling solution

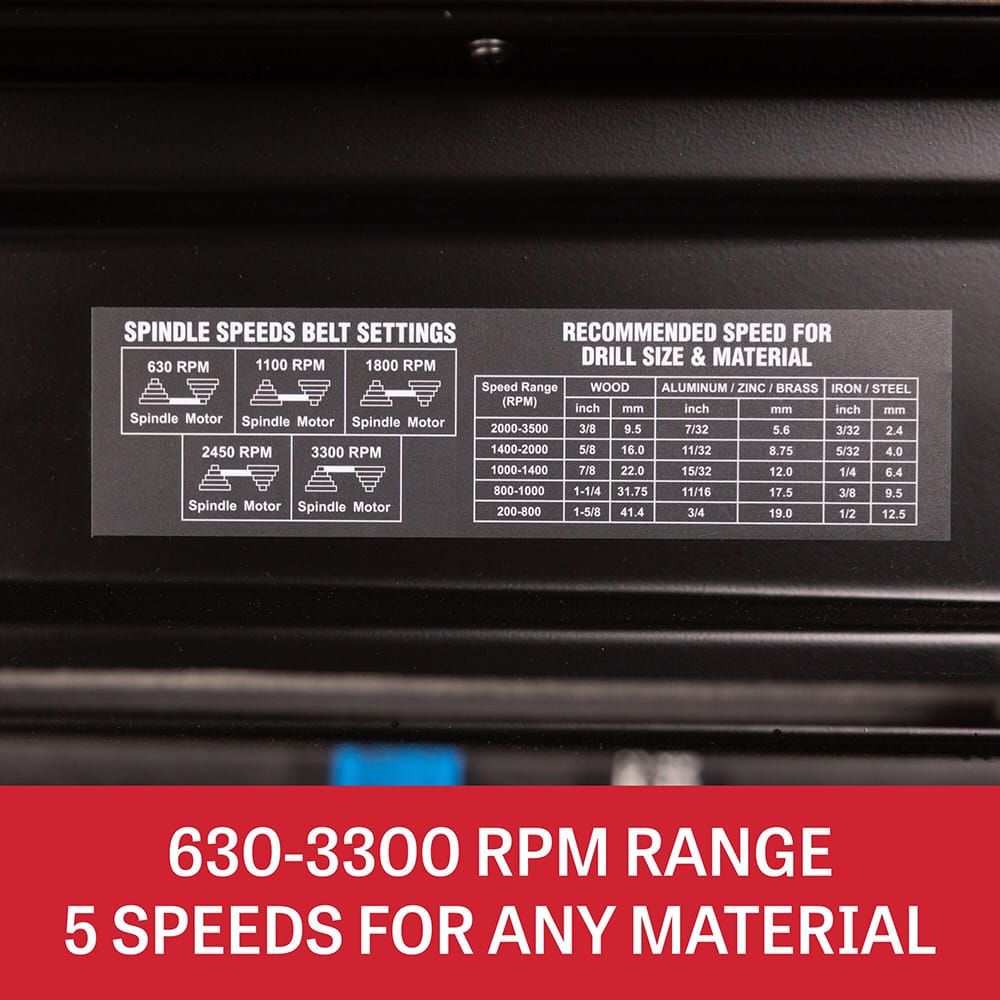

Five spindle speeds from 630 to 3300 RPM

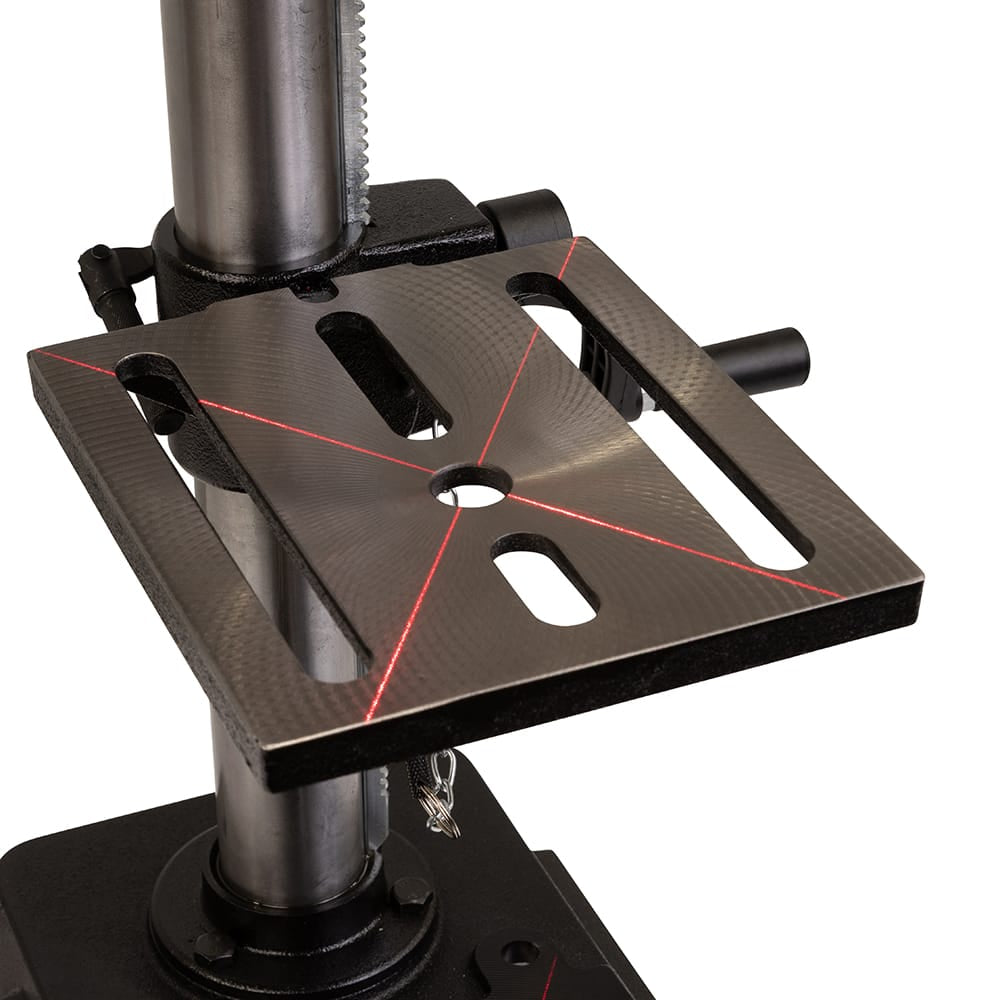

Integrated laser alignment system

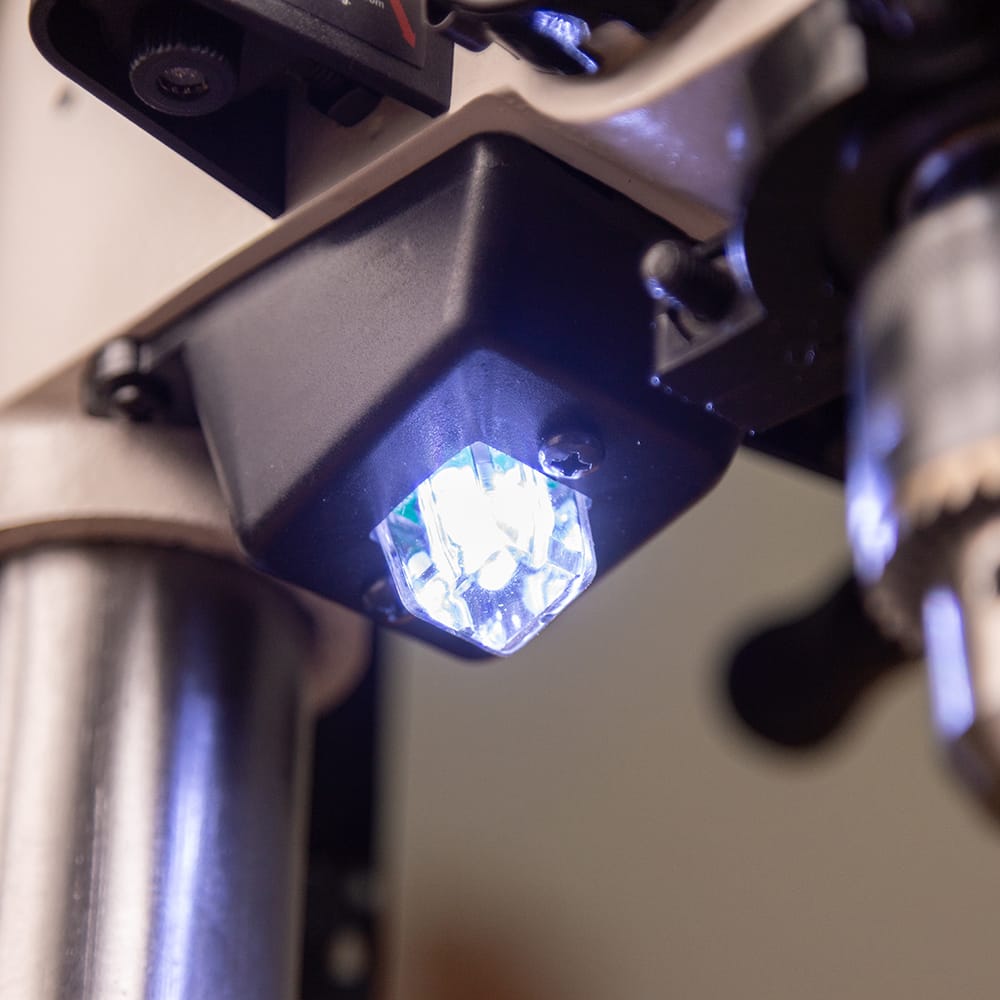

Built-in LED work light
Table tilts 45° right and 45° left

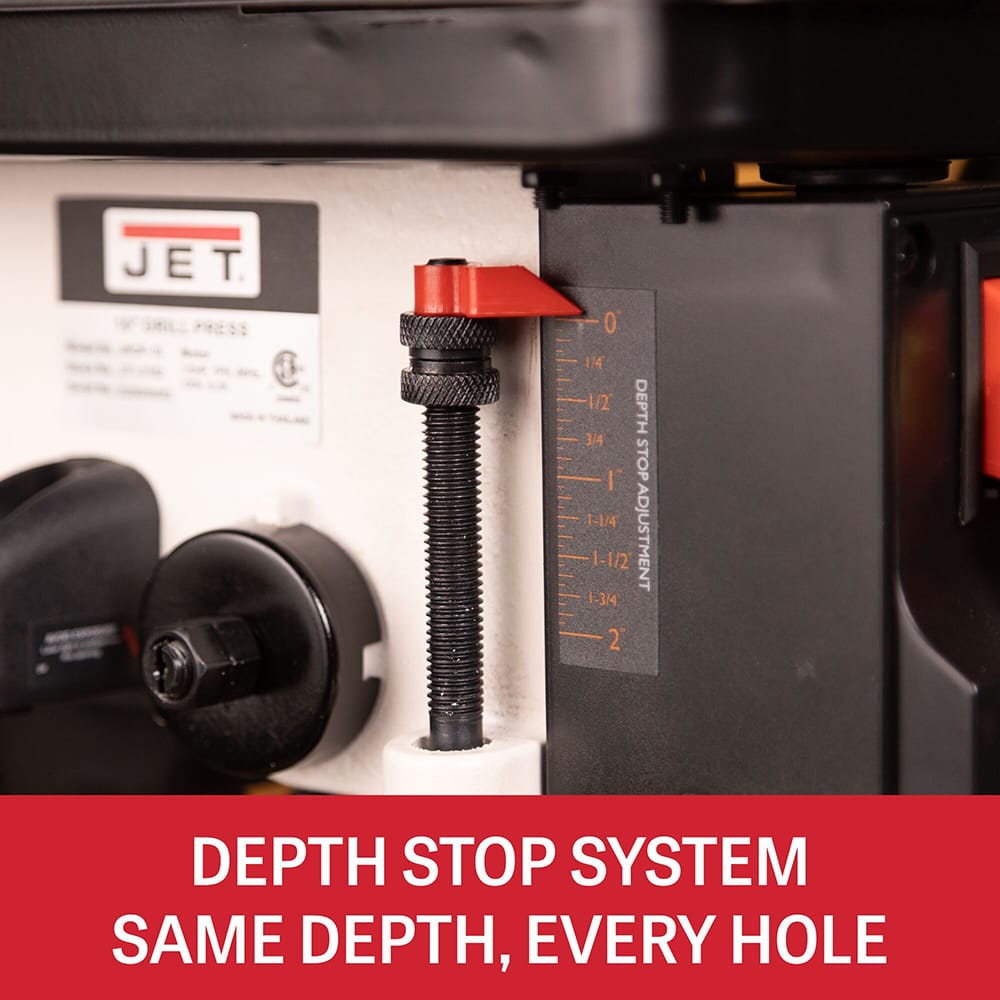

Depth stop system for repeatable drilling depth

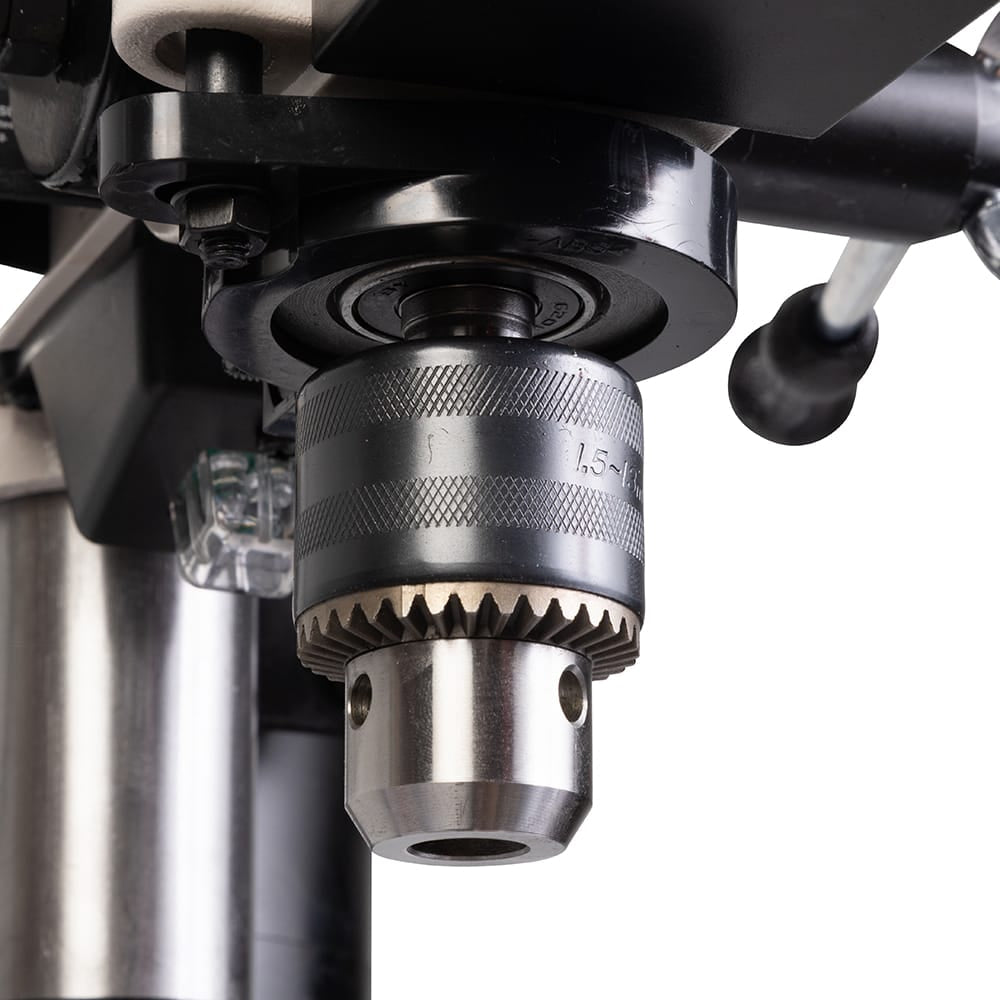

Keyed chuck for secure bit holding
Compact benchtop design with substantial vertical capacity

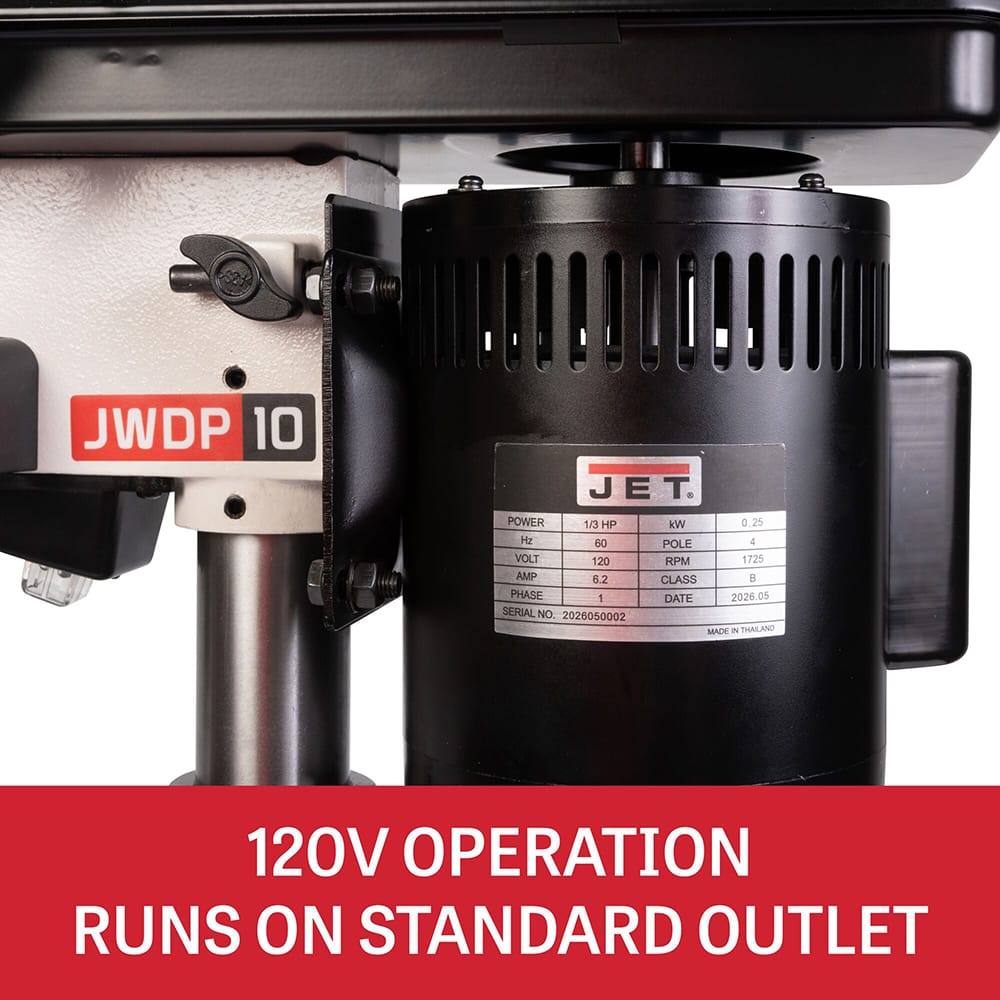

Operates on standard 120V power
Backed by a 5-year warranty
Specifications:
Model Number: JWDP-10
Manufacturer Part Number: JT1-3162
Brand: JET
Swing Capacity: 10"
Motor Power: 1/3 HP
Motor Type: Single Phase
Voltage: 120 V
Amperage: 6.2 A
Speed Range: 630-3300 RPM
Number Of Speeds: 5
Chuck Capacity: 1/16"-1/2"
Chuck Taper: JT33
Spindle Travel: 2"
Maximum Drilling Capacity: 1/2"
Throat Depth: 5"
Table Size: 7-1/2" x 6-1/2"
Table Tilt: Right 45°/Left 45°
Base Size: 13-7/16" x 8-3/16"
Overall Dimensions: 11" x 19" x 28-3/4"
Cord Length: 5.9'
Machine Weight: 44 lb.
Shipping Dimensions: 24-1/16" x 15-3/8" x 12"
Shipping Weight: 52 lb.
Warranty: 5 Years
Country Of Origin: TH
HTS Code: 8465.95.0055
UPC: 019907007135
What's Included:
(1) Main Body
(1) Hex Wrench, 3 mm
(1) Hex Wrench, 4 mm
(3) Drill Press Handles
(1) Lifting Handle
(3) M8 x 25 Hex Cap Screws
(1) Worktable Fastening Handle
(1) Worm Gear Assembly
