Jet

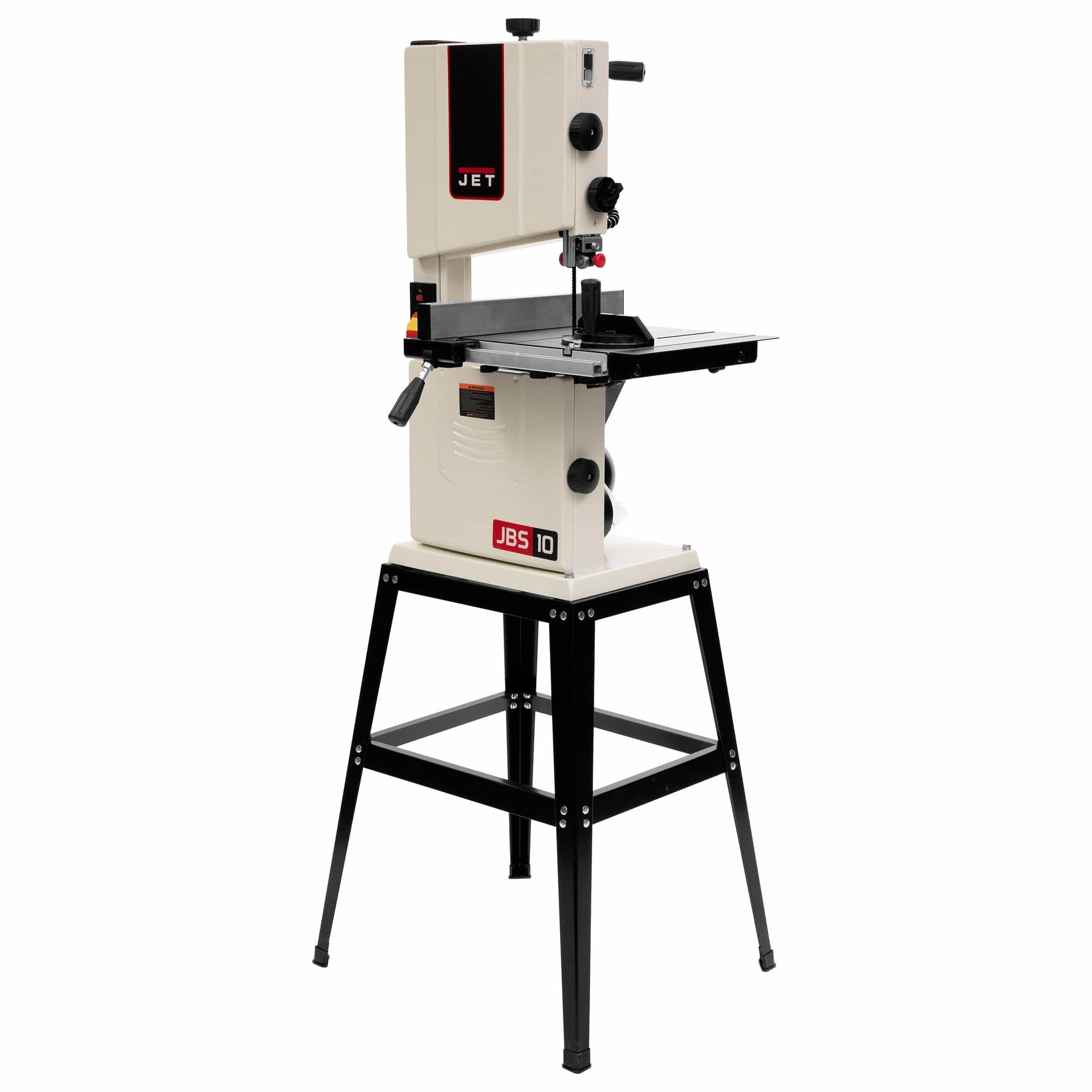

10" Bandsaw with Open Stand - 1/2 HP 1 Ph 115V - JWB-10

Item #865575 Model JT9-714000
Regular price $599.99
Sale price $599.99 Regular price $599.99

This item has an additional shipping charge

Skip to product information
1 of 5

Jet

10" Bandsaw with Open Stand - 1/2 HP 1 Ph 115V - JWB-10

Item #865575 Model JT9-714000
Regular price $599.99
Sale price $599.99 Regular price $599.99

This item has an additional shipping charge

If you're working in close quarters in your shop, then the Jet® JWB-10 10" Bandsaw is for you. With an extra-large cast iron tilting table, q. . . View More Details

In Stock

Shipping Info

Items you may need

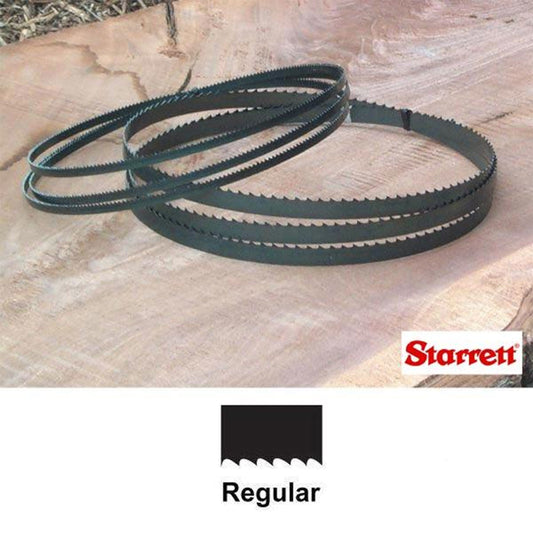

  • Duratec SFB Bandsaw Blade - 67-1/2" x 1/4" x .025" - 14 TPI - Regular

    Regular price $19.99
    Sale price $19.99 Regular price $19.99
    Duratec SFB Bandsaw Blade - 67-1/2" x 1/4" x .025" - 14 TPI - Regular alt 5

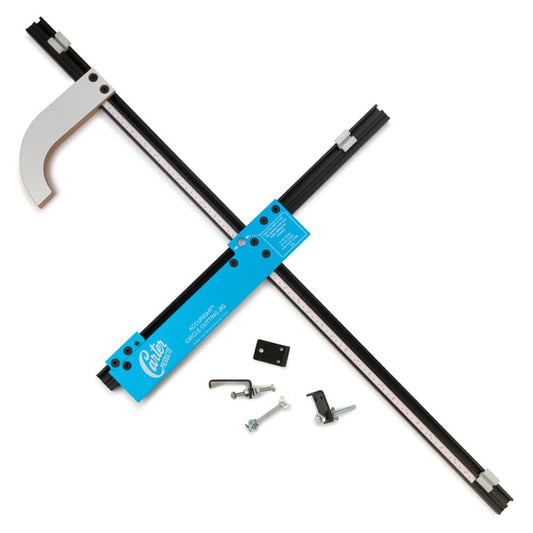

  • AccuRight Band Saw Circle Cutting Jig

    Regular price $139.99
    Sale price $139.99 Regular price $139.99
    AccuRight Band Saw Circle Cutting Jig alt 0

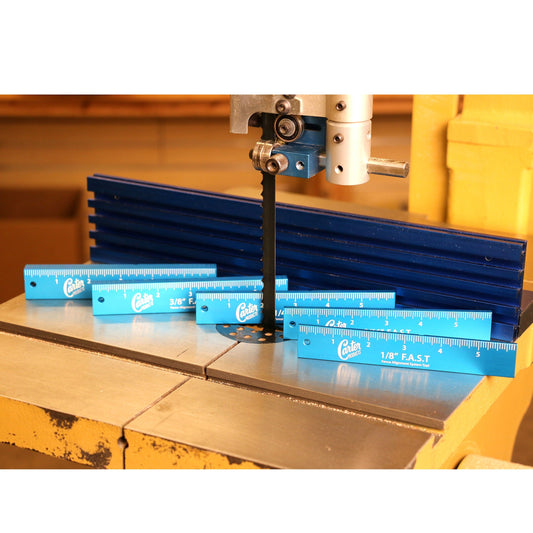

  • F-A-S-T Fence Alignment System Tool for Bandsaws- 5 Piece

    Regular price $59.99
    Sale price $59.99 Regular price $59.99
    F-A-S-T Fence Alignment System Tool for Bandsaws- 5 Piece alt 0

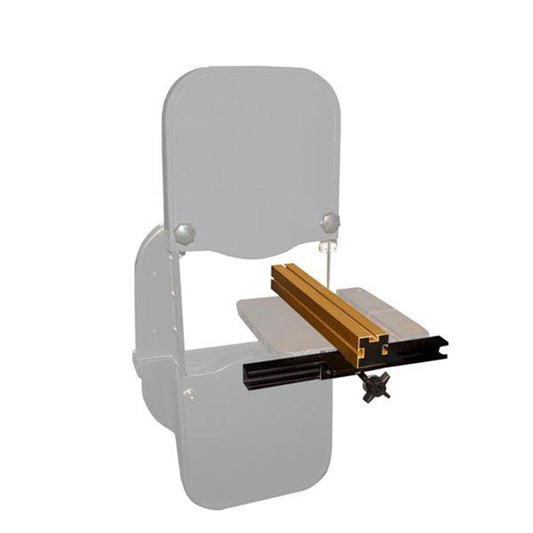

  • MB Bandsaw Fence with Re-saw Guide

    Regular price $149.99
    Sale price $149.99 Regular price $149.99
    MB Bandsaw Fence with Re-saw Guide alt 0

Details




If you're working in close quarters in your shop, then the Jet® JWB-10 10" Bandsaw is for you. With an extra-large cast iron tilting table, quick-release blade tension, upper and lower blade guides, and an adjustable LED work light, this bandsaw is well-equipped and has all the features you're used to on bigger bandsaws.

Features:


  • Compact benchtop design allows for easy transport to different shop locations
  • Rigid steel stand allows bandsaw to transition from the benchtop to the floor
  • Reinforced steel base can be bolted to stand or work bench
  • 1/2 HP induction motor easily handles various cutting applications
  • Poly-V drive system maximizes power transfer from motor to blade and reduces vibration
  • Upper and lower ball bearing blade guides provide blade stability
  • Extra-large cast iron table with retractable extension wing provides additional work piece support
  • One piece welded frame design reduces machine vibration and flex
  • Oversized, ergonomic knobs provide ease of use and maximum control

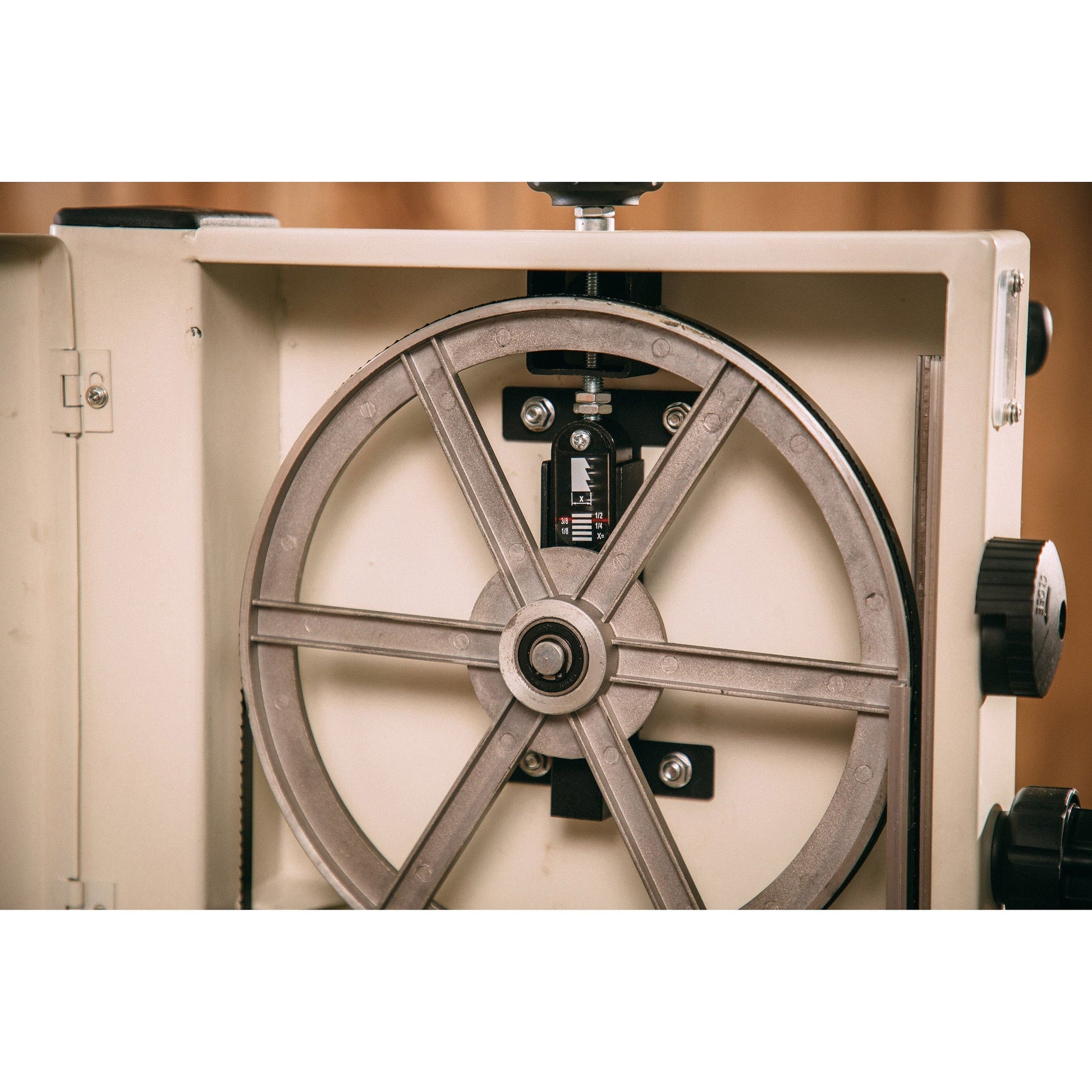

  • Quick release blade tension makes changing and re-tensioning the blade fast, easy and consistent

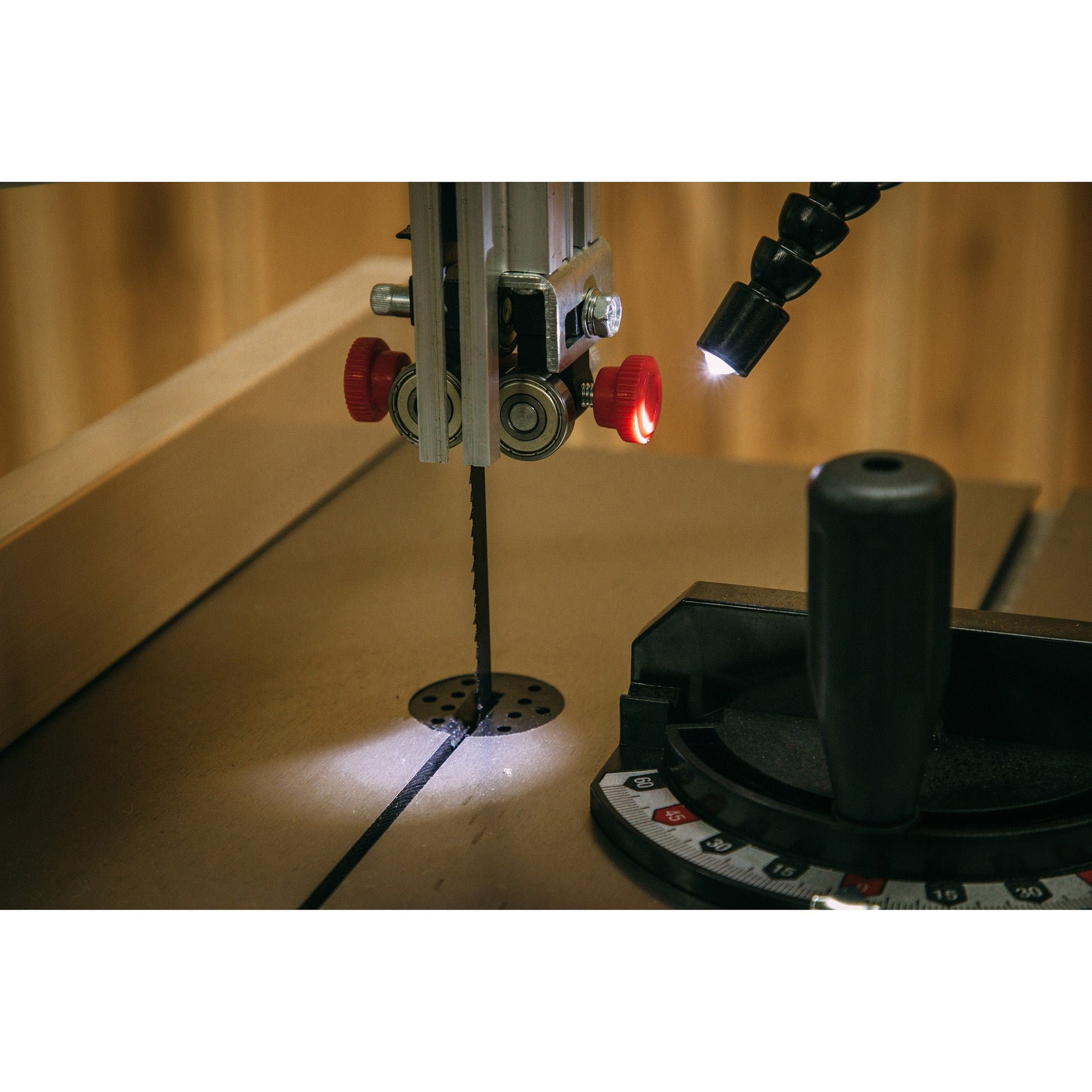

  • Flexible LED light provides visibility without blocking line of sight
  • Aluminum extruded fence ensures smooth sliding action

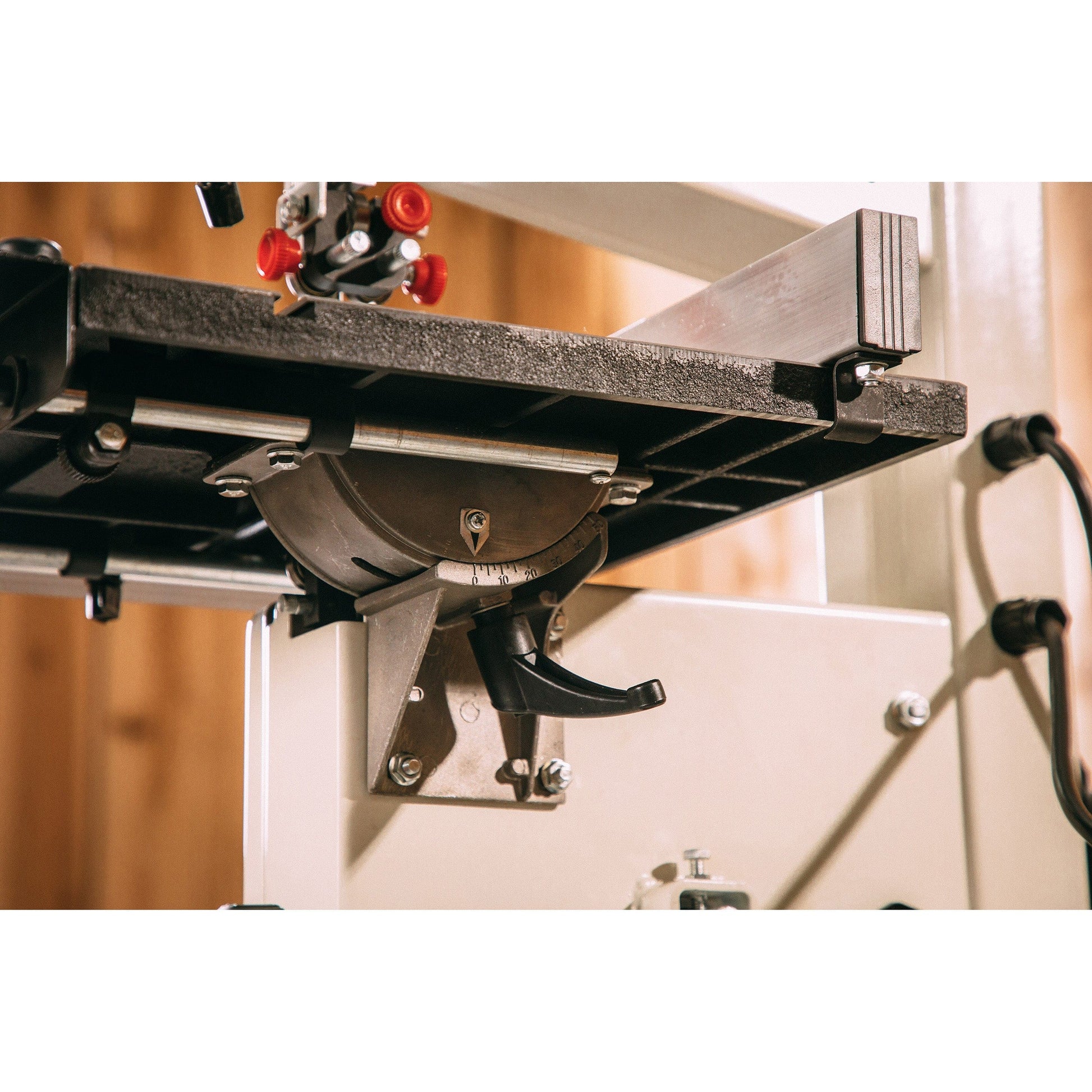

  • Table tilting trunnion allows working angles from 0° to 45°
  • Magnifying cursor enlarges measurement scale for precise fence location
  • Rack and pinion blade guide adjustment with integrated locking knob for precise height control

Specifications:

  • Motor Power: 1/2 HP
  • Motor Phase: 1 Phase
  • Motor Voltage: 115V
  • Motor Amps: 3.4A
  • Band Saw Size/Wheel Diameter: 10"
  • Cutting Capacity - Width: 9-1/2"
  • Cutting Capacity - Height: 4-1/8"
  • Maximum Rip Left of Blade with Fence: 5" (125 mm)
  • Maximum Rip Right of Blade w/Fence: 5" (125 mm)
  • Blade Length: 67-1/2"
  • Blade Speed: 2750 SFPM
  • Overall Dimensions without Stand (L x W x H): 27" x 18" x 33" (686 x 457 x 838 mm)
  • Overall Dimensions with Stand (L x W x H): 30" x 19-1/2" x 59-1/2" (762 x 496 x 1511 mm)
  • Table Size (L x W): 13-1/8" L x 13-3/8"
  • Table Size with Extension (L x W): 13-1/8" x 19"
  • Table Tilt: 0° to 45°
  • Maximum Saw Blade Width: 1/2"
  • Minimum Saw Blade Width: 1/8"
  • Table Height from Floor: 41-1/2"
  • Dust Port Outside Diameter: 4"
  • Net Weight: approximately 83 lbs. (36.4 kg)
  • Stand Type: Open

What's Included:

  • (1) Jet® JWB-10 Open Stand 10" Bandsaw
  • (1) Steel Stand
  • (1) Bandsaw Blade - 67-1/2" x 3/8" x 0.014" - 6 TPI
