  JessEm

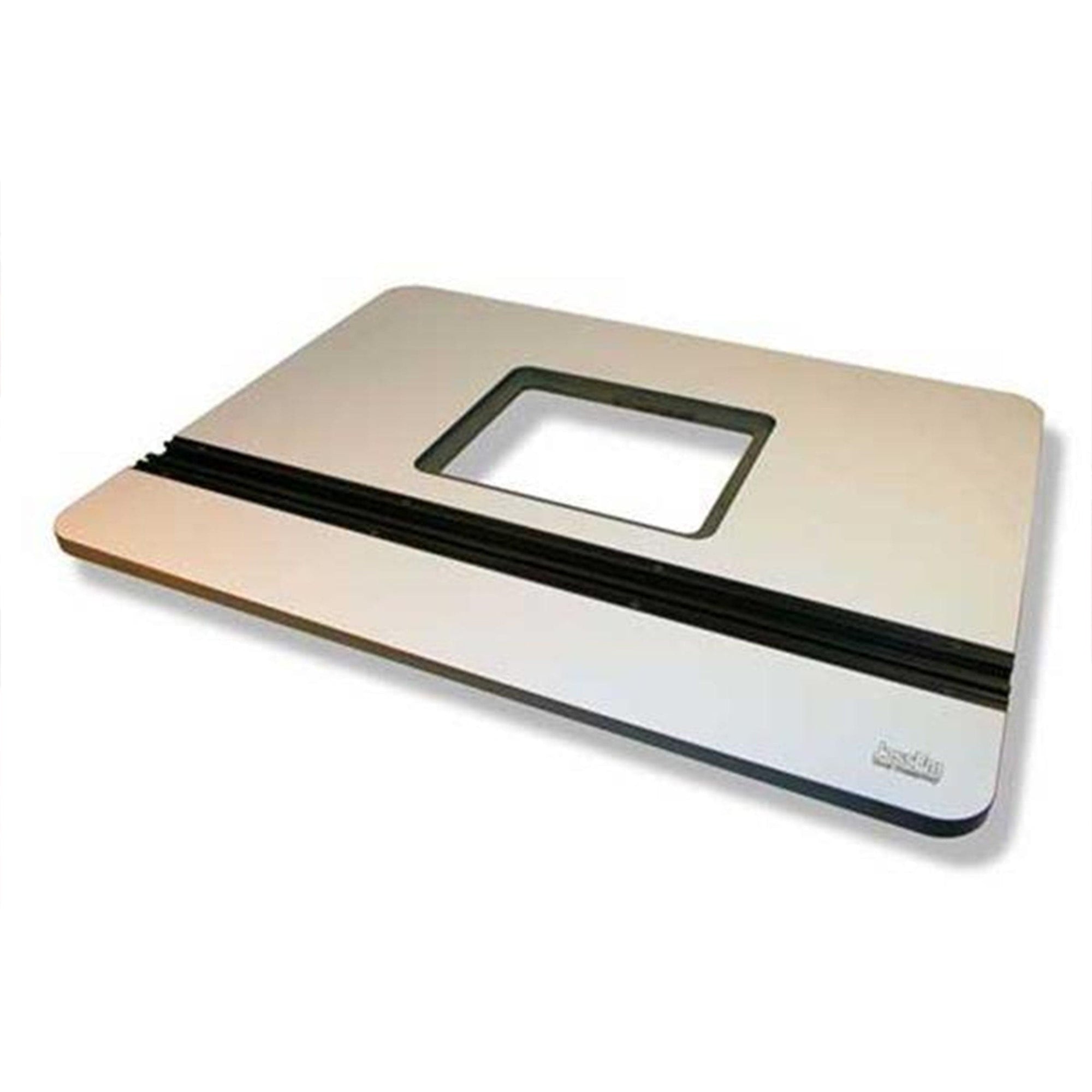

  Mast-R-Top 24" x 32" Phenolic Router Table Top, # 03006

  $299.99
•

  JessEm

  Rout-R-Plate Phenolic Router Table Insert Plate, # 03101

  +$79.99


  JessEm

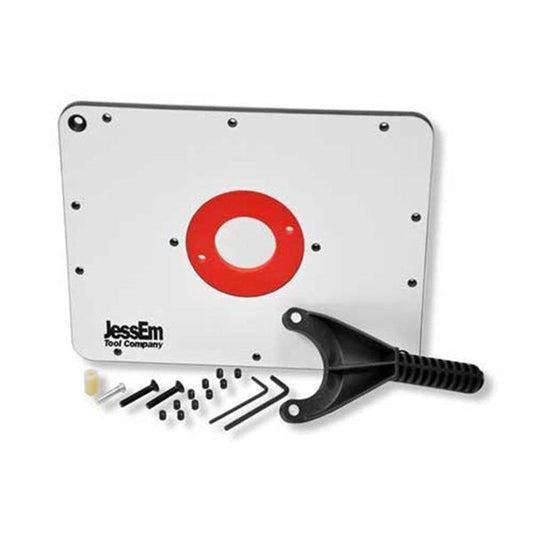

  Rout-R-Plate Phenolic Router Table Insert Plate, # 03101

  Item #153088 Model 03101

  More Info

  JessEm Rout-R-Plate™ is a perfectly flat, rigid and durable mounting solution for reliable use in any router table application.
  Features:
  • 3/8" thick phenolic with durable friction-free coating







  • Fits into a 9-1/4" x 11-3/4" opening





  • Convenient center-hole bushing used to align the router so it is centered in the bit hole
  • Plate center-hole is machined to accept a 3-1/2" raised panel bit
  • Two additional Tab-Loc™ insert rings to reduce the size of the bit opening
  • Simple step-by-step instructions make accurately drilling and mounting any router easy



•

  JessEm

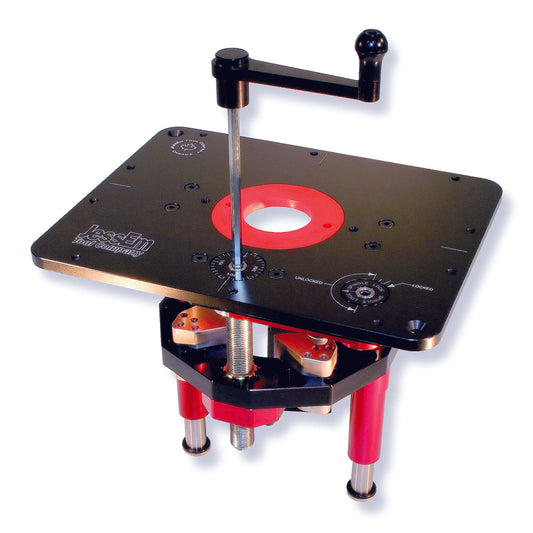

  Mast-R-Lift II Router Lift With 9-1/4" x 11-3/4" Plate, # 02120

  +$479.99


  JessEm

  Mast-R-Lift II Router Lift With 9-1/4" x 11-3/4" Plate, # 02120

  Item #847824 Model 02120

  More Info

  The new Mast-R-Lift II from JessEm Tool sets a higher standard by which router lifts will now be judged. Ball-bearing construction and a new cam lock feature are part of a new design that you now can use with more than one router. The new Mast-R-Lift II fits most fixed base router motors on the market right out of the box.


  Features:





  • Hard anodized 9-1/4” x 11-3/4” CNC machined aluminum plate
  • Threaded spindle runs on a double-sealed ball-bearing
  • Dedicated cam-lock mechanism prevents spindle rotation
  • Unique clamping system fits most fixed-base router motors
  • Features Tab-Loc insert ring design and built-in table snuggers




  Specifications:


  • Plate Size: 9-1/4" x 11-3/4"
  • Standard Plate Model #02120




  Whats Included:


  • (1) Mast-R-Lift II Router Lift With 9-1/4" x 11-3/4" Plate, # 02120






•

  JessEm

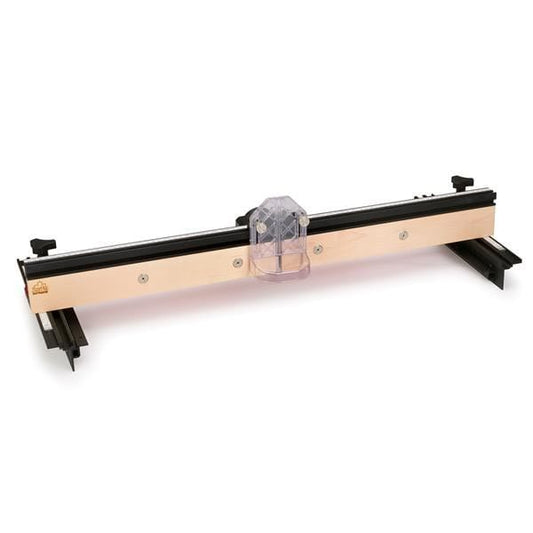

  Mast-R-Fence III Router Table Fence

  +$419.99


  JessEm

  Mast-R-Fence III Router Table Fence

  Item #173024 Model 04400

  More Info

  The robust design of the JessEm® Mast-R-Fence™ III Router Table Fence uses a red phenolic base for a solid platform that creates the 100% flat surface every woodworker wants. Precision machined 6061 aluminum extrusion components with a black anodized finish and "high boy" knobs, also produced from 6061 aluminum, give a look that directly reflects quality craftsmanship. The fence mounts to a 32" wide table with a pair of included brackets, each marked with Imperial/metric scales for accurate positioning relative to the cutter. For those who want to outfit a new or existing table with a premium-grade fence, the Mast-R-Fence™ III can be mounted in two T-tracks 17" apart on center.

  Two laser-engraved Torrefied Maple sub-fences faces can be adjusted tool-free with convenient locking knobs on the backside of the fence. The sub-fences offset using the included fence face shimming bars. Fence face shimming bars are laser engraved, with one side designed to offset the fence face 1/32" and the other 1/16". When not in use, they conveniently store on the backside in the shimming bar holder. Dust port fitting with an inside diameter that accepts a 2-1/4"-diameter standard shop vacuum hose fittings and an outside diameter that accepts a typical 2-1/2" dust collection hose.



  Features:





  • Phenolic base creates a solid platform with a 100% flat surface
  • Machined 6061 aluminum extrusion components with black anodized finish
  • Torrefied Maple sub-fences are cut, machined, and laser engraved for a very distinct appearance
  • Fence face shimming bars fitted for an offset fence face marked as 1/32" and 1/16"
  • Upper T-track marked with a metric/Imperial scale for mounting jigs or other accessories
  • Dust port fitting accepts most shop vacuums hoses
  • Compatible with all JessEm® tops




  Specifications:




  • Fence Length: 36"
  • Fence Height: 3-9/16"
  • Fence Depth: 4-7/8"
  • Sub-Fence Dimensions: Each face is 2-1/2" high x 17-3/4" long
  • Compatible Router Table Dimensions: Fits tables 32" in length & 3/4" to 1-1/2" thick
  • Dust Port Dimensions: 2-1/4" I.D. x 2-1/2" O.D.




  What's Included:




  • (1) JessEm Mast-R-Fence™ III Router Table Fence






•

  JessEm

  Dual Intake Dust Box

  +$269.99


  JessEm

  Dual Intake Dust Box

  Item #188546 Model 05151

  More Info

  This heavy-duty, Canadian-made Dust Box for the router table is manufactured in-house by JessEm using 18-gauge steel and is powder-coated with a black satin-textured finish. This dual-air intake system was designed specifically for the Pow-R-Tek SR™ motor to allow for fresh-air flow directly to the motor. The port covers are removed and replaced with the JessEm Hose Adapter Kit (sold separately), keeping all the dust out of the motor during operation. This Dust Box comes with horizontal dust collector with a 2" and 4" port connector at the back of the unit for optimal dust collection. Besides the hinged front door, there is an access panel on the left side of the box allowing greater access to the router lift and motor. For fresh-air flow throughout your Pow-R-Tek SR™ motor and great dust collection, make this Dust Box the one for your woodshop.



  Features:





  • Dust Box’s port covers can be removed, allowing for your motor to pull in fresh, cool air
  • Designed for the Pow-R-Tek SR™ Router Motor (188543) and the Hose Adapter Kit (188544)
  • Horizontal dust collector has a 2"/ 4" port connector at the back for optimal dust collection
  • Hinged front door has a magnetic catch
  • Access panel on left side of box
  • Rear access port with grommet for electrical cords
  • Fits all JessEm router table tops, including the Mast-R-Lift Excel™ II table
  • Made in Canada




  Specifications:


  • Material: 18-gauge steel powder-coated with a black satin-textured finish
  • Dust Collector Fitting: 2" and 4" diameters




  What’s Included:


  • (1) Dual-Intake Dust Box
  • (1) Hardware pack




  Note:


  • Assembly is required. Pow-R-Tek SR motor (188543) and the Hose Adapter Kit (188544) sold separately. The hose adaptor kit is not compatible with JessEm original excel lifts with belts.




•

  JessEm

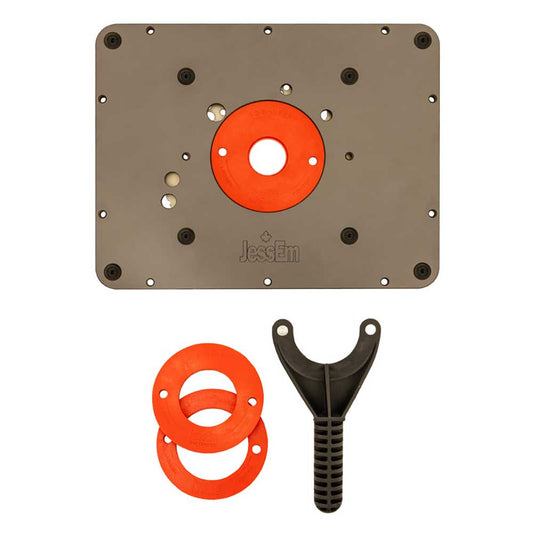

  Mast-R-Plate

  +$149.99


  JessEm

  Mast-R-Plate

  Item #194808 Model 03110

  More Info

  The JessEm Phenolic Mast-R-Plate is a cost-effective way to reap the benefits of a router table without buying a lift.




  Designed to fit all table tops with a 9-1/4" x 11-3/4" opening, the Mast-R-Plate features a robust stainless steel mounting plate that accommodates more than 20 different motors. It includes above-table holes specifically designed to fit handles for Triton and Milwaukee motors. The mounting plate and underside of the phenolic top plate are laser-engraved to ensure effortless setup and alignment. It comes complete with three insert rings (1-3/8", 2" and 2-1/2"), a start pin, an insert wrench and all the necessary mounting hardware for compatible routers, ensuring a smooth and secure installation.




  Elevate your router table setup with JessEm’s premium phenolic Mast-R-Plate, where precision meets versatility, and excellence becomes achievable.




  Features:








  • Accommodates more than 20 different motors
  • Fits all table tops with a 9-1/4" x 11-3/4” opening
  • Laser-engraved mounting plate ensures effortless setup and alignment
  • Above-table holes specifically designed to fit handles for Triton and Milwaukee motors
  • Includes all necessary mounting hardware, ensuring a smooth and secure installation
  • Made in Canada







  What’s Included:





  • (1) Mast-R-Plate
  • (1) Hardware Pack
  • (3) Insert Rings
  • (1) Insert Wrench
  • (1) Starting Pin










•

  JessEm

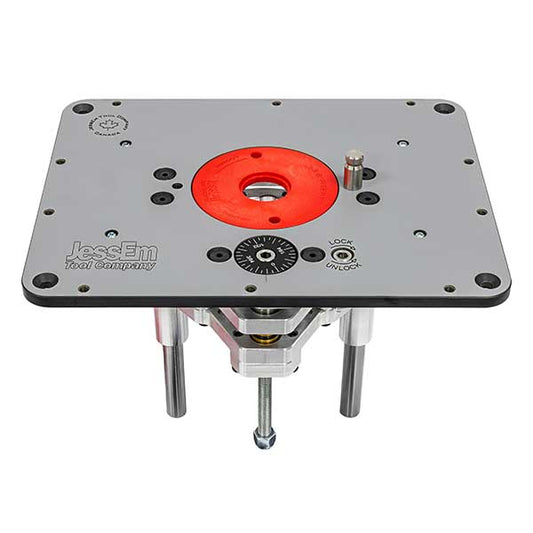

  Rout-R-Lift 3.5XT

  +$199.99


  JessEm

  Rout-R-Lift 3.5XT

  Item #198993 Model 02318

  More Info

  The Rout-R-Lift™ 3.5XT is a precision router lift designed to deliver professional results at a practical price point.


  A cost-effective alternative to the Mast-R-Lift II, it offers similar features, including above-table bit height adjustment for quick, accurate setup and a cam-lock mechanism that keeps settings secure during use. Its heavy-duty aluminum body and phenolic top plate provide the stability needed for precise routing work. The result is a straightforward, dependable lift that produces consistent results at the router table.


  Out of the box, it’s sized for the popular 3-1/2" diameter fixed-base router motors, but it also includes access to free router sleeve/collar 3D print files available for smaller routers.




  Features:


  • Double-sealed bearing spindle ensures effortless and accurate raising and lowering of your router motor
  • Shafts are hydraulically pressed into oversized mounts for superior rigidity and long-lasting performance
  • Above the table bit changes and height adjustments
  • Dedicated cam-lock mechanism prevents spindle rotation
  • Aluminum body with precision-machined phenolic top plate
  • Sized for the following 3.5" diameter fixed-base router motors: PORTER-CABLE® 690/890 series, Bosch 1617/1618 series, DeWALT® 610/617/618 series, CRAFTSMAN® 17540 / 17541 / 17542 / 17543 (320-24604) / 27680 / 28084 / 28190 / 320-2768 and SKIL® (3.5" motor diameter)
  • 3D print files available for the following fixed-base router motors: Milwaukee 65 mm, Kreg 65 mm, DeWALT 2.7", Hitachi 3.26" (M12VC / KM12VC), Makita 3.2" (1101), RYOBI 2.4" and a Generic 2"

  Specifications:

  • Top Plate Dimensions: 9-1/4" x 11-3/4" x 3/8"
  • Material: Aluminum with a reinforced CNC-machined phenolic top plate

  What’s Included:

  • (1) Rout-R-Lift 3.5XT
  • (3) Insert Rings: 1-3/8", 2", 2-1/2"
  • (1) Insert Ring Wrench
  • (1) Lift Adjustment Handle
  • (1) Starting Pin
  • (1) Hardware Pack
