Incra

Miter Express

Item 146488
Model MITEREXPRESS
4 Reviews
Write a Review

$199.99

Ships Next Business Day!
Shipping Info
Check Local Store for Immediate Availability

If you own a miter gauge – any miter gauge – you can turn it into a performance boosting miter sled in just a few seconds by simply docking it in place on top of this unique sled. The Incra® Miter Express is a sliding, miter-cutting platform that fully supports and controls your...

More Details

Details

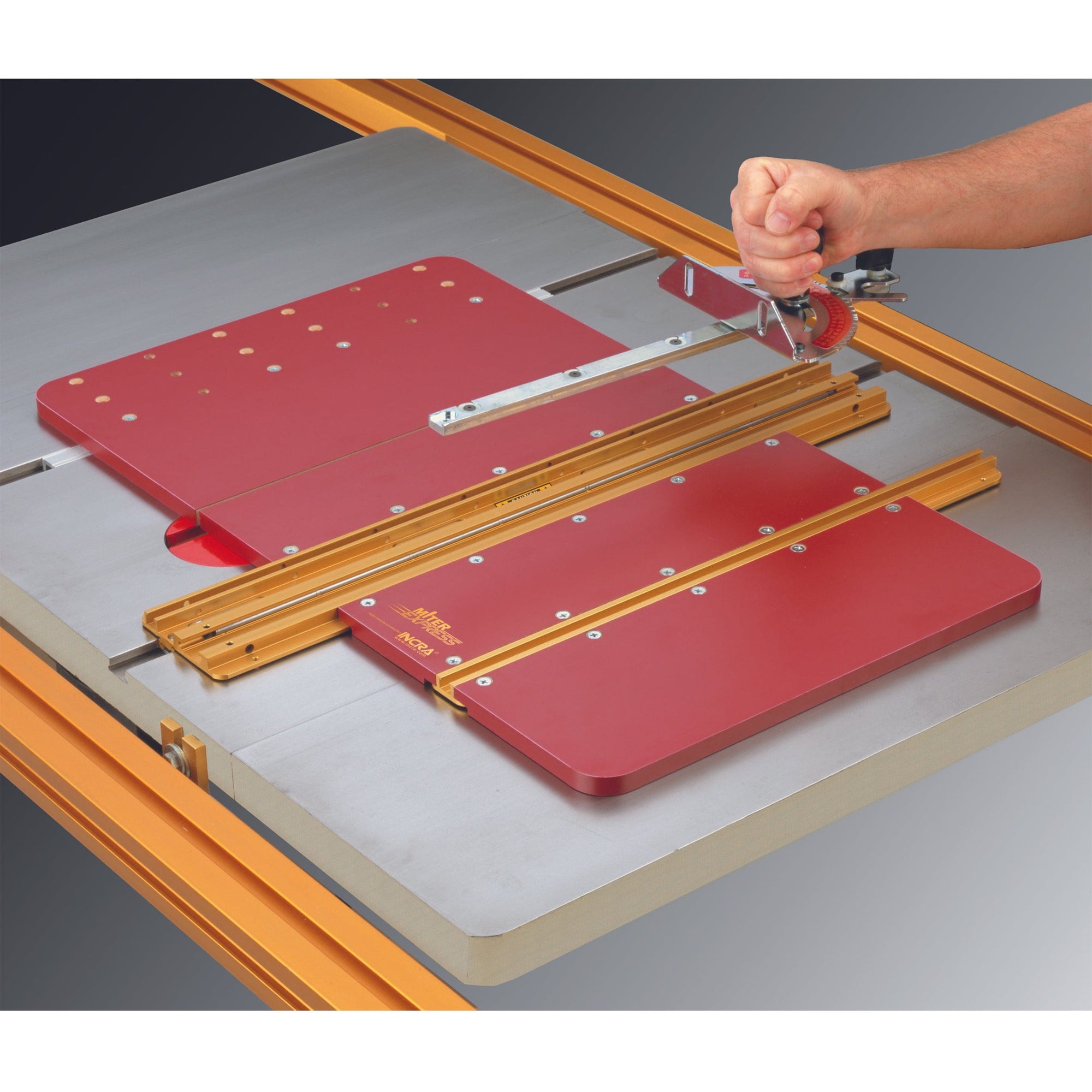

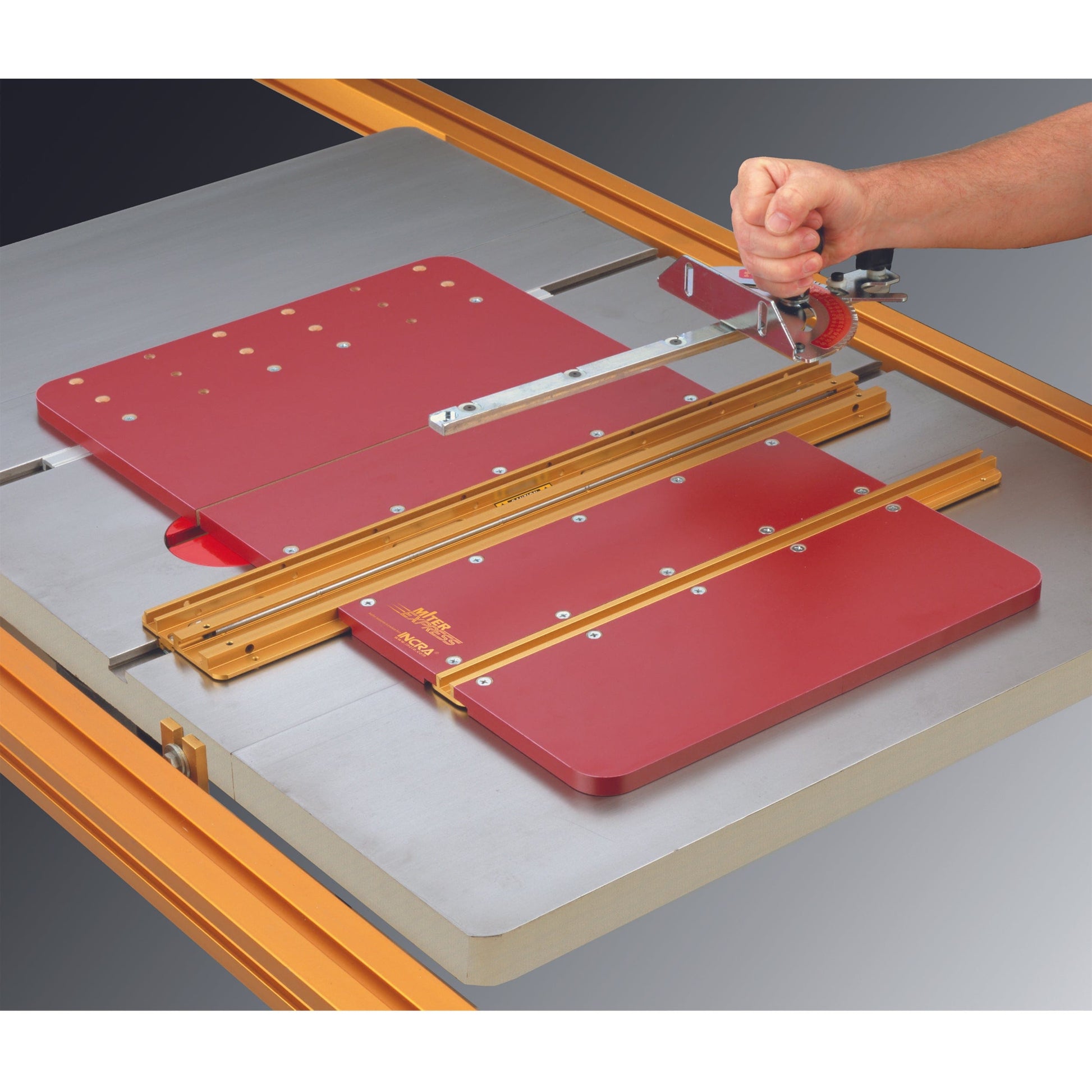

If you own a miter gauge – any miter gauge – you can turn it into a performance boosting miter sled in just a few seconds by simply docking it in place on top of this unique sled. The Incra® Miter Express is a sliding, miter-cutting platform that fully supports and controls your workpiece throughout the cut. Miter gauges drag your board across the table, a sled slides the workpiece giving more support and control creating better, more consistent cuts. The Miter Express is designed to let you instantly drop and lock your miter gauge into the sliding platform. Once docked, it stays put until you undock it to switch back to your regular miter gauge. The sled features a built in miter bar that is adjustable for zero side play tracking, so even if your old miter gauge is loose in the miter slot it becomes rock solid once it's locked into the Express. Other features include two embedded T-tracks to secure the included hold down clamp to anchor your workpiece, a locking drop panel that supports the offcut, and also provides zero clearance tear out control.

Features:

  • Doubles any miter gauge's crosscut capacity to 24"
  • Provides zero clearance for safe and accurate cutting
  • "Dock and Lock" any Miter Gauge in seconds
  • Sled can be installed on either side of the blade

Specifications:

  • Miter Slot Size: The miter bar's adjustment range accommodates actual slot widths between 0.740" and 0.762" and is designed for 3/4" wide x 3/8" deep square-sided miter slots, with or without a 15/16" T-slot at the bottom
  • Miter Slot Spacing: The max distance between the miter slots is 14" center-to-center
  • Table Size: For adequate support to the sides, the Miter Express needs a minimum of 8" measuring from the left-hand miter slot outward to the left edge of the saw table if the main sled will be to the left of the blade, or at least 8" from the right-hand miter slot to the outer right edge of the saw

What's Included:

  • (1) Incra Miter Express

Note:

  • Miter gauge not included. Miter gauge shown in photo available separately.

Reviews

4 Reviews
Write a Review
  1. by on

    Incra Miter Express

    "Oh, so that's how you make really accurate miter cuts"...assembly was easy, thanks to really thorough instructions. Took me about 30 minutes. This sled is awesome. I've only made test cuts on it so far, but I am really impressed. I'm using it with the Wood River miter gauge which I also like a lot. I was going to make a miter sled, but this makes me glad I didn't. My new Sawstop Jobsite Pro table saw was already great, but now it's even better. Thanks Woodcraft Boise.

  2. by on

    Accuracy simplified.

    Typical Incra accuracy and reliability, it has taken my cross cut accuracy a step up.

  3. by on

    Incra precision

    Typical Incra precision, it lifted my cross cutting to a new level, consistent 90 degree cuts.

  4. by on

    Perfect accessory for my table saw

    I needed a sled for my contractor grade table saw. Since they are much smaller than a full size saw, I needed a smaller sled. I didn't want to spend a lot of time making one from scratch and have it end up probably not accurate, so I did my homework. There was only 1 obvious choice. the Incra Miter Express. It was small yet was customizable to fit my saw to a tee. All parts were clearly marked and the instructions were clear and accurate. Slides great and doubles as a zero clearance insert. Worked just like the Videos said it would. Today I attached the Incra 1000HD miter gauge and these two will probably never be separated again. This is without a doubt the best add-on to my saw I could ever hope to do. Thanks Woodcraft for having it in stock. You guys are going to make a pro out of me yet.
