Fuji Spray

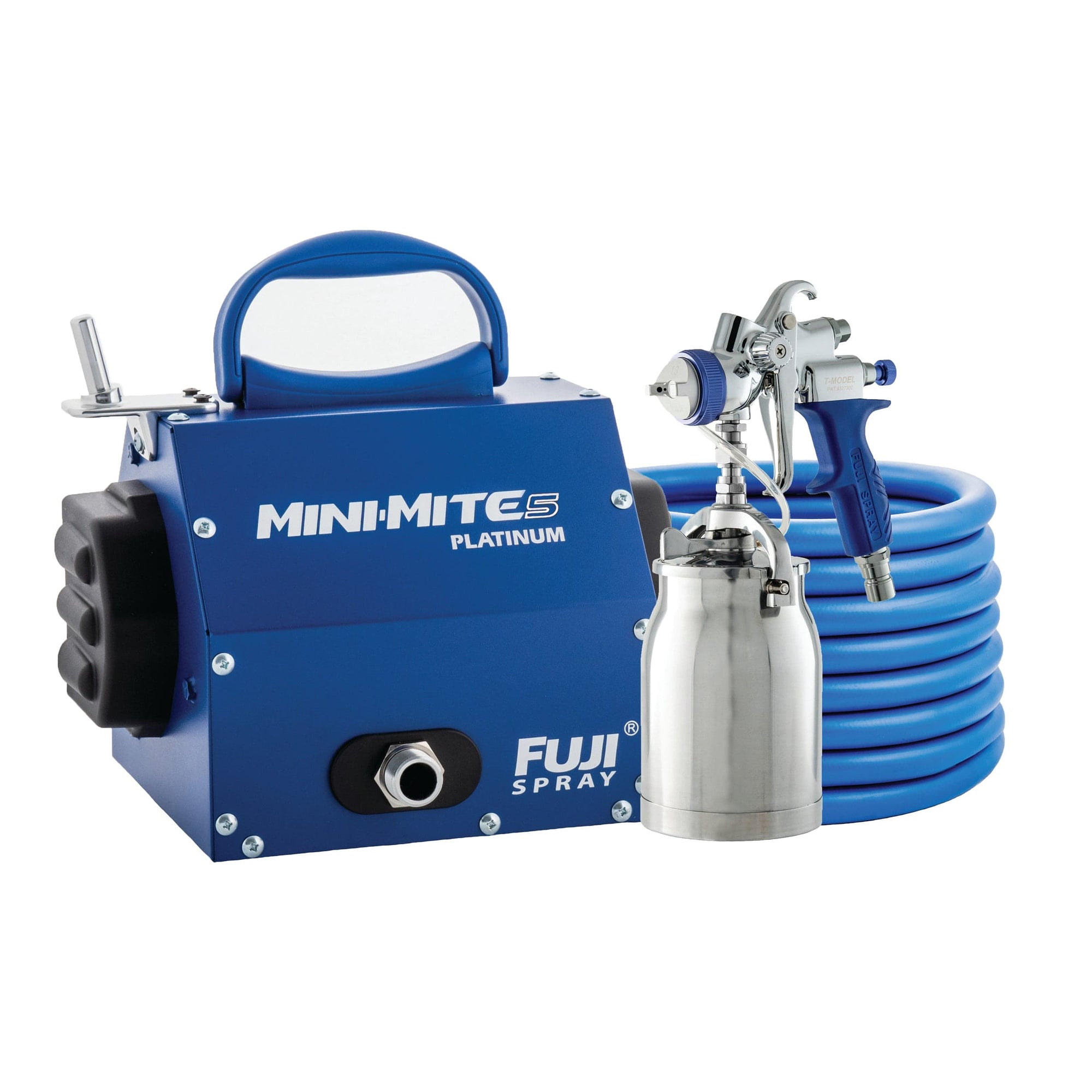

Mini-Mite 5 PLATINUM - T-70 System
Regular price
$1,199.00
Sale price
$1,199.00
Regular price
$1,199.00
Unit price
/
per
Fuji Spray
Mini-Mite 5 PLATINUM - T-70 System
Regular price
$1,199.00
Sale price
$1,199.00
Regular price
$1,199.00
Unit price
/
per
Professional woodworkers and cabinetmakers – we’ve got you covered! The award-winning Fuji Spray Mini-Mite PLATINUM™ Series packs enough power and por. . .
View More Details
Details
Professional woodworkers and cabinetmakers – we’ve got you covered! The award-winning Fuji Spray Mini-Mite PLATINUM™ Series packs enough power and portability to help you tackle your fine-finishing projects. With our revolutionary Mini-Mite 3 PLATINUM™, Mini-Mite 4 PLATINUM™, and Mini-Mite 5 PLATINUM™, you can use a range of high and low viscosity materials to spray virtually any substrate imaginable! Fuji Spray has designed a unique method of removing any heat build up from the turbine case. Excess heat is channeled through a Heat Dissipation Chamber™ (HDC) located at the rear of the case. Since the hot air is dissipated evenly through an optimum surface area of 60 holes, there is no added hiss or loud whistling noise. There is also no blowing around of debris. The benefits of a cooler running unit results in a longer life for your turbine motor compared to standard turbines.
Features:
- Rugged, lightweight, and portable metal turbine case
- Heat Dissipation Chamber™ – dissipates heat resulting in increased turbine motor life
- Noise Reduction Covers™ – muffles the operating level by removing direct sound paths; resulting in a quieter overall spray experience compared to previous models
- Handy gun-holder
- Quick-change filters
- Standard 25 ft Hi-Flex™ hose with quick-connect and air control valve
- U.S. Patented side-mounted Fan Pattern Control™ – unique to Fuji Spray, simply adjusts fan from circular to wide
- Three fan pattern orientations – horizontal, vertical, and circle
- Multiple air cap sizes ranging from 0.8mm to 2.5mm available for spraying of various materials in different viscosity levels from stains to paints with little or no dilution
- 2-year warranty on parts and labor
- 9.5 psi output
- 5-stage 110-120v volts (60 Hz) and 11.5 amps turbine motor
- T-Model™ Bottom Feed (1 Qt. cup capacity)
- Standard 1.3mm air cap set
- 2-year warranty on parts and labor
- Mini-Mite 5 Platinum Turbine
- 25 ft Hi-Flex™ with quick-connect and air control valve
- T-70 Bottom Feed Spray Gun
- User manual
- Ford #4 viscosity cup
- Spray gun wrench
- Cleaning brush
- 6’ whip hose
- 19 piece spray gun cleaning kit
- Extra turbine filters
- Wet film gauge
- “Always Measure Booklet”
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 5 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Return Information
Returns are accepted by Fuji Spray within 30 days of receipt. Return Materials Authorization (RMA) required prior to return. A 20% restocking fee will be applied. Customer responsible for return freight. Contact Woodcraft Customer Service for return assistance at 1-800-225-1153.
Warranty Information
Fuji Industrial Spray Equipment Ltd. (“Fuji Spray®”) provides a 24-month limited warranty on its products to the original purchaser effective from the date of purchase against defects in materials and workmanship. The warranty does not cover damage or defects arising as a result of abuse, misuse, accident, negligence, malfunction, corrosion, normal wear and tear, inadequate or lack of spray gun or other aspects of maintenance of the product, damage arising from improper assembly, installation or operation, or damage arising from the product being used for a purpose other than that for which it was designed or intended.
