Fuji Spray

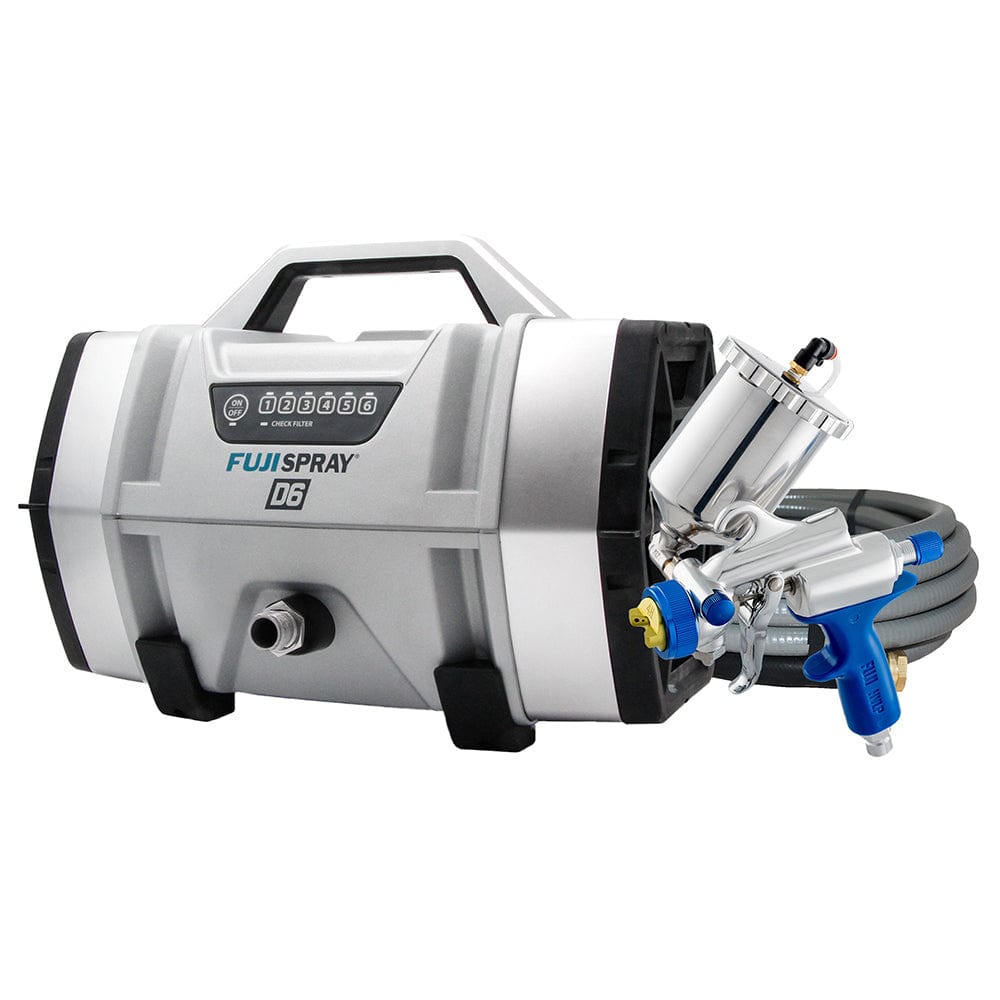

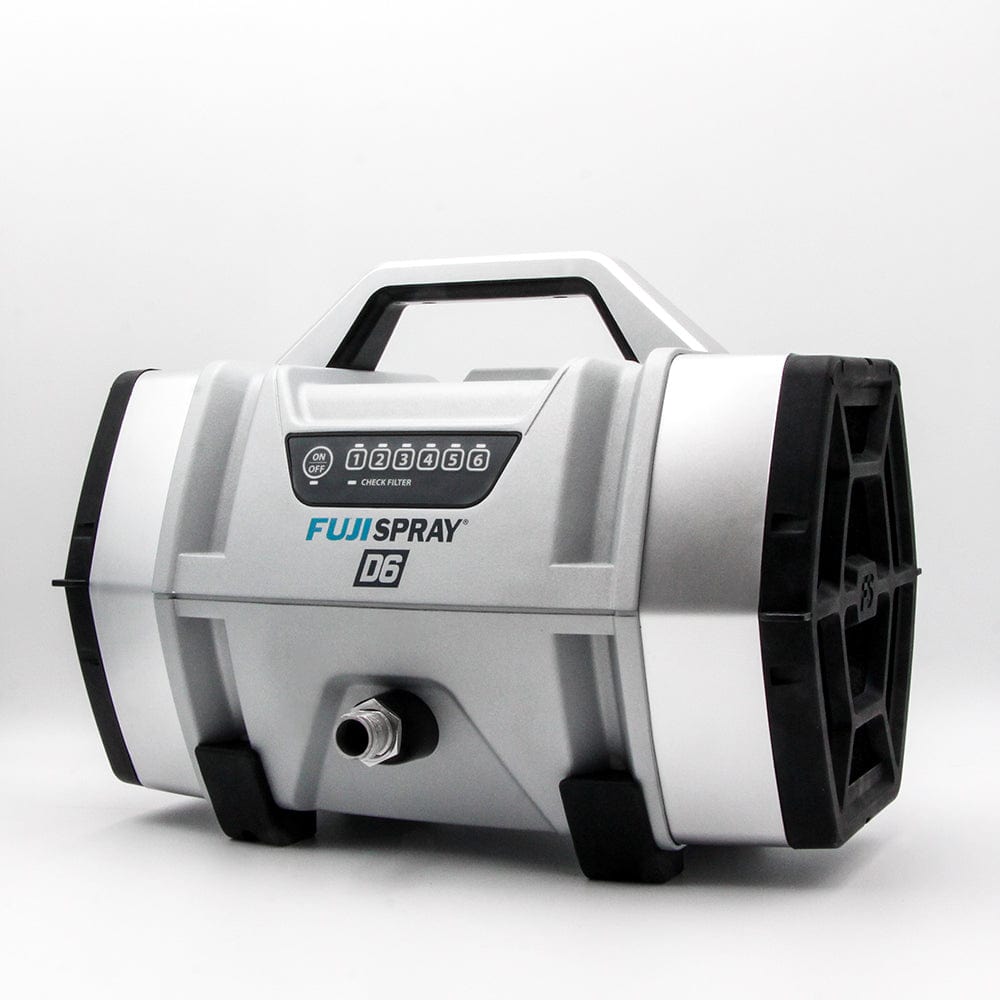

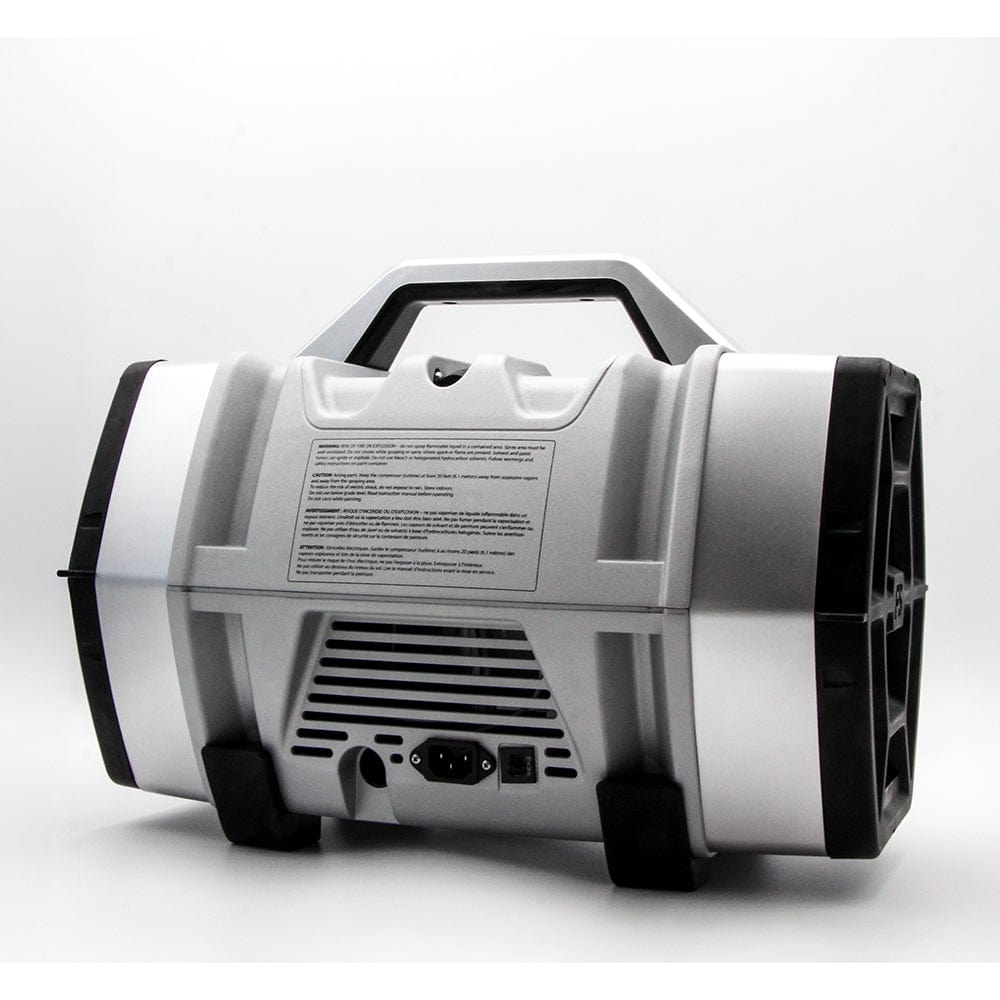

D6 System with GXPC Spray Gun

Item #195325 Model GXPC-4106
Regular price $2,289.00
Sale price $2,289.00 Regular price $2,289.00
Skip to product information
New
1 of 5

Fuji Spray

D6 System with GXPC Spray Gun

Item #195325 Model GXPC-4106
Regular price $2,289.00
Sale price $2,289.00 Regular price $2,289.00
Fuji Spray’s D6 sets a new benchmark in the spray finishing industry, offering a powerful 6-stage motor rated at 11. 5 PSI, engineered for efficient a. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

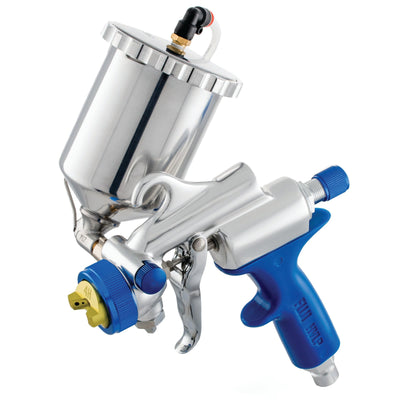

  • G-XPC Side-Mounted Gravity Feed Spray Gun - Blue - 1.4mm

    Regular price $389.00
    Sale price $389.00 Regular price $389.00
    G-XPC Side-Mounted Gravity Feed Spray Gun - Blue - 1.4mm alt 4

Details

Fuji Spray’s D6 sets a new benchmark in the spray finishing industry, offering a powerful 6-stage motor rated at 11.5 PSI, engineered for efficient and cooler operation to prolong motor life, and maximize return on investment. With 6 pre-set pressure settings, users gain precise control over spray output, ensuring professional-grade results with minimal overspray and waste. Providing consistently warm dry air, the D6 atomizes even the highest viscosity coatings with virtually no thinning required, achieving stunning finishes and even coverage. The D6 system is designed and assembled in North America, built with a rugged design to ensure unmatched longevity whether being used in the workshop or at the job site. D6 delivers the power to spray almost any coating undiluted, including lacquers, polyurethane, high viscosity paint and primers, and new 2K finishes.

Featured with a side-mounted pressurized 400cc gravity cup with stand and a with a swivel and set feature. The G-XPC easily allows the operator to spray in any direction, making it perfect for bathtub and countertop refinishing, cabinet casework, and elaborate bespoke furniture. With the G-XPC you have a full range of spraying right at your fingertips!

Some of the most sought after features of this spray gun is the exclusive side-mounted Fan Pattern Control™ to adjust the fan size, and the swivel and set cup. The G-XPC gravity spray gun is non-bleed, meaning that air passes through the spray gun only when the trigger is pulled, resulting in less turbulence in the spray area, less paint buildup on the tip of the fluid nozzle, and far less spray gun noise. All newer Fuji Spray® turbines are designed and built with a bleed-off inside the turbine to allow the use of any non-bleed spray gun.

Features:
  • 6 Stage Motor: Delivers exceptional power with a maximum PSI of 11.5. Allowing you to atomize virtually all coatings undiluted, ensuring even coverage and a stunning finish

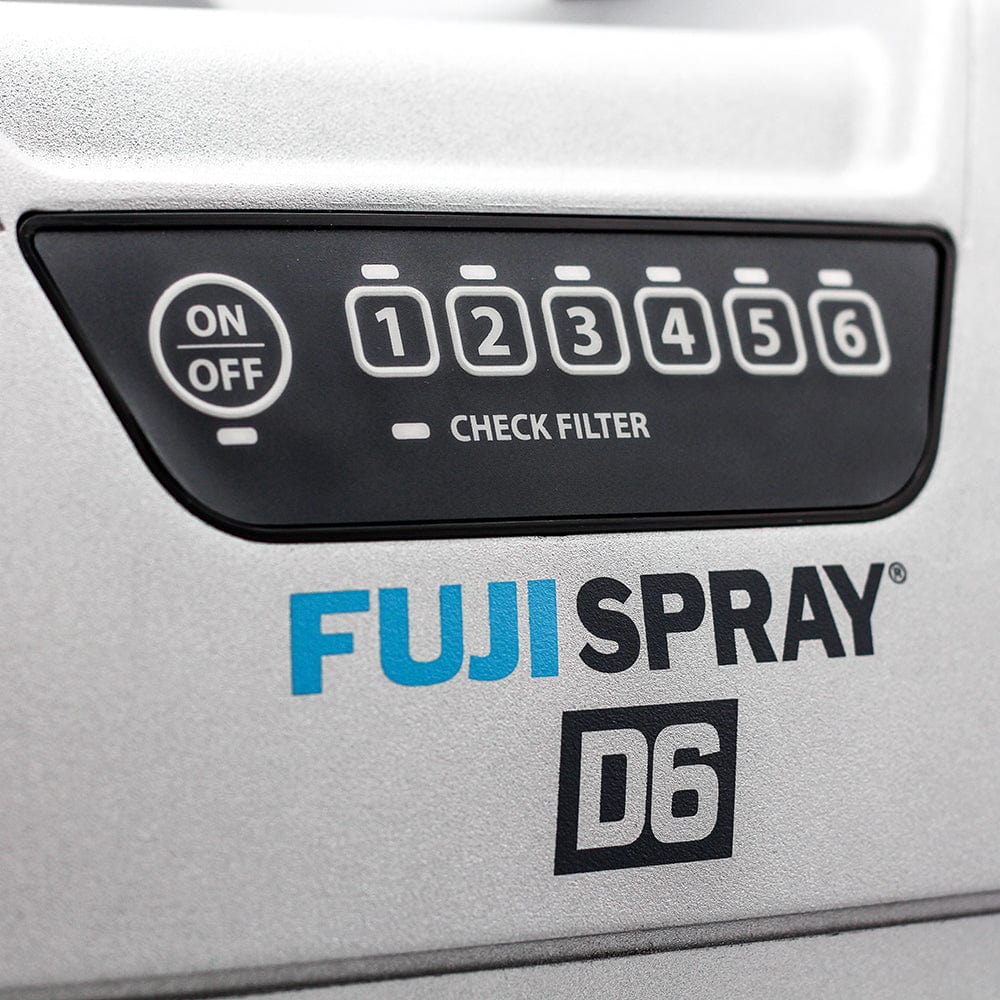

  • Smart Select Control Panel: Featuring an expertly calibrated control panel to easily dial in your desired air pressure at 6 different settings
  • Easy Pause Remote: Enhances efficiency by allowing you to pause and restart remotely, reducing interruptions and ensuring continuous operation at the desired setting
  • Cool Operation Design: Utilizes proprietary advanced bleeder box technology to maintain cooler operating temperatures, extending the lifespan of the motor without compromising performance
  • Improved Turbine Filtration with Check Filter Light: Fuji’s most advanced 2-stage turbine filtration system so you can confidently run clean and run cool
  • Fold Away Spray Gun Holder: Declutter your workspace and enhance your productivity. Designed to securely hold your HVLP spray gun during storage and effortlessly collapse onto your turbine when it’s time to spray
  • Versatile Applications: Whether you are an avid DIYer, professional woodworker, or onsite paint contractor, transform your finishing game with Fuji Spray’s most versatile HVLP spray system to date. Enjoy unmatched adaptability across a wide range of Fuji Spray products
Specifications:
  • Weight: 25.57 lbs. (11.6 kg)
  • Dimensions: 18 x 15 x 11 in. (45.7 x 38.1 x 27.9 cm)
  • Hose Length: 30 ft. (9.1 m)
  • Inside Hose Diameter: ¾ in. (1.9 cm)
  • Hose Connection Type: Turbine – Threaded/Spray Gun – Quick Connect
  • Case Material: Cast Aluminum & Plastic
  • Filtration Foam & HEPA (2-Stage)
  • Filter Style: Clip-In
  • Voltage: 110v or 220v
  • Power Source: DC
  • Ampere: 15A (220v Pending)
  • Motor Stage: 6-Stage
  • Variable Motor Speed (Y/N): Yes – Variable speed control panel
  • PSI (Sealed Pressure): Max 11.5 psi

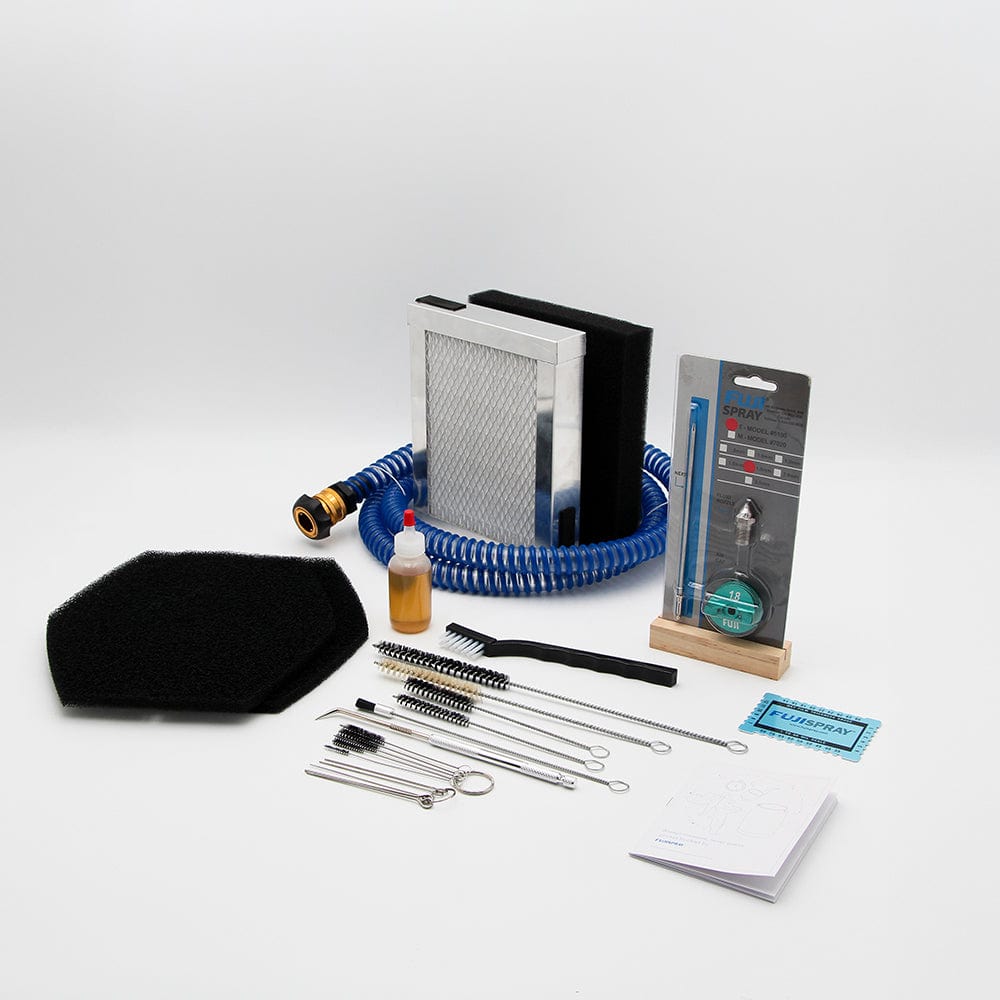

What's Included:
  • Fuji Spray D6 Turbine
  • GXPC Spray Gun, 1.3mm tip and User Manual
  • 400cc Gravity Cup Assembly
  • Viscosity Cup
  • Wrench
  • Cleaning Brush
  • 30ft Turbine Air Hose
  • Quick Connect & Air Control Valve
  • 6 for 6 Bonus Items
  • 2 + 1 Year Warranty
