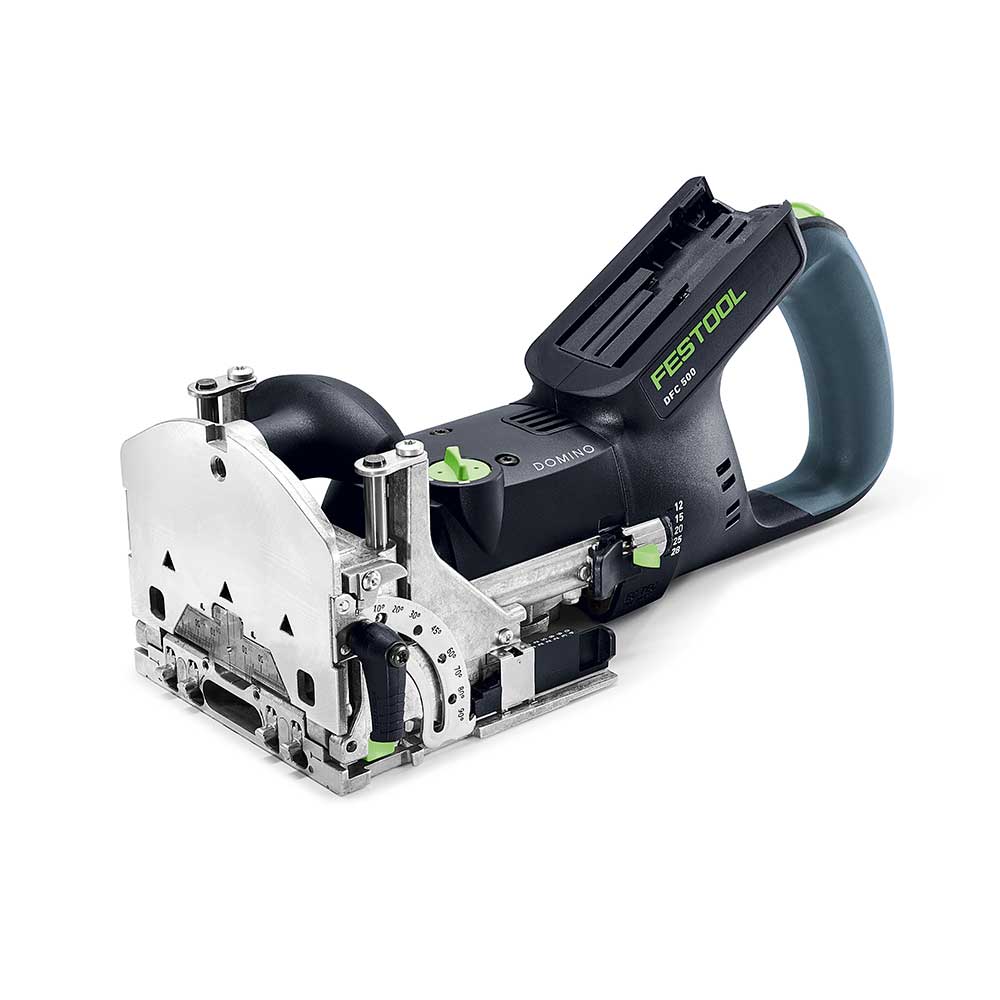

The Festool DFC 500 E Cordless DOMINO Joining Machine combines the strength of traditional mortise and tenon joinery with the speed and flexibility of modern loose‑tenon construction. Designed for woodworkers who rely on repeatable alignment and joint stability, it delivers consistent results without the restriction of a power cord.

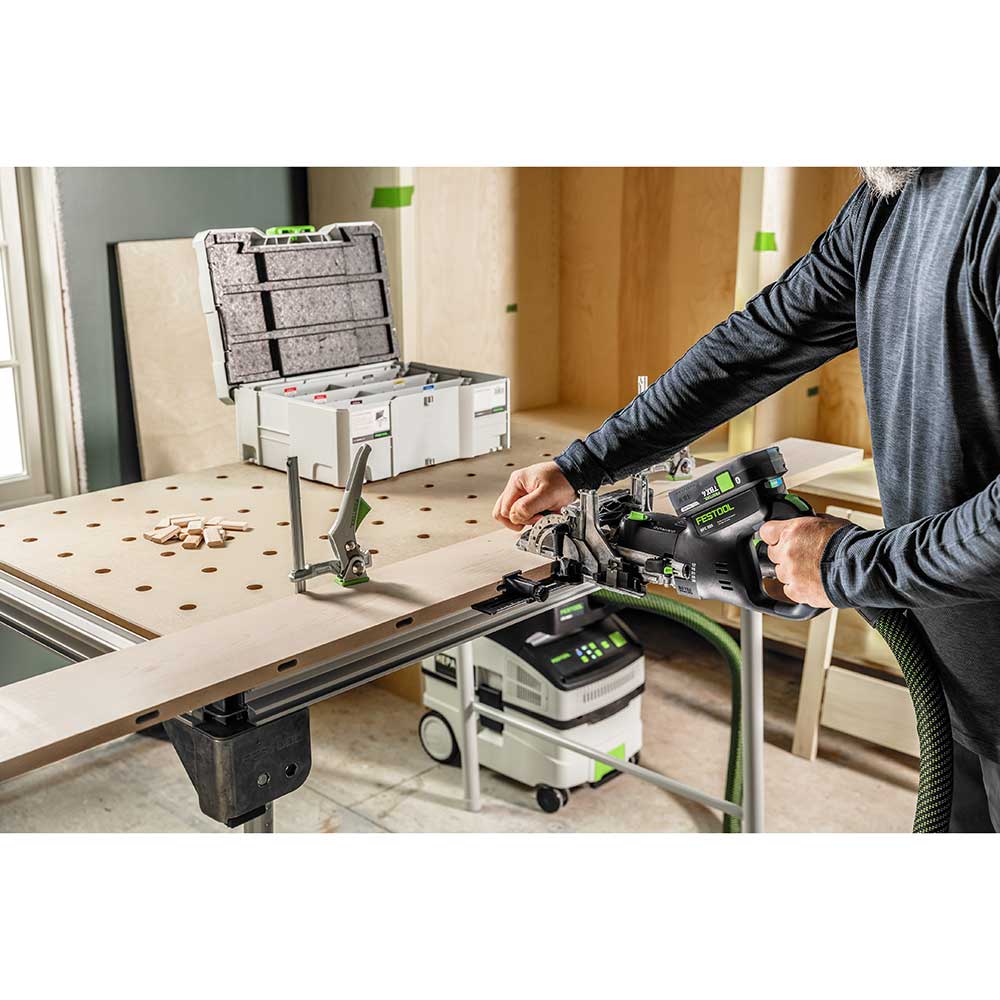

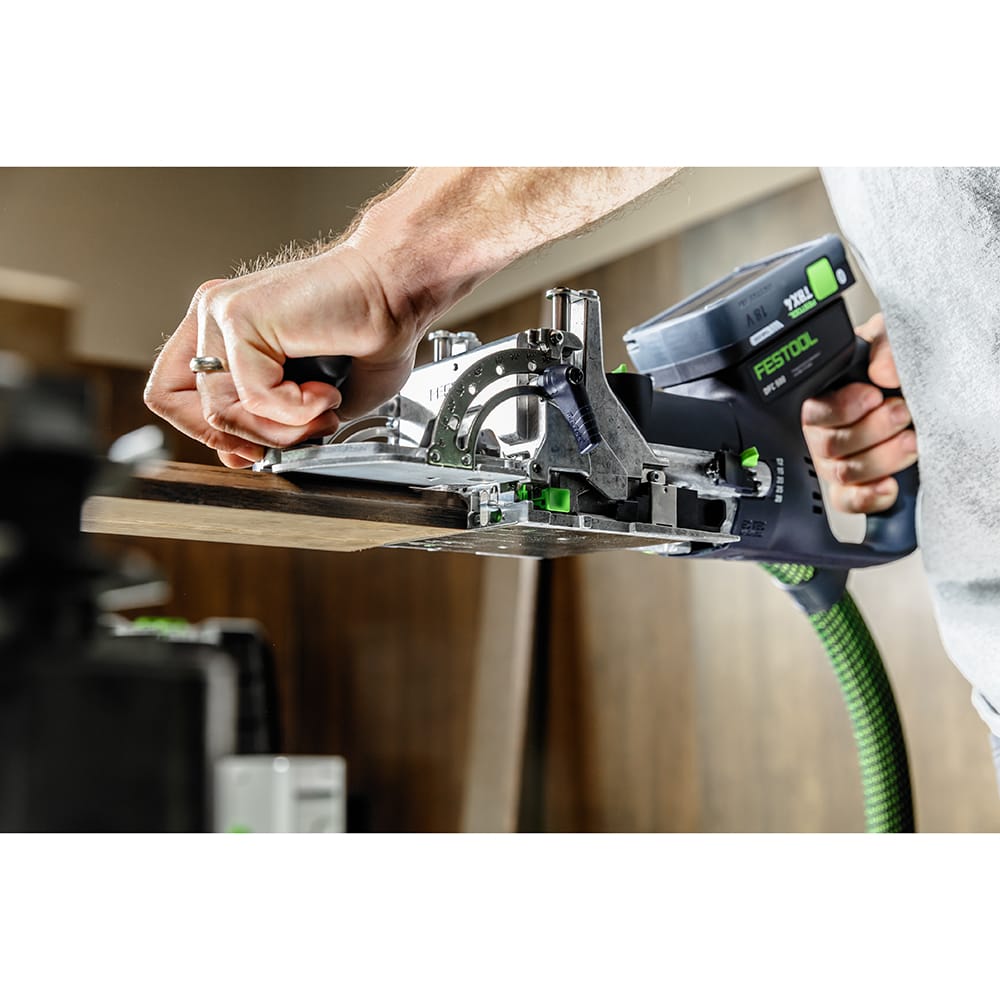

Its pendulum milling action cuts precise, elongated mortises that resist twisting and reduce alignment errors during assembly. This allows parts to register cleanly during glue‑up, improving fit and minimizing correction time. The cordless design supports uninterrupted movement between benches, large assemblies and on‑site work while maintaining the same joint accuracy expected from the DOMINO system.

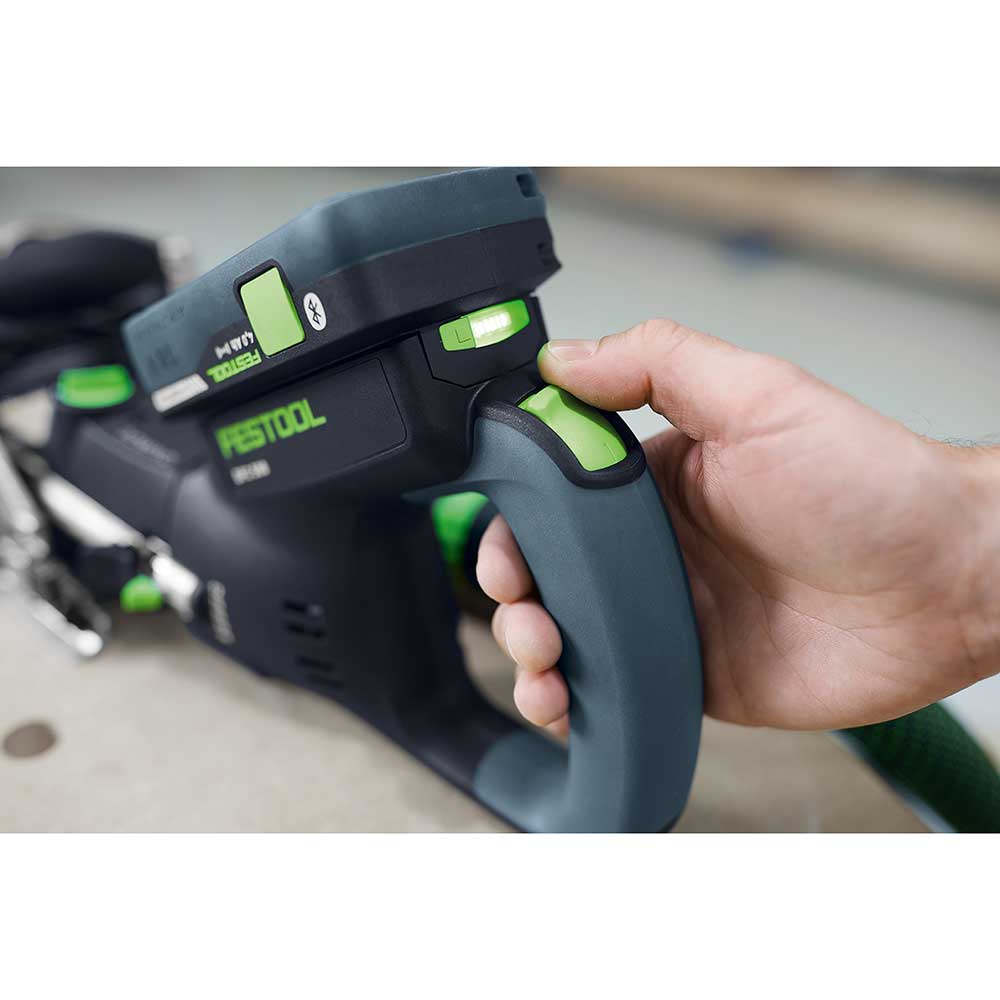

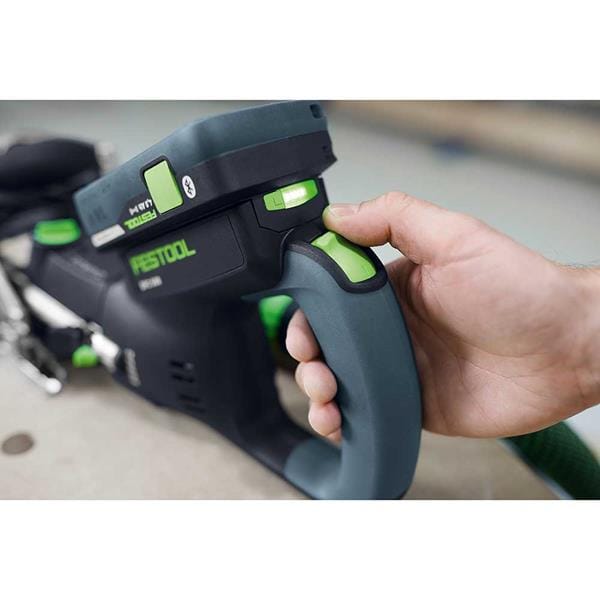

The ergonomic spade handle supports controlled plunging and helps reduce fatigue during repetitive routing. Integrated stop pins speed up layout for repeated dowel placement, while preset routing depths match DOMINO dowel lengths and common panel thicknesses. Compatibility with DOMINO connectors and fittings also allows for knock‑down furniture and removable joints when required.
Features:
- Cordless operation for unrestricted movement in the shop or on site
- Pendulum milling action produces precise, elongated mortises
- Spade handle supports controlled plunging and reduced hand strain
- Built‑in stop pins support fast, repeatable dowel placement
- Preset routing depths matched to DOMINO dowel lengths
- Supports DOMINO dowels for stable, twist‑resistant joints

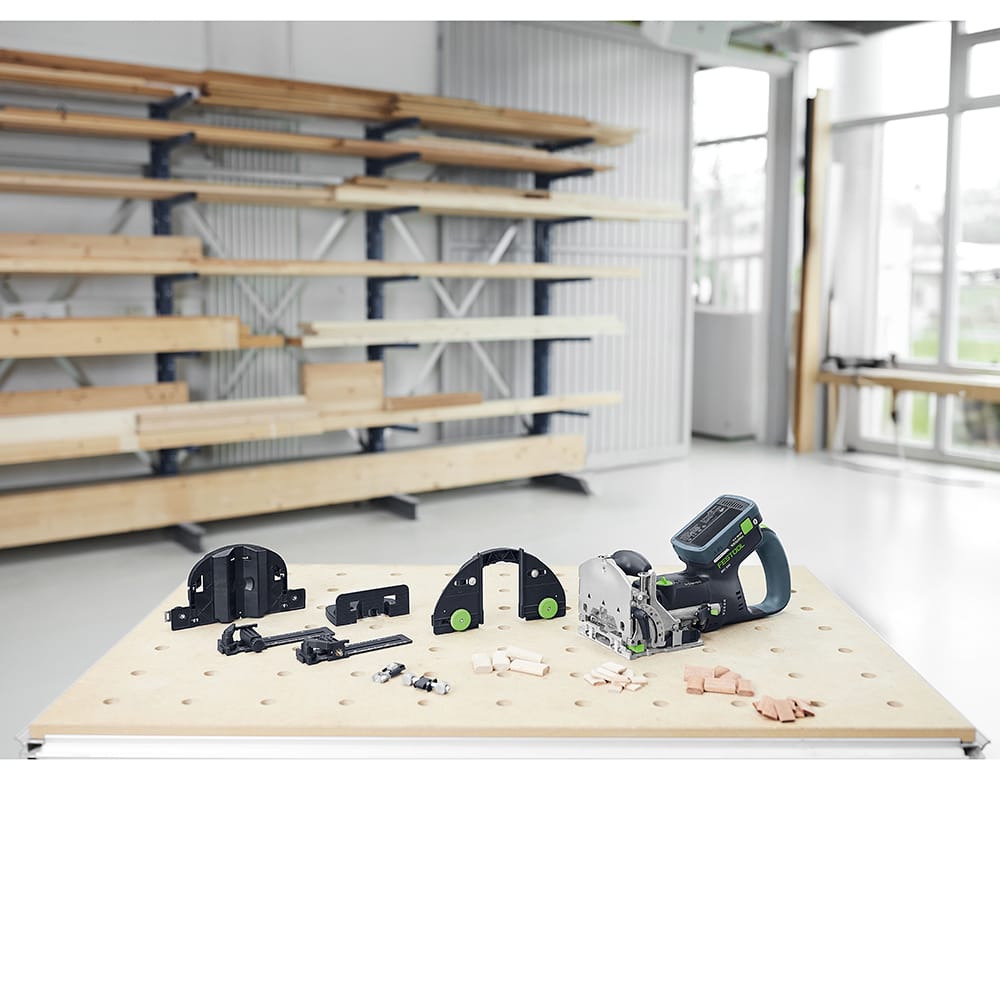

- Compatible with DOMINO connectors and system accessories
Specifications:
- Drive Type: Battery
- Battery Voltage: 18 V
- Idle Speed: 18,500 RPM
- Max. Routing Depth: 28 mm

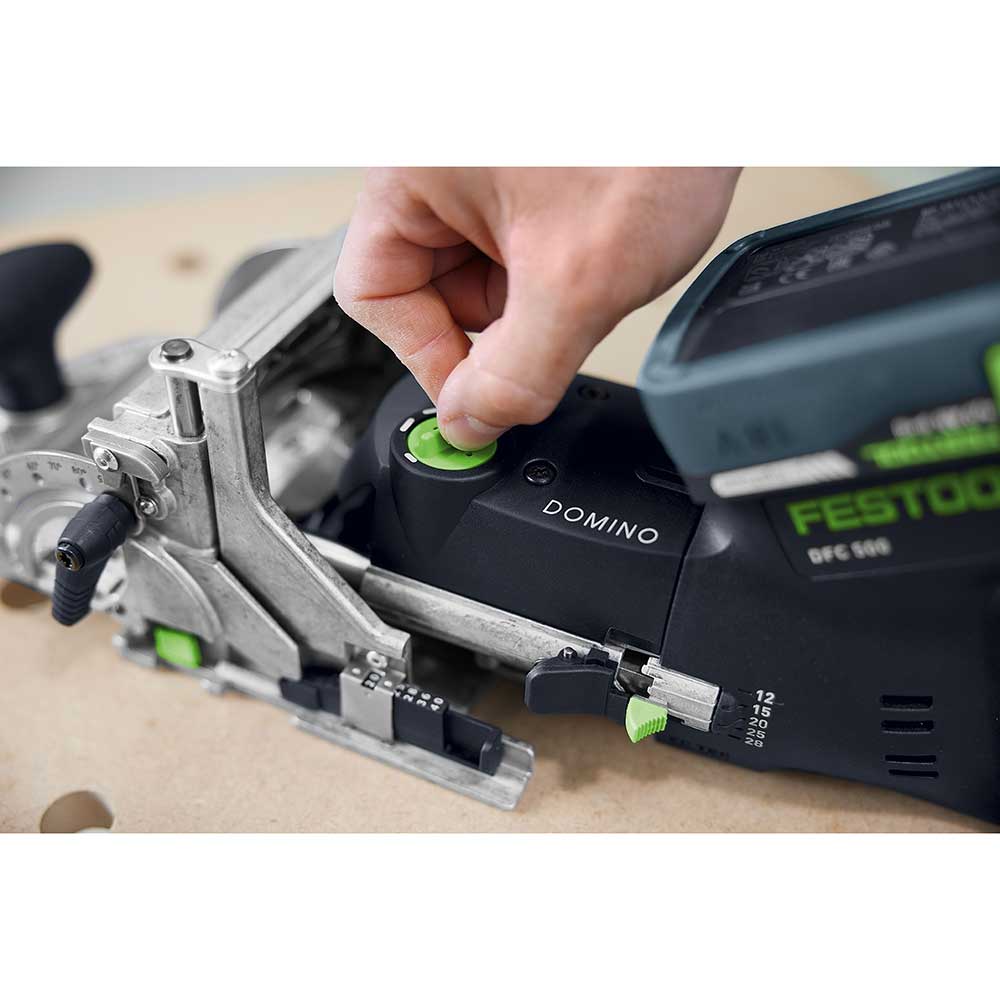

- Depth Stops: 12/15/20/25/28 mm
- Cutter Diameters: 4/5/6/8/10 mm
- Routing Height Adjustment: 5–30 mm
- Mitre Routing Range: 0–90°
- Dust Port Diameter: 27 mm
- Tool Weight (No Accessories): 3.40 kg
- Transport Weight (With Accessories): 6.00 kg
- Sound Pressure Level: 87 dB(A)
- Sound Power Level: 98 dB(A)
- Vibration Average: 2.50 m/s²
- Safety Standard: EN 60745‑2‑19
What's Included:
- (1) DOMINO Router DF 500
- (1) DOMINO Cutter D 5‑NL 20 HW‑DF 500
- (1) Additional Stop ZA‑DF 500/700
- (1) Open‑Ended Spanner WAF 8
- (1) Systainer³ SYS3 M 237
