DeWalt

2-1/4 HP Three Base Router Kit

Item #825513 Model DW618B3
Regular price $349.99
Sale price $349.99 Regular price $349.99
Skip to product information
1 of 1

DeWalt

2-1/4 HP Three Base Router Kit

Item #825513 Model DW618B3
Regular price $349.99
Sale price $349.99 Regular price $349.99
Perform nearly every routing operation you care to with this DeWalt® DW618B3 Three Base Router Kit. The 2-1/4 HP (maximum motor HP), 12A electroni. . . View More Details

Ships from Manufacturer

Shipping Info

Details

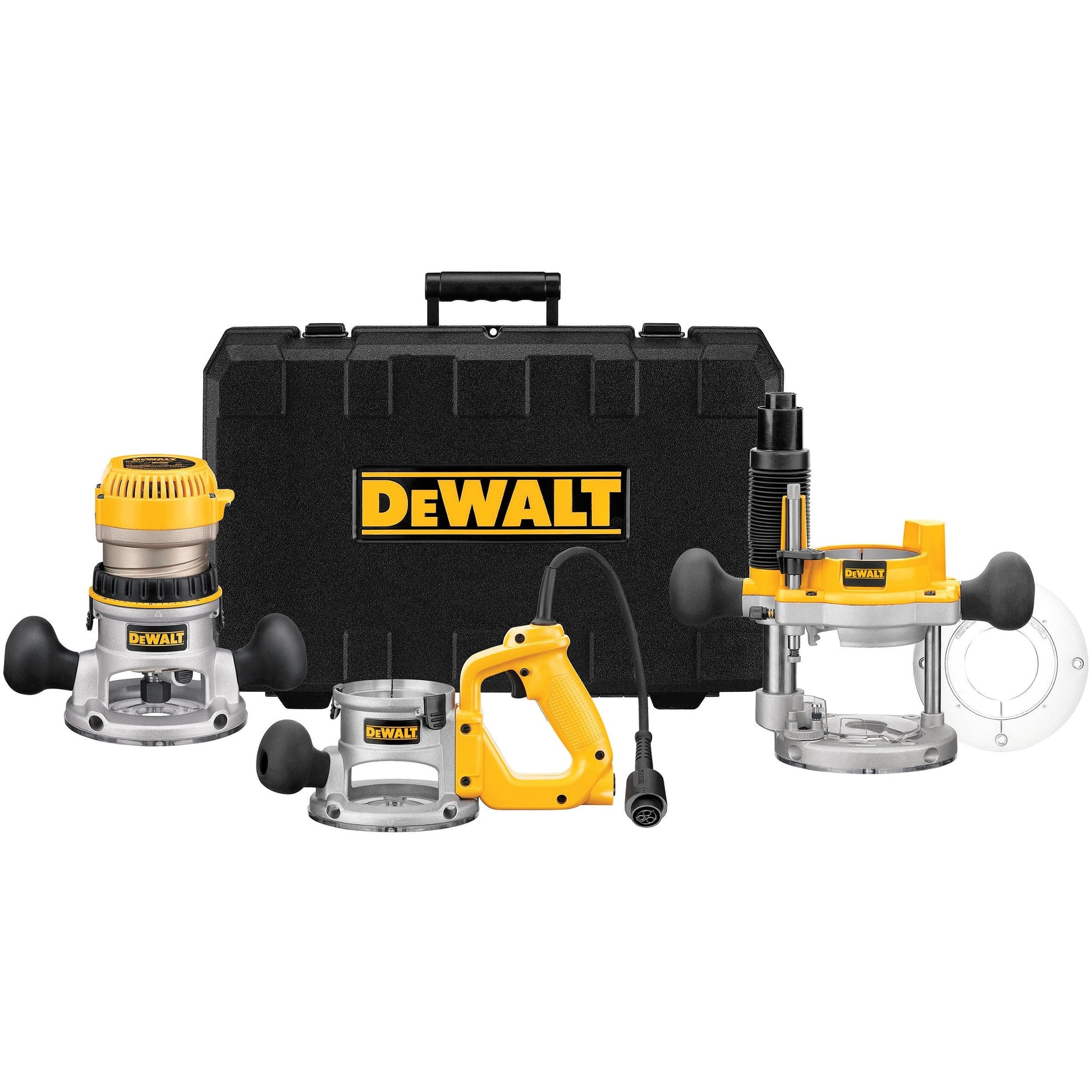

Perform nearly every routing operation you care to with this DeWalt® DW618B3 Three Base Router Kit. The 2-1/4 HP (maximum motor HP), 12A electronic variable speed motor provides the power to rout smoothly through the toughest hardwoods. Providing superior accuracy, the micro-fine depth adjustment ring provides precise depth adjustments in 1/64 in. increments and adjusts vertically for a constant switch/cordset location. Loaded with ease-of-use, comfort and convenience features for increased job productivity, this router has a heavy-duty, precision machined, die-cast aluminum base and motor housing for exceptional durability and low tool weight. Includes DW618M motor pack, DW6184 fixed base, DW6182 plunge base, DW6183 D-handle base, 1/4" and 1/2" collets, wrench, large hole sub base, vacuum adaptor, and kit box.

Features:


  • 2-1/4 HP (maximum motor HP), 12A electronic variable speed motor
  • Electronic variable speed with full feedback control for constant speed under load from 8,000-24,000 RPM and soft start to reduce start-up torque for enhanced control
  • D-handle incorporates trigger switch with lock-on feature micro-fine depth adjustment ring provides precise depth adjustments in 1/64" increments and adjusts vertically for a constant switch/cordset location
  • Adjustable, tool-free steel motor cam lock makes depth adjustment and base changes quick and solid-locking
  • Integral, through-the-column dust collection collects 95% of the dust and provides superior bit visibility
  • Quick release motor latches for fast and easy motor pack removal for bit and base changes
  • Detachable cordset offers cordset serviceability and removes the need for a "shorty" cord motor pack
  • Precision machined brass bushings and case-hardened steel guide rods provide a smooth and accurate plunge stroke
  • Spindle lock button allows for single-wrench bit changes
  • Clear, Lexan sub-base provides enhanced base durability, bit visibility, and accepts standard template guide bushings
  • Rubber overmolded handles and low center of gravity design provide best-in-class comfort, balance, and control
  • Dust-sealed switch protects against dust ingestion for longer switch life
  • Heavy-duty, precision machined, die-cast aluminum base and motor housing for durability and low tool weight
  • Nickel plated motor housing for a smooth, long-lasting depth adjustment
  • Right or left switch and cordset location provides the ability to have the switch in your right or left hand
  • Flat top for easy bit and depth changes
  • Self-releasing, long, eight slotted collets for better bit retention and elimination of frozen bits
  • Five position, adjustable turret stop assists in stepped or repeated plunge cuts
  • Micro-fine depth adjustment on plunge base 5/128" per turn for precise routing in veneer and inlays
  • Easy to reach plunge lever and switch for superior control while routing

Specifications:

  • Amps: 12A
  • Horsepower: 2-1/4 HP
  • No Load Speed: 8,000-24,000 RPM
  • Collet Diameter: 1/2", 1/4"
  • Plunge Stroke: 2-1/2"
  • Depth Stop: Micro-fine depth adjustment ring
  • Base Dimension: 6"
  • Spindle Lock
  • Tool Weight: 10.1 lb.
  • Shipping Weight: 23.6 lb.

What's Included:

  • (1) DW618M motor pack
  • (1) DW6184 fixed base
  • (1) DW6182 plunge base
  • (1) DW6183 D-handle base
  • (1) 1/4" collet
  • (1) 1/2" collet
  • (1) Wrench
  • (1) Large hole sub base
  • (1) Vacuum adaptor
  • (1) Kit box
