Dake

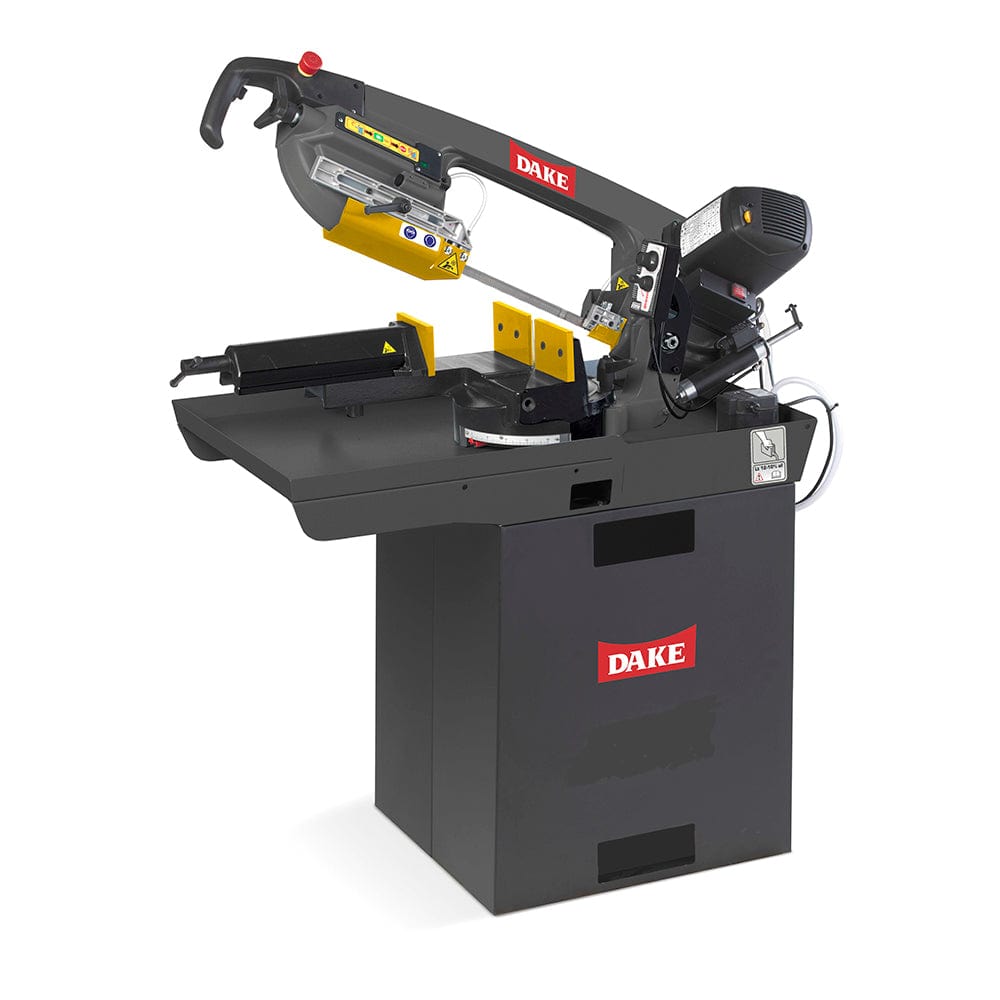

Hydraulic Controlled Feed 7" Horizontal Mitering Bandsaw- 120V 2.5 HP

Item #194337 Model D-983110
Regular price $3,495.00
Sale price $3,495.00 Regular price $3,495.00

This item has an additional shipping charge

Mitering bandsaw with dual operating modes and hydraulic controlled down feed. 2. 5HP, 120V motor with up to 60°right mitering capabilities. Ergonomic . . . View More Details

Ships from Manufacturer

Shipping Info

Details

Mitering bandsaw with dual operating modes and hydraulic controlled down feed. 2.5HP, 120V motor with up to 60°right mitering capabilities. Ergonomic design for operator’s comfort and control. Variable speed with rotary adjusting wheel and “Constant speed control” Maintains constant speed to prevent bog downs when cutting.

Features:
  • Hydraulic controlled down feed with manual return
  • Automatic shut off at the end of the cut
  • Dual operating modes, manual cutting or head feed cutting
  • Powerful, manual clamping vise, with quick release lever for rapid vise opening and closing action for fast material size change over. The vise clamps material firmly.
  • Ergonomic designed for operator’s comfort and control
  • Motor gearbox combination bolted to the bow for less vibration
  • Variable speed with rotary adjusting wheel and “Constant speed control” Maintains constant speed to prevent bog downs when cutting
  • CE Certified electronics. Low voltage switches. Thermo over load protection, low voltage protection with low voltage trigger motor start switch
  • Blade tensioning is done via. “Go No Go” tensioning system with LED taking the guess work out of tensioning. Saw will not run if blade tension is not correct
  • Miters up to 60° right. Mitering pre-sets with slide stops makes set up fast and has precise with miter scale for all angles in between. The head turns-the material doesn’t
  • Horizontally mounted guide arms for more rigidity and straightest cuts. Guides are rollers with carbide inserts that are fully adjustable and replaceable
  • Electric coolant pump and self-contained coolant system
  • 120 volt means you can use it most anywhere
  • Steel fabricated base, and stock stop gauge, one Bi-metal blade
Specifications:
  • Capacity: 6.5" Round
  • Horsepower: 2.5
  • Voltage: 120 V
  • Maximum Blade Speed: Variable
  • Blade Width: 3/4"
  • Blade Length: 84 1/4"
  • Blade Speed: 114-262 FPM
  • Solid Round 90˚ Capacity: 6.5"
  • Solid Round 45˚ Right Capacity: 4 1/4"
  • Solid Round 60˚ Right Capacity: 3"
  • Solid Square 90˚ Capacity: 6 3/4"
  • Solid Square 45˚ Right Capacity: 4 1/2"
  • Solid Square 60˚ Right Capacity: 3"
  • Solid Rectangle 90˚ Capacity: 7 3/4 x 3"
  • Solid Rectangle 45˚ Right Capacity: 6 x 4 1/4"
  • Solid Rectangle 60˚ Right Capacity: 4 x 2 3/4"
  • Worktable Height: 37"
  • Height: 65"
  • Floor Space: 35 x 48"
  • Floor Space Left to Right: 35 x 48"
  • Floor Space Front to Back: 35 x 48"
What's Included:
  • Steel base
  • Quick release vice
  • 120V Motor
