Dake

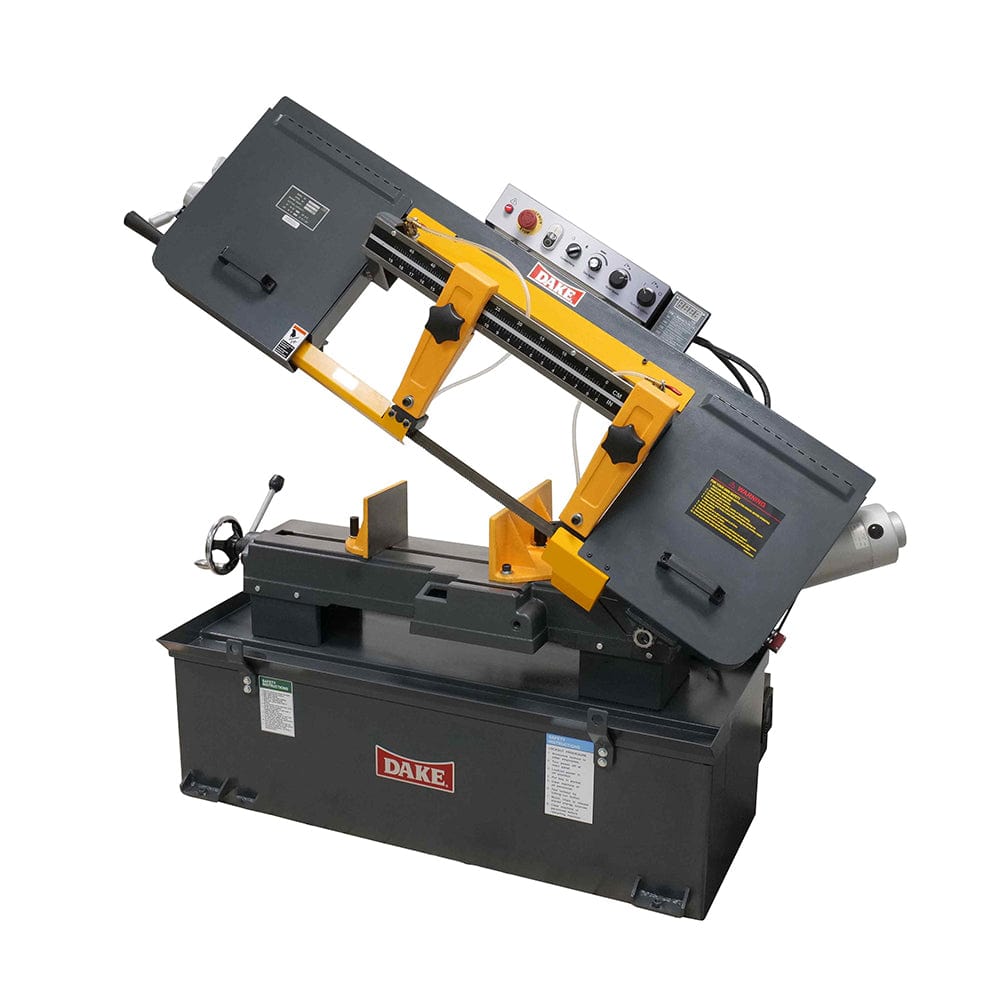

Horizontal Bandsaw 10" Rounds- 5 x 18" Flats - 220V 1 Ph
Dake
Horizontal Bandsaw 10" Rounds- 5 x 18" Flats - 220V 1 Ph
Details
Features:
- High torque DC motor w/ gear reducer eliminating belts and pulleys
- Variable speed dial – 65-260 fpm for on-the-fly adjustment
- Digital Tachometer
- Hydraulic controlled, gravity head feed, for hands free cutting. Hydraulically variable head feed control for regulation of head feeding rate. The machine automatically shuts off after the cut is complete
- Equipped with E-stop and restart protection
- Low voltage switches. Thermal overload protection, Magnetic starter switch low voltage protection
- Vise miters up to 45°
- Vise has quick release for quick change over of material sizes
- Equipped with auxiliary 120V outlet
- Capacity: 10" Rounds, 18" Flats
- Horsepower: 2 HP DC Motor
- Voltage: 220V, Single Phase
- Maximum Blade Speed: 65-260 fpm
- Blade Width: 1"
- Blade Length: 121.5"
- Blade Speeds: Variable Speed
- Solid Round 90˚ Capacity: 10"
- Solid Round 45˚ Right Capacity: 6"
- Solid Round 60˚ Right Capacity: n/a
- Solid Square 90˚ Capacity: 10"
- Solid Square 45˚ Right Capacity: 7"
- Solid Square 60˚ Right Capacity: n/a
- Solid Rectangle 90˚ Capacity: 5" x 18"
- Solid Rectangle 45˚ Right Capacity: 7" x 9"
- Solid Rectangle 60˚ Right Capacity: n/a
- Bed Work (area): 23" x 11"
- Weight: 22 1/2"
- Height: 45"
- Floor Space: 65" x 24"
- Floor Space Left to Right: 65"
- Floor Space Front to Back: 24"
- Floor to Bed: 22 1/2"
- Recirculating Coolant System
- Low Voltage Controls
- 6-8 TPI Standard Blade
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 7-21 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
- Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time at no charge to you.
Return Information
Warranty Information
New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.
For warranty repair information, call 1-800-332-4094.
