Dake

Floor Drill Press with 5/8" Drill Capacity- 110V 1 Ph

Item #194350 Model D-977200
Regular price $1,895.00
Sale price $1,895.00 Regular price $1,895.00

This item has an additional shipping charge

Skip to product information
New
1 of 1

Dake

Floor Drill Press with 5/8" Drill Capacity- 110V 1 Ph

Item #194350 Model D-977200
Regular price $1,895.00
Sale price $1,895.00 Regular price $1,895.00

This item has an additional shipping charge

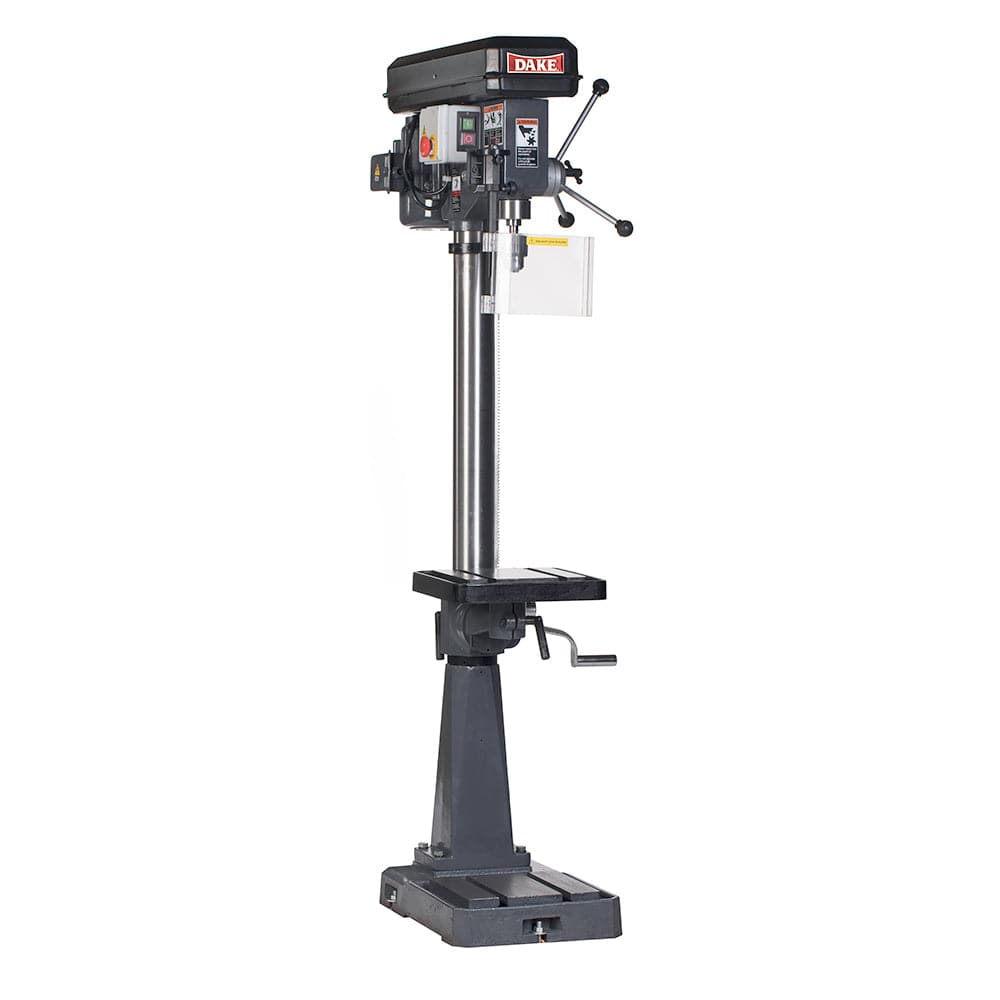

Floor model drill press featuring a locking handle hub, CE safety electrical package, a large diameter sturdy spindle, and massive cast head. Capable . . . View More Details

Ships from Manufacturer

Shipping Info

Details

Floor model drill press featuring a locking handle hub, CE safety electrical package, a large diameter sturdy spindle, and massive cast head. Capable of quick bit changes and quick belt tension release for easy speed changes.

Features:
  • A locking handle hub with convenient dial-in adjustment and an easy to read scale for fast, accurate, and repeatable depth setting changes
  • Large diameter sturdy spindle for rigid drilling has four bearing points for smooth operation
  • Bench and floor models both have machined table and base surfaces with t-slots for mounting and fixturing
  • Quick release belt tensioning for fast, easy speed changes
  • CE safety electrical package features push button on/off switch, emergency stop button, low voltage controls, thermal overload, and interlock safety switch for belt cover
  • Massive cast head, machined column, and sturdy cast base reduces vibration
  • Quick bit changes with standard Morse Taper (MT), common adaptors or standard keyed chuck
  • Handle has 3 spokes with spring return for precise operator control and ergonomic operation
Specifications:
  • Drill Capacity: 1”
  • Horsepower: 2
  • Motor: 110V, Single Phase
  • Spindle Taper: MT3
  • Working Diameter: 18”
  • Number of Speeds: 9
  • Spindle Speed Range: 270-2,000 rpm
  • Electrics: CE 220/440-volt
  • Weight: 397 lbs
  • Spindle Travel: 5”
  • Column Diameter: 3-5/8”
  • Table Depth: 13-3/4”
  • Table Width: 13-3/4”
  • Base Depth: 23-5/8”
  • Base Width: 15”
  • Spindle to Table: 28-3/8”
  • Spindle to Base: 50”
  • Overall Height: 71”
What's Included:
  • 5/8” Keyed chuck
  • Drift for bit removal
  • Plexiglas chip and chuck guard
