Dake

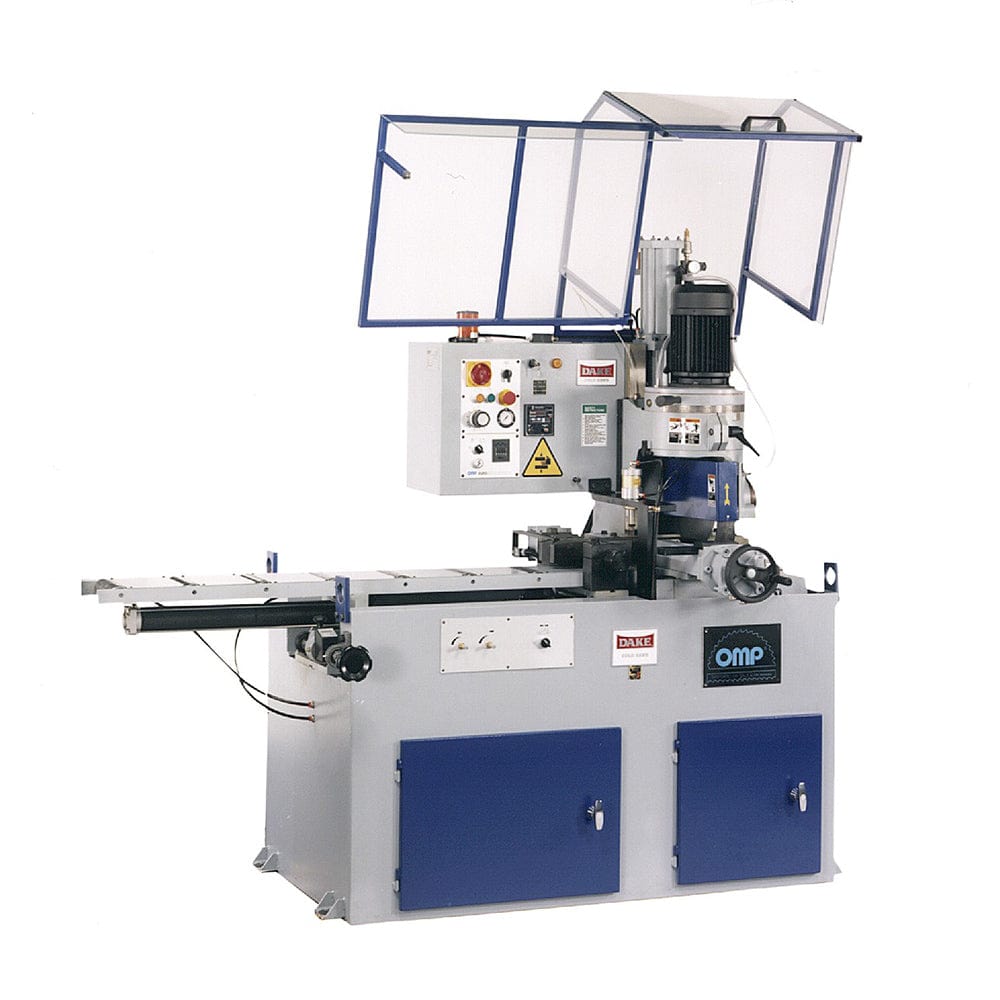

Automatic Cold Saw with Non-Ferrous Head- 220V 3 Ph

Item #194363 Model D-976210
Regular price $52,995.00
Sale price $52,995.00 Regular price $52,995.00

This item has an additional shipping charge

Skip to product information
New
1 of 1

Dake

Automatic Cold Saw with Non-Ferrous Head- 220V 3 Ph

Item #194363 Model D-976210
Regular price $52,995.00
Sale price $52,995.00 Regular price $52,995.00

This item has an additional shipping charge

The 370PP-L Non-Ferrous Automatic Cold Saw is user-friendly while offering aggressive precision and stamina. Featuring two removable surface wear plat. . . View More Details

Ships from Manufacturer

Shipping Info

Purchase Note: This machine requires 3-phase power. Most residential power is single or 1-phase. Verify your power requirements before ordering.

Details

The 370PP-L Non-Ferrous Automatic Cold Saw is user-friendly while offering aggressive precision and stamina. Featuring two removable surface wear plates, a head that rotates 45º right of center.

Features:
  • Head rotates 45º right of center for miter cutting
  • Table features two removable surface wear plates to support longer cut lengths
  • Three gib guides for the cutting head with two adjustable cast iron gib blocks in each for increased cutting accuracy and easy adjustment
  • Rear surface of the gearbox is machined with interlocking circles to evenly distribute oil over the ways
  • Large automatic clamping vise features adjustable gib guides, removable face plates, and an anti-burr arm
  • Minimum 6" remnant drop piece size for maximum material use
  • Outboard section of the table is designed so shorter lengths tumble down a mesh discharge chute
  • Manual oiler to lubricate 1" thick, hardened ways
  • 3.5/4.5 HP motor has the muscle to drive a 14-1/2" or 12" blade quickly and quietly through solids
  • Clear acrylic hood has shock assists for raising and lowering and electrical interlocks
  • Swap cutting head to gain non-ferrous/ferrous option on same saw
Specifications:
  • Voltage: 220V
  • Horsepower: 3.5/4.5
  • Cutting Ability: Non-Ferrous/Plastic
  • Maximum Blade Diameter 14-1/2”
  • Maximum Vise Opening: 8-1/4”
  • Maximum Feed Vise Opening: 6-1/2”
  • Maximum Angle: 45° left
  • Slotting: No
  • Phase: 3
  • Speeds: 1500/3000 rpm
  • Weight: 1,716 lbs
  • Solid Round 90˚ Capacity: 4”
  • Solid Round 45˚ Capacity: 3-5/8”
  • Tube 90˚ Capacity: 5-1/16”
  • Tube 45˚ Capacity: 5”
  • Square 90˚ Capacity: 4”
  • Square 45˚ Capacity: 3-7/8”
  • Rectangle 90˚ Capacity: 4” x 7”
  • Rectangle 45˚ Capacity: 4” x 6”
  • Work Height: 35”
  • Height: 90”
  • Width: 83”
  • Depth: 54”
  • 440V model requires step-down transformer for operation (part number: 300674) Sold Separately
What's Included:
  • Blade
  • Coolant
  • Saw blade selector calculator
  • Tools kit for changing blades
  • Instruction and service manual

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 7-21 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
  • Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time at no charge to you.

Return Information

Laguna does not accept returns. If your shipment was damaged, please refuse delivery, for defective items, please contact Woodcraft Supply customer service @ 1-800-535-4482.

Warranty Information

New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.

For warranty repair information, call 1-800-332-4094.
