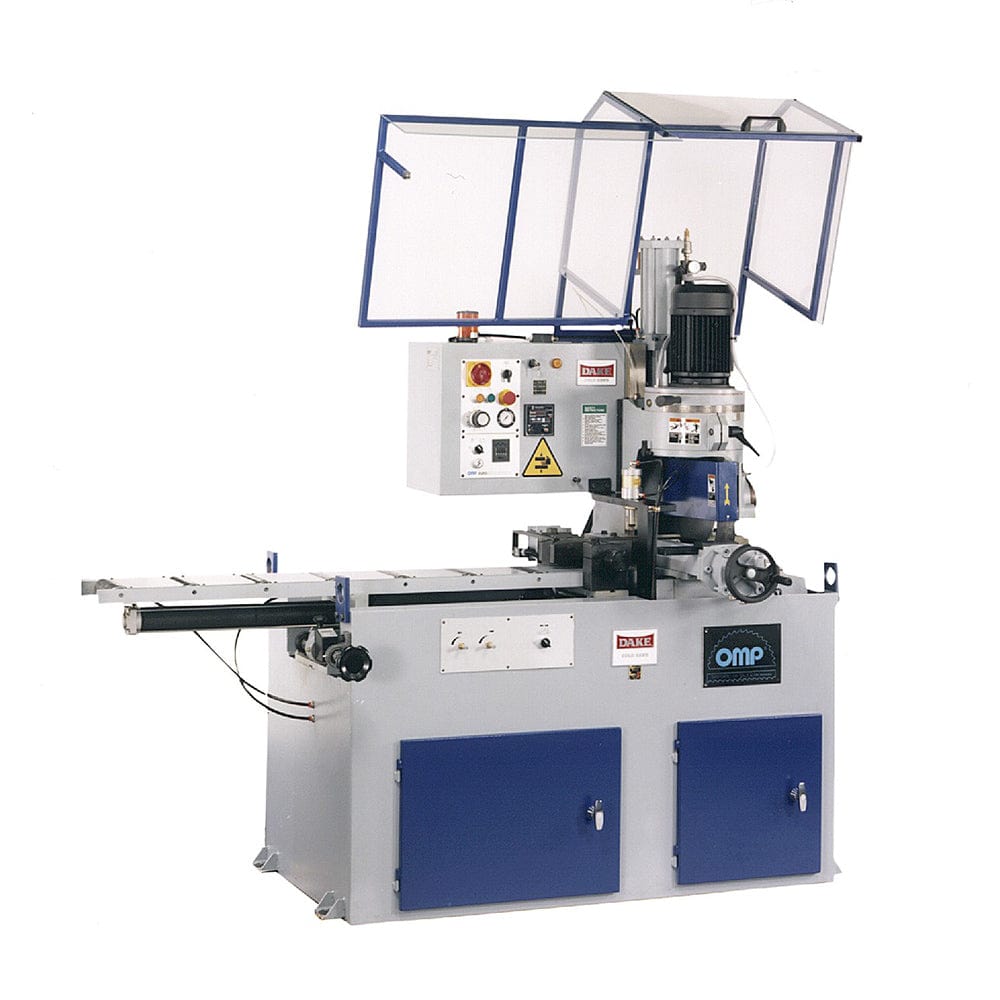

Automatic Cold Saw with Ferrous Head- 220V 3 Ph
This item has an additional shipping charge
Dake
Automatic Cold Saw with Ferrous Head- 220V 3 Ph
This item has an additional shipping charge
Purchase Note: This machine requires 3-phase power. Most residential power is single or 1-phase. Verify your power requirements before ordering.
Details
Features:
- Head rotates 45º right of center for miter cutting and up to 90º left of center for miter cutting and slotting
- Table features two removable surface wear plates to support longer cut lengths
- Three gib guides for the cutting head with two adjustable cast iron gib blocks in each for increased cutting accuracy and easy adjustment
- Large automatic clamping vise features adjustable gib guides, removable face plates, and an anti-burr arm
- Minimum 6" remnant drop piece size for maximum material use
- Outboard section of the table is designed so shorter lengths tumble down a mesh discharge chute
- Manual oiler to lubricate 1" thick, hardened ways
- 3.5/4.5 HP motor has the muscle to drive a 14-1/2" or 12" blade quickly and quietly through solids
- Clear acrylic hood has shock assists for raising and lowering and electrical interlocks
- Swap cutting head to gain non-ferrous/ferrous option on same saw
- Voltage: 220V
- Horsepower: 3.5/4.5
- Cutting Ability: Ferrous / Non-ferrous / Plastic
- Maximum Blade Diameter: 14-1/2”
- Maximum Vise Opening: 8-1/4 ”
- Maximum Feed Vise Opening: 6-1/2”
- Maximum Angle: 45° Left / 90° Right
- Slotting: Yes
- Phase: 3
- Speeds: 25/50 rpm
- Weight: 1,716 lbs
- Solid Round 90˚ Capacity: 4”
- Solid Round 45˚ Capacity: 3-5/8”
- Tube 90˚ Capacity: 5-1/16”
- Tube 45˚ Capacity: 5”
- Square 90˚ Capacity: 4”
- Square 45˚ Capacity: 3-7/8”
- Rectangle 90˚ Capacity: 4” x 7”
- Rectangle 45˚ Capacity: 4” x 6”
- Work Height: 35”
- Height: 90”
- Width: 83”
- Depth: 54”
- 440V model requires step-down transformer for operation (part number: 300674) Sold Separately
- Blade
- Coolant
- Saw blade selector calculator
- Tools kit for changing blades
- Instruction and service manual
