Dake

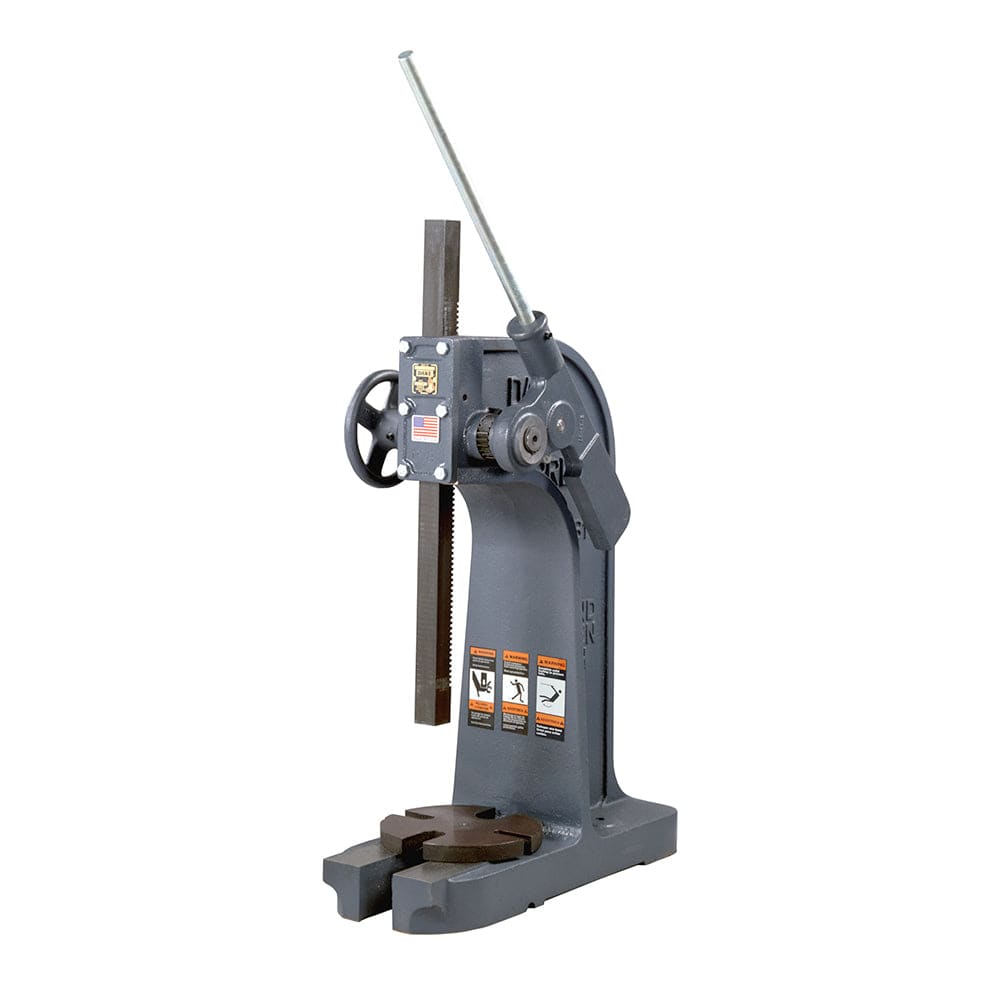

Broaching Ratchet Leverage Press - Model 1-1/2B - 3-Ton

Item #194314 Model D-902002
$ 1,910 00
$ 1,910 00 Was $1,910.00
  • 3-Ton Broaching Ratchet Leverage Press
1 1

Dake

Broaching Ratchet Leverage Press - Model 1-1/2B - 3-Ton

Item #194314 Model D-902002
$ 1,910 00
$ 1,910 00 Was $1,910.00
The Dake Broaching Ratchet Leverage Press - Model 1-1/2B - 3-Ton offers exceptional performance with its 3-Ton capacity, designed to meet the demands . . . View More Details
Ships from Manufacturer Shipping Info
Items you may need

  • Dry Longlife Automatic Pencil

    $ 16 99
    $ 16 99 Was $16.99
    Dry Longlife Automatic Pencil alt 0

  • Cappture Safety Glasses - Over the Glasses Fit

    $ 9 59
    $ 9 59 Was $15.99 Save $6.40 (40% off)
    Cappture Safety Glasses - Over the Glasses Fit alt 0

  • 12-Pocket Tool Apron - 16 oz Waxed Canvas - 26-1/2" Length

    $ 64 99
    $ 64 99 Was $64.99
    Tool Apron alt 0

  • General Utility Mens Gloves, Coyote, Medium

    $ 18 99
    $ 18 99 Was $18.99
    General Utility Mens Gloves, Coyote, Medium alt 0

  • F1 Dust Mask Filter (M)

    $ 6 00
    $ 6 00 Was $9.99 Save $3.99 (39% off)
    F1 Dust Mask Filter (M) alt 0

  • Stealth 28 Hearing Protectors

    $ 64 99
    $ 64 99 Was $64.99
    Stealth 28 Hearing Protectors alt 0

Details

The Dake Broaching Ratchet Leverage Press - Model 1-1/2B - 3-Ton offers exceptional performance with its 3-Ton capacity, designed to meet the demands of precise broaching, metalworking, and heavy-duty pressing tasks. With a robust, industrial-grade design, this press combines smooth ratchet leverage with high power, allowing you to achieve accurate results with minimal effort. This 3 ton ratchet lever arbor press is designed for broaching. An optional pedestal is available.


Features:



  • Ratchet device permits lever to be used in most convenient position
  • Counterweight returns lever quickly after downstroke
  • Handwheel advanced ram to work quickly


Specifications:



  • Capacity: 3 tons
  • Leverage Ratio: 48:01:00
  • Ram Size: 1-1/4” x 1-1/4” x 24-1/2”
  • Maximum Diameter Work: 14”
  • Throat: 7”
  • Largest Arbor: 2”
  • Maximum Ram to Table: n/a
  • Minimum Ram to Table: n/a
  • Capacity Over Table: 18-1/4”
  • Capacity Over Table Plate: 17-1/2”
  • Base Length: 21”
  • Base Width: 8-1/4”
  • Height: 28”
  • Weight: 196 lbs


What's Included:



  • Cast Iron Base
  • Handwheel
  • Ram
  • Notched Table Plate
  • Counter weight
